LH162R-SRMRS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

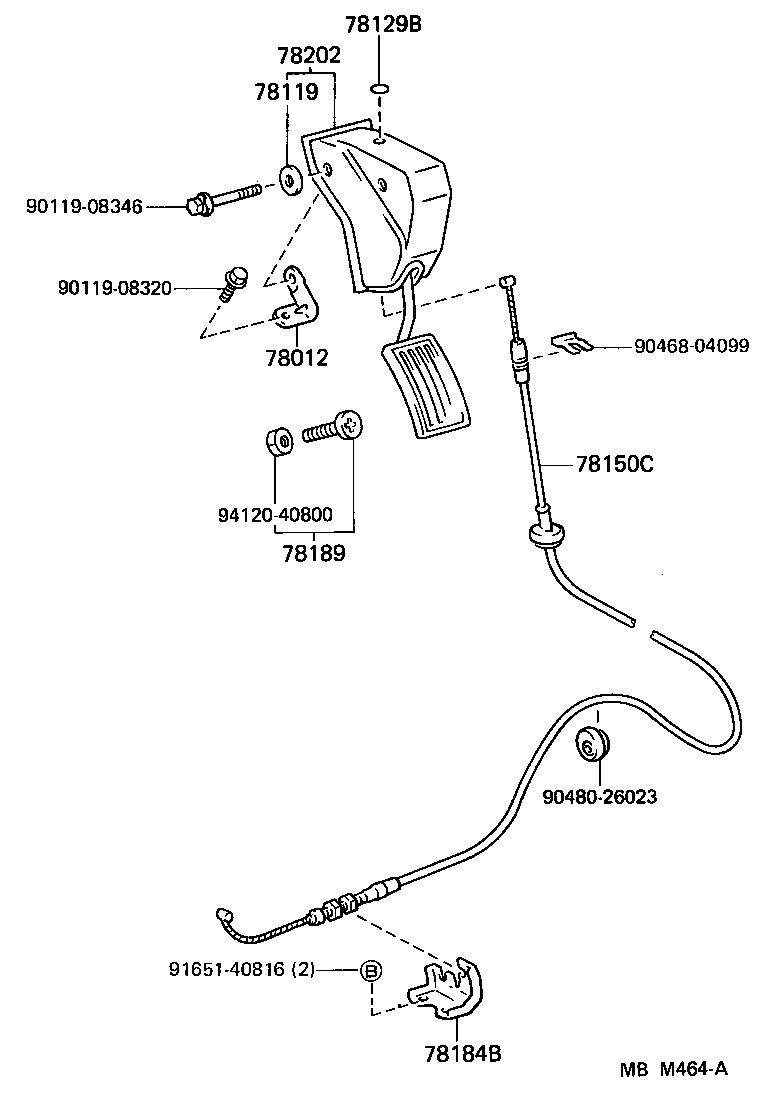

(8708- )YH5#,6#,73..RHD

Click highlighted areas on diagram

diagram 78012 78119 78129B 78150C 78184B 78189 78202 9011908320 9011908346 9046804099 9048026023 9165140816 9412040800
Part # Description Qty Price
Common parts
90119-08320
90119-08346
90468-04099
90480-26023
91651-40816
94120-40800

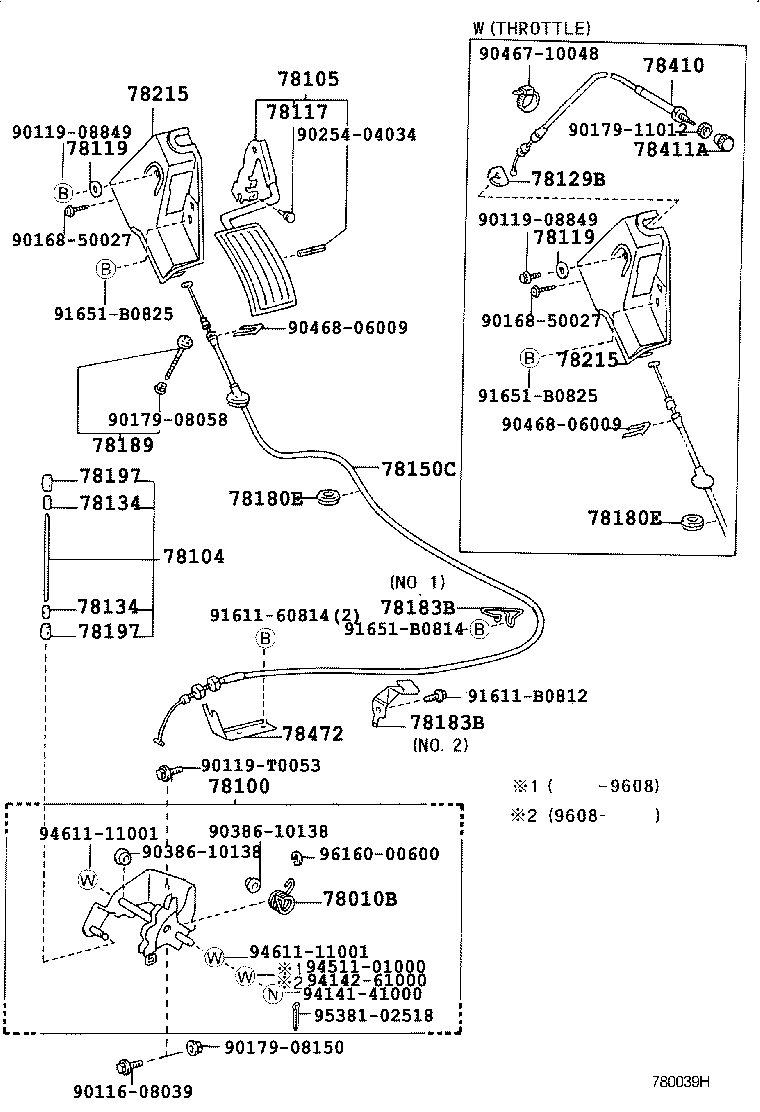

(8908- )RHD..DSL

Click highlighted areas on diagram

diagram 78010B 78100 78104 78105 78117 78119 78119 78129B 78134 78134 78150C 78180E 78180E 78183B 78183B 78189 78197 78197 78215 78215 78410 78411A 78472 9011608039 9011908849 9011908849 90119T0053 9016850027 9016850027 9017908058 9017908150 9017911012 9025404034 9038610138 9038610138 9046710048 9046806009 9046806009 9161160814 91611B0812 91651B0814 91651B0825 91651B0825 9414141000 9414261000 9451101000 9461111001 9461111001 9538102518 9616000600
Part # Description Qty Price
Common parts
90116-08039
90119-08849
90119-T0053
90168-50027
90179-08058
90179-08150
90179-11012
90254-04034
90386-10138
90467-10048
90468-06009
91611-60814
91611-B0812
91651-B0814
91651-B0825
94141-41000
94142-61000
94511-01000
94611-11001
95381-02518
96160-00600
