LH162R-SRMRS (2000)
Toyota Hiace Van,Commuter
(8708- )STD

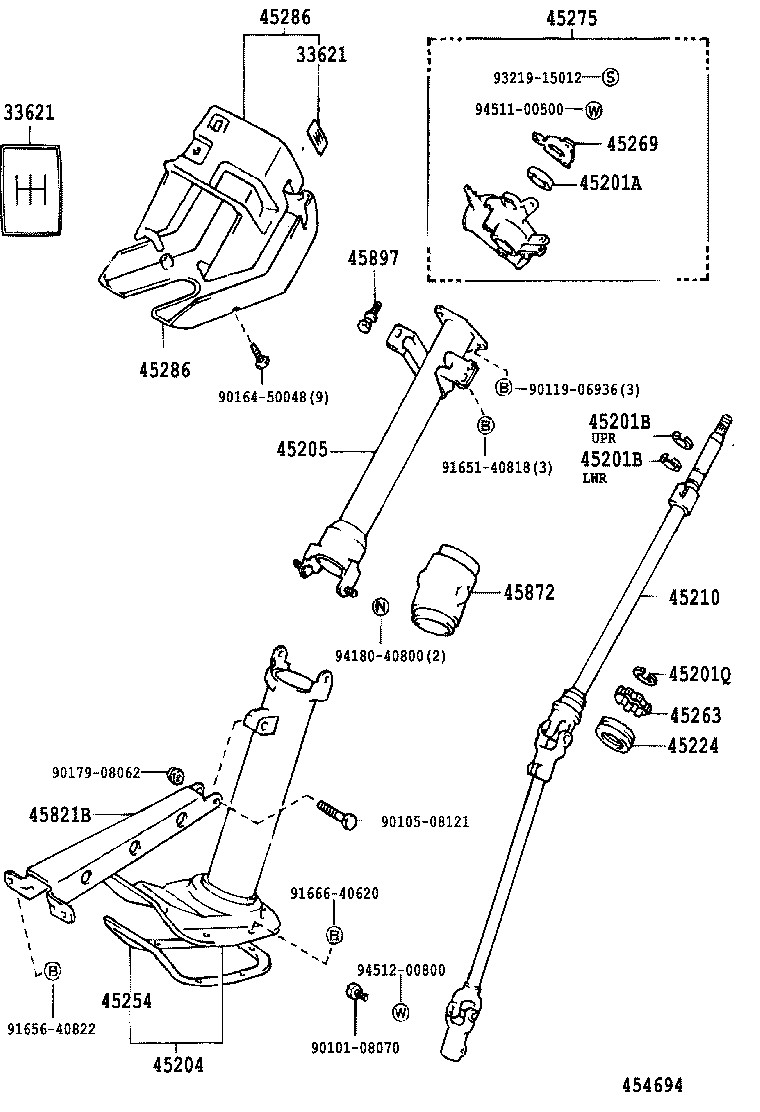

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08070 | ||||
| 90105-08121 | ||||
| 90119-06936 | ||||
| 90164-50048 | ||||
| 90179-08062 | ||||
| 91651-40818 | ||||
| 91656-40822 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 94180-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-26380B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45286-26370B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45287-26280B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-26380B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45286-26370B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45287-26280B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 4(8908- )
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06162 | ||||
| 90119-06059 | ||||
| 90119-08560 | ||||
| 90179-06156 | ||||
| 90179-08141 | ||||
| 90179-10065 | ||||
| 90504-25002 | ||||
| 91611-G0820 | ||||
| 91631-G0618 | ||||
| 91641-H0822 | ||||
| 91651-60820 | ||||
| 91651-G0825 | ||||
| 93383-15014 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 3 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-26020 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45266-26020 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45266-26020 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-26031 |
LH172,184,RZH103,113,125..RHD;LH11#,162,174,RZH105,112,114,135,153..RHD..5F W(POWER STEERING) |
1 | ||
| 45390-26031 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD W(POWER STEERING) |
1 | ||
| 45390-26051 |
LH172..06S..GL;LH172..STD..DEFI;LH162,172..5F..ARL;LH172,RZH113..RHD..5D;LH162,184..SG..5F..STD;LH172,174..HRF..(03S,15S) |
1 | ||
| 45390-26031 |
LH184,RZH103,113,125..RHD;LH11#,162,172,174,RZH105,112,114,135,153..RHD..5F W(POWER STEERING) |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-26040 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45635-26040 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45635-26040 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-26020 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636-26020 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636-26020 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-26030 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45637-26050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45637-26050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45637-26030 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45637-26050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45637-26030 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45638A - PROTECTOR, INTER LINK JOINT, LOWER NO.2 | ||||
| 45638-26020 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45638-26020 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45638-26020 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90468-12016 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
ILLUST NO. 1 OF 4(8908- )
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08560 | ||||
| 90201-19010 | ||||
| 91611-G0612 | ||||
| 91611-G0820 | ||||
| 91612-60612 | ||||
| 91641-80820 | ||||
| 91651-60820 | ||||
ILLUST NO. 4 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-27050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-26140 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45312-26140 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45312-26140 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-37010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45380-37010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45380-37010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45380-26010 |
LH172..06S..GL;LH172..5D..GEN;RZH112,113..LHD;RZH113..RHD..5D;LH172..STD..DEFI;LH172,174,RZH112..HRF;LH162,184..SG..5F..STD;LH162,172..5F..(ARL,GCC);LH10#,11#,164,172,174,RZH104,105,114,115..LHD..4D |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.90,MARK 2 |
1 | ||
| 90209-18007 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.15,MARK 7 |
1 | ||
| 90209-18004 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.00,MARK 4 |
1 | ||
| 90209-18004 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.00,MARK 4 |
1 | ||
| 90209-18006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.10,MARK 6 |
1 | ||
| 90209-18003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.95,MARK 3 |
1 | ||
| 90209-18004 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.00,MARK 4 |
1 | ||
| 90209-18005 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.05,MARK 5 |
1 | ||
| 90209-18006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.10,MARK 6 |
1 | ||
| 90209-18008 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.20,MARK 8 |
1 | ||
| 90209-18008 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.20,MARK 8 |
1 | ||
| 90209-18006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.10,MARK 6 |
1 | ||
| 90209-18002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.90,MARK 2 |
1 | ||
| 90209-18003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.95,MARK 3 |
1 | ||
| 90209-18005 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.05,MARK 5 |
1 | ||
| 90209-18007 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.15,MARK 7 |
1 | ||
| 90209-18002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.90,MARK 2 |
1 | ||
| 90209-18008 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.20,MARK 8 |
1 | ||
| 90209-18005 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.05,MARK 5 |
1 | ||
| 90209-18003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.95,MARK 3 |
1 | ||
| 90209-18007 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.15,MARK 7 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-20080 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 90501-22029 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH172,RZH115..4D..SG..(CIS,GEN)..(DSL,EFI);LH154,174,184,RZH102,103,114,125..03S,06S,10S,11S,14S,15S;LH10#,11#,16#,176,RZH104,105,112,135,15#..(SMRF,SRF)..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-20080 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 90501-22029 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH172,RZH115..4D..SG..(CIS,GEN)..(DSL,EFI);LH154,174,184,RZH102,103,114,125..03S,06S,10S,11S,14S,15S;LH10#,11#,16#,176,RZH104,105,112,135,15#..(SMRF,SRF)..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90363-15010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90363-15010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45384-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45384-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90113-08006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90113-08006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45388-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45388-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45545-10010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45545-10010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90179-38001 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90179-38001 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| Common parts | ||||
| 90105-10093 | ||||
| 90119-06255 | ||||
| 90119-06447 | ||||
| 90170-08021 | ||||
| 90179-08141 | ||||
| 90364-18006 | ||||
| 90364-18007 | ||||
| 91612-61040 | ||||
| 91651-61025 | ||||
| 94130-01002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
