LH162R-SRMRS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

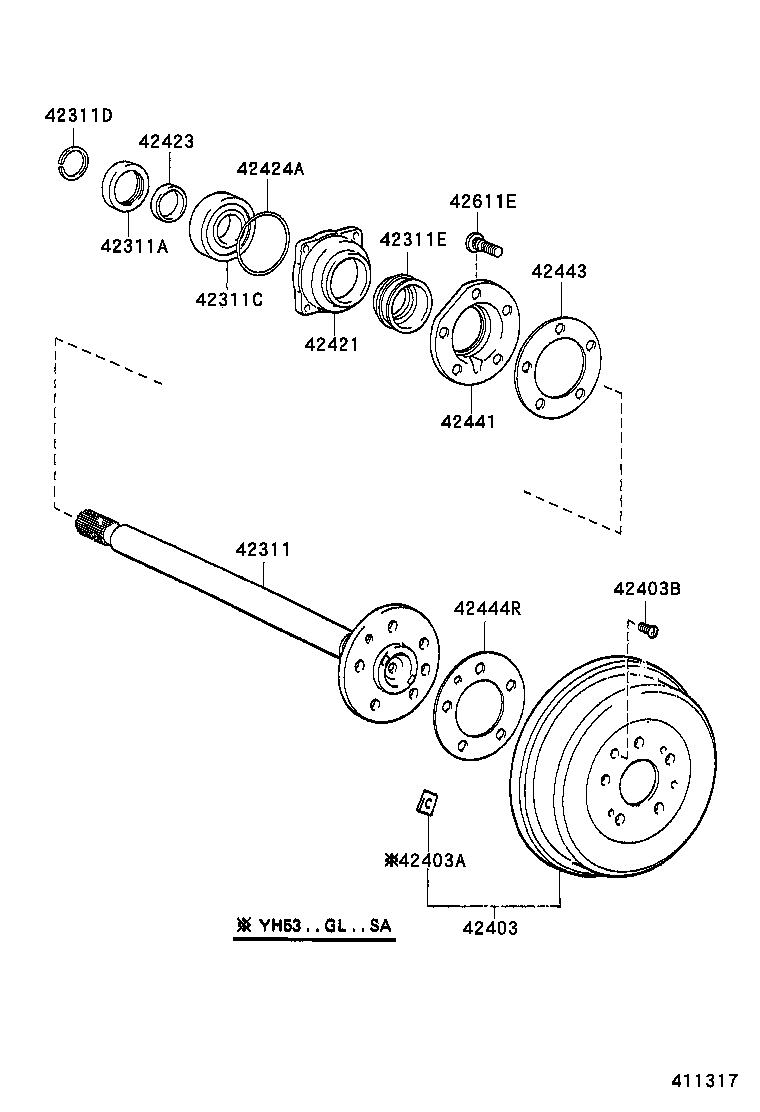

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42403B 42421 42423 42424A 42441 42443 42444R 42611E
Part # Description Qty Price

(8708- )

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42403B 42421 42423 42424A 42441 42443 42444R 42611E
Part # Description Qty Price

(8908- )

Click highlighted areas on diagram

diagram 42301 42311A 42311C 42311D 42311E 42403 42403A 42421 42423 42423 42423 42424A 42441 42443 42444R 42611E 43517
Part # Description Qty Price
42301 - SHAFT SUB-ASSY, REAR AXLE
42301-26939

LH10#,11#,154,162,164,172,174,184,RZH10#,11#,125,135,15#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40072

RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

KOYO

 2
90363-40068

RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

NACHI

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-54001

RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 2
42421 - CASE, REAR AXLE BEARING
42421-35050

RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 2
