LH162R-SRMRS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )5L..LH162,174..RHD..03S,06S,15S..5F..GEN

Click highlighted areas on diagram

diagram 2201 22019 2202 22101 22101B 22104 22108A 22119 22119 22119 22119 22119 22128A 22130 22140 22143 22144 22145 22146D 22146E 22147A 22147B 22148 22149 2214954771 2214956200 22160 22162 22163 22169 22169 22170 22170A 2217254263 22176 22176A 22179 22180 22182 22190 22192 22193C 22193F 22314A 22316A 22316B 22317 22322A 22341C 22350A 22369 223785C430 22378A 22384D 22384E 2239554010 2239556350 2239556351 2239556351 2239558200 22505 22505A 22511A 22582 22602 22602A 22612B 22612C 22612D 22612D 22615A 22615A 22625 22632A 22655A 22656 22657 22658 22658 22659 22689 22701 22703A 22712 22713 22722 22726 22739 22740 22740A 22741 22745 22751 22753A 22753B 22774 22776 22776A 22787 9009210608 9009690024 9009904576 9009904946 9009905161 9009905225 9009905252 9009918022 9017906156
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22101-54250

5L..LH162..5F..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22101-54250

5L..LH162..5F..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22140-5B640

5L..LH162..5F..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22140-5B640

5L..LH162..5F..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22170 - SHAFT SUB-ASSY, DRIVE
22170-5D200

5L..LH162..06S..5F

W(HIGH ALTITUDE COMPENSATOR)

 1
22170-5D200

5L..LH162..06S..5F

W(HIGH ALTITUDE COMPENSATOR)

 1
22193C - RING, O(FOR TIMER COVER STOPPER)
22193-17020

5L..LH162..5F..GEN;5L..LH164,166,174,176..CIS

NO.1

 1
22193-17020

5L..LH162..5F..GEN;5L..LH164,166,174,176..CIS

NO.1

 1
22316A - SLEEVE, GOVERNOR
22316-5B701

5L..LH162..GEN

ID=0.65

 1
22316-5B701

5L..LH162..GEN

ID=0.65

 1
22316-5B700

5L..LH162..GEN

ID=0.60

 1
22316-5B700

5L..LH162..GEN

ID=0.60

 1
22582 - PISTON ASSY, TIMER
22582-5C150

5L..LH162..GEN

 1
22582-5C150

5L..LH162..GEN

 1
22615A - SPRING, TIMER OUTER
22615-5C121

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.15,L=34.6

 1
22615-5C121

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.15,L=34.6

 1
22615-5C120

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.13,L=35.1

 1
22615-5C120

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.13,L=35.1

 1
22615-5C151

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.11,L=37.6

 1
22615-5C151

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.11,L=37.6

 1
22615-5C153

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.12,L=35.9

 1
22615-5C153

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.12,L=35.9

 1
22615-5C154

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.14,L=35.0

 1
22615-5C154

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.14,L=35.0

 1
22615A - SPRING, TIMER OUTER
22615-5C121

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.15,L=34.6

 1
22615-5C121

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.15,L=34.6

 1
22615-5C120

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.13,L=35.1

 1
22615-5C120

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.13,L=35.1

 1
22615-5C151

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.11,L=37.6

 1
22615-5C151

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.11,L=37.6

 1
22615-5C153

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.12,L=35.9

 1
22615-5C153

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.12,L=35.9

 1
22615-5C154

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.14,L=35.0

 1
22615-5C154

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.14,L=35.0

 1
22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID
22751-6A220

5L..LH162..06S..5F

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

 1
22751-6A220

5L..LH162..06S..5F

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

 1
Common parts
22149-54771
22149-56200
22172-54263
22378-5C430
22395-54010
22395-56350
22395-56351
22395-58200
90092-10608
90096-90024
90099-04576
90099-04946
90099-05161
90099-05225
90099-05252
90099-18022
90179-06156
Linked diagrams
2201
2202

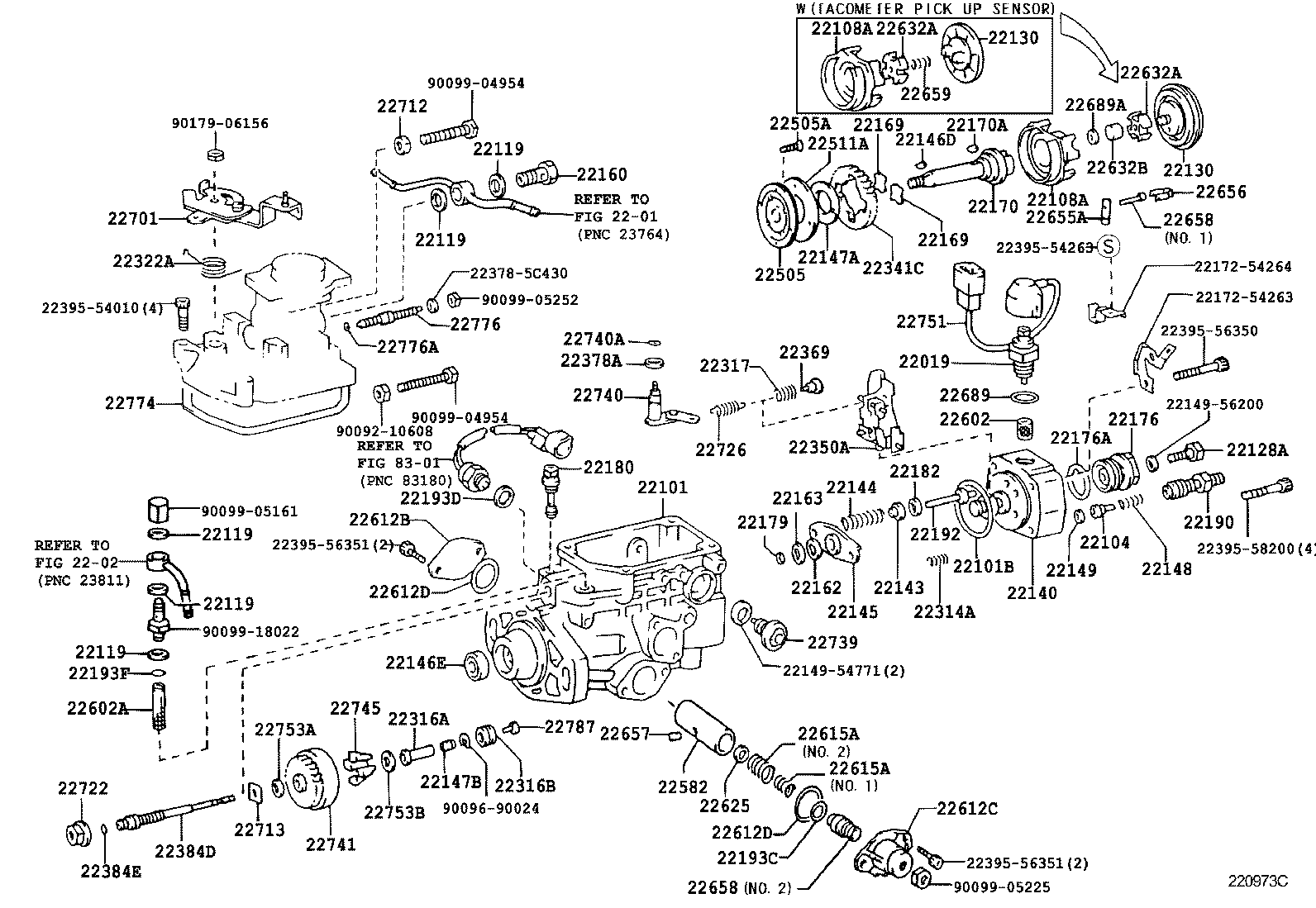

ILLUST NO. 1 OF 2(0008- )5L..LH162,172,174,184..03S,06S,14S,15S..5F

Click highlighted areas on diagram

W(HIGH ALTITUDE COMPENSATOR)

diagram 2201 22019 2202 22101 22101B 22104 22108A 22108A 22119 22119 22119 22119 22119 22128A 22130 22130 22140 22143 22144 22145 22146D 22146E 22147A 22147B 22148 22149 2214954771 2214956200 22160 22162 22163 22169 22169 22170 22170A 2217254263 2217254264 22176 22176A 22179 22180 22182 22190 22192 22193C 22193D 22193F 22314A 22316A 22316B 22317 22322A 22341C 22350A 22369 223785C430 22378A 22384D 22384E 2239554010 2239554263 2239556350 2239556351 2239556351 2239558200 22505 22505A 22511A 22582 22602 22602A 22612B 22612C 22612D 22612D 22615A 22615A 22625 22632A 22632A 22632B 22655A 22656 22657 22658 22658 22659 22689 22689A 22701 22712 22713 22722 22726 22739 22740 22740A 22741 22745 22751 22753A 22753B 22774 22776 22776A 22787 8301 9009210608 9009690024 9009904954 9009904954 9009905161 9009905225 9009905252 9009918022 9017906156
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22101-54250

5L..LH162..5F..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22140-5B640

5L..LH162..5F..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22170 - SHAFT SUB-ASSY, DRIVE
22170-5D200

5L..LH162..06S..5F

W(HIGH ALTITUDE COMPENSATOR)

 1
22193C - RING, O(FOR TIMER COVER STOPPER)
22193-17020

5L..LH162..5F..GEN;5L..LH164,166,174,176..CIS

NO.1

 1
22316A - SLEEVE, GOVERNOR
22316-5B701

5L..LH162..GEN

ID=0.65

 1
22316-5B700

5L..LH162..GEN

ID=0.60

 1
22582 - PISTON ASSY, TIMER
22582-5C150

5L..LH162..GEN

 1
22615A - SPRING, TIMER OUTER
22615-5C121

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.15,L=34.6

 1
22615-5C120

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.13,L=35.1

 1
22615-5C151

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.11,L=37.6

 1
22615-5C153

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.12,L=35.9

 1
22615-5C154

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.14,L=35.0

 1
22615A - SPRING, TIMER OUTER
22615-5C121

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.15,L=34.6

 1
22615-5C120

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.13,L=35.1

 1
22615-5C151

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.11,L=37.6

 1
22615-5C153

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.12,L=35.9

 1
22615-5C154

5L..LH162..GEN;5L..LH162..5F..ARL

K=0.14,L=35.0

 1
22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID
22751-6A220

5L..LH162..06S..5F

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

 1
Common parts
22149-54771
22149-56200
22172-54263
22172-54264
22378-5C430
22395-54010
22395-54263
22395-56350
22395-56351
22395-58200
90092-10608
90096-90024
90099-04954
90099-05161
90099-05225
90099-05252
90099-18022
90179-06156
Linked diagrams
2201
2202
8301

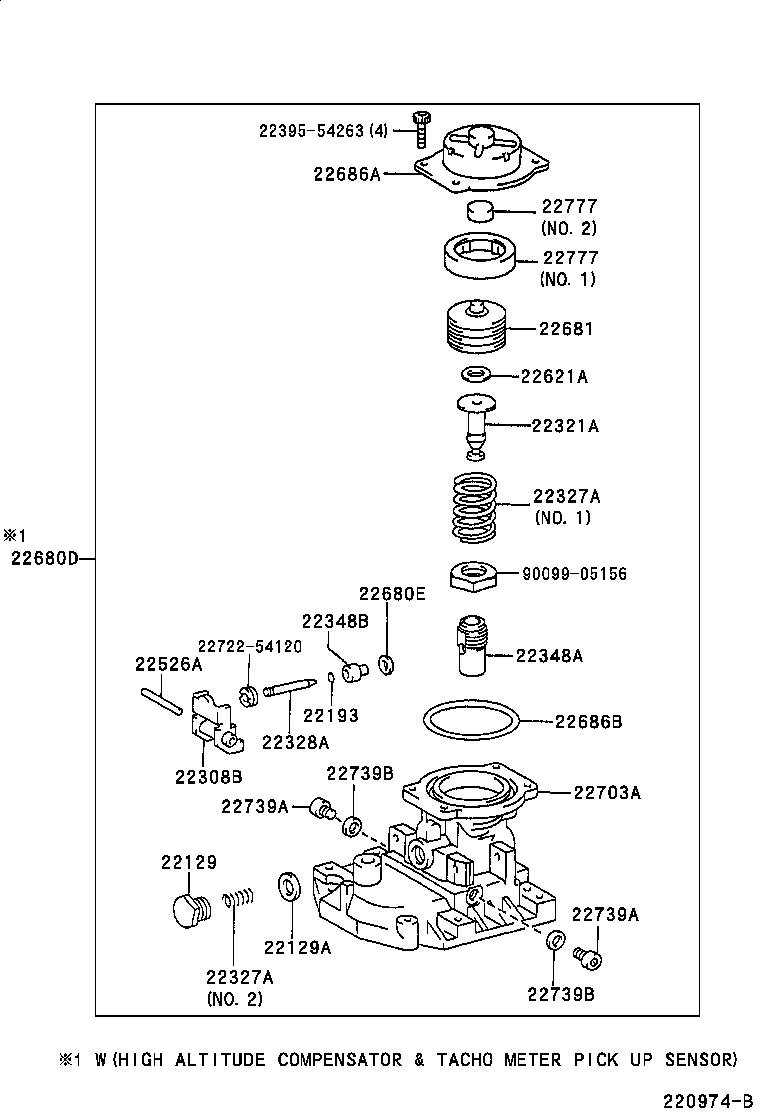

ILLUST NO. 2 OF 2(0008- )5L..LH162,172,174,184..03S,06S,14S,15S

Click highlighted areas on diagram

W(HIGH ALTITUDE COMPENSATOR)

diagram 22129 22129A 22193 22308B 22321A 22327A 22327A 22328A 22348A 22348B 2239554263 22526A 22621A 22680D 22680E 22681 22686A 22686B 22703A 2272254120 22739A 22739A 22739B 22739B 22777 22777 9009905156
Part # Description Qty Price
22680D - BELLOWS ASSY, PNEUMATIC
22680-5D250

5L..LH162..06S..5F

 1
Common parts
22395-54263
22722-54120
90099-05156
