LH162R-SRMRS (2000)
Toyota Hiace Van,Commuter
Production
Aug 2000
-
Aug 2004
Engine
5L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8212- )L,2L

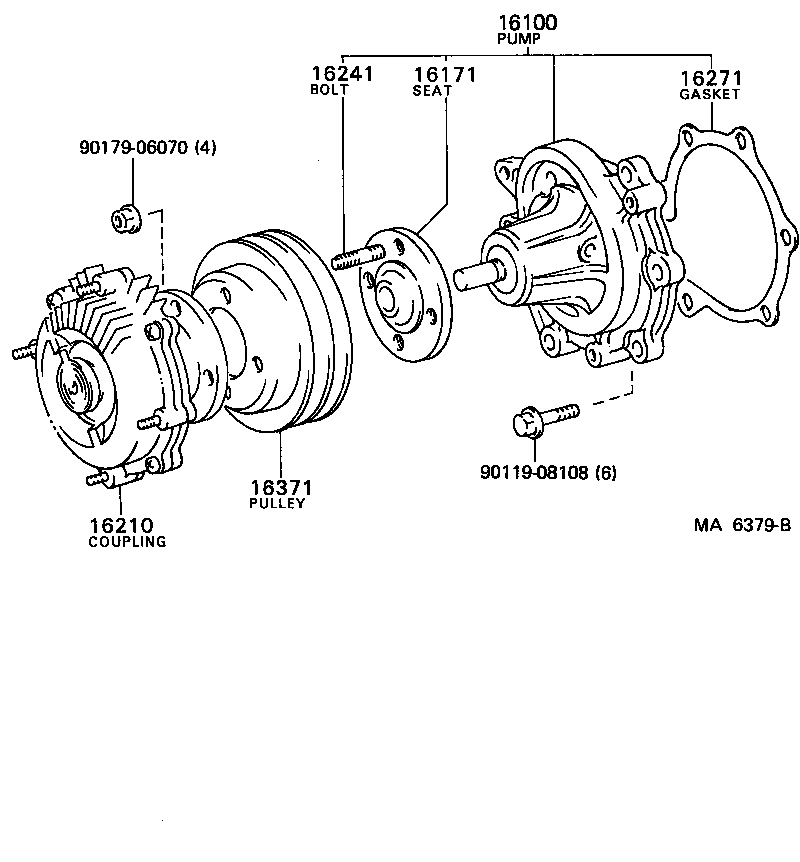

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
(8908- )2L,3L,5L#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59257 |
2L,5L..LH10#,11#,154,16#,17#,184 TYPE C:REFER ILLUST. |
1 | ||
| 16100-09092 |
2L,5L..LH10#,112,154,164..LHD;2L,5L..LH114,162,172,174,184..03S,06S,10S,14S,15S TYPE A:REFER ILLUST. |
1 | ||
| 16100-09102 |
2L,5L..LH10#,112,154,164..LHD;2L,5L..LH114,162,172,174,184..03S,06S,10S,14S,15S TYPE B:REFER ILLUST. |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-75020 |
5L..LH162,174..5F..(ARL,CIS);2L,5L..LH10#,16#,176..CIS,GEN |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-54030 |
5L..LH162,174..5F..(ARL,CIS);2L,5L..LH10#,16#,176..CIS,GEN |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-54030 |
5L..LH16#,176;5L..LH174..CIS (J) |
1 | ||
| 16371-05010 |
5L..LH16#,176;5L..LH174..CIS (L) |
1 | ||
| Common parts | ||||
| 90105-08176 | ||||
| 90105-T0019 | ||||
| 90179-08150 | ||||
| 90253-11001 | ||||
