LH162R-SRMRS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

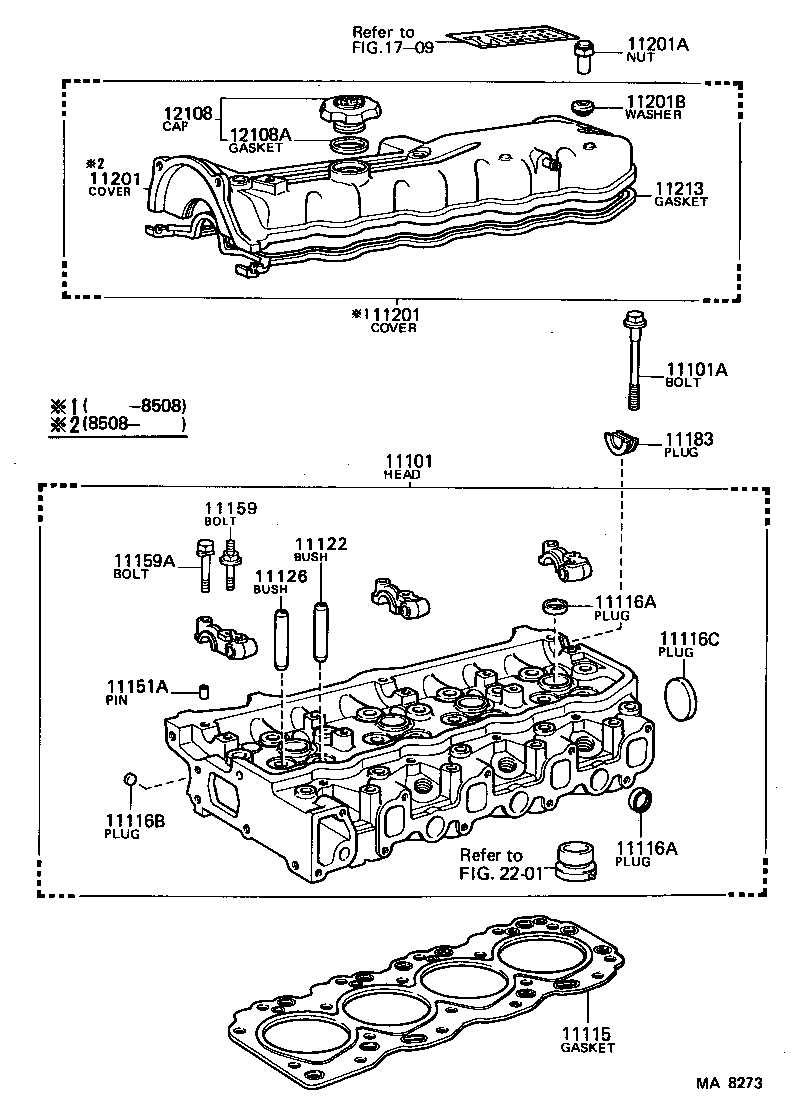

(8212- )L,2L

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116A 11116B 11116C 11122 11126 11151A 11159 11159A 11183 11201 11201 11201A 11201B 11213 12108 12108A 1709 2201
Part # Description Qty Price
Linked diagrams
1709
2201

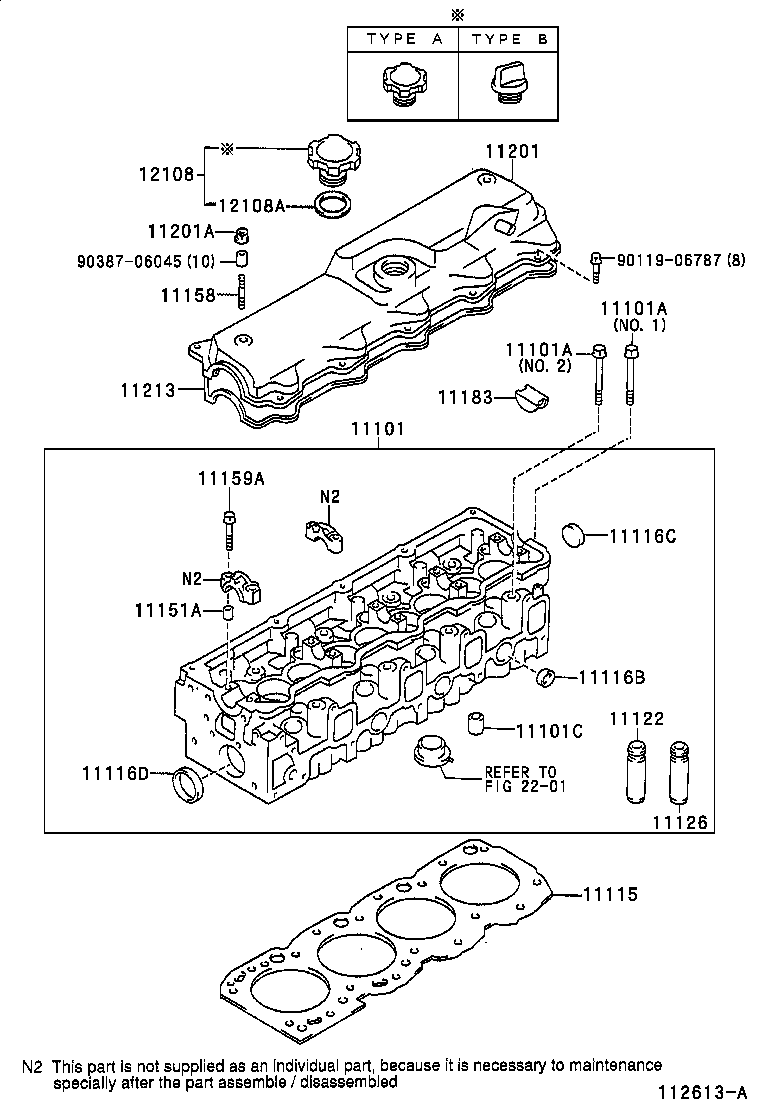

(8908- )2L,3L,5L#

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101C 11115 11116B 11116C 11116D 11122 11126 11151A 11158 11159A 11183 11201 11201A 11213 12108 12108A 2201 9011906787 9038706045
Part # Description Qty Price
12108 - CAP SUB-ASSY, OIL FILLER
12180-73011

5L..LH174..CIS;2L,5L..LH10#,16#,176

TYPE A:REFER TO ILLUSTRATION

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-70010

2L,5L..LH10#,112,154,164,166,176..LHD;2L,5L..LH114,162,172,174,184..03S,06S,10S,14S,15S

 1
12195-70010

2L,5L..LH10#,11#,154,16#,17#,184

 1
12195-73010

5L..LH174..CIS;2L,5L..LH10#,16#,176

 1
Common parts
90119-06787
90387-06045
Linked diagrams
2201
