LH113R-RRMRS (1989)
Toyota Hiace Van,Commuter

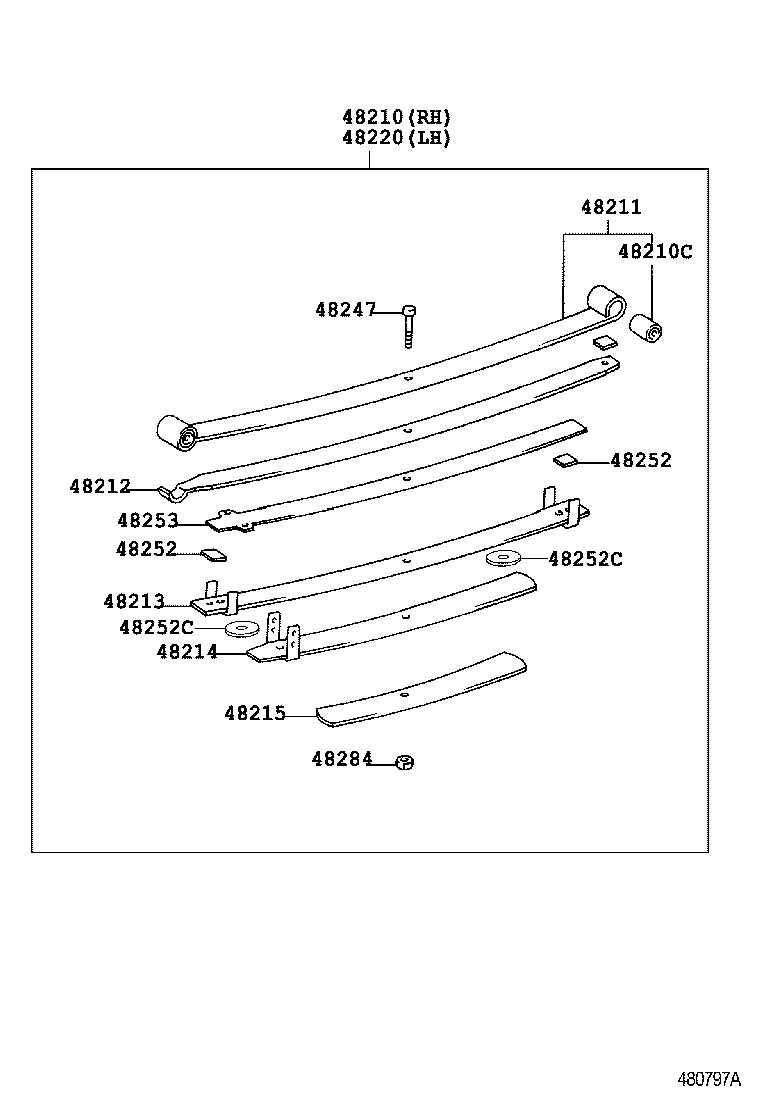

ILLUST NO. 2 OF 2(8908-9508)LH125,RZH125 ; (8908-9508)LH10#,11#,RZH102,103,104,112,113,114..GEN ; (9
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN 5-LEAF |
1 | ||
| 48210-2F110 |
LH103,113,RZH103,113..06S..GEN 5-LEAF,NEW ZEALAND SPEC |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH103,RZH103,113..06S..GEN FRONT |
2 | ||
| 90389-14037 |
LH103,113,RZH103,113..06S..GEN FRONT |
2 | ||
| 90389-14007 |
LH103,RZH103,113..06S..GEN REAR |
2 | ||
| 90389-14007 |
LH10#,11#,RZH102,104,11#..GEN |
4 | ||
| 90389-14007 |
RZH103..STD..CBR;LH103,113,RZH113..ARL;LH103,113,125,RZH113,125..RHD..(06S,14S)..(CBR,DSL) REAR |
2 | ||
| 90389-14037 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,166,176,RZH103,125..STD FRONT |
2 | ||
| 90389-14007 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,166,176,RZH103,125..STD REAR |
2 | ||
| 90389-14037 |
RZH103..STD..CBR;LH103,113,RZH113..ARL;LH103,113,125,RZH113,125..RHD..(06S,14S)..(CBR,DSL) FRONT |
2 | ||
| 90389-14007 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) |
4 | ||
| 90389-14007 |
LH103,113,RZH103,113..06S..GEN REAR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48201-2F110 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
2 | ||
| 48201-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48212-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48202-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48204-26660 |
RZH113..LHD;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48203-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48204-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48204-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48215-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48215-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-2F110 |
LH103,113,RZH103,113..06S..GEN 5-LEAF,NEW ZEALAND SPEC |
1 | ||
| 48210-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26720 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
6 | ||
| 48252-26070 |
LH103,113,166,176,RZH103,113..SG..STD..(DSL,EFI) NEW ZEALAND SPEC |
8 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
6 | ||
| 48252-26070 |
LH103,113,166,176,RZH103,113..SG..STD..(DSL,EFI) NEW ZEALAND SPEC |
8 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26650 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48253-26650 |
RZH103,113..ARL,GCC;LH113,RZH113..(GCC,GEN)..(DSL,EFI);LH10#,112,114,115,125,RZH102,104,105,112,114,115,125 |
2 | ||
| 48253-26650 |
RZH112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,184..(03S,15S)..GL;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH113,174,RZH102..(03S,06S,09S,10S)..(CIS,GCC,GEN);LH10#,112,114,115,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48253-26650 |
RZH102..LHD..06S;LH125,RZH102,125..03S,14S;LH10#,112,113,RZH104,112..GEN |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48299-28010 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 48284-37130 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
2 | ||
ILLUST NO. 2 OF 2(9508- )LH174,RZH113..03S,06S,10S,15S..CBR,DSL ; (9508- )LH10#,11#,125,16#,17
5-LEAF(TYPE A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN 5-LEAF |
1 | ||
| 48210-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN 5-LEAF |
1 | ||
| 48210-2F110 |
LH103,113,RZH103,113..06S..GEN 5-LEAF,NEW ZEALAND SPEC |
1 | ||
| 48210-2F110 |
LH103,113,RZH103,113..06S..GEN 5-LEAF,NEW ZEALAND SPEC |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
LH103,RZH103,113..06S..GEN FRONT |
2 | ||
| 90389-14037 |
LH103,RZH103,113..06S..GEN FRONT |
2 | ||
| 90389-14037 |
LH103,113,RZH103,113..06S..GEN FRONT |
2 | ||
| 90389-14037 |
LH103,113,RZH103,113..06S..GEN FRONT |
2 | ||
| 90389-14007 |
LH103,RZH103,113..06S..GEN REAR |
2 | ||
| 90389-14007 |
LH103,RZH103,113..06S..GEN REAR |
2 | ||
| 90389-14007 |
LH10#,11#,RZH102,104,11#..GEN |
4 | ||
| 90389-14007 |
LH10#,11#,RZH102,104,11#..GEN |
4 | ||
| 90389-14007 |
RZH103..STD..CBR;LH103,113,RZH113..ARL;LH103,113,125,RZH113,125..RHD..(06S,14S)..(CBR,DSL) REAR |
2 | ||
| 90389-14007 |
RZH103..STD..CBR;LH103,113,RZH113..ARL;LH103,113,125,RZH113,125..RHD..(06S,14S)..(CBR,DSL) REAR |
2 | ||
| 90389-14037 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,166,176,RZH103,125..STD FRONT |
2 | ||
| 90389-14037 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,166,176,RZH103,125..STD FRONT |
2 | ||
| 90389-14007 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,166,176,RZH103,125..STD REAR |
2 | ||
| 90389-14007 |
LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN;LH125,166,176,RZH103,125..STD REAR |
2 | ||
| 90389-14037 |
RZH103..STD..CBR;LH103,113,RZH113..ARL;LH103,113,125,RZH113,125..RHD..(06S,14S)..(CBR,DSL) FRONT |
2 | ||
| 90389-14037 |
RZH103..STD..CBR;LH103,113,RZH113..ARL;LH103,113,125,RZH113,125..RHD..(06S,14S)..(CBR,DSL) FRONT |
2 | ||
| 90389-14007 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) |
4 | ||
| 90389-14007 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) |
4 | ||
| 90389-14007 |
LH103,113,RZH103,113..06S..GEN REAR |
2 | ||
| 90389-14007 |
LH103,113,RZH103,113..06S..GEN REAR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48201-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48201-2F110 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
2 | ||
| 48201-2F110 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
2 | ||
| 48201-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48201-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48212-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48212-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48212-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48202-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48202-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48202-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48204-26660 |
RZH113..LHD;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48204-26660 |
RZH113..LHD;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48203-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48203-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48204-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48204-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48204-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48204-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48215-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48215-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48215-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN |
2 | ||
| 48215-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48215-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-2F110 |
LH103,113,RZH103,113..06S..GEN 5-LEAF,NEW ZEALAND SPEC |
1 | ||
| 48210-2F110 |
LH103,113,RZH103,113..06S..GEN 5-LEAF,NEW ZEALAND SPEC |
1 | ||
| 48210-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN 5-LEAF |
1 | ||
| 48210-26660 |
RZH113..LHD;RZH102..03S;RZH102..LHD..06S;LH10#,11#,125,RZH104,105,112,114,115..CIS,GCC,GEN 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26720 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48247-26720 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 48247-26280 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
6 | ||
| 48252-26070 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
6 | ||
| 48252-26070 |
LH103,113,166,176,RZH103,113..SG..STD..(DSL,EFI) NEW ZEALAND SPEC |
8 | ||
| 48252-26070 |
LH103,113,166,176,RZH103,113..SG..STD..(DSL,EFI) NEW ZEALAND SPEC |
8 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
6 | ||
| 48252-26070 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
6 | ||
| 48252-26070 |
LH103,113,166,176,RZH103,113..SG..STD..(DSL,EFI) NEW ZEALAND SPEC |
8 | ||
| 48252-26070 |
LH103,113,166,176,RZH103,113..SG..STD..(DSL,EFI) NEW ZEALAND SPEC |
8 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26650 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48253-26650 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48253-26650 |
RZH103,113..ARL,GCC;LH113,RZH113..(GCC,GEN)..(DSL,EFI);LH10#,112,114,115,125,RZH102,104,105,112,114,115,125 |
2 | ||
| 48253-26650 |
RZH103,113..ARL,GCC;LH113,RZH113..(GCC,GEN)..(DSL,EFI);LH10#,112,114,115,125,RZH102,104,105,112,114,115,125 |
2 | ||
| 48253-26650 |
RZH112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,184..(03S,15S)..GL;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH113,174,RZH102..(03S,06S,09S,10S)..(CIS,GCC,GEN);LH10#,112,114,115,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48253-26650 |
RZH112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,184..(03S,15S)..GL;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH113,174,RZH102..(03S,06S,09S,10S)..(CIS,GCC,GEN);LH10#,112,114,115,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48253-26650 |
RZH102..LHD..06S;LH125,RZH102,125..03S,14S;LH10#,112,113,RZH104,112..GEN |
2 | ||
| 48253-26650 |
RZH102..LHD..06S;LH125,RZH102,125..03S,14S;LH10#,112,113,RZH104,112..GEN |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48299-28010 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48299-28010 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 48299-28010 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 48284-37130 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
2 | ||
| 48284-37130 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
2 | ||
ILLUST NO. 1 OF 2(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26100 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26100 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48037 - SPACER SUB-ASSY, REAR SPRING | ||||
| 48037-26030 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26100 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 48046-26101 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 48046-26120 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 48046-26120 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14059 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 L=180 |
4 | ||
| 90117-14059 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S L=180 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14059 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 L=180 |
4 | ||
| 90117-14059 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S L=180 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-26120 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 48046-26120 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 48046-26101 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 48046-26100 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
4 | ||
| 90385-18008 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
4 | ||
| 90385-18008 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
4 | ||
| 90385-18008 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
4 | ||
| 90385-18008 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26150 |
RZH112..5D;RZH112..03S;LH10#,11#,162,164,172,174,184,RZH10#,113,114,115..CIS,GCC,GEN |
2 | ||
| 48341-26150 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH10#,11#,125,184,RZH104,112,114..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-26110 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80399 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 48531-80399 |
RZH113..LHD;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN |
1 | ||
| 48531-80545 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) MARK 48531-26370 |
1 | ||
| 48531-80432 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
1 | ||
| 48531-80399 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 48531-80432 |
LH103,RZH103,113..06S..GEN NEW ZEALAND SPEC |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03012 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03004 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03015 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 90560-12054 |
LH103,113,RZH103,113..06S..GEN..(CBR,DSL) NEW ZEALAND SPEC |
2 | ||
| 90948-03015 |
RZH113..EFI;RZH113..ARL,GCC;RZH102..LHD..06S;RZH102,103..03S,05S;LH10#,11#,125,RZH104,105,112,114,115,125 |
2 | ||
| 90560-12054 |
LH103,RZH102,103,113..RHD..06S..GEN NEW ZEALAND SPEC |
2 | ||
| 90948-03015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03015 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 90560-12054 |
LH103,113,125,RZH103,113,125..RHD..SG..STD NEW ZEALAND SPEC |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03011 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90385-16009 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90385-16009 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19006 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 90385-19006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80399 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 48531-80432 |
LH103,RZH103,113..06S..GEN NEW ZEALAND SPEC |
1 | ||
| 48531-80399 |
RZH113..LHD;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN |
1 | ||
| 48531-80399 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 48531-80432 |
LH103,113,RZH103,113..06S..GEN NEW ZEALAND SPEC |
1 | ||
| 48531-80545 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) MARK 48531-26370 |
1 | ||
| Common parts | ||||
| 90101-14021 | ||||
| 90105-10380 | ||||
| 90105-14020 | ||||
| 90119-08A89 | ||||
| 90170-14012 | ||||
| 90179-14023 | ||||
| 90387-14011 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91619-61220 | ||||
| 91619-61230 | ||||
| 94130-01002 | ||||
| 94531-01400 | ||||
| 94612-11001 | ||||
| 94612-11400 | ||||
| 94621-11400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
