LH112R-RBMES (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1996
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )LH112..GL ; (9411- )LH125..SMRF ;(9411- )LH125..STD..GEN

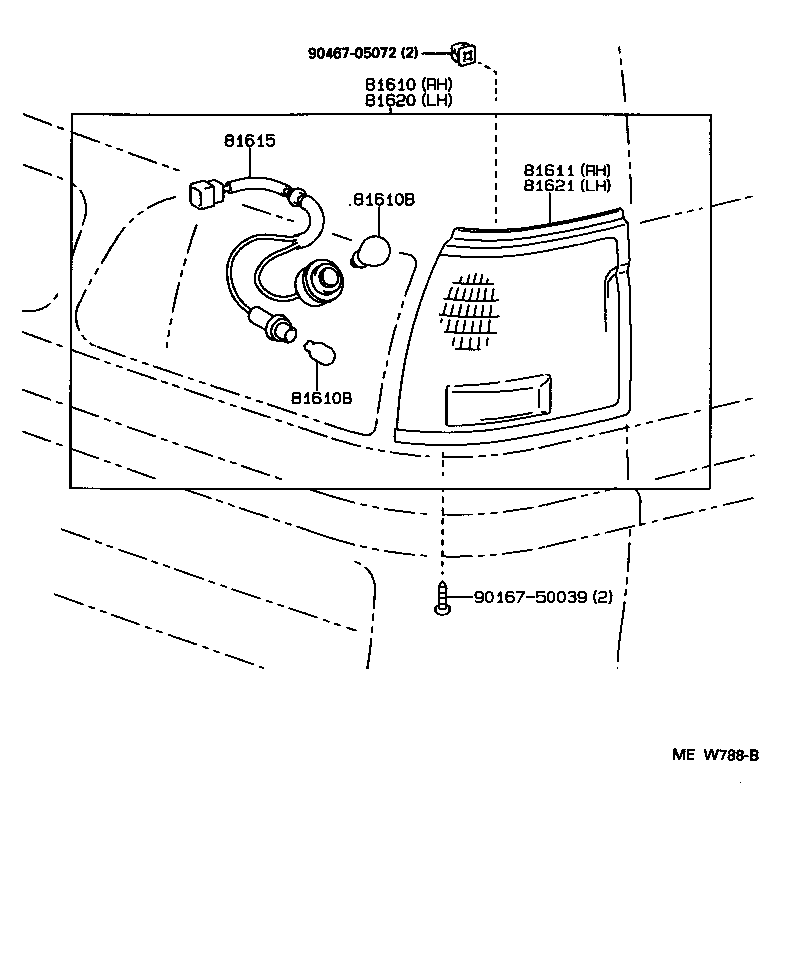

Click highlighted areas on diagram

HIGH GRADE PACKAGE

diagram 81610 81610B 81610B 81611 81615 81620 81621 9016750039 9046705072
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-95J09

LH112..RHD..SRF..03S

 1
81610-26050B2

LH112..GL;LH125..GEN

LT GRAY,045 ,3H7 ,6L1 ,8E2 ,8G8

 1
81610-26050B2

LH112..GL

LT GRAY,045 ,3H7 ,4L2 ,6L1 ,8E2 ,8G8

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LH112..RHD..SRF..03S

12V 5W

 2
90981-13036

LH112..GL

12V 35/5W

 2
99132-12050

LH112..GL

12V 5W

 2
90981-13036

LH112..GL;LH125..GEN

12V 35/5W

 2
99132-12050

LH112..GL;LH125..GEN

12V 5W

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LH112..RHD..SRF..03S

12V 5W

 2
90981-13036

LH112..GL

12V 35/5W

 2
99132-12050

LH112..GL

12V 5W

 2
90981-13036

LH112..GL;LH125..GEN

12V 35/5W

 2
99132-12050

LH112..GL;LH125..GEN

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-95J09

LH112..RHD..SRF..03S

 1
81611-26050

LH112..GL;LH125..GEN

 1
81611-26050

LH112..GL

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-95J09

LH112..RHD..SRF..03S

 2
81615-26050

LH112..GL

 2
81615-26050

LH112..GL;LH125..GEN

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-95J09

LH112..RHD..SRF..03S

 1
81620-26050B2

LH112..GL

LT.GRAY,045 ,3H7 ,4L2 ,6L1 ,8E2 ,8G8

 1
81620-26050B2

LH112..GL;LH125..GEN

LT.GRAY,045 ,3H7 ,6L1 ,8E2 ,8G8

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-26050

LH112..GL

 1
81621-26050

LH112..GL;LH125..GEN

 1
81621-95J09

LH112..RHD..SRF..03S

 1
Common parts
90167-50039
90467-05072
