LH112L-RBMRS (1989)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 2(8908- )LH10#,11#,125,154,172,184,RZH10#,11#,125,135,15#..4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-26110 |
RZH113,115..GCC;RZH115..15S..GL;RZH113..LHD..03S..GEN;LH114,154,172,RZH112,155..LHD..(GCC,GEN);LH112,174,RZH114..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31301-26110 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32034 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 90508-32034 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10010 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 47131-10010 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 90386-13007 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
2 | ||
| 90386-13007 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 90101-08052 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 31321-14020 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 91112-61070 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..5F |
1 | ||
| 91112-61070 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 90387-10004 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) L=23.5 |
1 | ||
| 90240-08006 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..5F..(ARL,GEN) |
1 | ||
| 90386-08002 |
RZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-26210 |
RZH113,115..GCC;RZH115..15S..GL;LH114,RZH112,155..LHD..GEN;LH112,RZH113,114..LHD..4D..STD..GEN |
1 | ||
| 31481-26210 |
RZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4708 | ||||

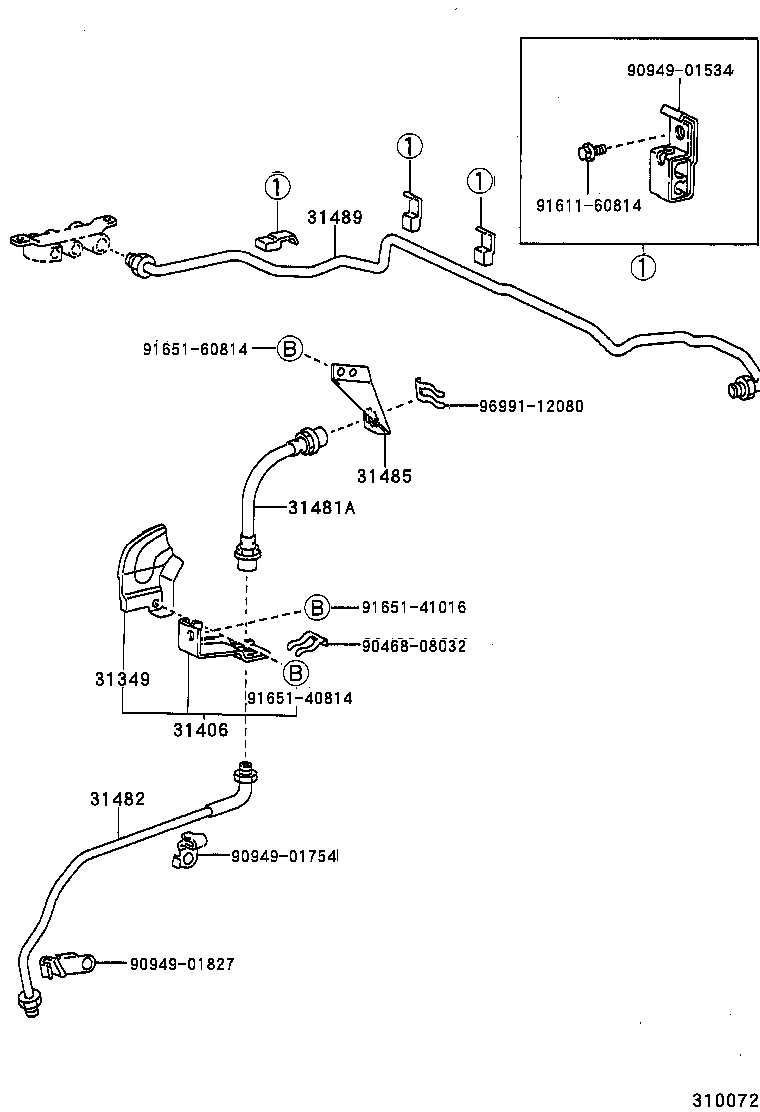

ILLUST NO. 2 OF 2(9308-9710)LH10#,11#,125..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31349 - INSULATOR, CLUTCH CABLE HEAT | ||||
| 31349-26030 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31349-26042 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31349-26040 |
LH10#,11#,125..5F |
1 | ||
| 31349-26042 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31349-26041 |
LH10#,11#,125..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26050 |
LH10#,11#,125..5F |
1 | ||
| 31406-26051 |
LH10#,11#,125..5F |
1 | ||
| 31406-26042 |
RZH10#,11#,125..5F |
1 | ||
| 31406-26052 |
LH10#,11#,125..5F |
1 | ||
| 31406-26041 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31406-26053 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31406-26053 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01036 |
RZH10#,11#,125..4F,5F |
1 | ||
| 90931-01075 |
LH10#,11#,125..5F |
1 | ||
| 90947-02832 |
RZH10#,11#,125,135,153..5F |
1 | ||
| 90931-01130 |
LH10#,11#,125,166,174,176..5F |
1 | ||
| 90931-01139 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26170 |
LH10#,11#,125..5F |
1 | ||
| 31482-26171 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31482-26160 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31482-26171 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482-26210 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31485-26080 |
LH10#,11#,125..5F |
1 | ||
| 31485-26081 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31485-26081 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31485-26100 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26200 |
LH10#,11#,125..5F |
1 | ||
| 31489-26190 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31489-26200 |
LH10#,11#,125,RZH10#,11#,125..5F |
1 | ||
| 31489-26200 |
LH112..4D;LH114..LHD |
1 | ||
| 31489-26220 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| Common parts | ||||
| 90468-08032 | ||||
| 90468-08035 | ||||
| 90949-01534 | ||||
| 90949-01754 | ||||
| 90949-01827 | ||||
| 91611-60814 | ||||
| 91612-60814 | ||||
| 91651-40814 | ||||
| 91651-41016 | ||||
| 91651-60814 | ||||
ILLUST NO. 2 OF 2(9308-9508)RZH10#,11#,125..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26050 |
LH10#,11#,125..5F |
1 | ||
| 31406-26051 |
LH10#,11#,125..5F |
1 | ||
| 31406-26042 |
RZH10#,11#,125..5F |
1 | ||
| 31406-26052 |
LH10#,11#,125..5F |
1 | ||
| 31406-26041 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31406-26053 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31406-26053 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26050 |
LH10#,11#,125..5F |
1 | ||
| 31406-26051 |
LH10#,11#,125..5F |
1 | ||
| 31406-26042 |
RZH10#,11#,125..5F |
1 | ||
| 31406-26052 |
LH10#,11#,125..5F |
1 | ||
| 31406-26041 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31406-26053 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31406-26053 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01036 |
RZH10#,11#,125..4F,5F |
1 | ||
| 90931-01075 |
LH10#,11#,125..5F |
1 | ||
| 90947-02832 |
RZH10#,11#,125,135,153..5F |
1 | ||
| 90931-01130 |
LH10#,11#,125,166,174,176..5F |
1 | ||
| 90931-01139 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26170 |
LH10#,11#,125..5F |
1 | ||
| 31482-26171 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31482-26160 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31482-26171 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482-26210 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-26120 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31484-26150 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484-26121 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31485-26080 |
LH10#,11#,125..5F |
1 | ||
| 31485-26081 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31485-26081 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31485-26100 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26200 |
LH10#,11#,125..5F |
1 | ||
| 31489-26190 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31489-26200 |
LH10#,11#,125,RZH10#,11#,125..5F |
1 | ||
| 31489-26200 |
LH112..4D;LH114..LHD |
1 | ||
| 31489-26220 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| Common parts | ||||
| 90468-08032 | ||||
| 90468-08035 | ||||
| 90949-01534 | ||||
| 90949-01543 | ||||
| 90949-01827 | ||||
| 91612-60814 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
ILLUST NO. 2 OF 2(8908-9308)LH10#,11#,125..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31349 - INSULATOR, CLUTCH CABLE HEAT | ||||
| 31349-26030 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31349-26042 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31349-26040 |
LH10#,11#,125..5F |
1 | ||
| 31349-26042 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31349-26041 |
LH10#,11#,125..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26050 |
LH10#,11#,125..5F |
1 | ||
| 31406-26051 |
LH10#,11#,125..5F |
1 | ||
| 31406-26042 |
RZH10#,11#,125..5F |
1 | ||
| 31406-26052 |
LH10#,11#,125..5F |
1 | ||
| 31406-26041 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31406-26053 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31406-26053 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01036 |
RZH10#,11#,125..4F,5F |
1 | ||
| 90931-01075 |
LH10#,11#,125..5F |
1 | ||
| 90947-02832 |
RZH10#,11#,125,135,153..5F |
1 | ||
| 90931-01130 |
LH10#,11#,125,166,174,176..5F |
1 | ||
| 90931-01139 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26170 |
LH10#,11#,125..5F |
1 | ||
| 31482-26171 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31482-26160 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31482-26171 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482-26210 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31485-26080 |
LH10#,11#,125..5F |
1 | ||
| 31485-26081 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31485-26081 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31485-26100 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26200 |
LH10#,11#,125..5F |
1 | ||
| 31489-26190 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31489-26200 |
LH10#,11#,125,RZH10#,11#,125..5F |
1 | ||
| 31489-26200 |
LH112..4D;LH114..LHD |
1 | ||
| 31489-26220 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| Common parts | ||||
| 90468-08032 | ||||
| 90949-01534 | ||||
| 90949-01754 | ||||
| 90949-01827 | ||||
| 91611-60814 | ||||
| 91651-40814 | ||||
| 91651-41016 | ||||
| 91651-60814 | ||||
| 96991-12080 | ||||
ILLUST NO. 2 OF 2(8908-9308)RZH10#,11#,125..4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31349 - INSULATOR, CLUTCH CABLE HEAT | ||||
| 31349-26030 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31349-26042 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31349-26040 |
LH10#,11#,125..5F |
1 | ||
| 31349-26042 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31349-26041 |
LH10#,11#,125..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26050 |
LH10#,11#,125..5F |
1 | ||
| 31406-26051 |
LH10#,11#,125..5F |
1 | ||
| 31406-26042 |
RZH10#,11#,125..5F |
1 | ||
| 31406-26052 |
LH10#,11#,125..5F |
1 | ||
| 31406-26041 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31406-26053 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31406-26053 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01036 |
RZH10#,11#,125..4F,5F |
1 | ||
| 90931-01075 |
LH10#,11#,125..5F |
1 | ||
| 90947-02832 |
RZH10#,11#,125,135,153..5F |
1 | ||
| 90931-01130 |
LH10#,11#,125,166,174,176..5F |
1 | ||
| 90931-01139 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26170 |
LH10#,11#,125..5F |
1 | ||
| 31482-26171 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31482-26160 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31482-26171 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482-26210 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-26120 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31484-26150 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484-26121 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31485-26080 |
LH10#,11#,125..5F |
1 | ||
| 31485-26081 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31485-26081 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31485-26100 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26200 |
LH10#,11#,125..5F |
1 | ||
| 31489-26190 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31489-26200 |
LH10#,11#,125,RZH10#,11#,125..5F |
1 | ||
| 31489-26200 |
LH112..4D;LH114..LHD |
1 | ||
| 31489-26220 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| Common parts | ||||
| 90468-08032 | ||||
| 90949-01534 | ||||
| 90949-01543 | ||||
| 90949-01827 | ||||
| 91611-60814 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 96991-12080 | ||||
ILLUST NO. 2 OF 2(9710- )LH10#,11#,125..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31349 - INSULATOR, CLUTCH CABLE HEAT | ||||
| 31349-26030 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31349-26042 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31349-26040 |
LH10#,11#,125..5F |
1 | ||
| 31349-26042 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31349-26041 |
LH10#,11#,125..5F |
1 | ||
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26050 |
LH10#,11#,125..5F |
1 | ||
| 31406-26051 |
LH10#,11#,125..5F |
1 | ||
| 31406-26042 |
RZH10#,11#,125..5F |
1 | ||
| 31406-26052 |
LH10#,11#,125..5F |
1 | ||
| 31406-26041 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31406-26053 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31406-26053 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01036 |
RZH10#,11#,125..4F,5F |
1 | ||
| 90931-01075 |
LH10#,11#,125..5F |
1 | ||
| 90947-02832 |
RZH10#,11#,125,135,153..5F |
1 | ||
| 90931-01130 |
LH10#,11#,125,166,174,176..5F |
1 | ||
| 90931-01139 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26170 |
LH10#,11#,125..5F |
1 | ||
| 31482-26171 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31482-26160 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31482-26171 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482-26210 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-26190 |
LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F |
1 | ||
| 31484-26190 |
LH172..HRF;LH172..5D..GEN;LH172..03S..GL;LH172..GL..DEFI;LH114,172..LHD..4D;LH172..5F..(ARL,GCC);LH112,154,184..4D..5F;LH172,174..4D..(06S,15S)..STD..(GCC,GEN) |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31485-26080 |
LH10#,11#,125..5F |
1 | ||
| 31485-26081 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31485-26081 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31485-26100 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26200 |
LH10#,11#,125..5F |
1 | ||
| 31489-26190 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31489-26200 |
LH10#,11#,125,RZH10#,11#,125..5F |
1 | ||
| 31489-26200 |
LH112..4D;LH114..LHD |
1 | ||
| 31489-26220 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| Common parts | ||||
| 90461-10753 | ||||
| 90468-08032 | ||||
| 90468-08035 | ||||
| 90949-01534 | ||||
| 90949-01827 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91626-40818 | ||||
| 91651-40820 | ||||
| 91651-60814 | ||||
| 91651-61020 | ||||
ILLUST NO. 2 OF 2(9508- )RZH10#,11#,125,135,15#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01036 |
RZH10#,11#,125..4F,5F |
1 | ||
| 90931-01075 |
LH10#,11#,125..5F |
1 | ||
| 90947-02832 |
RZH10#,11#,125,135,153..5F |
1 | ||
| 90931-01130 |
LH10#,11#,125,166,174,176..5F |
1 | ||
| 90931-01139 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26170 |
LH10#,11#,125..5F |
1 | ||
| 31482-26171 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31482-26160 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31482-26171 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31482-26210 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-26120 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31484-26150 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31484-26121 |
RZH10#,11#,125..4F,5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26080 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31485-26080 |
LH10#,11#,125..5F |
1 | ||
| 31485-26081 |
LH172..5D;LH112,154..4D;LH172,174..HRF..(03S,15S);LH114,172,174..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 31485-26081 |
LH174..GL;LH10#,11#,125,166,176..5F |
1 | ||
| 31485-26100 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26200 |
LH10#,11#,125..5F |
1 | ||
| 31489-26190 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 31489-26200 |
LH10#,11#,125,RZH10#,11#,125..5F |
1 | ||
| 31489-26200 |
LH112..4D;LH114..LHD |
1 | ||
| 31489-26220 |
RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI |
1 | ||
| Common parts | ||||
| 90461-10655 | ||||
| 90468-08032 | ||||
| 90468-08035 | ||||
| 90949-01543 | ||||
| 90949-01827 | ||||
| 90949-01A47 | ||||
| 91611-B0816 | ||||
| 91612-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
