TRH223R-LETDKQ (2015)
Toyota Hiace
(1501- )2TRFE..TRH201,22#..02S,05S,06S,12S,14S..ARL,GEN,RUS
DUAL VVT

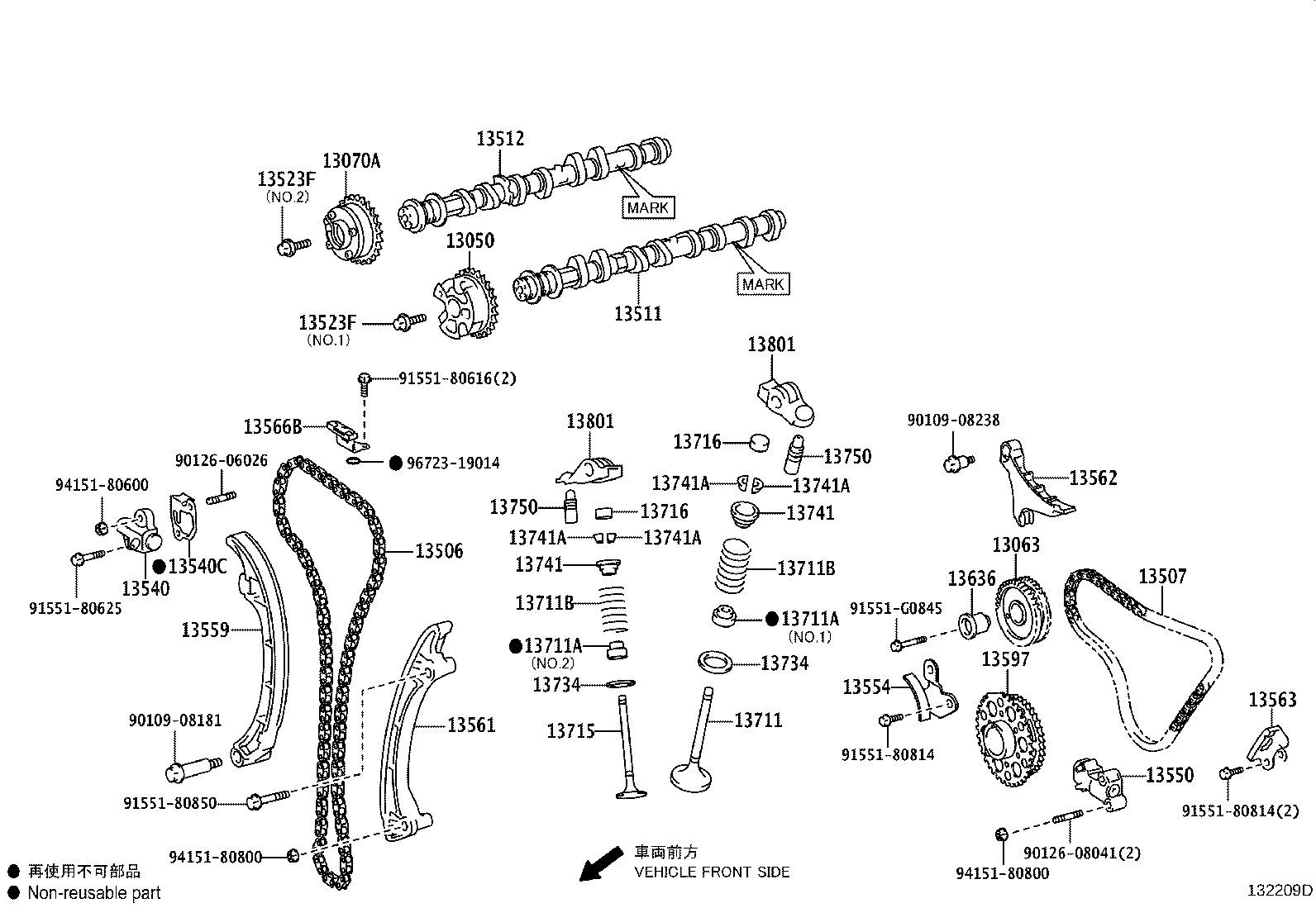

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13063 - GEAR SUB-ASSY, BALANCESHAFT DRIVE | ||||
| 13063-75011 |
2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-75030 |
2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-75071 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,W(MARK) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-75070 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,(J),W(MARK) |
1 | ||
| 13502-75080 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,(J),W(MARK) |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-75041 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH201,203..SRF..(5F,6FC);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-75010 |
2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-75010 |
2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13597 - SPROCKET, CRANKSHAFT TIMING, NO.2 | ||||
| 13597-75020 |
2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13636 - SHAFT, BALANCESHAFT DRIVE GEAR | ||||
| 13636-75010 |
2TRFE..TRH201;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-75110 |
2TRFE..TRH223..6FC;2TRFE..TRH223..GCC,SA;2TRFE..TRH201,203..GCC;2TRFE..TRH213..RHD..GL;2TRFE..TRH22#..SG..(03S,13S);2TRFE..TRH221..(5F,6FC)..(ARL,GCC,SA) |
8 | ||
| 13711-75110 |
2TRFE..TRH22#..ARL LPG CONVERSION PACKAGE |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02112 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2 |
8 | ||
| 90913-02101 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02112 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2 |
8 | ||
| 90913-02101 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-75110 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
8 | ||
| 13715-75140 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
8 | ||
| 13715-75140 |
2TRFE..TRH201..RHD;2TRFE..TRH213..GL..GEN;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..STD..(ARL,SA);2TRFE..TRH201,203,221..5F..GCC;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2TRFE..TRH201;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH203..15S..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
32 | ||
| Common parts | ||||
| 90109-08181 | ||||
| 90109-08238 | ||||
| 90126-06026 | ||||
| 90126-08041 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80814 | ||||
| 91551-80850 | ||||
| 91551-G0845 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96723-19014 | ||||
