TRH223R-LEMDKQ (2013)

Toyota Hiace

Production Dec 2013 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

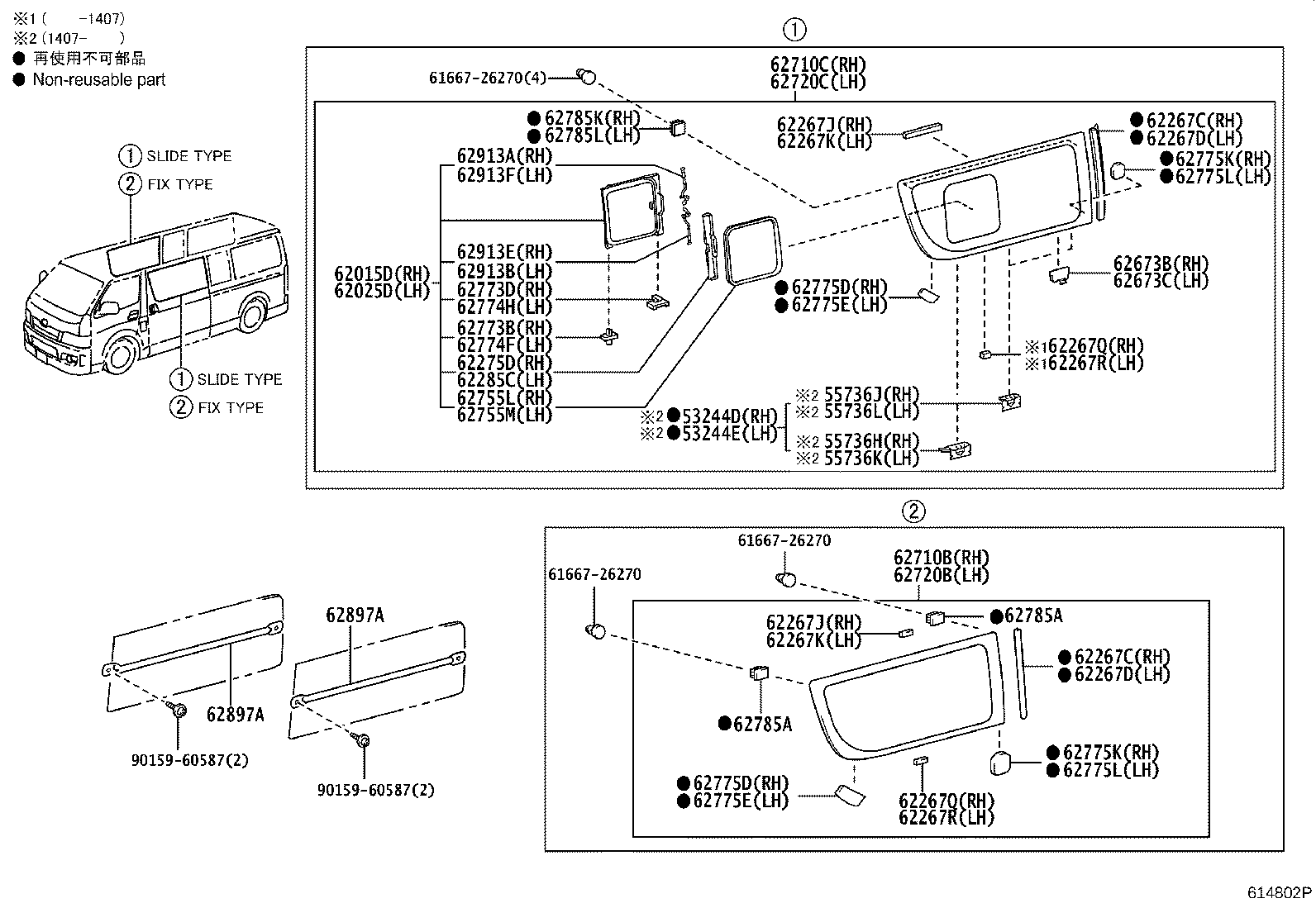

ILLUST NO. 1 OF 2(1312- )KDH22#,LH222,TRH22#

Click highlighted areas on diagram

diagram 53244D 53244E 55736H 55736J 55736K 55736L 6166726270 6166726270 6166726270 62015D 62025D 62267C 62267C 62267D 62267D 62267J 62267J 62267K 62267K 62267Q 62267Q 62267R 62267R 62275D 62285C 62673B 62673C 62710B 62710C 62720B 62720C 62755L 62755M 62773B 62773D 62774F 62774H 62775D 62775D 62775E 62775E 62775K 62775K 62775L 62775L 62785A 62785A 62785K 62785L 62897A 62897A 62913A 62913B 62913E 62913F 9015960587 9015960587
Part # Description Qty Price
53244D - PLATE, FRONT SIDE WINDOW SEAL SET, RH
53244-26030

KDH223..ARL;TRH223..(5F,6FC)..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
53244E - PLATE, FRONT SIDE WINDOW SEAL SET, LH
53244-26040

KDH223,TRH201,223..(06S,14S)..(5F,6FC)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
55736H - PLATE, FRONT SIDE WINDOW WATER GUIDE, NO.1 RH
55736-26070

KDH223..ARL;TRH223..(5F,6FC)..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
55736J - PLATE, FRONT SIDE WINDOW WATER GUIDE, NO.2 RH
55736-26090

KDH223..ARL;TRH223..(5F,6FC)..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 2
55736K - PLATE, FRONT SIDE WINDOW WATER GUIDE, NO.1 LH
55736-26080

KDH223,TRH201,223..(06S,14S)..(5F,6FC)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
55736L - PLATE, FRONT SIDE WINDOW WATER GUIDE, NO.2 LH
55736-26090

KDH223,TRH201,223..(06S,14S)..(5F,6FC)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 2
62015D - FRAME SUB-ASSY, FRONT SIDE WINDOW, RH
62015-26030

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62025D - FRAME SUB-ASSY, FRONT SIDE WINDOW, LH
62025-26030

TRH201..06S..GCC;KDH223,TRH22#..SG..(03S,14S)..STD

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62267C - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH
62267-26010

TRH223..STD..(ARL,SA);KDH212,222,LH212,222..RHD..(03S,16S);KDH202,203,223,LH202,TRH203..RHD..(02S,10S,12S,14S,15S)

 1
62267C - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH
62267-26010

TRH223..STD..(ARL,SA);KDH212,222,LH212,222..RHD..(03S,16S);KDH202,203,223,LH202,TRH203..RHD..(02S,10S,12S,14S,15S)

 1
62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH
62267-26020

KDH223..4FC..TH;KDH222..RHD..(03S,16S);KDH212..(11S,16S)..GEN;TRH223..STD..(ARL,SA,TH);KDH213,TRH201..5D..SG..(GCC,GEN);KDH203,221,TRH200,213..RHD..(02S,03S,06S,11S,12S)..(4FC,5F)..(GEN,TH);GDH201,KDH201,202,220,223,LH202,212,222,TRH203,221..RHD..(05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)

 1
62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH
62267-26020

KDH223..4FC..TH;KDH222..RHD..(03S,16S);KDH212..(11S,16S)..GEN;TRH223..STD..(ARL,SA,TH);KDH213,TRH201..5D..SG..(GCC,GEN);KDH203,221,TRH200,213..RHD..(02S,03S,06S,11S,12S)..(4FC,5F)..(GEN,TH);GDH201,KDH201,202,220,223,LH202,212,222,TRH203,221..RHD..(05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)

 1
62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH
62267-26030

TRH203..5F;TRH213..GCC,TH;TRH213..LHD..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,22#..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,RUS,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH
62267-26030

TRH203..5F;TRH213..GCC,TH;TRH213..LHD..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,22#..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,RUS,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,221..(02S,06S,12S,15S)..(4FC,5F)..(GEN,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,221..(02S,06S,12S,15S)..(4FC,5F)..(GEN,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62267Q - DAM, FRONT SIDE WINDOW ADHESIVE, NO.3 RH
62267-26040

TRH201..06S..GCC;KDH21#,223,TRH213,223..COM..(11S,14S)..(ARL,GEN,TH)

 1
62267Q - DAM, FRONT SIDE WINDOW ADHESIVE, NO.3 RH
62267-26040

TRH201..06S..GCC;KDH21#,223,TRH213,223..COM..(11S,14S)..(ARL,GEN,TH)

 1
62267R - DAM, FRONT SIDE WINDOW ADHESIVE, NO.3 LH
62267-26040

KDH222,TRH223..STD..(ARL,SA);TRH201,223..LHD..(06S,10S,12S,13S);KDH21#,223,TRH213..COM..(10S,11S,12S,14S)..(ARL,GEN,RUS,TH)

 1
62267R - DAM, FRONT SIDE WINDOW ADHESIVE, NO.3 LH
62267-26040

KDH222,TRH223..STD..(ARL,SA);TRH201,223..LHD..(06S,10S,12S,13S);KDH21#,223,TRH213..COM..(10S,11S,12S,14S)..(ARL,GEN,RUS,TH)

 1
62275D - COVER, FRONT SIDE WINDOW, RH
62275-26110

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62285C - COVER, FRONT SIDE WINDOW, LH
62285-26010

KDH223..5F..ARL;TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62673B - COVER, FRONT SIDE WINDOW RAIL, RH
62673-26070

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 2
62673C - COVER, FRONT SIDE WINDOW RAIL, LH
62673-26070

KDH223..5F..ARL;TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 2
62710B - WINDOW ASSY, SIDE, FRONT RH
62071-26031

KDH223,TRH223..ARL

*UVCT,T=3.1,GREEN

 1
62710C - GLASS SUB-ASSY, SIDE FRONT WINDOW, RH
62710-26500

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62710-26501

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62720B - WINDOW ASSY, SIDE, FRONT LH
68104-26011

KDH223,TRH201,223..(06S,14S)..(ARL,GCC)

*UVCT,T=3.1,GREEN

 1
62720C - GLASS SUB-ASSY, SIDE FRONT WINDOW, LH
62760-26690

KDH223,TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62760-26691

KDH223,TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62755L - RUN, FRONT SIDE WINDOW, RH
62755-26030

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62755-26031

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62755-26032

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62755M - RUN, FRONT SIDE WINDOW, LH
62755-26030

TRH201..06S..GCC;KDH223,TRH22#..SG..(03S,14S)..STD

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62755-26031

TRH201..06S..GCC;KDH223,TRH22#..SG..(03S,14S)..STD

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62755-26032

KDH223,TRH201,223..(06S,14S)..(5F,6FC)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62773B - SLIDER, FRONT SIDE WINDOW, RH
62773-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62773D - SLIDER, FRONT SIDE WINDOW, RH
62773-26030

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62774F - SLIDER, FRONT SIDE WINDOW, LH
62774-26010

KDH223..5F..ARL;TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62774H - SLIDER, FRONT SIDE WINDOW, LH
62774-26020

KDH223..5F..ARL;TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 1
62775D - CLIP, FRONT SIDE WINDOW, RH
62775-26010

TRH203..5F;TRH213..GCC,TH;TRH213..LHD..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,22#..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,RUS,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775D - CLIP, FRONT SIDE WINDOW, RH
62775-26010

TRH203..5F;TRH213..GCC,TH;TRH213..LHD..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,22#..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,RUS,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775E - CLIP, FRONT SIDE WINDOW, LH
62775-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,221..(02S,06S,12S,15S)..(4FC,5F)..(GEN,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775E - CLIP, FRONT SIDE WINDOW, LH
62775-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,221..(02S,06S,12S,15S)..(4FC,5F)..(GEN,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775K - CLIP, FRONT SIDE WINDOW, RH
62775-26020

TRH203..5F;TRH213..GCC,TH;TRH213..LHD..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,22#..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,RUS,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775K - CLIP, FRONT SIDE WINDOW, RH
62775-26020

TRH203..5F;TRH213..GCC,TH;TRH213..LHD..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,22#..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,RUS,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775L - CLIP, FRONT SIDE WINDOW, LH
62775-26020

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,221..(02S,06S,12S,15S)..(4FC,5F)..(GEN,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62775L - CLIP, FRONT SIDE WINDOW, LH
62775-26020

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222..(03S,16S)..(GEN,KEN,SA);KDH203,220,TRH200,221..(02S,06S,12S,15S)..(4FC,5F)..(GEN,SA,TH);GDH201,KDH201,202,21#,223,LH202,212,222,TRH201..(05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62785A - SPACER, QUARTER WINDOW GLASS
62785-26020

KDH222,TRH223..STD..(ARL,SA);TRH201,223..LHD..(06S,10S,12S,13S);KDH21#,223,TRH213..COM..(10S,11S,12S,14S)..(ARL,GEN,RUS,TH)

 2
62785A - SPACER, QUARTER WINDOW GLASS
62785-26020

KDH222,TRH223..STD..(ARL,SA);TRH201,223..LHD..(06S,10S,12S,13S);KDH21#,223,TRH213..COM..(10S,11S,12S,14S)..(ARL,GEN,RUS,TH)

 2
62785K - SPACER, FRONT SIDE WINDOW GLASS, RH
62785-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 2
62785L - SPACER, FRONT SIDE WINDOW GLASS, LH
62785-26020

KDH223..5F..ARL;TRH201,223..(06S,14S)..(ARL,GCC)

REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)

 2
62913A - LINK, FRONT SIDE WINDOW LOCK, RH
62910-26060

TRH213..LHD;TRH203..15S..5F;TRH223..GL..GCC;TRH223..LHD..STD..GEN;KDH221,222,TRH201..SG..(GEN,KEN);TRH223..(10S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS);KDH203,213,220,TRH200,221..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,202,212,223,LH202,212,222..(05S,06S,10S,11S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62913B - LINK, FRONT SIDE WINDOW LOCK, LH
62910-26060

KDH202..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH202,TRH201..RHD..SG;TRH223..(4FC,5F)..(ARL,TH);KDH202,TRH213..LHD..(10S,12S,16S);KDH223,TRH203..(10S,15S,16S)..5F..(GCC,GEN,MA,VN);GDH201,KDH201,212,220,LH202,212,222,TRH221..05S,06S,11S,12S,13S,15S,16S;KDH203,213,221,222,TRH200..(02S,03S,06S,12S,13S,15S,16S)..(4FC,5F)..(GEN,KEN,TH)

 1
62913E - LINK, FRONT SIDE WINDOW LOCK, RH
62920-26010

TRH213..LHD;TRH203..15S..5F;TRH223..GL..GCC;TRH223..LHD..STD..GEN;KDH221,222,TRH201..SG..(GEN,KEN);TRH223..(10S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS);KDH203,213,220,TRH200,221..(02S,06S,10S,12S,13S,15S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,202,212,223,LH202,212,222..(05S,06S,10S,11S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)

 1
62913F - LINK, FRONT SIDE WINDOW LOCK, LH
62920-26010

KDH202..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH202,TRH201..RHD..SG;TRH223..(4FC,5F)..(ARL,TH);KDH202,TRH213..LHD..(10S,12S,16S);KDH223,TRH203..(10S,15S,16S)..5F..(GCC,GEN,MA,VN);GDH201,KDH201,212,220,LH202,212,222,TRH221..05S,06S,11S,12S,13S,15S,16S;KDH203,213,221,222,TRH200..(02S,03S,06S,12S,13S,15S,16S)..(4FC,5F)..(GEN,KEN,TH)

 1
Common parts
61667-26270
90159-60587

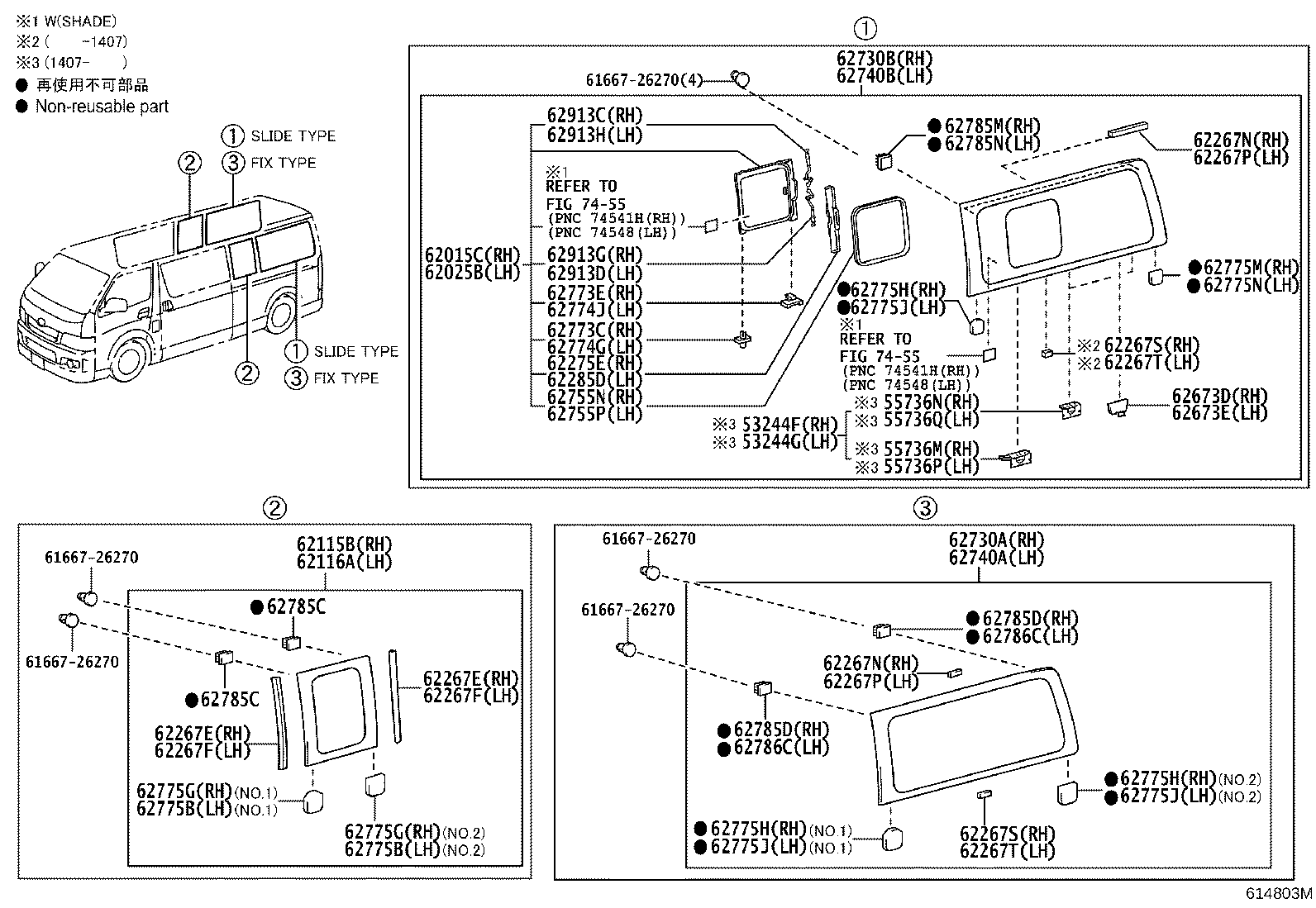

ILLUST NO. 2 OF 2(1312- )KDH22#,LH222,TRH22#

Click highlighted areas on diagram

diagram 53244F 53244G 55736M 55736N 55736P 55736Q 6166726270 6166726270 6166726270 6166726270 6166726270 62015C 62025B 62115B 62116A 62267E 62267E 62267F 62267F 62267N 62267N 62267P 62267P 62267S 62267S 62267T 62267T 62275E 62285D 62673D 62673E 62730A 62730B 62740A 62740B 62755N 62755P 62773C 62773E 62774G 62774J 62775B 62775B 62775G 62775G 62775H 62775H 62775H 62775J 62775J 62775J 62775M 62775N 62785C 62785C 62785D 62785D 62785M 62785N 62786C 62786C 62913C 62913D 62913G 62913H 7455 7455
Part # Description Qty Price
53244F - PLATE, REAR SIDE WINDOW SEAL SET, RH
53244-26030

KDH223..ARL;TRH223..(5F,6FC)..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
55736M - PLATE, REAR SIDE WINDOW WATER GUIDE, NO.1 RH
55736-26070

KDH223..ARL;TRH223..(5F,6FC)..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
55736N - PLATE, REAR SIDE WINDOW WATER GUIDE, NO.2 RH
55736-26090

KDH223..ARL;TRH223..(5F,6FC)..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 2
62015C - FRAME SUB-ASSY, REAR SIDE WINDOW, RH
62015-26030

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62115B - GLASS, REAR SIDE WINDOW, FRONT RH
62205-26011

TRH223..ARL;KDH222,223,LH222..RHD..(ARL,GEN)

 1
62116A - GLASS, REART SIDE WINDOW, FRONT LH
62206-26031

TRH223..ARL;KDH221,222,223,LH222..RHD..SG..(ARL,GEN)

 1
62267E - DAM, QUARTER WINDOW ADHESIVE, NO.1 RH
62267-26010

KDH223..ARL;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH222,LH222..RHD..(03S,16S)

 1
62267E - DAM, QUARTER WINDOW ADHESIVE, NO.1 RH
62267-26010

KDH223..ARL;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH222,LH222..RHD..(03S,16S)

 1
62267F - DAM, QUARTER WINDOW ADHESIVE, NO.1 LH
62267-26010

KDH223..ARL;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(03S,16S)

 2
62267F - DAM, QUARTER WINDOW ADHESIVE, NO.1 LH
62267-26010

KDH223..ARL;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(03S,16S)

 2
62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH
62267-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH213,222..(03S,10S,11S,13S,16S)..(GEN,KEN,SA);KDH201,202,203,212,221,LH202,212,222,TRH201..SG..(GCC,GEN,MA,TH)

 1
62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH
62267-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH213,222..(03S,10S,11S,13S,16S)..(GEN,KEN,SA);KDH201,202,203,212,221,LH202,212,222,TRH201..SG..(GCC,GEN,MA,TH)

 1
62267P - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH213,222,223..ARL,GEN,KEN,RUS,VN;KDH201,202,203,212,221,LH202,212,222,TRH201..SG..(GCC,GEN,MA,TH)

 1
62267P - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

TRH203..5F;TRH213..GCC,TH;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH213,222,223..ARL,GEN,KEN,RUS,VN;KDH201,202,203,212,221,LH202,212,222,TRH201..SG..(GCC,GEN,MA,TH)

 1
62267S - DAM, REAR SIDE WINDOW ADHESIVE, NO.3 RH
62267-26040

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..GL..GCC;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;KDH202,212,LH202,212,222..LHD;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

 1
62267S - DAM, REAR SIDE WINDOW ADHESIVE, NO.3 RH
62267-26040

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..GL..GCC;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;KDH202,212,LH202,212,222..LHD;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

 1
62267T - DAM, REAR SIDE WINDOW ADHESIVE, NO.3 LH
62267-26040

KDH21#..(11S,16S)..GEN;KDH223,TRH201,213,223..(05S,06S,11S,14S)..(ARL,GCC,GEN,TH);KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,TH)

 1
62267T - DAM, REAR SIDE WINDOW ADHESIVE, NO.3 LH
62267-26040

KDH21#..(11S,16S)..GEN;KDH223,TRH201,213,223..(05S,06S,11S,14S)..(ARL,GCC,GEN,TH);KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,TH)

 1
62275E - COVER, REAR SIDE WINDOW, RH
62275-26110

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62673D - COVER, REAR SIDE WINDOW RAIL, RH
62673-26070

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 2
62730A - WINDOW ASSY, SIDE, REAR RH
62073-26021

KDH223..RUS;TRH223..ARL,RUS;TRH223..GL..GCC;TRH223..LHD..STD..GEN;KDH222,LH222..LHD..GEN;KDH221,223..SG..STD..(ARL,GEN)

*UVCT,T=3.1,GREEN

 1
62730B - WINDOW ASSY, QUARTER, REAR RH
62730-26B50

KDH223,TRH223..ARL

*UVCT,T=3.5,GREEN,REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62730-26B51

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62740A - WINDOW ASSY, SIDE, REAR LH
62074-26011

TRH223..ARL;KDH221,222,223,LH222..RHD..SG..(ARL,GEN)

*UVCT,T=3.1,GREEN

 1
62755N - RUN, REAR SIDE WINDOW, RH
62755-26031

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62755-26030

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62755-26032

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62773C - SLIDER, REAR SIDE WINDOW, RH
62773-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62773E - SLIDER, REAR SIDE WINDOW, RH
62773-26030

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62775B - CLIP, QUARTER WINDOW, LH
62775-26020

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.1

 1
62775-26050

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.2

 1
62775B - CLIP, QUARTER WINDOW, LH
62775-26020

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.1

 1
62775-26050

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.2

 1
62775G - CLIP, QUARTER WINDOW, RH
62775-26020

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.1

 1
62775-26050

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.2

 1
62775G - CLIP, QUARTER WINDOW, RH
62775-26020

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.1

 1
62775-26050

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

NO.2

 1
62775H - CLIP, REAR SIDE WINDOW, RH
62775-26050

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

NO.2

 1
62775-26020

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

NO.1

 1
62775-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62775H - CLIP, REAR SIDE WINDOW, RH
62775-26050

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

NO.2

 1
62775-26020

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

NO.1

 1
62775-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62775H - CLIP, REAR SIDE WINDOW, RH
62775-26050

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

NO.2

 1
62775-26020

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

NO.1

 1
62775-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62775J - CLIP, REAR SIDE WINDOW, LH
62775-26050

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

NO.2

 1
62775-26020

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

NO.1

 1
62775J - CLIP, REAR SIDE WINDOW, LH
62775-26050

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

NO.2

 1
62775-26020

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

NO.1

 1
62775J - CLIP, REAR SIDE WINDOW, LH
62775-26050

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

NO.2

 1
62775-26020

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

NO.1

 1
62775M - CLIP, REAR SIDE WINDOW, RH
62775-26050

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 1
62785C - SPACER, QUARTER WINDOW GLASS
62785-26020

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

 2
62785C - SPACER, QUARTER WINDOW GLASS
62785-26020

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH223..ARL,GEN,RUS,VN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH221,222,LH222..(03S,16S)..(GEN,KEN,SA)

 2
62785D - SPACER, QUARTER WINDOW GLASS
62785-26020

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

 2
62785D - SPACER, QUARTER WINDOW GLASS
62785-26020

TRH213..GCC,TH;TRH203..LHD..5F;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH222,TRH213..LHD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,TRH223..STD..(ARL,SA);KDH202,212,LH202,212,222..LHD;KDH201,203,213,221,223,TRH201..SG..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)

 2
62785M - SPACER, REAR SIDE WINDOW GLASS, RH
62785-26020

KDH223,TRH223..ARL

REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)

 2
62786C - SPACER, QUARTER WINDOW GLASS LH
62785-26020

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

 2
62786C - SPACER, QUARTER WINDOW GLASS LH
62785-26020

TRH223..ARL,TH;KDH223..4FC..TH;KDH21#..(11S,16S)..GEN;KDH223,TRH201,213..05S,06S,11S,14S;KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..SG..(GEN,MA,TH)

 2
62913C - LINK, REAR SIDE WINDOW LOCK, RH
62910-26060

TRH213..GCC;KDH223..4FC..TH;KDH212,TRH213..4D..GL..GEN;TRH223..(4FC,5F)..(ARL,TH);KDH202,203,212,222,LH202,212,222,TRH203..RHD..(GEN,KEN,MA,TH)

 1
62913G - LINK, REAR SIDE WINDOW LOCK, RH
62920-26010

TRH213..GCC;KDH223..4FC..TH;KDH212,TRH213..4D..GL..GEN;TRH223..(4FC,5F)..(ARL,TH);KDH202,203,212,222,LH202,212,222,TRH203..RHD..(GEN,KEN,MA,TH)

 1
Common parts
61667-26270
Linked diagrams
7455
