TRH223L-LEPNKV (2013)
Toyota Hiace

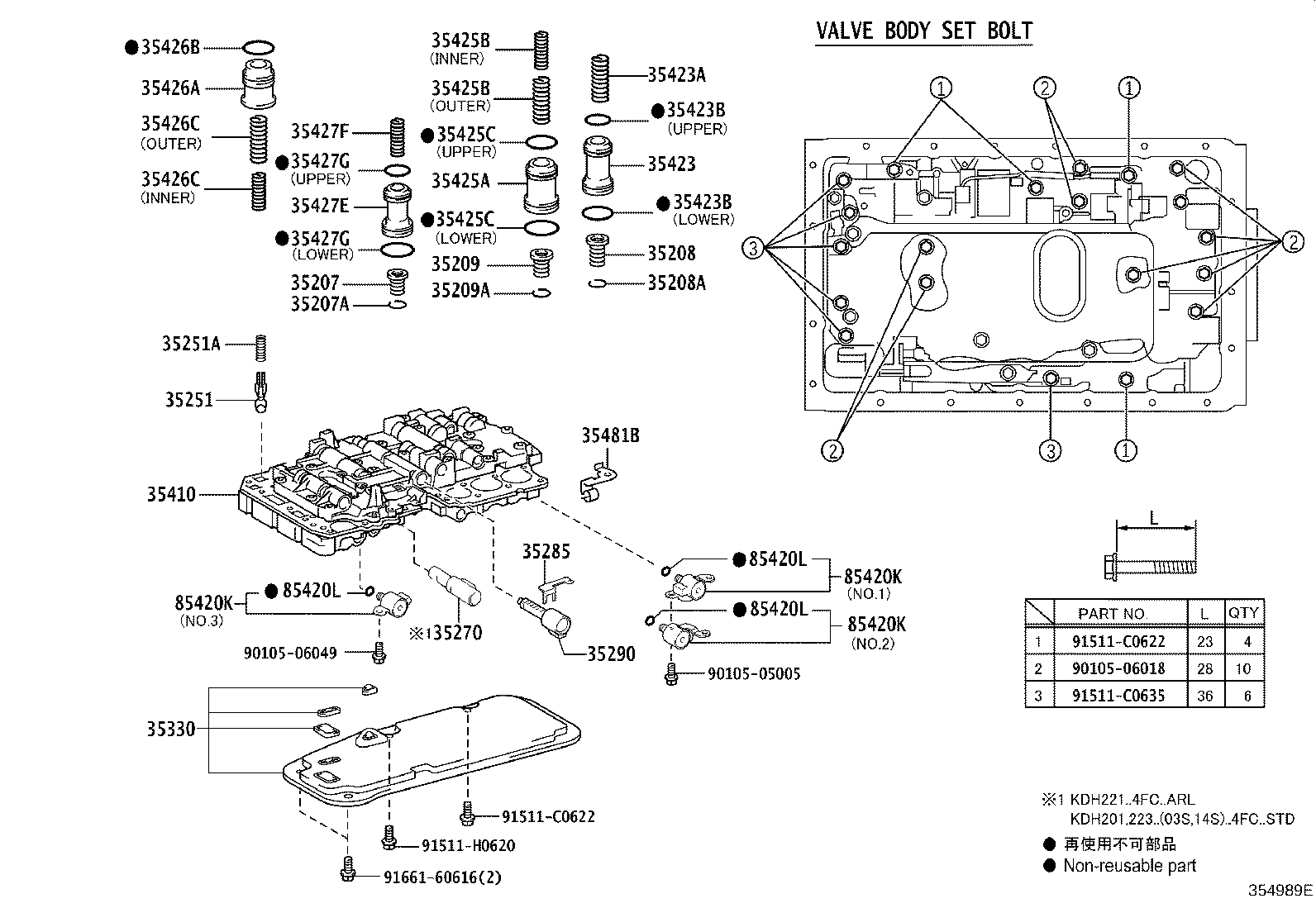

ILLUST NO. 1 OF 2(1312- )KEN ; (1312- )KDH201,21#,221,222,223,TRH201,203,213,22#..4FC
A340E,A343E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35207-22010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 90521-22004 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 90521-22004 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50020 |
TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 90521-22004 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35251-30020 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 90501-03005 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24020 |
TRH223..4FC..GL;TRH223..4FC..ARL;KDH223..4FC..(GEN,TH);KDH212,221,222,TRH201,213,221..4FC;KDH201,213..(02S,05S,06S,11S,13S)..4FC..(ARL,GEN) |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-71010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35290-71010 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-71010 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35423-30030 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24015 |
TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL UPPER |
1 | ||
| 90301-31010 |
KDH213,222,223,TRH213..COM..4FC..GL LOWER |
1 | ||
| 90301-31010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL LOWER |
1 | ||
| 90301-23010 |
KDH213,222,223,TRH213..COM..4FC..GL UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL UPPER |
1 | ||
| 90301-31010 |
KDH213,222,223,TRH213..COM..4FC..GL LOWER |
1 | ||
| 90301-31010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL LOWER |
1 | ||
| 90301-23010 |
KDH213,222,223,TRH213..COM..4FC..GL UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35425-30020 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL INNER |
1 | ||
| 90501-25027 |
KDH213,222,223,TRH213..COM..4FC..GL INNER |
1 | ||
| 90501-22015 |
KDH213,223,TRH213..COM..4FC..GL OUTER |
1 | ||
| 90501-22015 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL INNER |
1 | ||
| 90501-25027 |
KDH213,222,223,TRH213..COM..4FC..GL INNER |
1 | ||
| 90501-22015 |
KDH213,223,TRH213..COM..4FC..GL OUTER |
1 | ||
| 90501-22015 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL UPPER |
1 | ||
| 90301-31010 |
KDH213,222,223,TRH213..COM..4FC..GL LOWER |
1 | ||
| 90301-25010 |
KDH213,222,223,TRH213..COM..4FC..GL UPPER |
1 | ||
| 90301-31010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL UPPER |
1 | ||
| 90301-31010 |
KDH213,222,223,TRH213..COM..4FC..GL LOWER |
1 | ||
| 90301-25010 |
KDH213,222,223,TRH213..COM..4FC..GL UPPER |
1 | ||
| 90301-31010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL LOWER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35426-40010 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 90301-24010 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL INNER |
1 | ||
| 90501-23073 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL OUTER |
1 | ||
| 90501-23073 |
KDH213,222,223,TRH213..COM..4FC..GL OUTER |
1 | ||
| 90501-22008 |
KDH213,222,223,TRH213..COM..4FC..GL INNER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL INNER |
1 | ||
| 90501-23073 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL OUTER |
1 | ||
| 90501-23073 |
KDH213,222,223,TRH213..COM..4FC..GL OUTER |
1 | ||
| 90501-22008 |
KDH213,222,223,TRH213..COM..4FC..GL INNER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35427-30040 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-21006 |
TRH223..(13S,16S)..4FC..GL |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL LOWER |
1 | ||
| 90301-20008 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL UPPER |
1 | ||
| 90301-20008 |
KDH213,222,223,TRH213..COM..4FC..GL UPPER |
1 | ||
| 90301-26011 |
KDH213,222,223,TRH213..COM..4FC..GL LOWER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL LOWER |
1 | ||
| 90301-20008 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL UPPER |
1 | ||
| 90301-20008 |
KDH213,222,223,TRH213..COM..4FC..GL UPPER |
1 | ||
| 90301-26011 |
KDH213,222,223,TRH213..COM..4FC..GL LOWER |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-24010 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35481-24010 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30050 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.1 |
1 | ||
| 35250-30070 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.2 |
1 | ||
| 35250-50030 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.3 |
1 | ||
| 35250-30070 |
KDH213,222,223,TRH213..COM..4FC..GL NO.2 |
1 | ||
| 35250-50030 |
KDH213,222,223,TRH213..COM..4FC..GL NO.3 |
1 | ||
| 35250-30050 |
KDH213,222,223,TRH213..COM..4FC..GL NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30050 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.1 |
1 | ||
| 35250-30070 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.2 |
1 | ||
| 35250-50030 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.3 |
1 | ||
| 35250-30070 |
KDH213,222,223,TRH213..COM..4FC..GL NO.2 |
1 | ||
| 35250-50030 |
KDH213,222,223,TRH213..COM..4FC..GL NO.3 |
1 | ||
| 35250-30050 |
KDH213,222,223,TRH213..COM..4FC..GL NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30050 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.1 |
1 | ||
| 35250-30070 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.2 |
1 | ||
| 35250-50030 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL NO.3 |
1 | ||
| 35250-30070 |
KDH213,222,223,TRH213..COM..4FC..GL NO.2 |
1 | ||
| 35250-50030 |
KDH213,222,223,TRH213..COM..4FC..GL NO.3 |
1 | ||
| 35250-30050 |
KDH213,222,223,TRH213..COM..4FC..GL NO.1 |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 90301-06004 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 90301-06004 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
KDH221..4FC;TRH223..(13S,16S)..4FC..GL |
1 | ||
| 90301-06004 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06018 | ||||
| 90105-06049 | ||||
| 91511-C0622 | ||||
| 91511-C0635 | ||||
| 91511-H0620 | ||||
| 91661-60616 | ||||

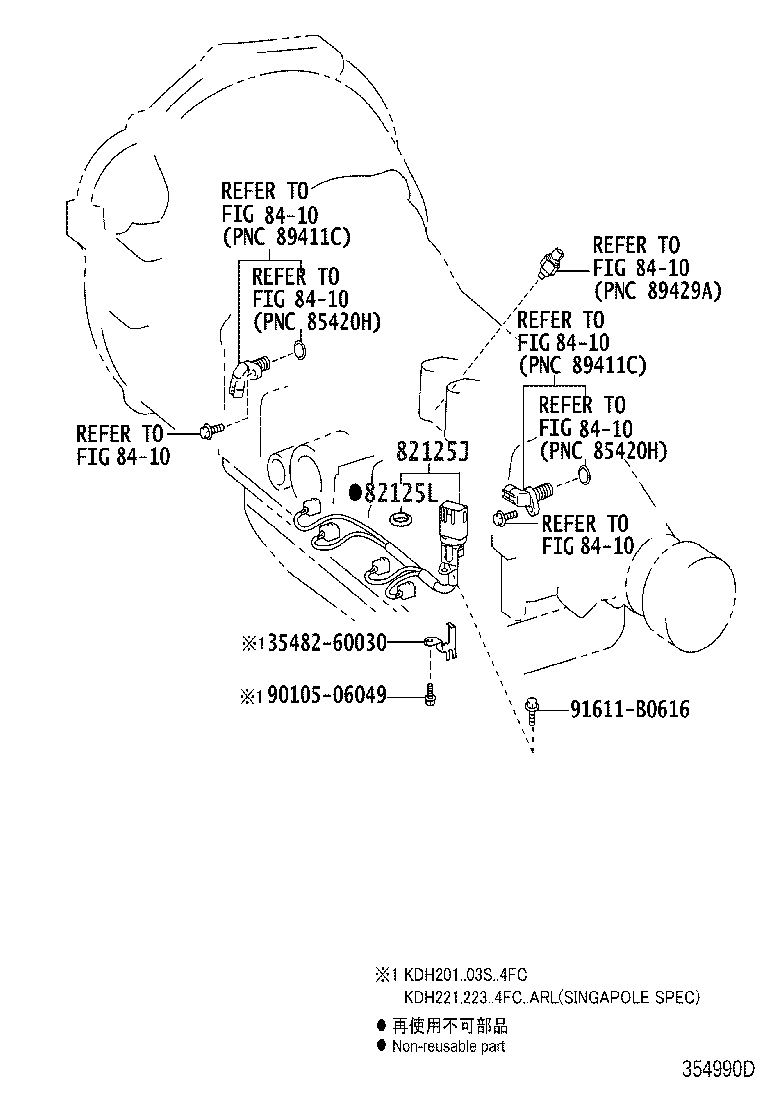

ILLUST NO. 2 OF 2(1312- )KEN ; (1312- )KDH201,21#,221,222,223,TRH201,203,213,22#..4FC
A340E,A343E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-71010 |
TRH223..4FC..GL;TRH223..4FC..ARL;KDH223..4FC..(GEN,TH);KDH212,221,222,TRH201,213,221..4FC;KDH201,213..(02S,05S,06S,11S,13S)..4FC..(ARL,GEN) |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
1 | ||
| Common parts | ||||
| 35482-60030 | ||||
| 90105-06049 | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 8410 | ||||
