TRH223L-LDPNK (2013)
Toyota Hiace
(1312- )KEN ; (1312- )KDH201,21#,221,222,223,TRH201,203,213,22#..4FC
A340E,A343E

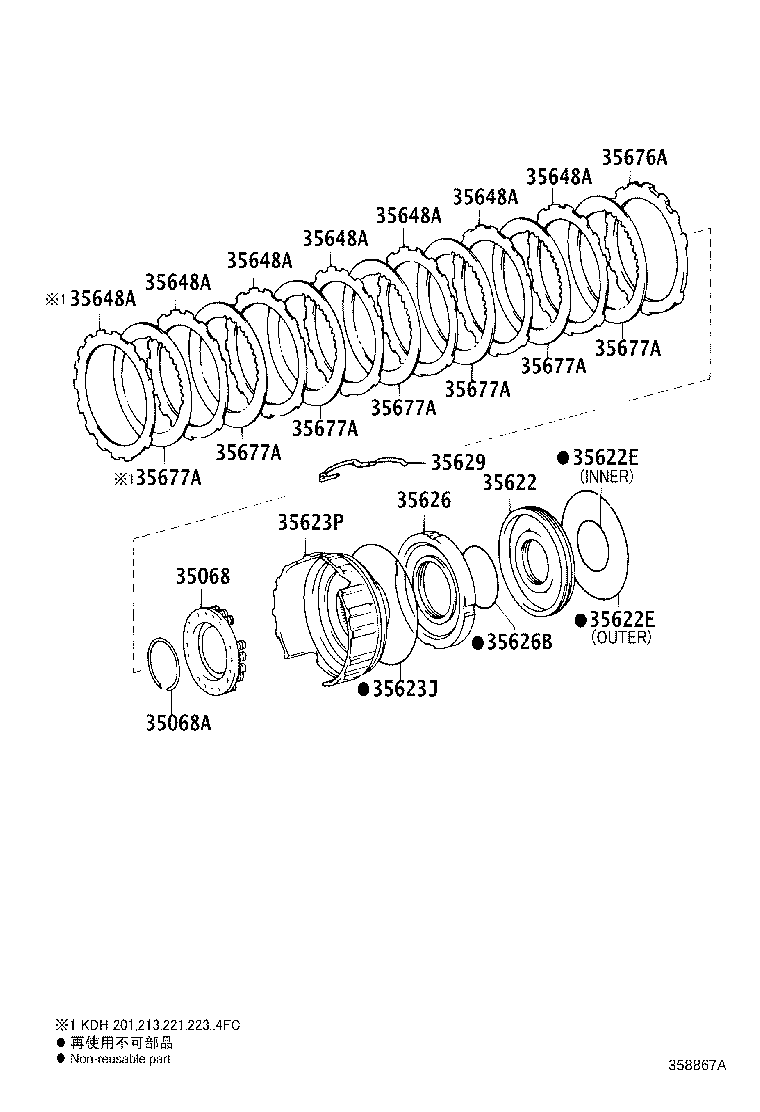

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-50010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC |
1 | ||
| 35622-30010 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-56007 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC INNER |
1 | ||
| 90301-56007 |
KDH213,222,223,TRH213..COM..4FC..GL INNER |
1 | ||
| 90301-99084 |
KDH213,222,223,TRH213..COM..4FC..GL OUTER |
1 | ||
| 90301-99084 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC OUTER |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-56007 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC INNER |
1 | ||
| 90301-56007 |
KDH213,222,223,TRH213..COM..4FC..GL INNER |
1 | ||
| 90301-99084 |
KDH213,222,223,TRH213..COM..4FC..GL OUTER |
1 | ||
| 90301-99084 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC OUTER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99110 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-30012 |
TRH223..10S;TRH213..4FC..GCC |
1 | ||
| 35623-14011 |
KDH213,223..4FC..GEN |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-67005 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22020 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC |
1 | ||
| 35629-22020 |
KDH213,222,223,TRH213..COM..4FC..GL |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDH213,223..4FC..GEN |
7 | ||
| 35648-30031 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-50040 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=4.4 |
1 | ||
| 35676-30100 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=5.2 |
1 | ||
| 35676-50050 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=4.2 |
1 | ||
| 35676-50030 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=4.6 |
1 | ||
| 35676-50060 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=4.0 |
1 | ||
| 35676-30110 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=5.4 |
1 | ||
| 35676-50020 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=4.8 |
1 | ||
| 35676-50010 |
TRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC T=5.0 |
1 | ||
| 35676-30100 |
KDH213,222,223,TRH213..COM..4FC..GL T=5.2 |
1 | ||
| 35676-30110 |
KDH213,222,223,TRH213..COM..4FC..GL T=5.4 |
1 | ||
| 35676-50020 |
KDH213,222,223,TRH213..COM..4FC..GL T=4.8 |
1 | ||
| 35676-50030 |
KDH213,222,223,TRH213..COM..4FC..GL T=4.6 |
1 | ||
| 35676-50010 |
KDH213,222,223,TRH213..COM..4FC..GL T=5.0 |
1 | ||
| 35676-50040 |
KDH213,222,223,TRH213..COM..4FC..GL T=4.4 |
1 | ||
| 35676-50060 |
KDH213,222,223,TRH213..COM..4FC..GL T=4.0 |
1 | ||
| 35676-50050 |
KDH213,222,223,TRH213..COM..4FC..GL T=4.2 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-60020 |
TRH223..10S;TRH213..4FC..GCC |
6 | ||
| 35677-60020 |
KDH213,223..4FC..GEN |
7 | ||
