TRH221R-MSMDKN (2013)
Toyota Hiace

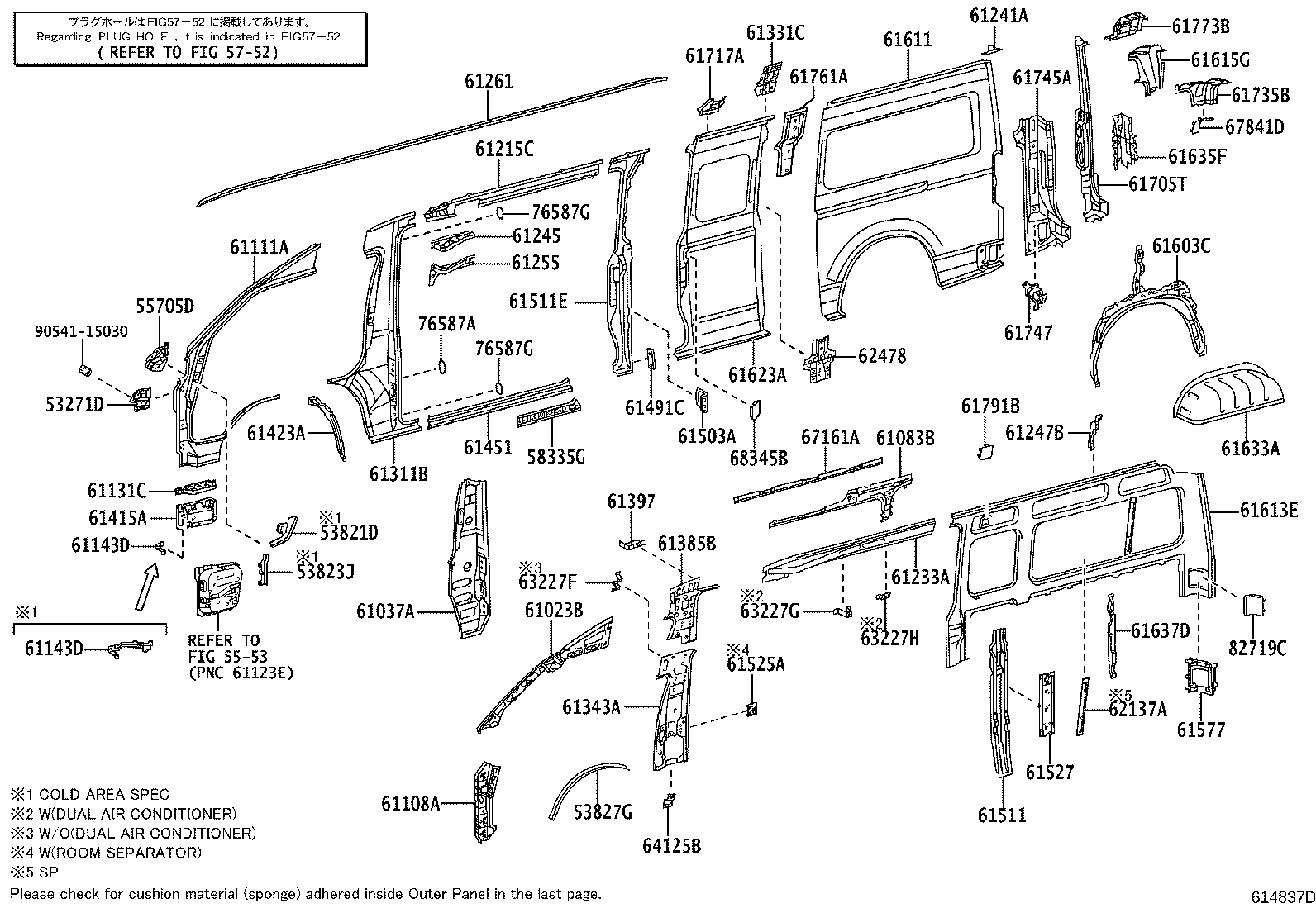

(1312- )KDH220,221,TRH221..5D
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271D - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26021 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26010 |
TRH201;TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS,SA) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26080 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58335G - PLATE, FLOOR SIDE, FR RH | ||||
| 58335-26010 |
TRH221..GCC;TRH203..LHD..5F;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH202,212,LH20#,212,222..LHD;KDH201,222,TRH213..LHD..4D..GEN;KDH201,221,TRH200..5D..(4FC,5F);KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH203,213,220,223,TRH201..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(GCC,GEN,RUS,VN) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26200 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-26080 |
KDH200,201,LH200..LHD..4D;KDH200,220,221,LH200,TRH221..5D;KDH201,TRH201..5D..SP..(03S,05S) |
1 | ||
| 61037-26030 |
TRH221..GCC;KDH200..LHD..5D;KDH201,LH200..LHD..4D;KDH220,TRH221..02S,06S;KDH201,220,221,TRH201..5D..(02S,03S,05S)..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 61083B - BRACE SUB-ASSY, ROOF SIDE INNER, FR RH | ||||
| 61083-26070 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61131-26111 |
TRH223..ARL,TH;KDH221,222..02S,03S;KDH222,223..RHD..16S..4FC;KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-26081 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
TRH201;KDH223..4FC..TH;TRH223..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN) |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
TRH201;KDH223..4FC..TH;TRH223..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN) |
1 | ||
| 61215C - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61215-26050 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-26340 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-26030 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-26040 |
KDH220,221,TRH221;KDH222,223,LH222,TRH223..LHD |
1 | ||
| 61245-26040 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH222,223,LH222..LHD..(GEN,RUS,VN) |
2 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-26020 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
3 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61213-26030 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH222,223,LH222..LHD..(GEN,RUS,VN) |
2 | ||
| 61213-26030 |
KDH220,221,TRH221;KDH222,223,LH222,TRH223..LHD |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-26061 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-26090 |
TRH221..GCC;KDH220,TRH22#..06S,10S;KDH220,222,223,LH222,TRH223..LHD..STD..GEN |
1 | ||
| 61311-26080 |
TRH221..GCC;KDH220,TRH221..06S;KDH220,222,223,LH222,TRH223..LHD..STD..GEN POWER DOOR LOCK-WITH |
1 | ||
| 61331C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER RH | ||||
| 61331-26010 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26430 |
KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 61343-26440 |
KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S;KDH222,LH222,TRH223..LHD..STD..GEN |
1 | ||
| 61385B - EXTENSION, CENTER BODY PILLAR, INNER RH | ||||
| 61385-26020 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61397 - PATCH, CENTER BODY PILLAR, INNER RH | ||||
| 61397-26060 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-26021 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-26020 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61491C - PLATE, NO.3 LOWER RAIL, INNER RH | ||||
| 61491-26010 |
TRH221..GCC;TRH203..LHD..5F;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH202,212,LH20#,212,222..LHD;KDH201,222,TRH213..LHD..4D..GEN;KDH201,221,TRH200..5D..(4FC,5F);KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH203,213,220,223,TRH201..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(GCC,GEN,RUS,VN) |
1 | ||
| 61503A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH | ||||
| 61503-26030 |
TRH221..GCC;TRH203..LHD..5F;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH202,212,LH20#,212,222..LHD;KDH201,222,TRH213..LHD..4D..GEN;KDH201,221,TRH200..5D..(4FC,5F);KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH203,213,220,223,TRH201..(03S,05S,06S,10S,11S,12S,13S,14S,15S,16S)..(GCC,GEN,RUS,VN) |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26070 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61511E - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26050 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
KDH200..MA;TRH221..GCC;TRH223..4FC..GL;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH201,212,LH200..RHD..4D..STD;KDH220,222,223,LH222..LHD..(GEN,RUS,VN);KDH202,203,221,LH202,212,TRH201,203..RHD..(02S,03S,10S,12S,15S,16S) |
1 | ||
| 61577 - PLATE, CAB REAR PILLAR, LOWER RH | ||||
| 61577-26020 |
KDH223..4FC..TH;TRH203..15S..5F;TRH213..LHD..STD;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;TRH223..(10S,16S)..4FC..GL;KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH222,223,LH200..4D..(03S,16S)..(GEN,KEN,SA,VN);GDH201,KDH201,202,203,21#,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61610-26200 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26470 |
KDH220..GEN;TRH221..GCC;KDH220,221,TRH221..02S,06S |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26K30 |
KDH220,TRH221..06S |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-26160 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-26070 |
KDH220..GEN;TRH221..GCC;KDH220,221,TRH221..02S,06S |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-26050 |
LH200..4D;TRH221..02S,06S;KDH200..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH202,220,LH202,TRH203..LHD..GEN;KDH200,202,TRH203,221..5F..(GCC,MA);KDH223,TRH213,223..LHD..(10S,12S,13S)..GL;GDH201,KDH201,203,213,221,TRH201..02S,03S,05S,06S,10S,12S,15S |
1 | ||
| 61635F - REINFORCEMENT, QUARTER PANEL, UPR RH | ||||
| 61635-26050 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH213..LHD..STD;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..(10S,16S)..4FC..GL;KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH213,222,223,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26290 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26070 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S)..(ARL,RUS,SA);KDH22#,LH222..(02S,03S,14S,16S)..(ARL,GEN,KEN,VN) |
1 | ||
| 61735B - EXTENSION, QUARTER PANEL, INNER RH | ||||
| 61735-26A70 |
TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH222..STD..(GEN,KEN,SA);KDH220,221,223,LH222..STD..(ARL,GEN,VN);KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26050 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-26020 |
KDH200,202,223,TRH203..MA,RUS;KDH222,TRH201,223..(03S,12S,16S)..(KEN,RUS,SA);KDH212,TRH213,223..(10S,11S,13S)..GL..(GEN,TH);KDH203,213,220,223,TRH221..(06S,11S,13S,14S,15S,16S)..(GEN,SA,VN) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26100 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-26150 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26010B0 |
TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26050 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH201,LH200..LHD..4D;KDH220,TRH200..06S..(4FC,5F);GDH201,KDH201,220,221,TRH201..5D..SP..(ARL,GCC,GEN) |
2 | ||
| 62478 - PATCH, CENTER PILLAR, RH | ||||
| 62478-26050 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 63227F - BRACKET, ROOF HEADLINING, FR RH | ||||
| 63227-26030 |
TRH221..GCC;KDH220,TRH221..02S,06S;KDH222,LH222,TRH223..LHD..STD..GEN;KDH220,221,223..(02S,03S,12S)..(ARL,GEN) |
1 | ||
| 63227G - BRACKET, ROOF HEADLINING, FR RH NO.2 | ||||
| 63227-26050 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63227H - BRACKET, ROOF HEADLINING, FR RH NO.3 | ||||
| 63227-26040 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-26050 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 67161A - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER RH | ||||
| 67161-26020 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 67841D - COVER, QUARTER SERVICE HOLE, RH | ||||
| 67841-26040B0 |
TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020B0 |
TRH221..GCC;KDH200..LHD..5D;KDH220,TRH221..02S,06S;GDH201,KDH201,220,221,TRH200,201..5D..(ARL,GCC,GEN) DK.GRAY,TRIM1# |
2 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH213,220,TRH200..(06S,11S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,212,220,221,TRH201,213..5D..(ARL,GCC,GEN,TH) |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH213,220,TRH200..(06S,11S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,212,220,221,TRH201,213..5D..(ARL,GCC,GEN,TH) |
4 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH213,220,TRH200..(06S,11S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,212,220,221,TRH201,213..5D..(ARL,GCC,GEN,TH) |
4 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26030B1 |
KDH223..4FC..TH;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH222..STD..(GEN,KEN,SA);KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);GDH201,KDH201,202,203,221,LH202,212,222,TRH201..ARL,GCC,GEN,SA,TH;KDH212,223,LH200,TRH203..4D..(03S,13S,15S,16S)..5F..STD..(GCC,GEN,VN) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||

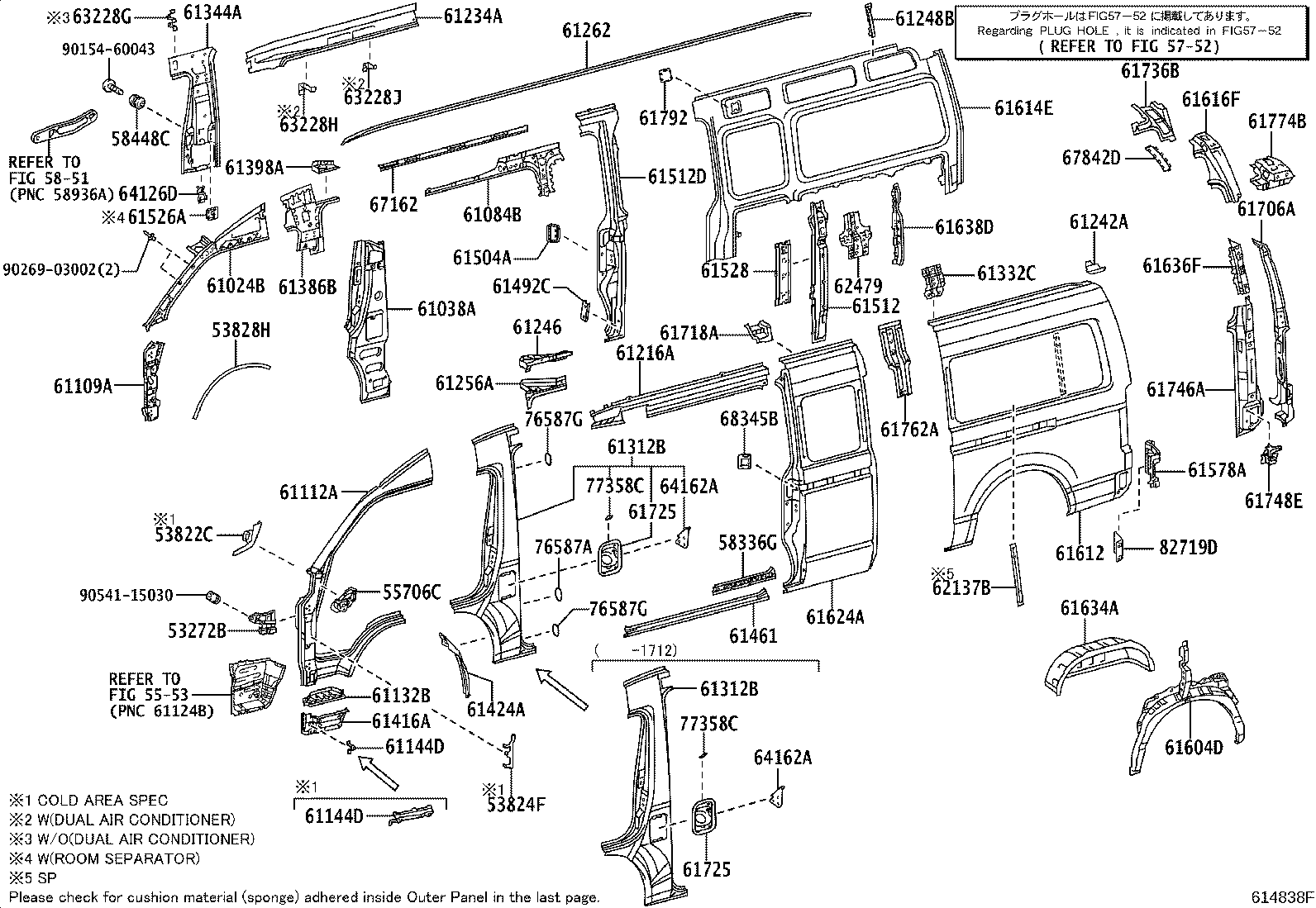

(1312- )KDH220,221,TRH221..5D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
TRH201;TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS,SA) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26050 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH201..02S,03S,05S;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH221,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH201,222..SG..(03S,06S,16S)..(GEN,KEN,SA);KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH202,203,21#,LH202,212,222..COM..(GCC,GEN,MA,TH) |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
LH200..RHD..4D;KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..STD..(ARL,SA,TH);KDH200,201,220..LHD..5D..GEN;KDH212,TRH221..(02S,06S,11S,16S)..(ARL,GEN,SA);KDH220,223,TRH200,213..RHD..(06S,11S,14S)..(4FC,5F);KDH213,TRH201..(02S,03S,05S,06S,11S)..(ARL,GCC,GEN,SA);GDH201,KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26120 |
TRH221..GCC;TRH223..GL..GCC;KDH220,222,TRH22#..(06S,16S)..SA |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26060 |
TRH201..SP;KDH200,201..LHD..5D;KDH220,221,TRH221..5D;KDH200,201,LH200..RHD..(02S,03S,05S) |
1 | ||
| 61038-26010 |
LH200..RHD..4D;KDH200,TRH221..GCC,MA;KDH220,TRH221..02S,06S;KDH221,TRH201..02S,03S;KDH201..RHD..(02S,03S,05S);KDH200,201,220..LHD..5D..GEN |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26080 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26161 |
TRH221..GCC;TRH223..ARL,TH;KDH223..4FC..TH;KDH222..RHD..(GEN,KEN);KDH220,TRH221..02S,06S;KDH222,TRH223..LHD..STD..GEN;KDH220,221,223,LH222..STD..(ARL,GEN) |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26121 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH201;KDH223..4FC..TH;TRH223..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN) |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH201;KDH223..4FC..TH;TRH223..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN) |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26030 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26380 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26020 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26040 |
TRH223..6FC;TRH221..SP..(5F,6FC);KDH222,LH222,TRH223..RHD..(GEN,SA,TH);KDH220,221,223..(02S,03S,06S,14S,16S)..STD |
1 | ||
| 61246-26040 |
KDH220..GEN;TRH221..GCC;TRH223..ARL,TH;KDH223..4FC..TH;KDH220,TRH221..02S,06S;KDH221,222,223,LH222..RHD..(ARL,GEN,KEN) |
2 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61247-26020 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
3 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61214-26060 |
TRH223..6FC;TRH221..SP..(5F,6FC);KDH222,LH222,TRH223..RHD..(GEN,SA,TH);KDH220,221,223..(02S,03S,06S,14S,16S)..STD |
1 | ||
| 61214-26060 |
KDH220..GEN;TRH221..GCC;TRH223..ARL,TH;KDH223..4FC..TH;KDH220,TRH221..02S,06S;KDH221,222,223,LH222..RHD..(ARL,GEN,KEN) |
2 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26051 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26150 |
KDH220,TRH221..SP..(03S,06S);KDH222,LH222,TRH223..RHD..STD..GEN |
1 | ||
| 61312-26140 |
KDH220,TRH221..SP..(03S,06S);KDH222,LH222,TRH223..RHD..STD..GEN POWER DOOR LOCK-WITH |
1 | ||
| 61302-26670 |
KDH220..GEN;TRH221..GCC;KDH222..RHD..STD..GEN;KDH220,LH222,TRH221..RHD..(06S,16S) |
1 | ||
| 61302-26660 |
KDH220..GEN;TRH221..GCC;KDH222..RHD..STD..GEN;KDH220,LH222,TRH221..RHD..(06S,16S) POWER DOOR LOCK-WITH |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26150 |
KDH220,TRH221..SP..(03S,06S);KDH222,LH222,TRH223..RHD..STD..GEN |
1 | ||
| 61312-26140 |
KDH220,TRH221..SP..(03S,06S);KDH222,LH222,TRH223..RHD..STD..GEN POWER DOOR LOCK-WITH |
1 | ||
| 61302-26670 |
KDH220..GEN;TRH221..GCC;KDH222..RHD..STD..GEN;KDH220,LH222,TRH221..RHD..(06S,16S) |
1 | ||
| 61302-26660 |
KDH220..GEN;TRH221..GCC;KDH222..RHD..STD..GEN;KDH220,LH222,TRH221..RHD..(06S,16S) POWER DOOR LOCK-WITH |
1 | ||
| 61332C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER LH | ||||
| 61332-26020 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26370 |
TRH223..TH;KDH220..GEN;KDH223..4FC..TH;KDH220,TRH221..02S,06S;KDH221,222,LH222..RHD..STD..(ARL,GEN) |
1 | ||
| 61344-26400 |
KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26020 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26050 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26021 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61461 - PANEL, ROCKER, OUTER LH | ||||
| 61461-26010 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
LH200..RHD..4D;KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..STD..(ARL,SA,TH);KDH200,201,220..LHD..5D..GEN;KDH212,TRH221..(02S,06S,11S,16S)..(ARL,GEN,SA);KDH220,223,TRH200,213..RHD..(06S,11S,14S)..(4FC,5F);KDH213,TRH201..(02S,03S,05S,06S,11S)..(ARL,GCC,GEN,SA);GDH201,KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
LH200..RHD..4D;KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..STD..(ARL,SA,TH);KDH200,201,220..LHD..5D..GEN;KDH212,TRH221..(02S,06S,11S,16S)..(ARL,GEN,SA);KDH220,223,TRH200,213..RHD..(06S,11S,14S)..(4FC,5F);KDH213,TRH201..(02S,03S,05S,06S,11S)..(ARL,GCC,GEN,SA);GDH201,KDH201,202,203,221,222,LH202,212,222,TRH203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-26050 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61512D - PILLAR, QUARTER LOCK, LH | ||||
| 61512-26030 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-26040 |
TRH221..GCC;KDH223..4FC..TH;KDH220,TRH203..LHD..5F;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD;KDH201,202,203,21#,LH20#,212,TRH213..LHD..4D |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
KDH223..4FC..TH;TRH203..15S..5F;TRH213..LHD..STD;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;TRH223..(10S,16S)..4FC..GL;KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH222,223,LH200..4D..(03S,16S)..(GEN,KEN,SA,VN);GDH201,KDH201,202,203,21#,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61620-26260 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26550 |
KDH220..GEN;TRH221..GCC;KDH220,221,TRH221..02S,06S |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26J00 |
KDH220,TRH221..06S |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26090 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-26030 |
KDH220..GEN;TRH221..GCC;KDH220,221,TRH221..02S,06S |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-26050 |
LH200..4D;TRH221..02S,06S;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH223,TRH213,223..LHD..(10S,12S,13S)..GL;KDH202,220,LH202,TRH200,203..RHD..(06S,10S,15S)..(4FC,5F);GDH201,KDH201,202,203,213,221,LH202,TRH201..(02S,03S,05S,06S,10S,12S)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26040 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH213..LHD..STD;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..(10S,16S)..4FC..GL;KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH213,222,223,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26280 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26050 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S)..(ARL,RUS,SA);KDH22#,LH222..(02S,03S,14S,16S)..(ARL,GEN,KEN,VN) |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A70 |
TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH222..STD..(GEN,KEN,SA);KDH220,221,223,LH222..STD..(ARL,GEN,VN);KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 61748E - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-26010 |
KDH200,202,223,TRH203..MA,RUS;KDH222,TRH201,223..(03S,12S,16S)..(KEN,RUS,SA);KDH212,TRH213,223..(10S,11S,13S)..GL..(GEN,TH);KDH203,213,220,223,TRH221..(06S,11S,13S,14S,15S,16S)..(GEN,SA,VN) |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26100 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26150 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26010B0 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S LT.GRAY,TRIM1# |
1 | ||
| 62137B - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26050 |
LH200..RHD..4D;KDH200,TRH221..GCC,MA;KDH220,TRH221..02S,06S;GDH201,KDH221,TRH201..SP;KDH200,201,220..LHD..5D..GEN;KDH201,TRH200..RHD..SP..(4FC,5F) |
2 | ||
| 62479 - PATCH, CENTER PILLAR, LH | ||||
| 62479-26050 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 63228G - BRACKET, ROOF HEADLINING, FRONT LH | ||||
| 63228-26050 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;KDH221,222,LH222..RHD..STD..(ARL,GEN,SA);KDH220,TRH22#..(02S,06S,16S)..(ARL,SA,TH) |
1 | ||
| 63228H - BRACKET, ROOF HEADLINING, FRONT LH NO.2 | ||||
| 63228-26040 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63228J - BRACKET, ROOF HEADLINING, FRONT LH NO.3 | ||||
| 63228-26030 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26020 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
1 | ||
| 67842D - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-26040B0 |
TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020B0 |
TRH221..GCC;KDH200..LHD..5D;KDH220,TRH221..02S,06S;GDH201,KDH201,220,221,TRH200,201..5D..(ARL,GCC,GEN) DK.GRAY,TRIM1# |
2 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH213,220,TRH200..(06S,11S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,212,220,221,TRH201,213..5D..(ARL,GCC,GEN,TH) |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH213,220,TRH200..(06S,11S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,212,220,221,TRH201,213..5D..(ARL,GCC,GEN,TH) |
4 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
TRH221..GCC;TRH221..02S,06S;KDH200..LHD..5D;KDH213,220,TRH200..(06S,11S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,212,220,221,TRH201,213..5D..(ARL,GCC,GEN,TH) |
4 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B1 |
KDH223..4FC..TH;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH222..STD..(GEN,KEN,SA);KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);GDH201,KDH201,202,203,221,LH202,212,222,TRH201..ARL,GCC,GEN,SA,TH;KDH212,223,LH200,TRH203..4D..(03S,13S,15S,16S)..5F..STD..(GCC,GEN,VN) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90269-03002 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
(1312- )ARL,GCC,GEN,KEN,MA,RUS,SA,TH
CUSHION MATERIAL (SPONGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26330 | ||||
| 61667-26340 | ||||
| 61667-26350 | ||||
| 61667-26360 | ||||
| 61667-26390 | ||||
| 61667-26400 | ||||
| 61667-26420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
