TRH221R-MBTDKQ (2015)

Toyota Hiace

Production Jan 2015 - Feb 2019
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

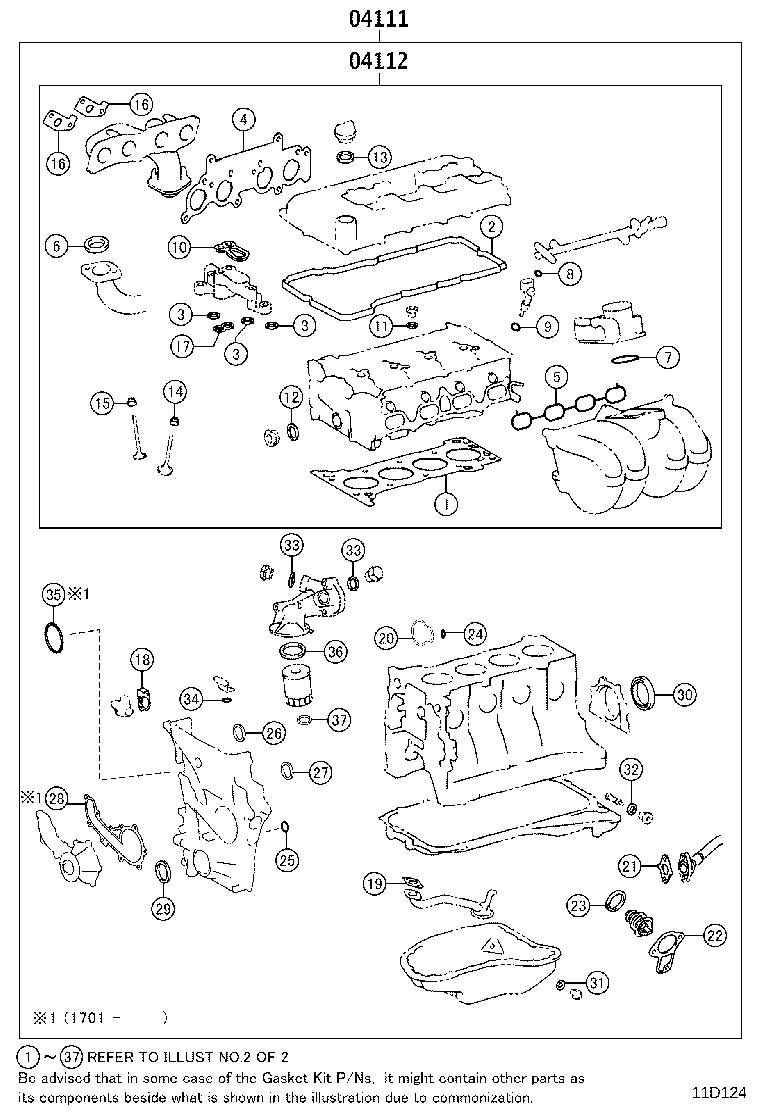

ILLUST NO. 1 OF 2(1501- )2TRFE..TRH201,22#..02S,05S,06S,12S,14S..ARL,GEN,RUS

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75B50

2TRFE..TRH201,22#..ARL

LPG CONVERSION PACKAGE

 1
04111-75B50

2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)

 1
04111-75B51

2TRFE..TRH201,22#..ARL

LPG CONVERSION PACKAGE

 1
04111-75B51

2TRFE..TRH201,22#..(02S,05S,06S,14S)..(ARL,GEN)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75950

2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)

 1

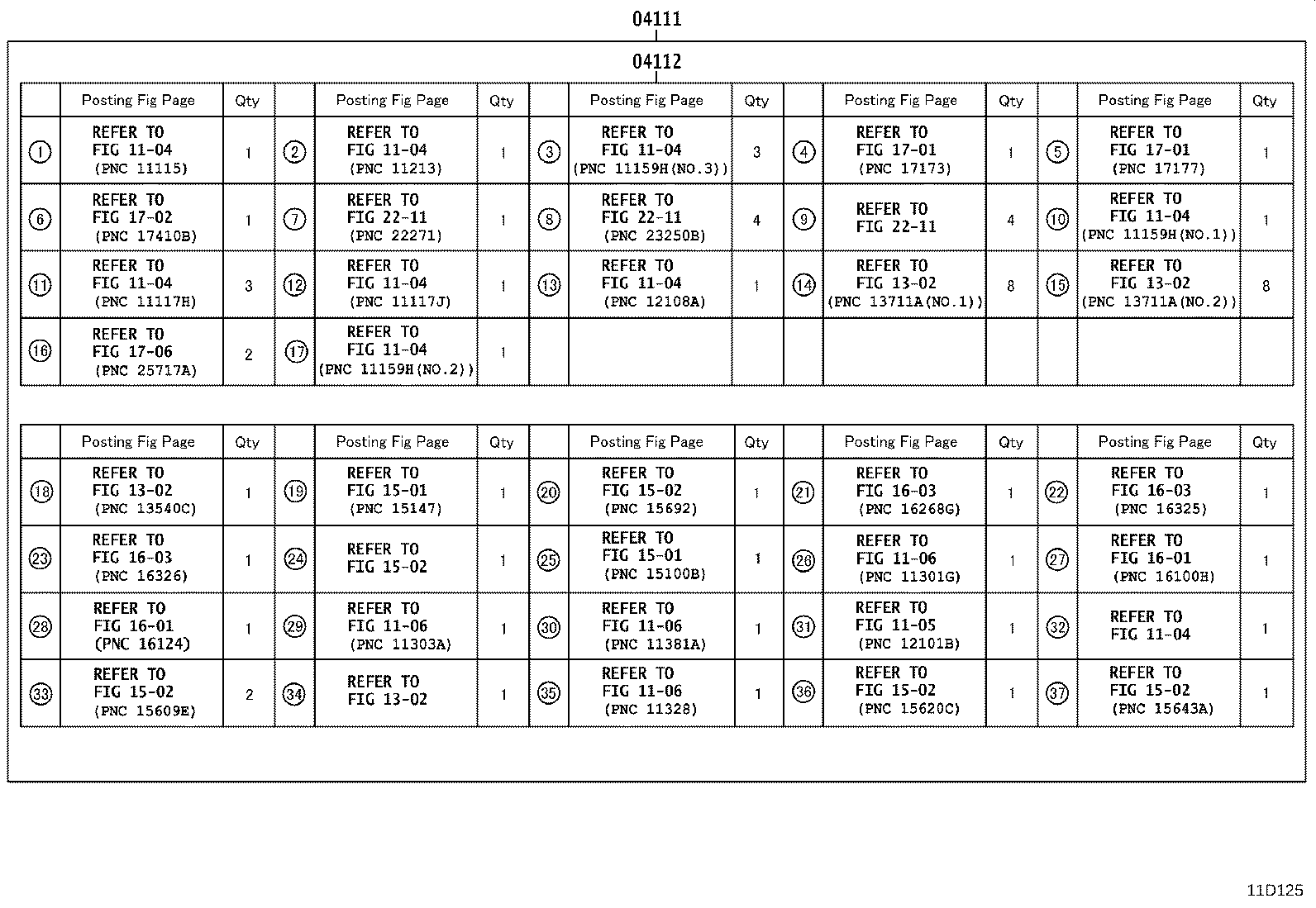

ILLUST NO. 2 OF 2(1501- )2TRFE..TRH201,22#..02S,05S,06S,12S,14S..ARL,GEN,RUS

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1106 1106 1106 1106 1302 1302 1302 1302 1501 1501 1502 1502 1502 1502 1502 1601 1601 1603 1603 1603 1701 1701 1702 1706 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75B50

2TRFE..TRH201,22#..ARL

LPG CONVERSION PACKAGE

 1
04111-75B50

2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)

 1
04111-75B51

2TRFE..TRH201,22#..ARL

LPG CONVERSION PACKAGE

 1
04111-75B51

2TRFE..TRH201,22#..(02S,05S,06S,14S)..(ARL,GEN)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75950

2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1601
1603
1701
1702
1706
2211
