TRH221R-MBPDKQ (2013)
Toyota Hiace
(1312- )KEN ; (1312- )KDH201,21#,221,222,223..4FC

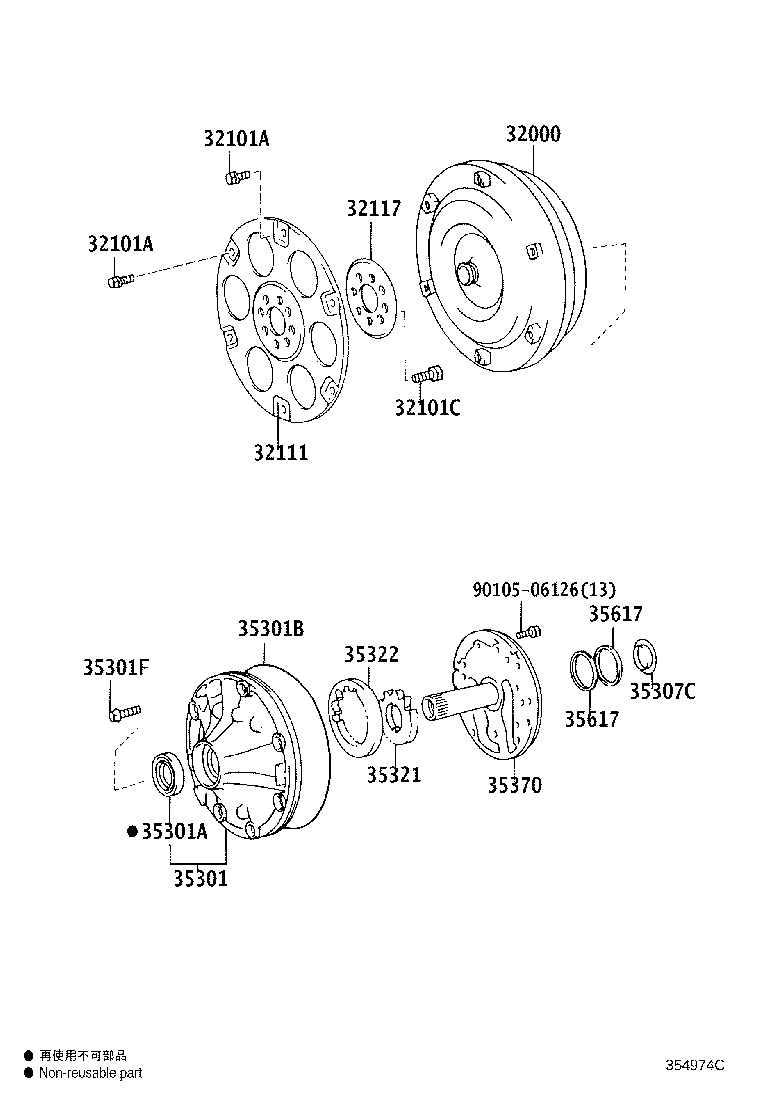

A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-35240 |
KDH223..4FC..(GEN,TH);KDH201..(02S,05S,06S)..4FC;KDH213,221..4FC..(ARL,GEN) |
1 | ||
| 32000-60240 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH212,222,TRH200,201,213,221..4FC,6FC *9-1.25PX12.8-8.8 |
5 | ||
| 90105-10413 |
KDH213..4FC..GEN;KDH201,221,223..4FC *10-1.5PX11-8,(J),SILVER WHITE |
5 | ||
| 90119-09010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH212,222,TRH200,201,213,221..4FC,6FC *9-1.25PX12.8-9 |
1 | ||
| 90105-10546 |
KDH213..4FC..GEN;GDH201,KDH201,221,223..4FC,6FC *10-1.5PX11-8,BLACK |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH212,222,TRH200,201,213,221..4FC,6FC *9-1.25PX12.8-8.8 |
5 | ||
| 90105-10413 |
KDH213..4FC..GEN;KDH201,221,223..4FC *10-1.5PX11-8,(J),SILVER WHITE |
5 | ||
| 90119-09010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH212,222,TRH200,201,213,221..4FC,6FC *9-1.25PX12.8-9 |
1 | ||
| 90105-10546 |
KDH213..4FC..GEN;GDH201,KDH201,221,223..4FC,6FC *10-1.5PX11-8,BLACK |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-13010 |
KDH213..4FC..GEN;KDH201,221,223..4FC *13-1.5PX43.5-23.5,(J) |
8 | ||
| 90105-10276 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;TRH200,201,213,221..4FC,6FC *10-1.25PX30-17.5 |
10 | ||
| 90105-T0113 |
KDH201,213,221,223..4FC *13-1.5PX43.5-23.5,(L) |
8 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-60080 |
KDH201,213,221,223..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-26010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;TRH200,201,213,221..4FC,6FC |
1 | ||
| 32117-60050 |
KDH213..4FC..GEN;GDH201,KDH201,212,221,222,223..4FC,6FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-50020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38087 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99033 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC *8-1.25PX35-35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30340 |
TRH201,22#..RHD..4FC T=3.7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-30040 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.700-11.709 |
1 | ||
| 35321-30030 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.690-11.699 |
1 | ||
| 35321-30070 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.731-11.740 |
1 | ||
| 35321-30050 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.710-11.720 |
1 | ||
| 35321-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.721-11.730 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-30030 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.700-11.709 |
1 | ||
| 35322-30050 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.721-11.730 |
1 | ||
| 35322-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.690-11.699 |
1 | ||
| 35322-30040 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.710-11.720 |
1 | ||
| 35322-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.731-11.740 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
(1312- )TRH20#,213,22#..4FC

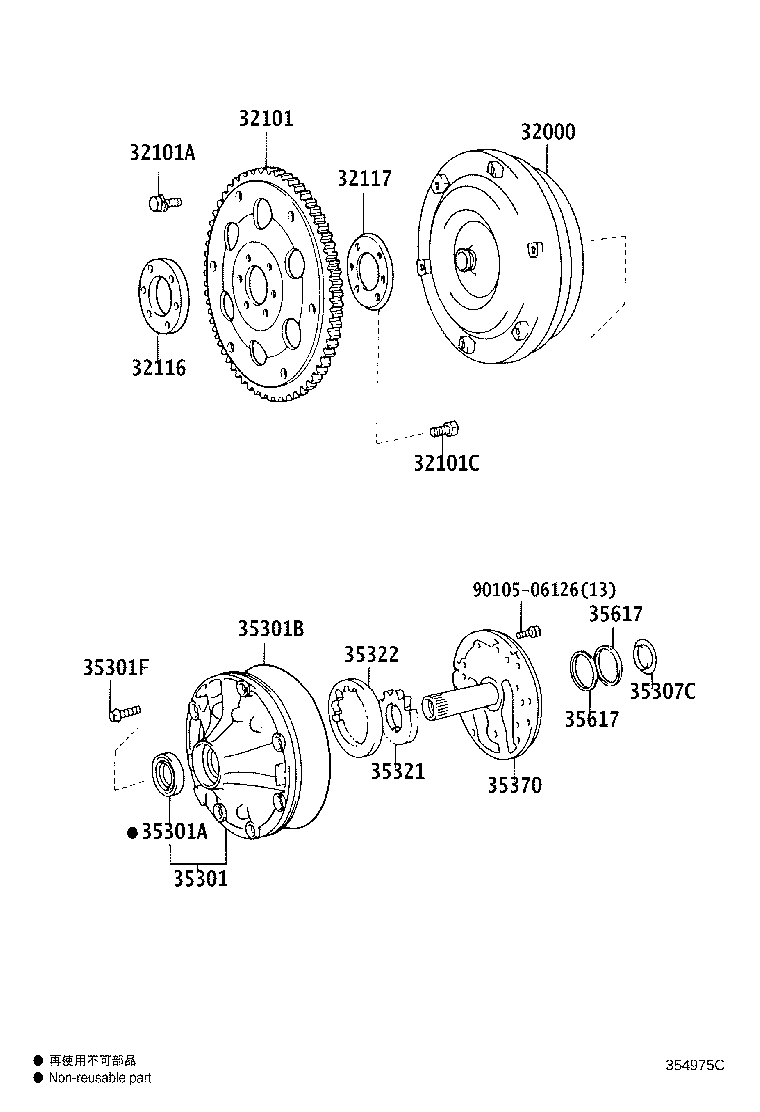

A343E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-35240 |
KDH223..4FC..(GEN,TH);KDH201..(02S,05S,06S)..4FC;KDH213,221..4FC..(ARL,GEN) |
1 | ||
| 32000-60240 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-26010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;TRH200,201,213,221..4FC,6FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH212,222,TRH200,201,213,221..4FC,6FC *9-1.25PX12.8-8.8 |
5 | ||
| 90105-10413 |
KDH213..4FC..GEN;KDH201,221,223..4FC *10-1.5PX11-8,(J),SILVER WHITE |
5 | ||
| 90119-09010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH212,222,TRH200,201,213,221..4FC,6FC *9-1.25PX12.8-9 |
1 | ||
| 90105-10546 |
KDH213..4FC..GEN;GDH201,KDH201,221,223..4FC,6FC *10-1.5PX11-8,BLACK |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-13010 |
KDH213..4FC..GEN;KDH201,221,223..4FC *13-1.5PX43.5-23.5,(J) |
8 | ||
| 90105-10276 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;TRH200,201,213,221..4FC,6FC *10-1.25PX30-17.5 |
10 | ||
| 90105-T0113 |
KDH201,213,221,223..4FC *13-1.5PX43.5-23.5,(L) |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-26010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;TRH200,201,213,221..4FC,6FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-26010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;TRH200,201,213,221..4FC,6FC |
1 | ||
| 32117-60050 |
KDH213..4FC..GEN;GDH201,KDH201,212,221,222,223..4FC,6FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-50020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38087 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99033 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC *8-1.25PX35-35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30340 |
TRH201,22#..RHD..4FC T=3.7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-30040 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.700-11.709 |
1 | ||
| 35321-30030 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.690-11.699 |
1 | ||
| 35321-30070 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.731-11.740 |
1 | ||
| 35321-30050 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.710-11.720 |
1 | ||
| 35321-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.721-11.730 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-30030 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.700-11.709 |
1 | ||
| 35322-30050 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.721-11.730 |
1 | ||
| 35322-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.690-11.699 |
1 | ||
| 35322-30040 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.710-11.720 |
1 | ||
| 35322-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=11.731-11.740 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
