TRH221R-MBPDKQ (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

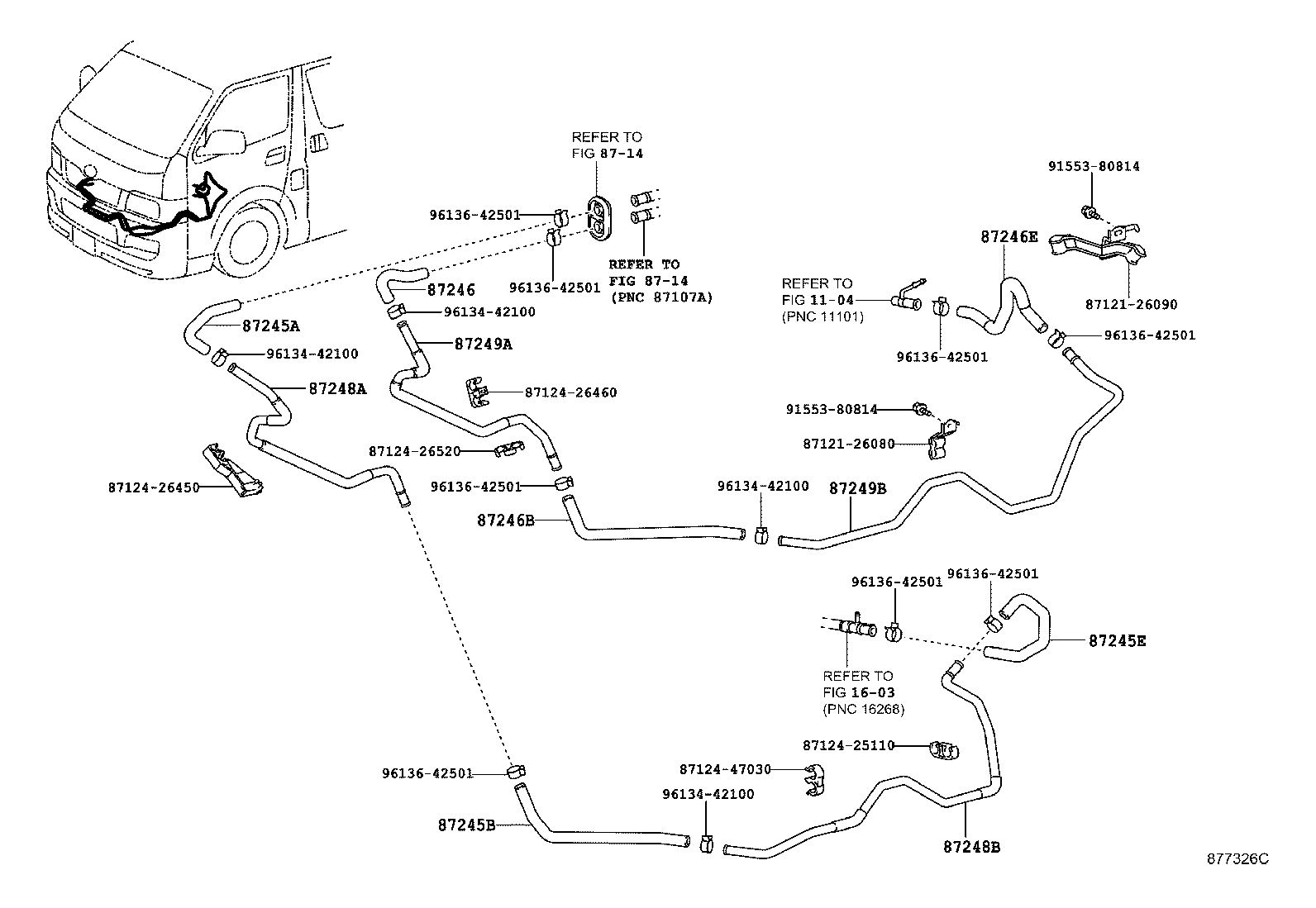

ILLUST NO. 1 OF 2(0501- )TRH223..GL..GCC,SA ; (0501- )TRH213..LHD..STD..GEN ; (0501- )TRH22

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245C 87245E 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245-26B20

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C00

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B80

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245-26B80

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C10

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B60

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87245-26B60

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245-26B30

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C80

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B90

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245-26B90

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87245-26B70

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248-26440

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26520

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26520

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26570

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87248-26570

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248-26450

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26530

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26530

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

ILLUST NO. 2 OF 2(0501- )KDH222,TRH223..GL..SA ; (0501- )TRH223..RHD..5F..ARL,GEN ; (0501-

Click highlighted areas on diagram

REAR

diagram 8712 8712126130 8712126140 8712426481 8712426481 87248F 87249F 9009900275 9009900275 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818
Part # Description Qty Price
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

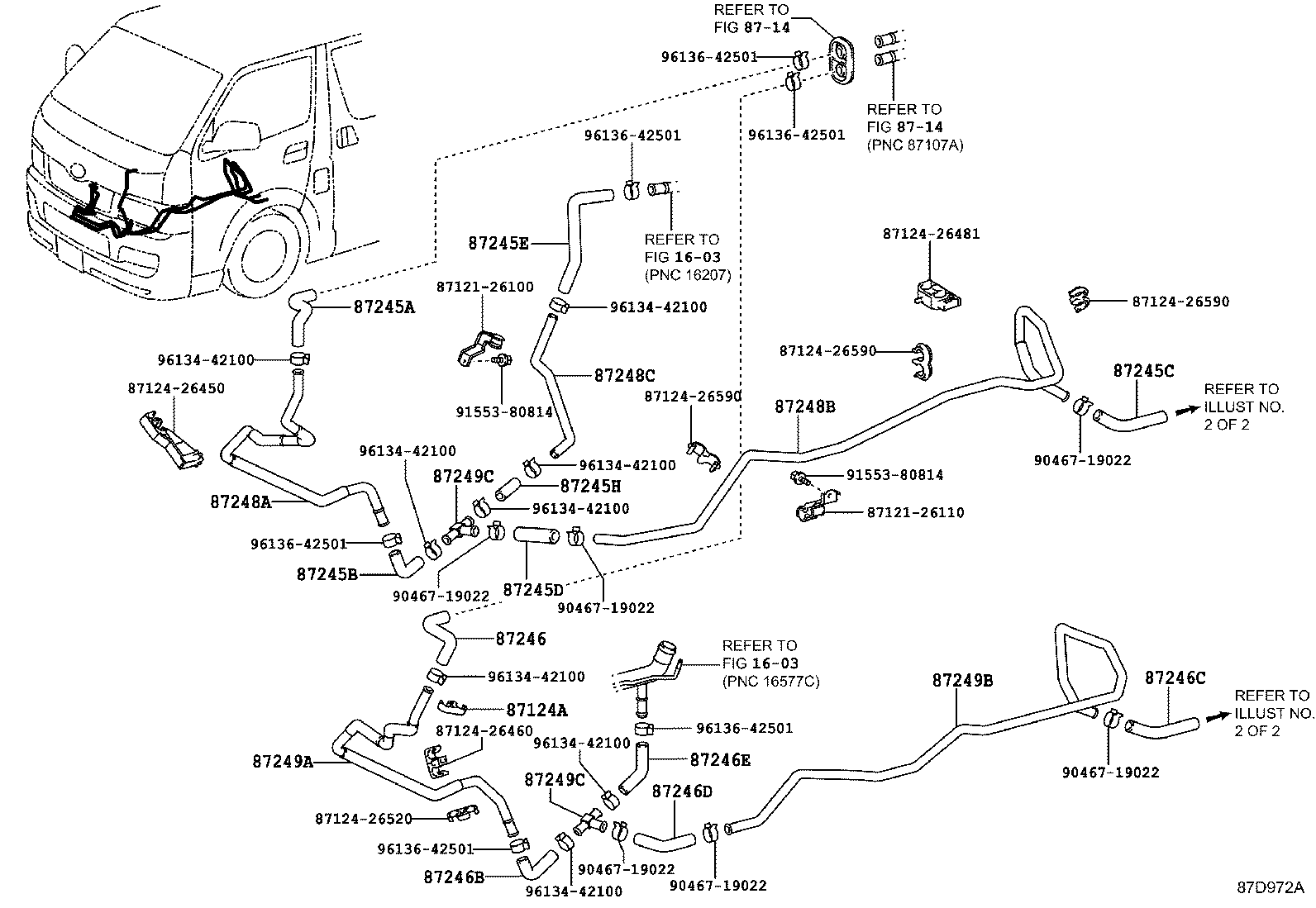

ILLUST NO. 1 OF 2(0501- )KDH212,220,221..03S,10S,16S..ARL,GCC,GEN,SA ; (0610-0710)KDH212..STD..SA

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712126100 8712426450 8712426460 8712426520 8714 8714 87245A 87245B 87245E 87246 87246B 87248A 87248B 87249A 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245-26B20

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C00

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B80

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245-26B80

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C10

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B60

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87245-26B60

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245-26B30

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C80

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B90

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245-26B90

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248-26440

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26520

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26520

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26570

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87248-26570

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248-26450

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
Common parts
87121-26100
87124-26450
87124-26460
87124-26520
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

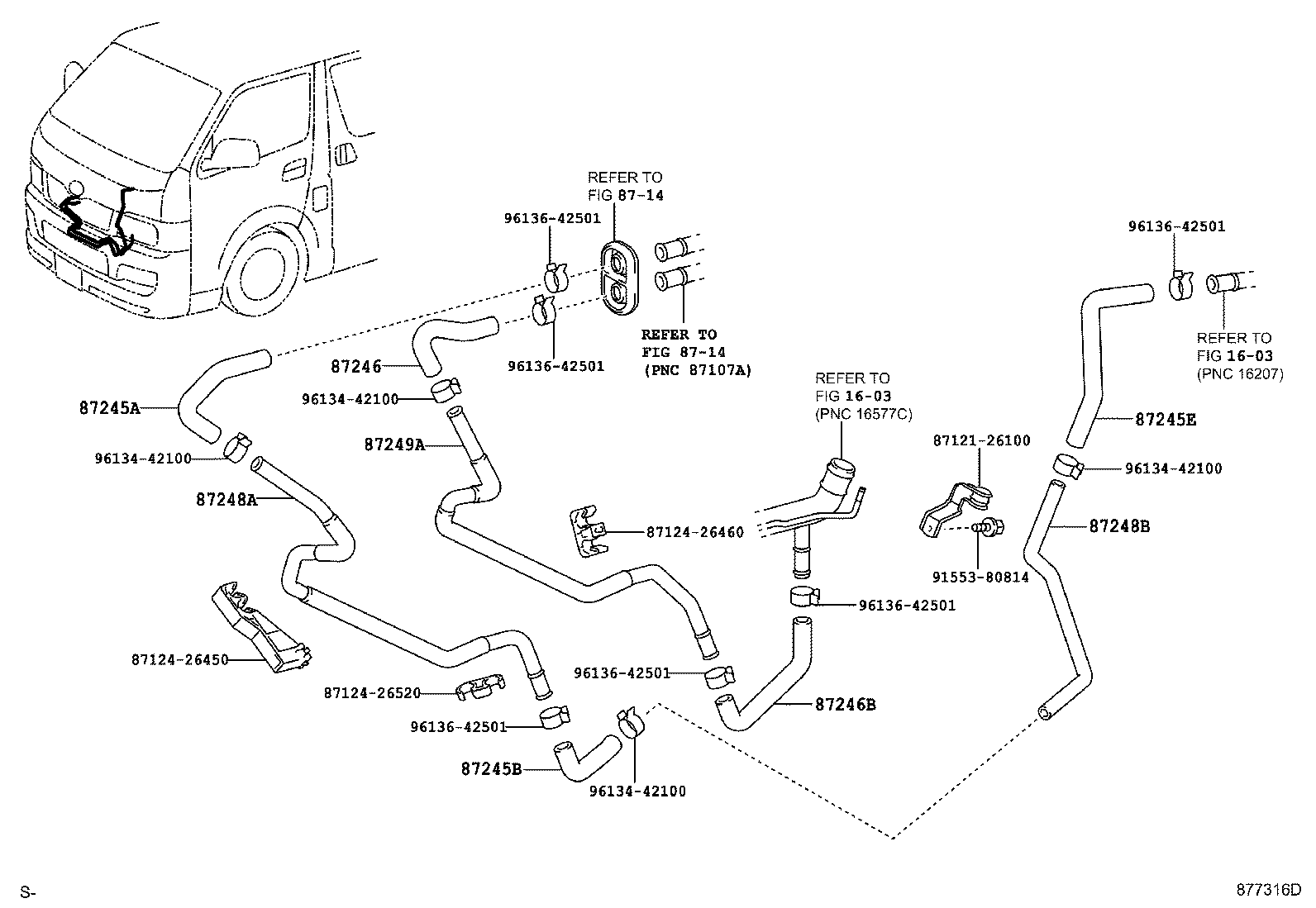

ILLUST NO. 1 OF 2(0501- )TRH223..GL..SA ; (0501- )TRH223..14S,16S..ARL,GCC,GEN ; (0501- )TR

Click highlighted areas on diagram

FRONT

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245E 87246 87246B 87246E 87248A 87248B 87249A 87249B 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245-26B20

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C00

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B80

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245-26B80

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C10

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B60

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87245-26B60

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87245-26B30

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26C80

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87245-26B90

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87245-26B90

TRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87245-26B70

TRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248-26440

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26520

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26520

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26570

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87248-26570

KDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87248-26450

TRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26530

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
87248-26530

TRH223..ARL;TRH223..GL..SA;TRH213,221..ARL,SA

 1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

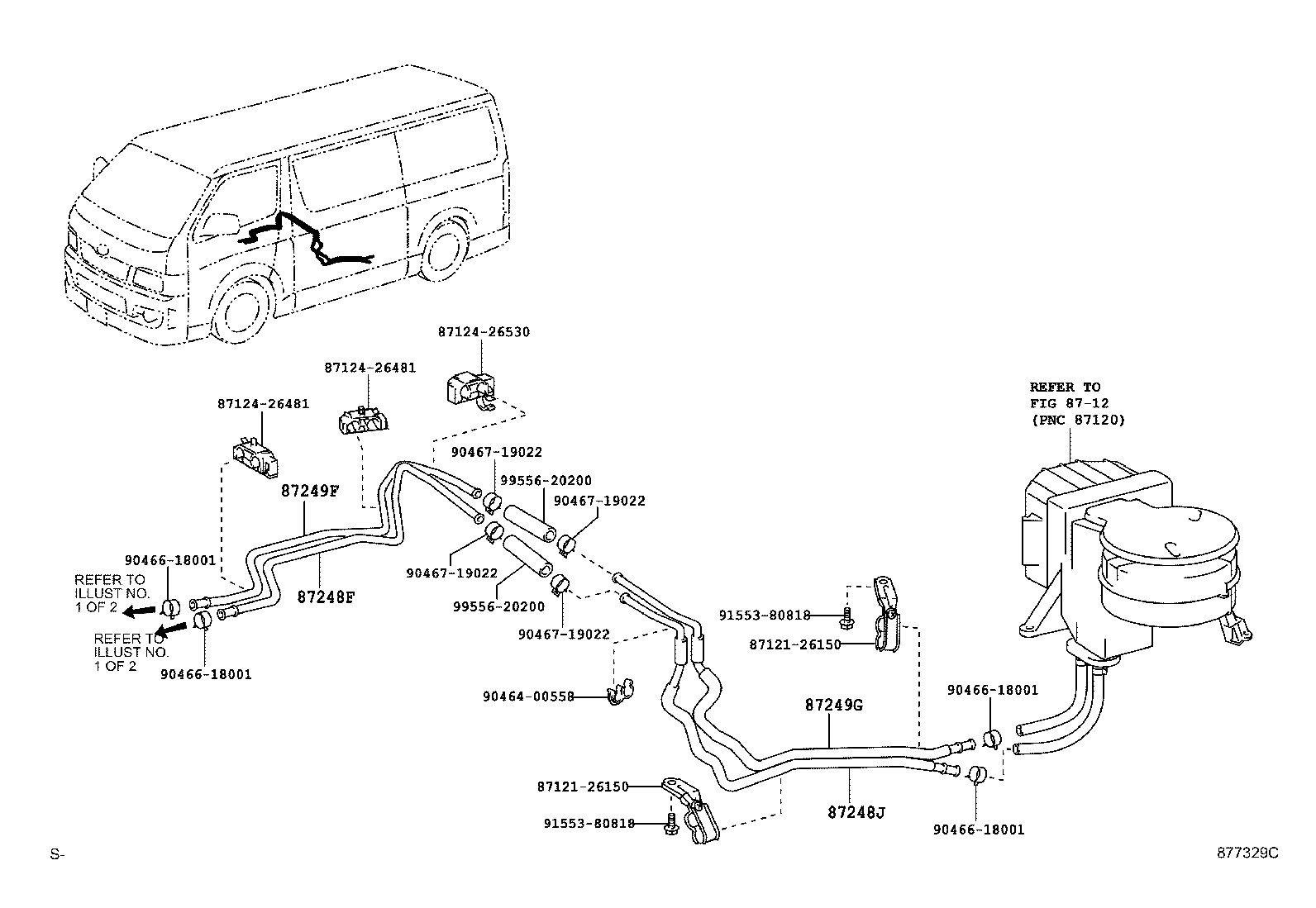

ILLUST NO. 2 OF 2(0501- )TRH223..LHD..STD..GEN ; (0501- )KDH222,223,LH222..LHD..GEN,RUS ; (050

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9155380818 9955620200 9955620200
Part # Description Qty Price
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312-1712)KDH222..RHD..GL ; (1312-1712)KDH222..RHD..STD..GEN ; (1312-1712)KDH202,2

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712426450 8712426460 8712426481 8712426520 8712426590 8712426590 8712426590 87124A 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)KDH222..GL..GCC ; (1312-1712)KDH222,223..LHD..12S,16S..GEN,RUS ; (1501-1

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712426450 8712426460 8712426481 8712426520 8712426590 8712426590 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714
