TRH221R-MBPDKQ (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH201..TH ; (0501- )TRH20#,213,22#

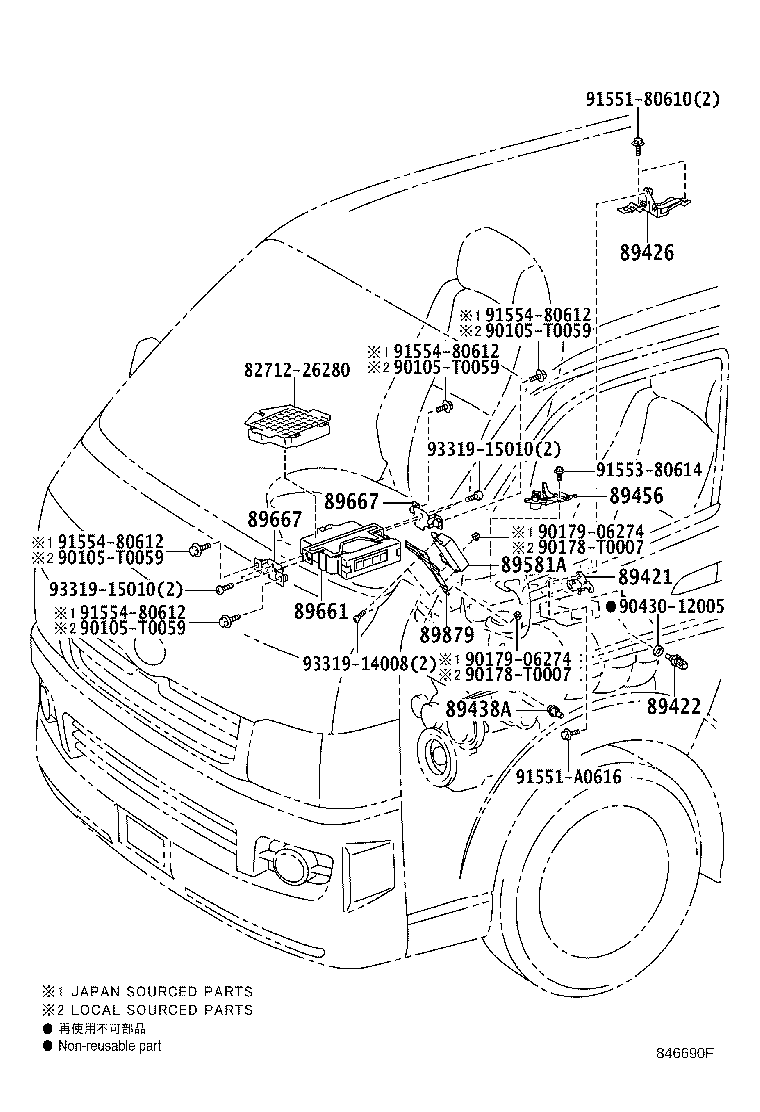

Click highlighted areas on diagram

diagram 8271226280 89421 89422 89426 89438A 89456 89581A 89661 89667 89667 89879 90105T0059 90105T0059 90105T0059 90105T0059 90178T0007 90178T0007 9017906274 9017906274 9043012005 9155180610 91551A0616 9155380614 9155480612 9155480612 9155480612 9155480612 9331914008 9331915010 9331915010
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

TRH20#,213,22#

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

TRH20#,213,22#

 1
89581A - DRIVER, AIR INJECTION CONTROL
89581-71010

TRH201,221..ARL;TRH201,221..SG..03S;TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)

 1
89581-34040

TRH201,221..ARL;TRH201,221..SG..03S;TRH201,213,223..(06S,09S,10S,11S,13S,14S,15S)..(ARL,GEN,TH)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-26A40

TRH223..4FC..ARL;TRH201,221..SP..4FC

 1
89661-26D40

TRH201..SG..4FC;TRH201,22#..4FC..ARL

 1
89661-26J30

TRH201,22#..4FC..STD

 1
89661-26D40

TRH201,22#..RHD..4FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26150

TRH213..RHD;TRH213..GL..VN;TRH201,22#..RHD..4FC;TRH203,22#..GCC,GEN,MA,SA,TH;TRH201..SP..5F..(GCC,GEN,SA);TRH201,213..LHD..SG..(03S,06S,09S,16S)

 2
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-26150

TRH213..RHD;TRH213..GL..VN;TRH201,22#..RHD..4FC;TRH203,22#..GCC,GEN,MA,SA,TH;TRH201..SP..5F..(GCC,GEN,SA);TRH201,213..LHD..SG..(03S,06S,09S,16S)

 2
89879 - BRACKET, INJECTOR DRIVER
89879-26020

TRH201,221..ARL;TRH201,213..(06S,09S,10S,11S)..(GEN,TH);TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC;TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH)

 1
Common parts
82712-26280
90105-T0059
90178-T0007
90179-06274
90430-12005
91551-80610
91551-A0616
91553-80614
91554-80612
93319-14008
93319-15010
