TRH221R-MBPDKQ (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

FRONT RH(SPLIT TYPE HEADREST)

diagram 71071S 71073S 71110A 71410C 71511S 7152 7152 71551S 71848A 71861 71867A 71875A 71875B 71876 71876A 71910A 71931 71931 72249 72525A 9011910949 9011910949 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A50B2

KDH201..SG;KDH221,TRH223..(03S,14S)..(ARL,GEN);KDH200,201,220,222,223,TRH201,221..STD..(ARL,SA)

GRAY,TRIM1#

 1
71071-26A51B4

KDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3

KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN

GRAY,TRIM1#

 1
71027-26041B4

KDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221..(03S,06S,14S,16S)..(ARL,GCC,GEN,SA)

BLUISH GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010

TRH201..SG..4FC;TRH201..4FC..ARL;TRH223..RHD..STD;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH212,222,TRH201,213..RHD..(03S,06S,16S)..5F;KDH201,202,203,221,223,LH20#,212,222,TRH203,221..RHD..(03S,06S,14S,15S,16S)

 1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)

 2
90467-08186

KDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)

 2
90467-08186C0

TRH221..ARL

BLACK

 2
90467-08186C0

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLACK

 4
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170

TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270

KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-26010

TRH213..TH,VN;KDH220..SP..(GEN,SA);TRH203,213,223..4FC..GCC;KDH222,TRH223..(14S,15S)..STD;KDH201,203,221,223,TRH200..03S,06S,12S,14S;KDH200,212,TRH201,221..(03S,16S)..(SA,TH,VN)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0

KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,RH SEAT

 1
72249-26020

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,LH SEAT

 1
72249-26030

KDH221,TRH221..ARL

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0501- )

Click highlighted areas on diagram

FRONT RH(INTEGRATED TYPE HEADREST)

diagram 71071S 71073S 71110A 71130 71410C 71511S 7152 7152 71551S 71848A 71861 71867A 71875A 71875B 71876 71876A 72249 72525A 9011910949 9011910949 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A50B2

KDH201..SG;KDH221,TRH223..(03S,14S)..(ARL,GEN);KDH200,201,220,222,223,TRH201,221..STD..(ARL,SA)

GRAY,TRIM1#

 1
71071-26A51B4

KDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3

KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN

GRAY,TRIM1#

 1
71027-26041B4

KDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221..(03S,06S,14S,16S)..(ARL,GCC,GEN,SA)

BLUISH GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010

TRH201..SG..4FC;TRH201..4FC..ARL;TRH223..RHD..STD;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH212,222,TRH201,213..RHD..(03S,06S,16S)..5F;KDH201,202,203,221,223,LH20#,212,222,TRH203,221..RHD..(03S,06S,14S,15S,16S)

 1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)

 2
90467-08186

KDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)

 2
90467-08186C0

TRH221..ARL

BLACK

 2
90467-08186C0

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLACK

 4
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170

TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270

KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-26010

TRH213..TH,VN;KDH220..SP..(GEN,SA);TRH203,213,223..4FC..GCC;KDH222,TRH223..(14S,15S)..STD;KDH201,203,221,223,TRH200..03S,06S,12S,14S;KDH200,212,TRH201,221..(03S,16S)..(SA,TH,VN)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0

KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,RH SEAT

 1
72249-26020

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,LH SEAT

 1
72249-26030

KDH221,TRH221..ARL

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0501-0610)RHD..03S,06S,12S,15S,16S

Click highlighted areas on diagram

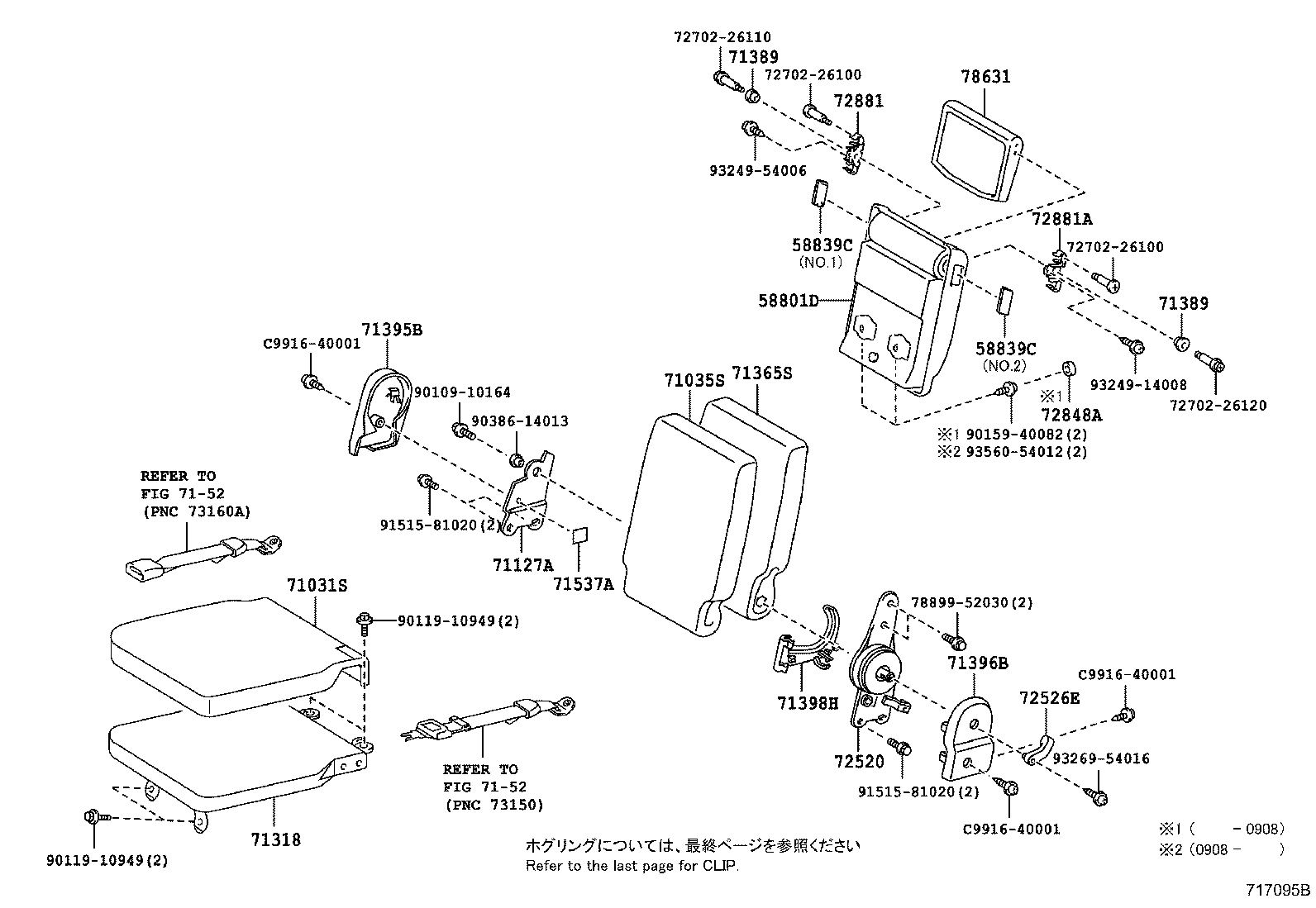

FRONT LH(2 PERSONS)

diagram 58801D 58839C 58839C 71014S 71035S 71072S 71074S 71127A 71149C 71365S 71389 71389 71395B 71396B 71398H 71512S 71552S 71788B 71862 71868A 71875C 71876B 72520 72526A 72526E 7270226100 7270226100 7270226110 7270226120 72848A 72881 72881A 78631 7889952030 9010510261 9011910949 9011910949 9011910949 9011910949 9011910949 9011910949 9015940082 9038612036 9324914008 9324954006 9326954016 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-26100B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71014-26180

KDH221,TRH221..ARL

 1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3

KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71095-26201B5

KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71095-26202B5

KDH201..ARL,TH;KDH201,222,TRH223..RHD..(06S,16S)..GEN;KDH200,202,212,220,221,LH20#,212,222,TRH20#,213,221..RHD..STD..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71072-26880B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71072-26740B4

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71072-26741B6

KDH221..ARL;TRH203,213,223..4FC..STD..GCC;KDH203,223,TRH22#..(03S,12S,14S)..(ARL,GEN);KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,213,223..LHD..STD..GEN

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
70169-26110B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71027-26040B3

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71027-26041B4

TRH223..LHD..STD..GEN;KDH221,TRH223..STD..(ARL,GCC);KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,213..LHD..STD..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26050

KDH221,TRH221..ARL

 1
71377-26040

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010

KDH221,TRH221..ARL

 1
71365S - PAD, CENTER SEAT BACK
71033-26020

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71395-26040B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71398-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71512-26090

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71502-26110

KDH221,TRH221..ARL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71551-26310

KDH221,TRH221..ARL

 1
71551-26270

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010

KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26030B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71862-26020B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71862-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71868-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71868-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71875-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71876-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71876-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090

KDH221,TRH221..ARL

 1
72520-26120

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
72526-26020B0

KDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN)

GRAY,TRIM1#

 1
72526-26020B0

TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S

GRAY,TRIM1#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0

KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)

GRAY,TRIM1#,FRONT SEAT

 1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
C9916-40001

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

FRONT LH(INTEGRATED TYPE HEADREST)

diagram 71072S 71074S 71120B 71410C 71512S 7152 7152 71552S 71849 71862 71868A 71875C 71875E 71876B 71876C 72249 72526A 9011910949 9011910949 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71072-26880B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71072-26740B4

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71072-26741B6

KDH221..ARL;TRH203,213,223..4FC..STD..GCC;KDH203,223,TRH22#..(03S,12S,14S)..(ARL,GEN);KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,213,223..LHD..STD..GEN

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
70169-26110B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71027-26040B3

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71027-26041B4

TRH223..LHD..STD..GEN;KDH221,TRH223..STD..(ARL,GCC);KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,213..LHD..STD..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-26081

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71120-26080

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)..(ARL,GEN,SA)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71120-26081

KDH221,TRH221..ARL

 1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)

 2
90467-08186

KDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)

 2
90467-08186C0

TRH221..ARL

BLACK

 2
90467-08186C0

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLACK

 4
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71512-26090

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71502-26110

KDH221,TRH221..ARL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71551-26310

KDH221,TRH221..ARL

 1
71551-26270

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-26010

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26030B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71862-26020B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71862-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71868-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71868-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71875-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71876-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71876-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876C - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876-26030B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,RH SEAT

 1
72249-26020

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,LH SEAT

 1
72249-26030

KDH221,TRH221..ARL

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
72526-26020B0

KDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN)

GRAY,TRIM1#

 1
72526-26020B0

TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S

GRAY,TRIM1#

 1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

ILLUST NO. 2 OF 2(0501- )KDH212,223,TRH213..RHD..10S,11S,14S..ARL,GEN,SA ; (1110- )LH222,TRH22

Click highlighted areas on diagram

RHD REAR(1 PERSON)

diagram 7152 7152 71811F 71811L 71811P 71812E 71812M 71812N 71867F 71867G 71867J 71868E 71868F 71868H 72524 72525D 72525E 79206B 79206B 79290A 79306 79390A 79406A 79490A 79956C 79956E 79956E 79956S 79966 79966 79967 79968A 9011910948 9011910948 9011910948 9011910948 9017610008 9017610008 9017610008 9017610008 9151581020 9151581020 9356054010 9356054010 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
Common parts
90119-10948
90176-10008
91515-81020
93560-54010
C9916-40001
Linked diagrams
7152

ILLUST NO. 1 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071

Click highlighted areas on diagram

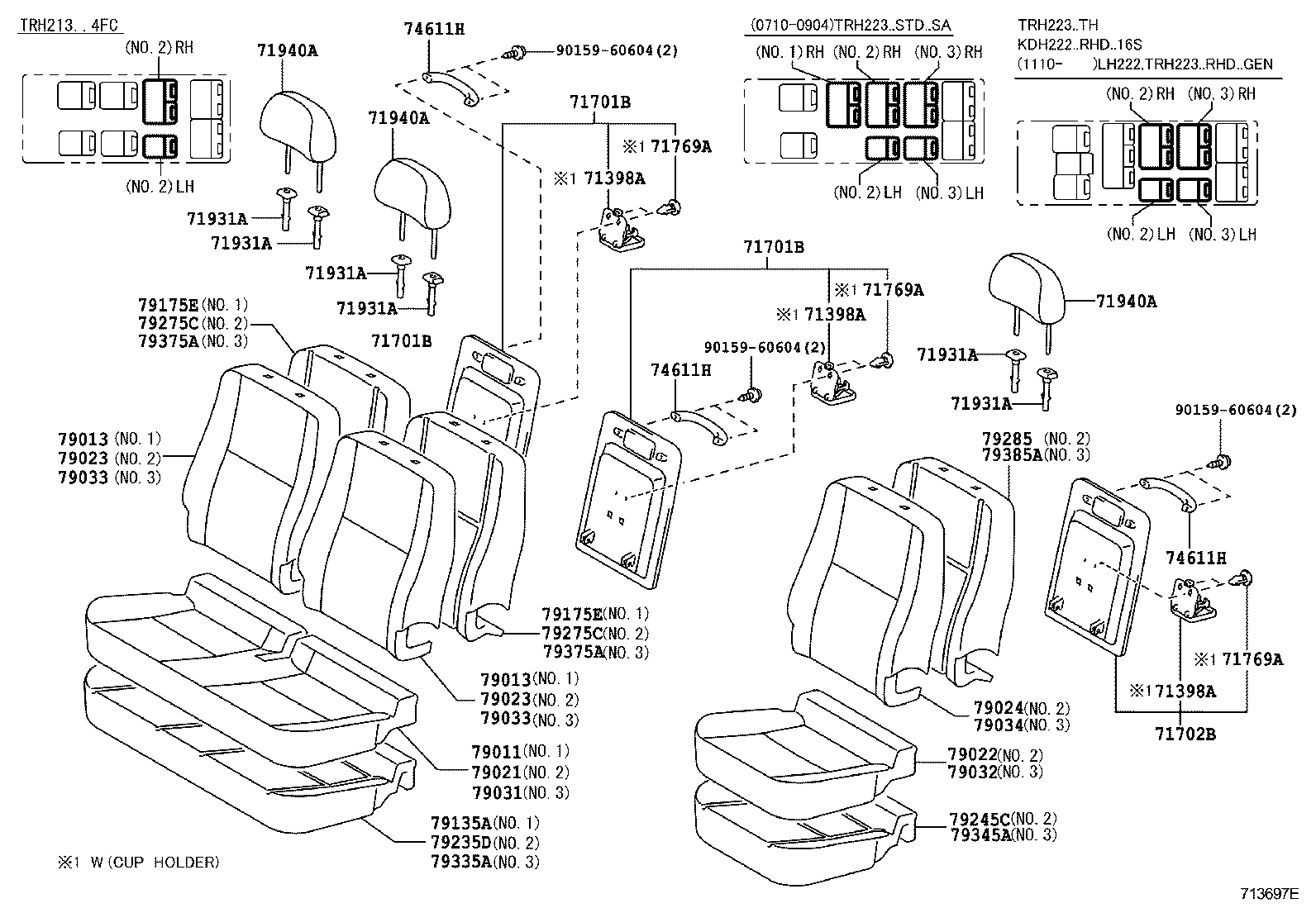

RHD REAR(1 & 2 PERSONS)

diagram 71398A 71398A 71398A 71701B 71701B 71701B 71702B 71769A 71769A 71769A 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71940A 74611H 74611H 74611H 79011 79013 79013 79021 79022 79023 79023 79024 79031 79032 79033 79033 79034 79135A 79175E 79175E 79235D 79245C 79275C 79275C 79285 79335A 79345A 79375A 79375A 79385A 9015960604 9015960604 9015960604
Part # Description Qty Price
Common parts
90159-60604

ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071

Click highlighted areas on diagram

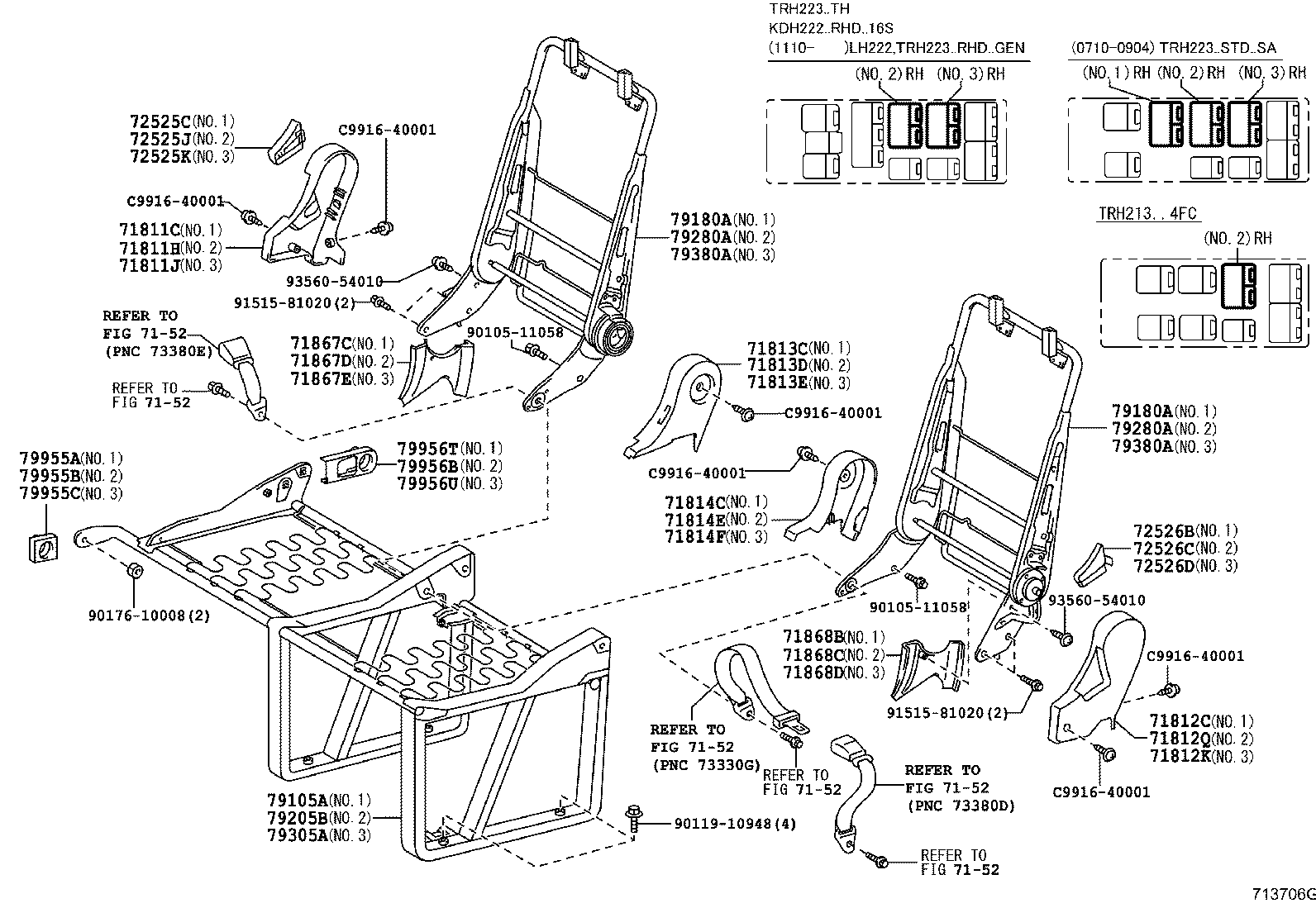

RHD REAR(2 PERSONS)

diagram 7152 7152 7152 7152 7152 7152 71811C 71811H 71811J 71812C 71812K 71812Q 71813C 71813D 71813E 71814C 71814E 71814F 71867C 71867D 71867E 71868B 71868C 71868D 72525C 72525J 72525K 72526B 72526C 72526D 79105A 79180A 79180A 79205B 79280A 79280A 79305A 79380A 79380A 79955A 79955B 79955C 79956B 79956T 79956U 9010511058 9010511058 9011910948 9017610008 9151581020 9151581020 9356054010 9356054010 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
Common parts
90105-11058
90119-10948
90176-10008
91515-81020
93560-54010
C9916-40001
Linked diagrams
7152

ILLUST NO. 2 OF 2(0501- )TRH223..TH ; (0501- )16S..5F..GL ;(0501- )KDH222,223..RHD..16S ;

Click highlighted areas on diagram

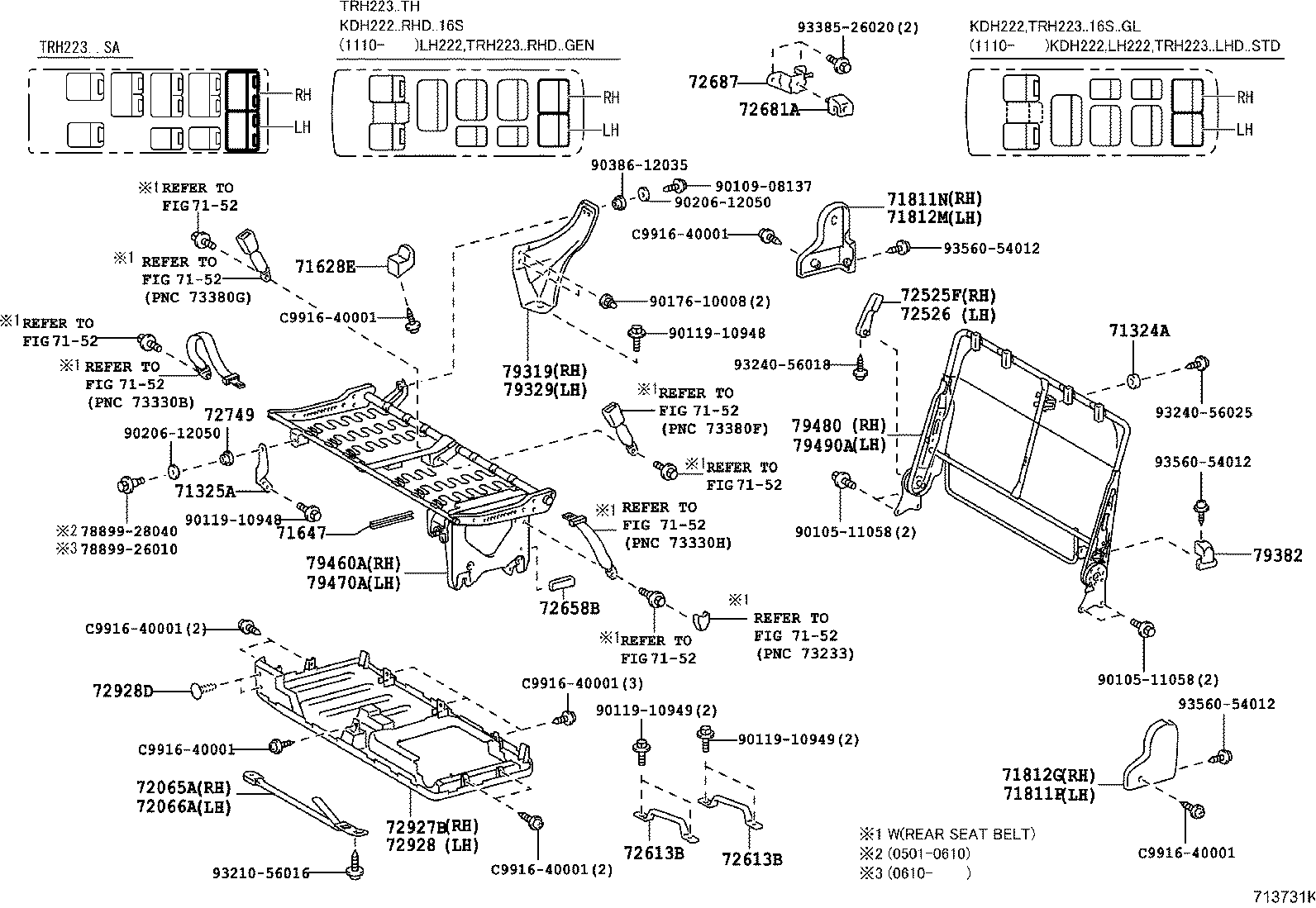

RR(SPACE UP SEAT)

diagram 71324A 71325A 7152 7152 7152 7152 7152 7152 7152 7152 7152 71628E 71647 71811N 71811P 71812G 71812M 72065A 72066A 72525F 72526 72613B 72613B 72658B 72681A 72687 72749 72927B 72928 72928D 7889926010 7889928040 79319 79329 79382 79460A 79470A 79480 79490A 9010511058 9010511058 9010908137 9011910948 9011910948 9011910949 9011910949 9017610008 9020612050 9020612050 9038612035 9321056016 9324056018 9324056025 9338526020 9356054012 9356054012 9356054012 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
Common parts
78899-26010
78899-28040
90105-11058
90109-08137
90119-10948
90119-10949
90176-10008
90206-12050
90386-12035
93210-56016
93240-56018
93240-56025
93385-26020
93560-54012
C9916-40001
Linked diagrams
7152

ILLUST NO. 1 OF 2(0501- )KDH222,TRH223..STD..GCC,GEN ; (0501-)KDH202,203,212,LH202,212,222,TR

Click highlighted areas on diagram

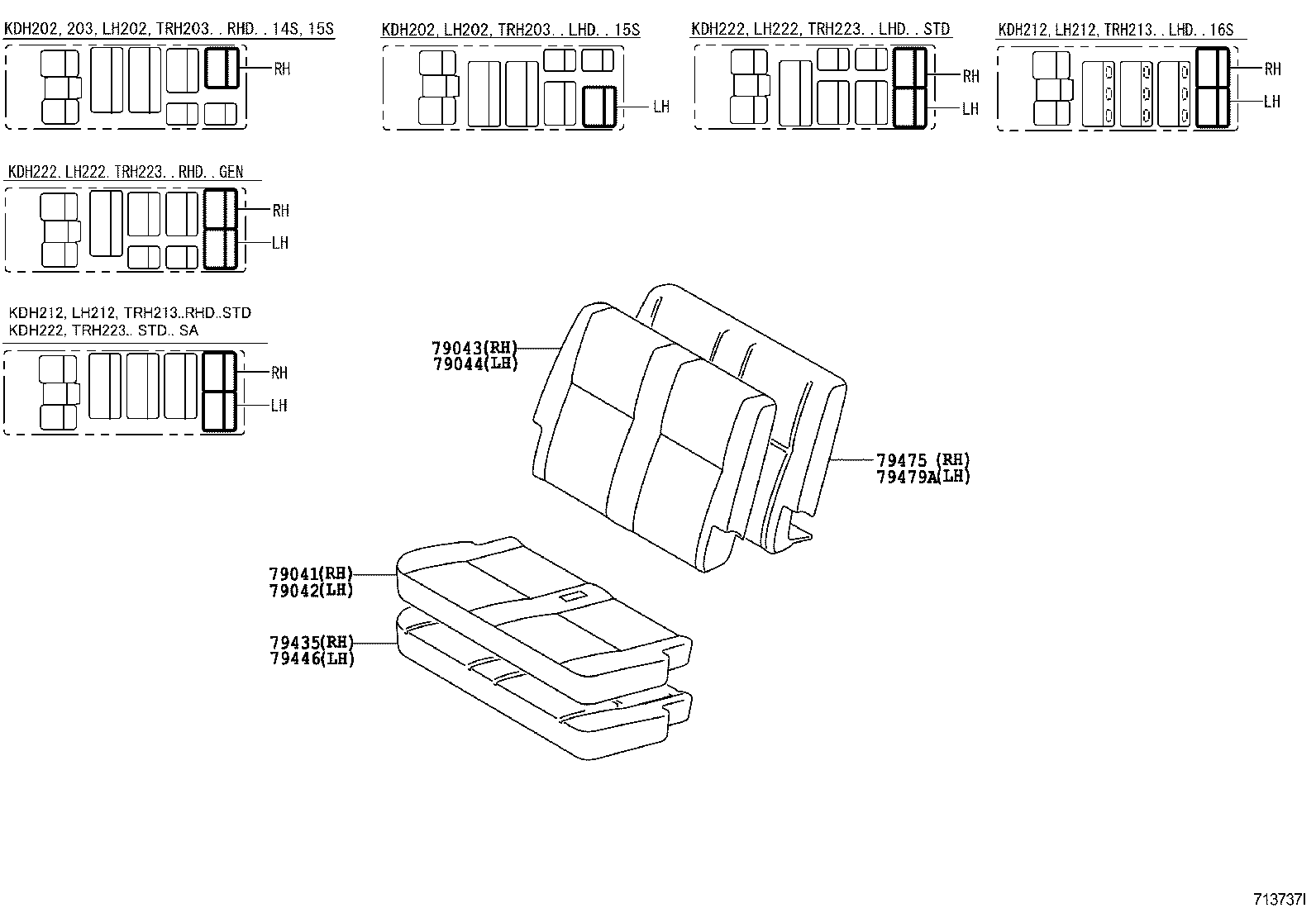

RR(SPACE UP SEAT)

diagram 79041 79042 79043 79044 79435 79446 79475 79479A
Part # Description Qty Price

(0501- )KDH222,LH222,TRH223..LHD..5F..STD ; (0501- )KDH202,203,LH202,212,TRH2

Click highlighted areas on diagram

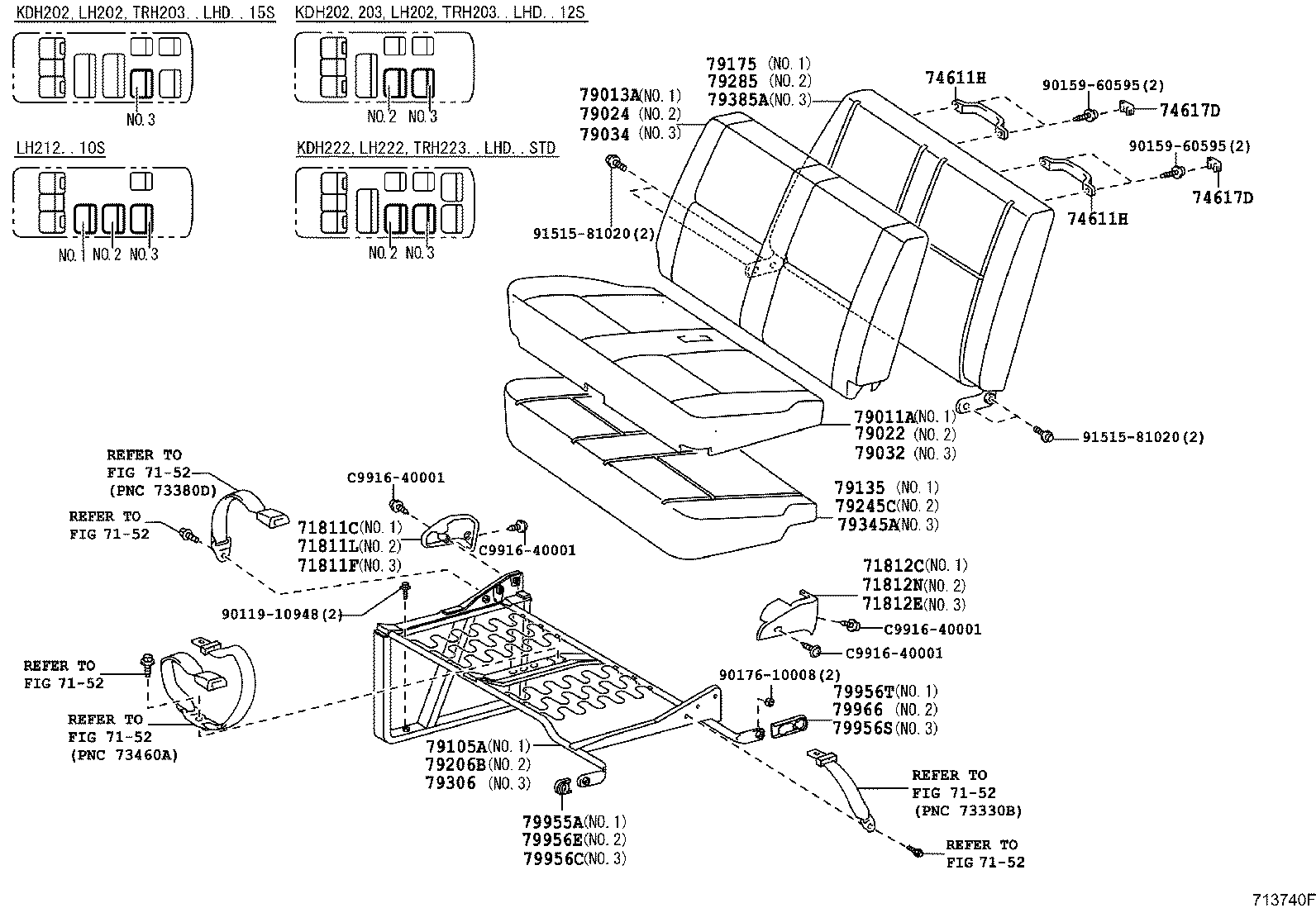

LHD RR(2 PERSONS)

diagram 7152 7152 7152 7152 7152 7152 71811C 71811F 71811L 71812C 71812E 71812N 74611H 74611H 74617D 74617D 79011A 79013A 79022 79024 79032 79034 79105A 79135 79175 79206B 79245C 79285 79306 79345A 79385A 79955A 79956C 79956E 79956S 79956T 79966 9011910948 9015960595 9015960595 9017610008 9151581020 9151581020 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
Common parts
90119-10948
90159-60595
90176-10008
91515-81020
C9916-40001
Linked diagrams
7152

(0610- )RHD..03S,06S,12S,15S,16S..ARL,GEN,SA,TH

Click highlighted areas on diagram

FRONT LH(2 PERSONS)

diagram 58801D 58839C 58839C 71014S 71035S 71072S 71074S 71127A 71149C 71365S 71389 71389 71395B 71396B 71398H 71512S 71552S 71788B 71862 71868A 71875C 71875E 71876B 71876C 72520 72526A 72526E 7270226100 7270226100 7270226110 7270226120 72848A 72881 72881A 78631 7889952030 9010510261 9011910949 9011910949 9011910949 9011910949 9011910949 9011910949 9015940082 9038612036 9324914008 9324954006 9326954016 9356054012 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-26100B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71014-26180

KDH221,TRH221..ARL

 1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3

KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71095-26201B5

KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71095-26202B5

KDH201..ARL,TH;KDH201,222,TRH223..RHD..(06S,16S)..GEN;KDH200,202,212,220,221,LH20#,212,222,TRH20#,213,221..RHD..STD..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71072-26880B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71072-26740B4

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71072-26741B6

KDH221..ARL;TRH203,213,223..4FC..STD..GCC;KDH203,223,TRH22#..(03S,12S,14S)..(ARL,GEN);KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,213,223..LHD..STD..GEN

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
70169-26110B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71027-26040B3

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71027-26041B4

TRH223..LHD..STD..GEN;KDH221,TRH223..STD..(ARL,GCC);KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,213..LHD..STD..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26050

KDH221,TRH221..ARL

 1
71377-26040

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010

KDH221,TRH221..ARL

 1
71365S - PAD, CENTER SEAT BACK
71033-26020

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71395-26040B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71398-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71512-26090

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71502-26110

KDH221,TRH221..ARL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

 1
71551-26310

KDH221,TRH221..ARL

 1
71551-26270

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010

KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26030B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71862-26020B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71862-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71868-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71868-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71875-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71875-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
71876-26010B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71876-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876C - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876-26030B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090

KDH221,TRH221..ARL

 1
72520-26120

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0

KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
72526-26020B0

KDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN)

GRAY,TRIM1#

 1
72526-26020B0

TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S

GRAY,TRIM1#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0

KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)

GRAY,TRIM1#,FRONT SEAT

 1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
93560-54012
C9916-40001

(0709- )TRH223..RHD..GEN,TH ; (0709- )KDH212,22#,LH212,222,TRH213,221..RHD..0

Click highlighted areas on diagram

FRONT CENTER

diagram 58801D 58839C 58839C 71031S 71035S 71127A 71318 71365S 71389 71389 71395B 71396B 71398H 7152 7152 71537A 72520 72526E 7270226100 7270226100 7270226110 7270226120 72848A 72881 72881A 78631 7889952030 9010910164 9011910949 9011910949 9015940082 9038614013 9151581020 9151581020 9324914008 9324954006 9326954016 9356054012 C991640001 C991640001 C991640001
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-26100B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
71031S - COVER SUB-ASSY, CENTER SEAT CUSHION
71097-26120B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71097-26121B2

KDH221,TRH221..ARL

BLUISH GRAY,TRIM1#

 1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3

KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71095-26201B5

KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71095-26202B5

KDH201..ARL,TH;KDH201,222,TRH223..RHD..(06S,16S)..GEN;KDH200,202,212,220,221,LH20#,212,222,TRH20#,213,221..RHD..STD..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26050

KDH221,TRH221..ARL

 1
71377-26040

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71318 - PAD, CENTER SEAT CUSHION
71032-26010

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
71365S - PAD, CENTER SEAT BACK
71033-26020

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71395-26040B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71398-26020B0

TRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71695-26090

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090

KDH221,TRH221..ARL

 1
72520-26120

KDH221,TRH221..ARL

FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0

KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)

GRAY,TRIM1#,FRONT SEAT

 1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90109-10164
90119-10949
90159-40082
90386-14013
91515-81020
93249-14008
93249-54006
93269-54016
93560-54012
C9916-40001
Linked diagrams
7152

ILLUST NO. 1 OF 2(0501-0709)KDH222..RHD..GEN ; (0610- )KDH222,TRH223..TH ; (1110- )LH222,TRH22

Click highlighted areas on diagram

RHD REAR(3 PERSONS) & W(HEADREST)

diagram 71398A 71398A 71398A 71701B 71701B 71701B 71769A 71769A 71769A 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71940A 74611H 74611H 74611H 79011A 79013A 79013A 79013A 79135 79175 79175 79175 9015960604 9015960604 9015960604
Part # Description Qty Price
Common parts
90159-60604
