TRH221R-MBPDKQ (2005)
Toyota Hiace

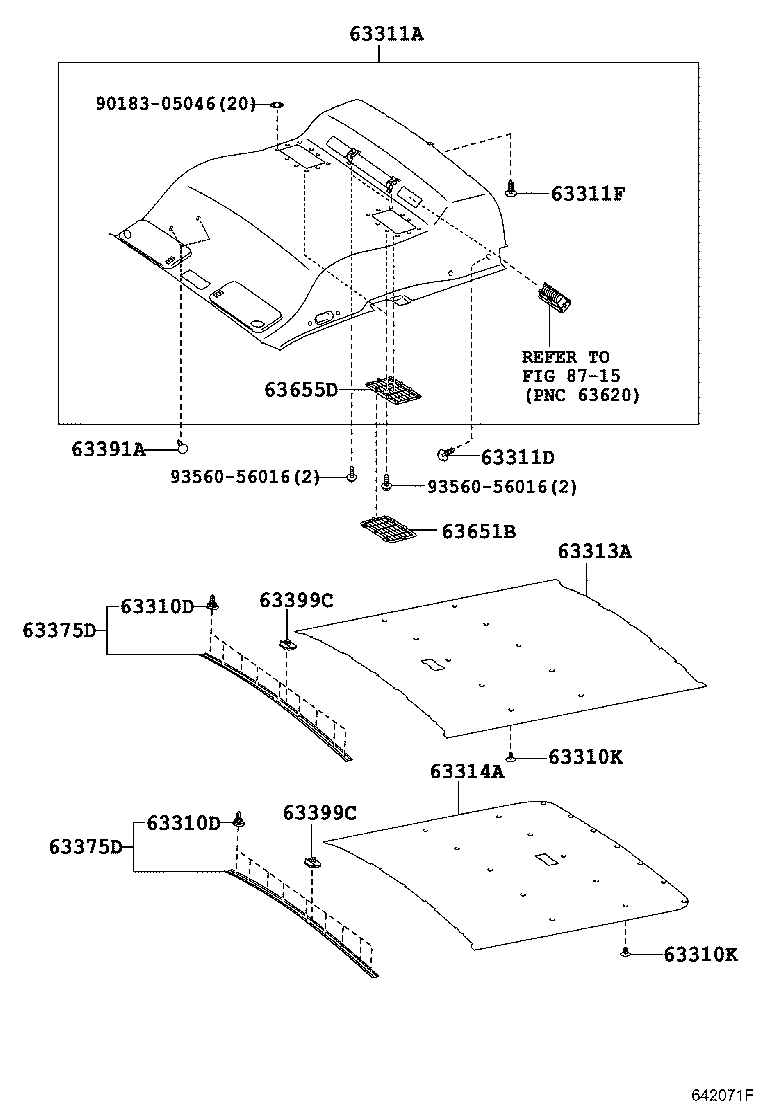

(0501- )KDH22#,LH222,TRH22#..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26A80B1 |
KDH220,221,TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A81B1 |
KDH220,221,TRH221..5D AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26080B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GEN) BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26160B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
31 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
31 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-26200B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-26150B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-26060B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER | ||||
| 63375-26120B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
2 | ||
| 63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER | ||||
| 63375-26120B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
2 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||

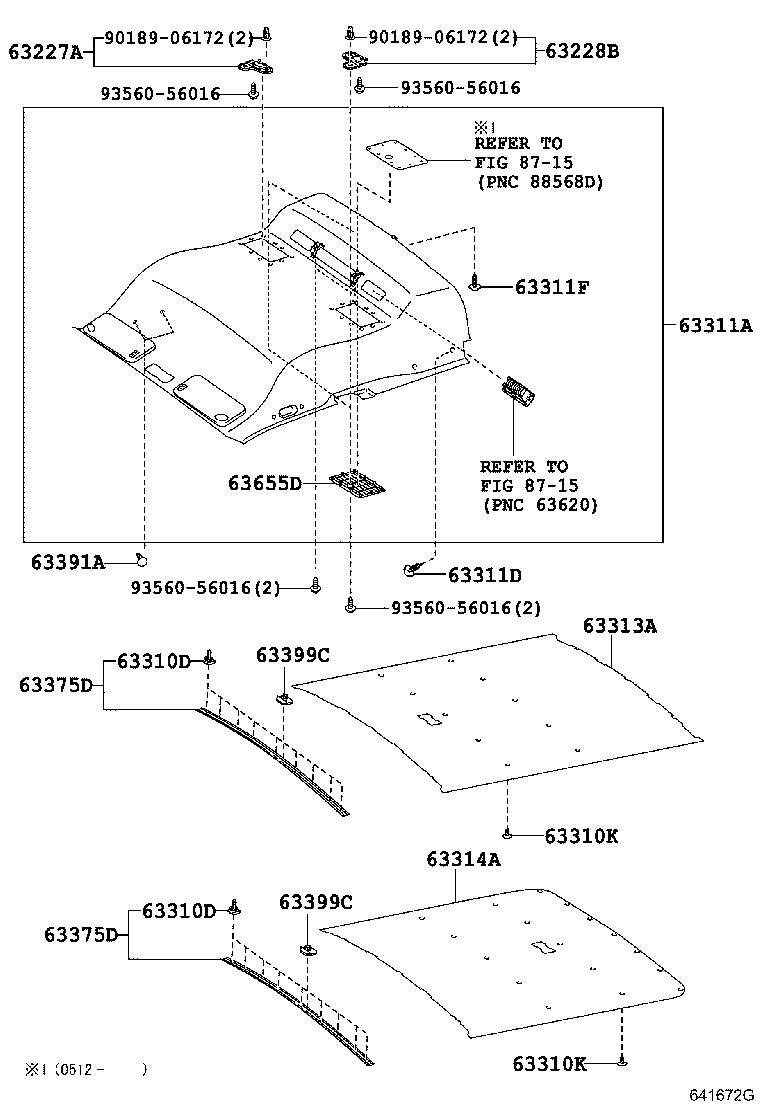

(0501-0611)KDH220,221 ; (0501-0611)TRH221..SP
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63227A - BRACKET, ROOF HEADLINING, FRONT RH | ||||
| 63227-26130 |
KDH221;TRH221..SP;KDH220..SP..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63228B - BRACKET, ROOF HEADLINING, FRONT LH | ||||
| 63228-26060 |
KDH221;TRH221..SP;KDH220..SP..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26A80B1 |
KDH220,221,TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A81B1 |
KDH220,221,TRH221..5D AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26080B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GEN) BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26160B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
31 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-26150B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-26060B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH221;TRH221..SP;KDH220..SP..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,LH |
1 | ||
| Common parts | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

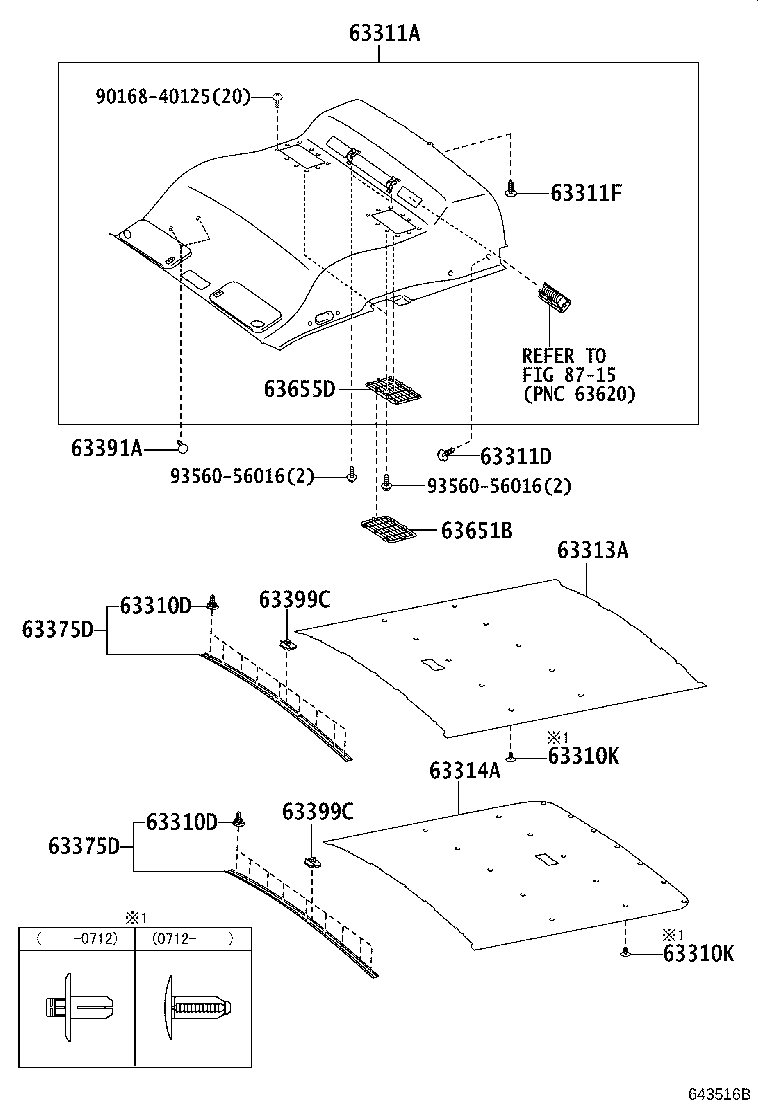

(0611-0709)KDH220,221 ; (0611-0709)TRH221..SP
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26A80B1 |
KDH220,221,TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A81B1 |
KDH220,221,TRH221..5D AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26080B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GEN) BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26160B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
31 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-26150B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-26060B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63650-26010B0 |
KDH220,221;TRH221..SP;KDH201..LHD;KDH200,201..TH AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH221;TRH221..SP;KDH220..SP..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,LH |
1 | ||
| Common parts | ||||
| 90183-05046 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(0709- )KDH220,221 ; (0709- )TRH221..SP
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
18 | ||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63399-26030 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
18 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63399-26070B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
27 | ||
| 63399-26040 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH |
2 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26A80B1 |
KDH220,221,TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A81B1 |
KDH220,221,TRH221..5D AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26080B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GEN) BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63301-26160B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
31 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-26150B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-26060B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26120B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63375-26120B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
2 | ||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63650-26010B0 |
KDH220,221;TRH221..SP;KDH201..LHD;KDH200,201..TH AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH221;TRH221..SP;KDH220..SP..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,LH |
1 | ||
| Common parts | ||||
| 90168-40125 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
