TRH221R-MBPDKQ (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )KDH22#,LH222,TRH22#

Click highlighted areas on diagram

diagram 6166726270 6166726270 6166726270 6166726270 62249 62249A 62267C 62267C 62267D 62267D 62267J 62267J 62267J 62267J 62267K 62267K 62267K 62267K 62384K 62384K 62384L 62384L 62710B 62710B 62720B 62720B 62775D 62775D 62775D 62775D 62775E 62775E 62775E 62775E 62785A 62785A 62785G 62785G 62785K 62785K 62785L 62785L 62793B 62793C 62897A 62897A 62910F 62920A 7455 9015960587 9015960587 9016440091 9354054012
Part # Description Qty Price
62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH
62267-26020

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 1
62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH
62267-26020

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 1
62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),UPPER

 1
62267-26040

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),LOWER

 1
62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),UPPER

 1
62267-26040

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),LOWER

 1
62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),UPPER

 1
62267-26040

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),LOWER

 1
62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
62267-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),UPPER

 1
62267-26040

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),LOWER

 1
62720B - WINDOW ASSY, SIDE, FRONT LH
68104-26010

KDH200,LH200,TRH201,221..RHD..03S..(ARL,GEN)

*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 1
68104-26010

KDH200,220,TRH201..SA;KDH222,TRH223..GL..SA;KDH201,221..RHD..SP..03S;KDH222,TRH223..RHD..(GEN,TH);KDH200,201,202,TRH201..RHD..SRF..SG..GEN;KDH203,212,LH202,212,222,TRH203,213,221..RHD..(03S,10S,14S,15S,16S)..(GEN,SA)

*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 1
62720B - WINDOW ASSY, SIDE, FRONT LH
68104-26010

KDH200,LH200,TRH201,221..RHD..03S..(ARL,GEN)

*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 1
68104-26010

KDH200,220,TRH201..SA;KDH222,TRH223..GL..SA;KDH201,221..RHD..SP..03S;KDH222,TRH223..RHD..(GEN,TH);KDH200,201,202,TRH201..RHD..SRF..SG..GEN;KDH203,212,LH202,212,222,TRH203,213,221..RHD..(03S,10S,14S,15S,16S)..(GEN,SA)

*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 1
62775E - CLIP, FRONT SIDE WINDOW, LH
62775-26020

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.2

 1
62775-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.1

 1
62775E - CLIP, FRONT SIDE WINDOW, LH
62775-26020

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.2

 1
62775-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.1

 1
62775E - CLIP, FRONT SIDE WINDOW, LH
62775-26020

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.2

 1
62775-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.1

 1
62775E - CLIP, FRONT SIDE WINDOW, LH
62775-26020

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.2

 1
62775-26030

KDH200,201,220,221,LH200,TRH201,221..RHD..SP..03S..(ARL,GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),NO.1

 1
62785G - SPACER, QUARTER WINDOW GLASS
62785-26020

KDH200,220,TRH201..SA;KDH222,TRH223..GL..SA;KDH222,TRH223..RHD..(GEN,TH);KDH201,221..RHD..SP..03S..(ARL,GEN);KDH200,201,202,TRH201..RHD..SRF..SG..GEN;KDH203,212,LH202,212,222,TRH203,213,221..RHD..(03S,10S,14S,15S,16S)..(GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 2
62785G - SPACER, QUARTER WINDOW GLASS
62785-26020

KDH200,220,TRH201..SA;KDH222,TRH223..GL..SA;KDH222,TRH223..RHD..(GEN,TH);KDH201,221..RHD..SP..03S..(ARL,GEN);KDH200,201,202,TRH201..RHD..SRF..SG..GEN;KDH203,212,LH202,212,222,TRH203,213,221..RHD..(03S,10S,14S,15S,16S)..(GEN,SA)

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)

 2
Common parts
61667-26270
90159-60587
90164-40091
93540-54012
Linked diagrams
7455

ILLUST NO. 2 OF 2(0501- )KDH22#,LH222,TRH22#

Click highlighted areas on diagram

diagram 6166726270 6166726270 6166726270 6166726270 6166726270 6166726270 62115B 62116A 62249D 62249E 62267E 62267E 62267F 62267F 62267N 62267N 62267N 62267N 62267P 62267P 62267P 62267P 62384M 62384M 62384N 62384N 62730A 62730A 62740A 62740A 62775B 62775B 62775G 62775G 62775H 62775H 62775H 62775H 62775J 62775J 62775J 62775J 62785C 62785C 62785D 62785D 62785D 62785D 62786C 62786C 62786C 62786C 62793J 62793K 62910G 62920B 7455 9016440091 9354054012
Part # Description Qty Price
Common parts
61667-26270
90164-40091
93540-54012
Linked diagrams
7455

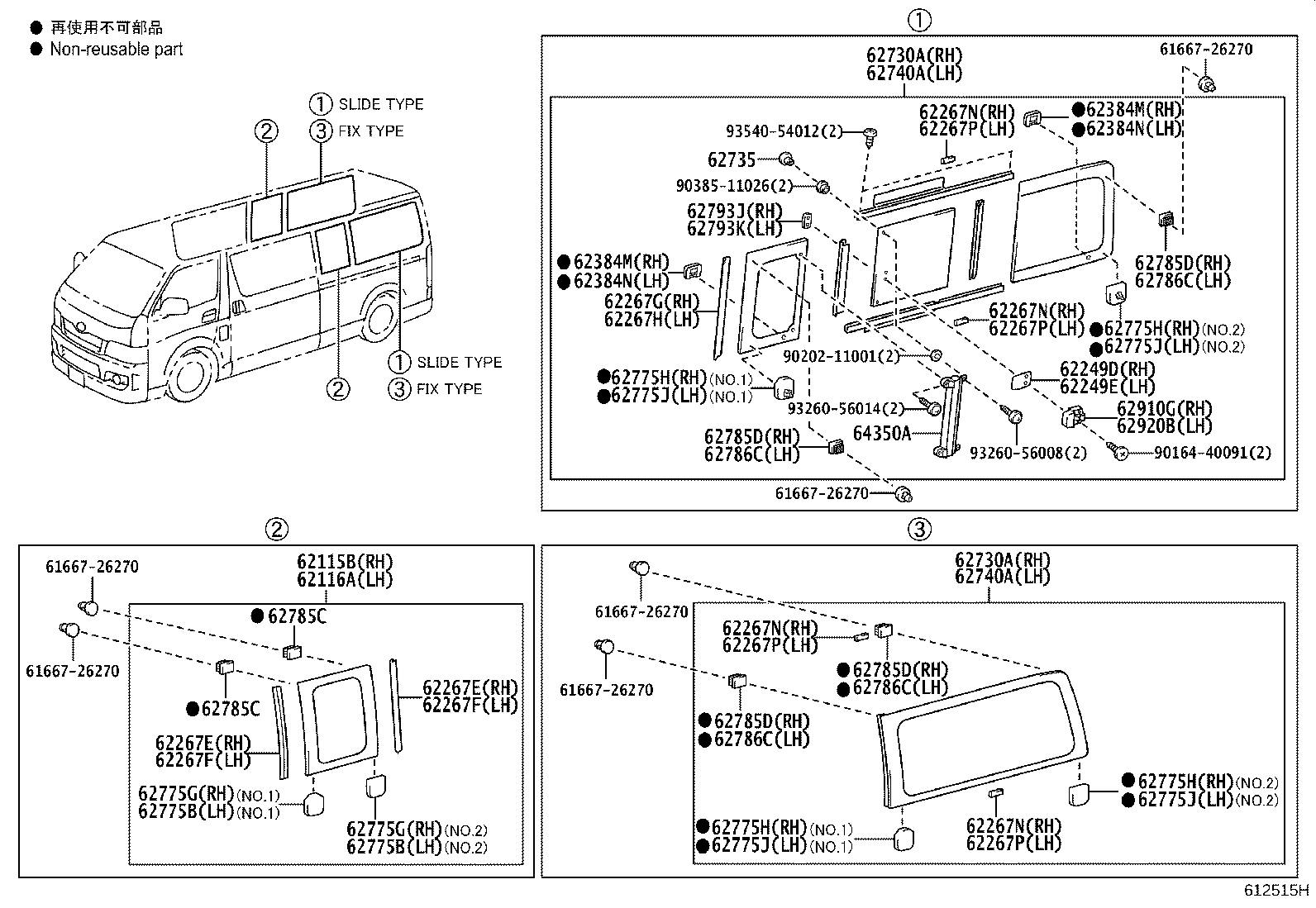

ILLUST NO. 2 OF 2(0512- )KDH22#,LH222,TRH22#

Click highlighted areas on diagram

W(SHADE)

diagram 6166726270 6166726270 6166726270 6166726270 6166726270 6166726270 62115B 62116A 62249D 62249E 62267E 62267E 62267F 62267F 62267G 62267H 62267N 62267N 62267N 62267N 62267P 62267P 62267P 62267P 62384M 62384M 62384N 62384N 62730A 62730A 62735 62740A 62740A 62775B 62775B 62775G 62775G 62775H 62775H 62775H 62775H 62775J 62775J 62775J 62775J 62785C 62785C 62785D 62785D 62785D 62785D 62786C 62786C 62786C 62786C 62793J 62793K 62910G 62920B 64350A 9016440091 9020211001 9038511026 9326056008 9326056014 9354054012
Part # Description Qty Price
Common parts
61667-26270
90164-40091
90202-11001
90385-11026
93260-56008
93260-56014
93540-54012
