TRH221R-MBPDKQ (2005)
Toyota Hiace

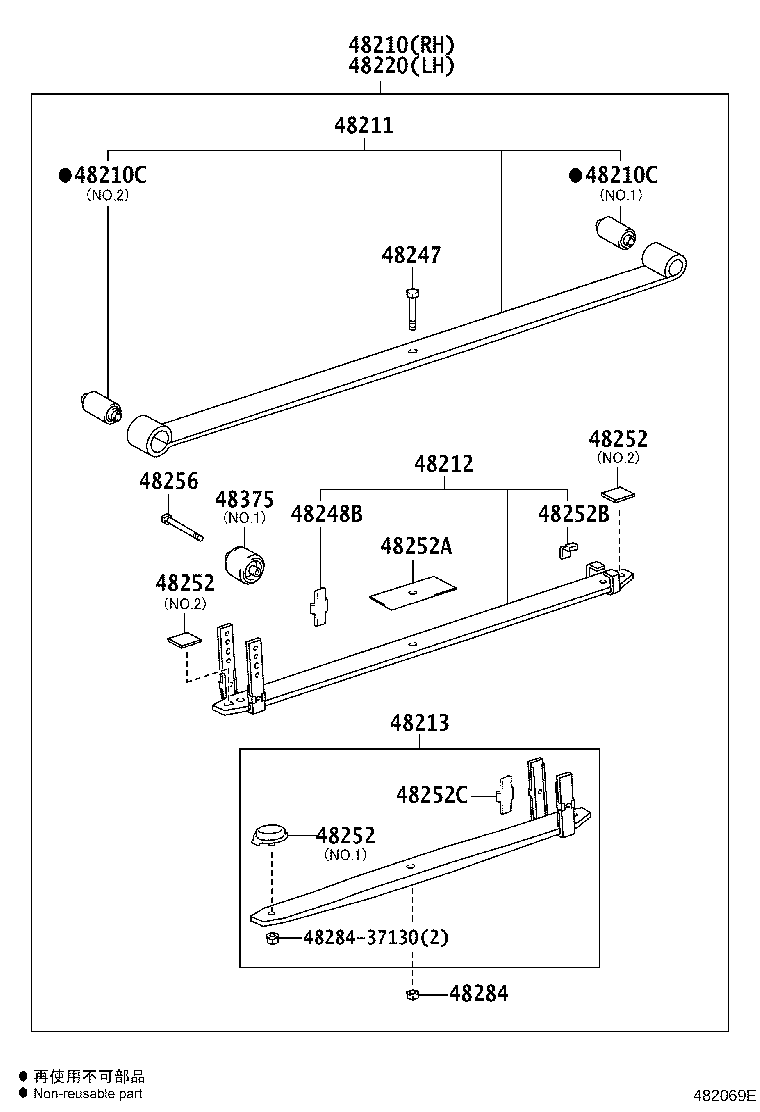

ILLUST NO. 2 OF 2(0501-0709)KDH200..5F..ARL ; (0501-0709)KDH200,LH200..03S..GEN,MA,SA ; (0501-0709)T
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48203-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48203-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26A00 |
KDH201;TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH200,220,221,LH200,TRH221..03S |
2 | ||
| 48247-26260 |
KDH212..4FC;KDH200,201,220,221,LH200,TRH201,213,221..03S,06S,11S |
2 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-26A00 |
KDH200,201,220,221,LH200,TRH201,221 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
KDH200,201,220,221,LH200,TRH201,221 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(0501-0709)KDH220,221,TRH221
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48203-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48203-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-26020 |
KDH220,221,TRH221 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26A00 |
KDH201;TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH200,220,221,LH200,TRH221..03S |
2 | ||
| 48247-26260 |
KDH212..4FC;KDH200,201,220,221,LH200,TRH201,213,221..03S,06S,11S |
2 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-26A00 |
KDH200,201,220,221,LH200,TRH201,221 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
KDH200,201,220,221,LH200,TRH201,221 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 1 OF 2(0501- )KDH220,221,TRH201,221
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26140 |
KDH220,221,TRH201,221 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26130 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14001 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) L=170 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14001 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) L=170 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-26130 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-26270 |
KDH220,221,TRH221 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-26270 |
KDH220,221,TRH221 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80725 |
KDH212..5F;KDH20#,220,221,LH20#,212,TRH20#,213,221..03S,06S,09S,10S,12S,14S,15S,16S MARK 48531-26780 |
1 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90385-16009 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19006 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80725 |
KDH212..5F;KDH20#,220,221,LH20#,212,TRH20#,213,221..03S,06S,09S,10S,12S,14S,15S,16S MARK 48531-26780 |
1 | ||
| Common parts | ||||
| 90105-14169 | ||||
| 90105-14170 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90387-14011 | ||||
| 91673-80820 | ||||
| 94151-21401 | ||||
| 94622-51400 | ||||
ILLUST NO. 2 OF 2(0709-1008)KDH221..GEN ; (0709- )TRH221 ; (0709- )KDH220,221..SP ; (1008-
TYPE A:3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14037 |
KDH212,TRH213..GCC;TRH221..SP..(ARL,GCC,GEN);KDH212,TRH213..RHD..(GEN,TH);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,22#,LH20#,212,222,TRH200,201,223..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH) NO.2 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 90389-14007 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# NO.1 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48201-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48201-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48202-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48202-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48203-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48203-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48203-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) |
2 | ||
| 48203-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48203-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26C71 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A40 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A41 |
KDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48210-26A42 |
KDH220,221,TRH221..5D..(ARL,GCC,GEN) 3-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26A00 |
KDH201;TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH200,220,221,LH200,TRH221..03S |
2 | ||
| 48247-26A00 |
KDH201;TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH200,220,221,LH200,TRH221..03S |
2 | ||
| 48247-26260 |
KDH212..4FC;KDH200,201,220,221,LH200,TRH201,213,221..03S,06S,11S |
2 | ||
| 48247-26260 |
KDH212..4FC;KDH200,201,220,221,LH200,TRH201,213,221..03S,06S,11S |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26A00 |
TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA) NO.2 |
4 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-26B00 |
KDH200,201,220,221,LH200,TRH201,221..ARL,GCC,GEN,MA,SA NO.2 |
8 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252-28170 |
KDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S NO.1 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-26A00 |
KDH200,201,220,221,LH200,TRH201,221 |
2 | ||
| 48253-26A00 |
KDH200,201,220,221,LH200,TRH201,221 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48284-37130 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| Common parts | ||||
| 48284-26A30 | ||||
| 94151-81000 | ||||
ILLUST NO. 1 OF 2(1312-2006)KDH220,221,TRH201,221
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14169 | ||||
| 90105-14170 | ||||
| 90119-10355 | ||||
| 90119-12088 | ||||
| 90387-14011 | ||||
| 91673-80820 | ||||
| 94151-21401 | ||||
| 94622-51400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
