TRH221R-MBPDKQ (2005)
Toyota Hiace
(0501-1305)2TRFE..TRH203..MA ; (0501- )2TRFE..ARL,CIS,GCC,GEN,SA,TH,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

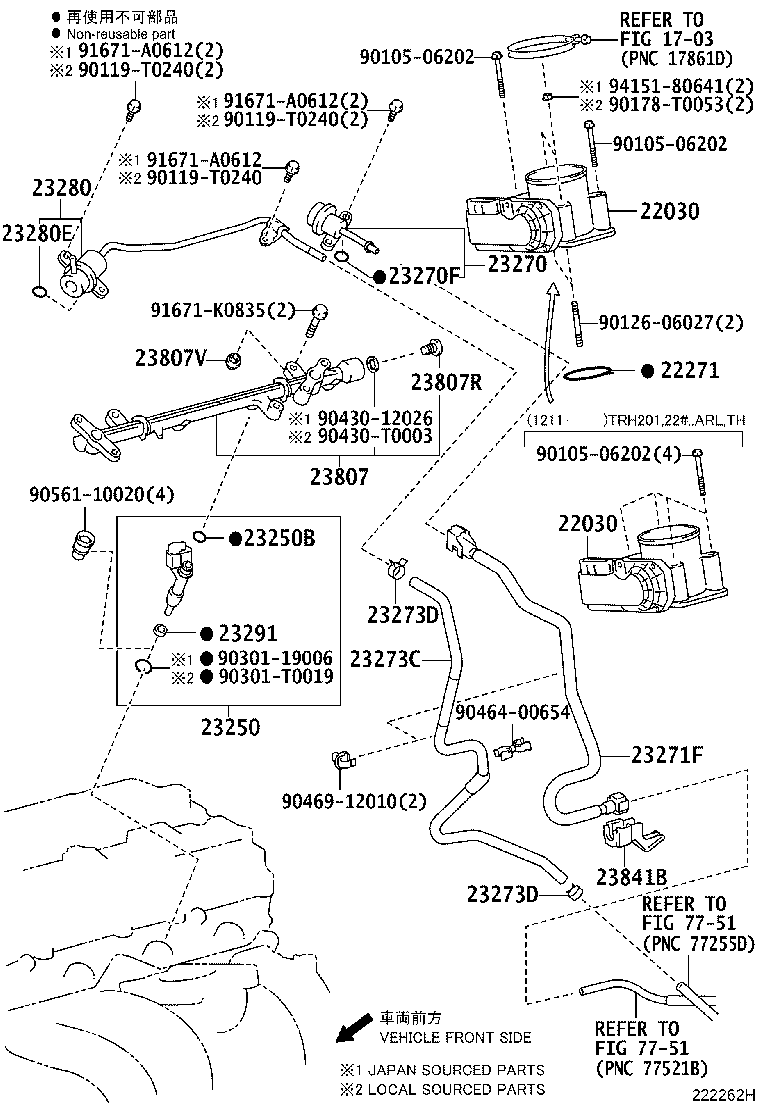

| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-75020 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-75020 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0C020 |
2TRFE..TRH20#,213,22# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79155 |
2TRFE..TRH213..GCC;2TRFE..TRH201,22#..SG..(03S,13S);2TRFE..TRH201,213..(06S,09S,10S,11S,15S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
4 | ||
| 23209-79155 |
2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,13S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,213,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA) *271 |
4 | ||
| 23209-79155 |
2TRFE..TRH20#,213,22#..4FC *272 |
4 | ||
| 23209-79155 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,*271 |
4 | ||
| 23209-79186 |
2TRFE..TRH201,22#..4FC..ARL LPG CONVERSION PACKAGE,*272 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
4 | ||
| 90301-07024 |
2TRFE..TRH20#,213,22# |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-75010 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-75200 |
2TRFE..TRH213,22# |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-75270 |
2TRFE..TRH213,22# |
1 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96135-51100 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96135-51100 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75040 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07037 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
4 | ||
| 23291-73010 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 23807R - PLUG, FUEL DELIVARY PIPE | ||||
| 90341-12030 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08036 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
2TRFE..TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90119-T0240 | ||||
| 90126-06027 | ||||
| 90178-T0053 | ||||
| 90301-19006 | ||||
| 90301-T0019 | ||||
| 90430-12026 | ||||
| 90430-T0003 | ||||
| 90464-00654 | ||||
| 90469-12010 | ||||
| 90561-10020 | ||||
| 91671-A0612 | ||||
| 91671-K0835 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 7751 | ||||
(1312-1406)2TRFE..ARL,GCC,GEN,RUS,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06202 | ||||
| 90126-06027 | ||||
| 90301-19006 | ||||
| 90430-12026 | ||||
| 90464-00654 | ||||
| 90469-12010 | ||||
| 90561-10020 | ||||
| 91671-80614 | ||||
| 91671-A0612 | ||||
| 91671-K0835 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 7751 | ||||
