TRH221R-MBPDKQ (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )1TRFE,2TRFE

Click highlighted areas on diagram

diagram 1706 1706 1706 17111 17111Z 17141 17141 17141K 17141K 17167 17173 17173 17177 2211 90119T0236 90178T0019 9017908101 9017908101 9033907018 91551B0828 9167100835 9167180814 9415180800 9613251300
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0C020

2TRFE..TRH201,203,213,22#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 2
17141 - MANIFOLD, EXHAUST
17141-75120

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 1
17141 - MANIFOLD, EXHAUST
17141-75120

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 8
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75151

2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75040

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75040

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0C010

1TRFE,2TRFE..TRH20#,213,22#

 1
Common parts
90119-T0236
90178-T0019
90179-08101
90339-07018
91551-B0828
91671-00835
91671-80814
94151-80800
96132-51300
Linked diagrams
1706
2211

(0501- )2KDFTV..KDH222..GL..SA ; (0501- )2KDFTV..KDH200,202,212,220 ; (0501-

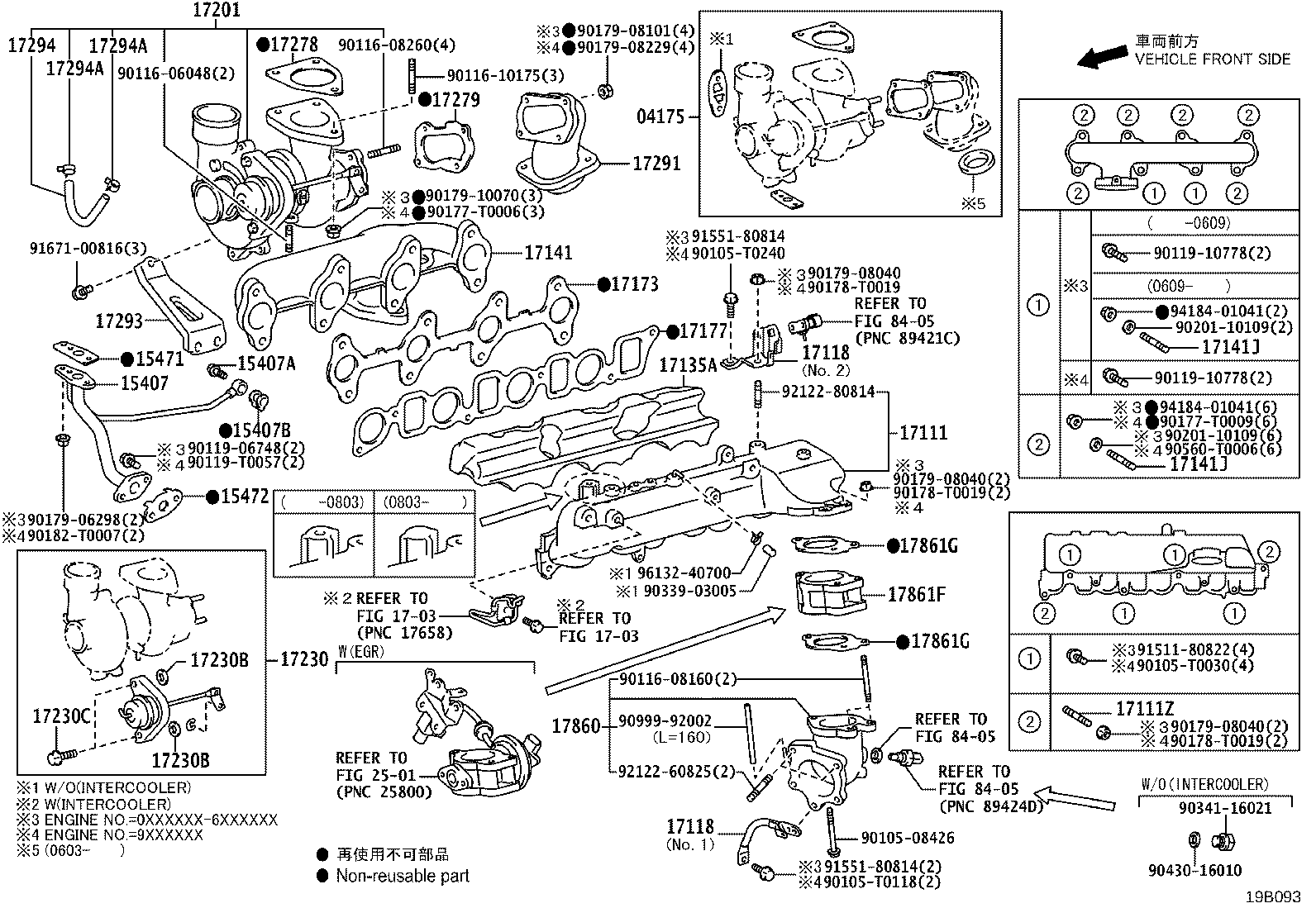

Click highlighted areas on diagram

E/G NO.=0XXXXXX-6XXXXXX OR 9XXXXXX

diagram 04175 15407 15407A 15407B 15471 15472 1703 1703 17111 17111Z 17118 17118 17135A 17141 17141J 17141J 17173 17177 17201 17230 17230B 17230B 17230C 17278 17279 17291 17293 17294 17294A 17294A 17860 17861F 17861G 17861G 2501 8405 8405 8405 9010508426 90105T0030 90105T0118 90105T0240 9011606048 9011608160 9011608260 9011610175 9011906748 9011910778 9011910778 90119T0057 90177T0006 90177T0009 90178T0019 90178T0019 90178T0019 9017906298 9017908040 9017908040 9017908040 9017908101 9017908229 9017910070 90182T0007 9020110109 9020110109 9033903005 9034116021 9043016010 90560T0006 9099992002 9151180822 9155180814 9155180814 9167100816 9212260825 9212280814 9418401041 9418401041 9613240700
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0C020

2TRFE..TRH201,203,213,22#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 2
17141 - MANIFOLD, EXHAUST
17141-75120

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75040

2TRFE..TRH201,221..ARL;2TRFE..TRH201,213..(06S,09S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH);1TRFE,2TRFE..TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0C010

1TRFE,2TRFE..TRH20#,213,22#

 1
Common parts
90105-08426
90105-T0030
90105-T0118
90105-T0240
90116-06048
90116-08160
90116-08260
90116-10175
90119-06748
90119-10778
90119-T0057
90177-T0006
90177-T0009
90178-T0019
90179-06298
90179-08040
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90339-03005
90341-16021
90430-16010
90560-T0006
90999-92002
91511-80822
91551-80814
91671-00816
92122-60825
92122-80814
94184-01041
96132-40700
Linked diagrams
1703
2501
8405
