TRH221R-MBPDKQ (2005)
Toyota Hiace
ILLUST NO. 1 OF 3(0501-0902)2KDFTV..KDH220..SP..5F ; (0501-0902)2KDFTV..KDH222..LHD..GEN ; (0501-090

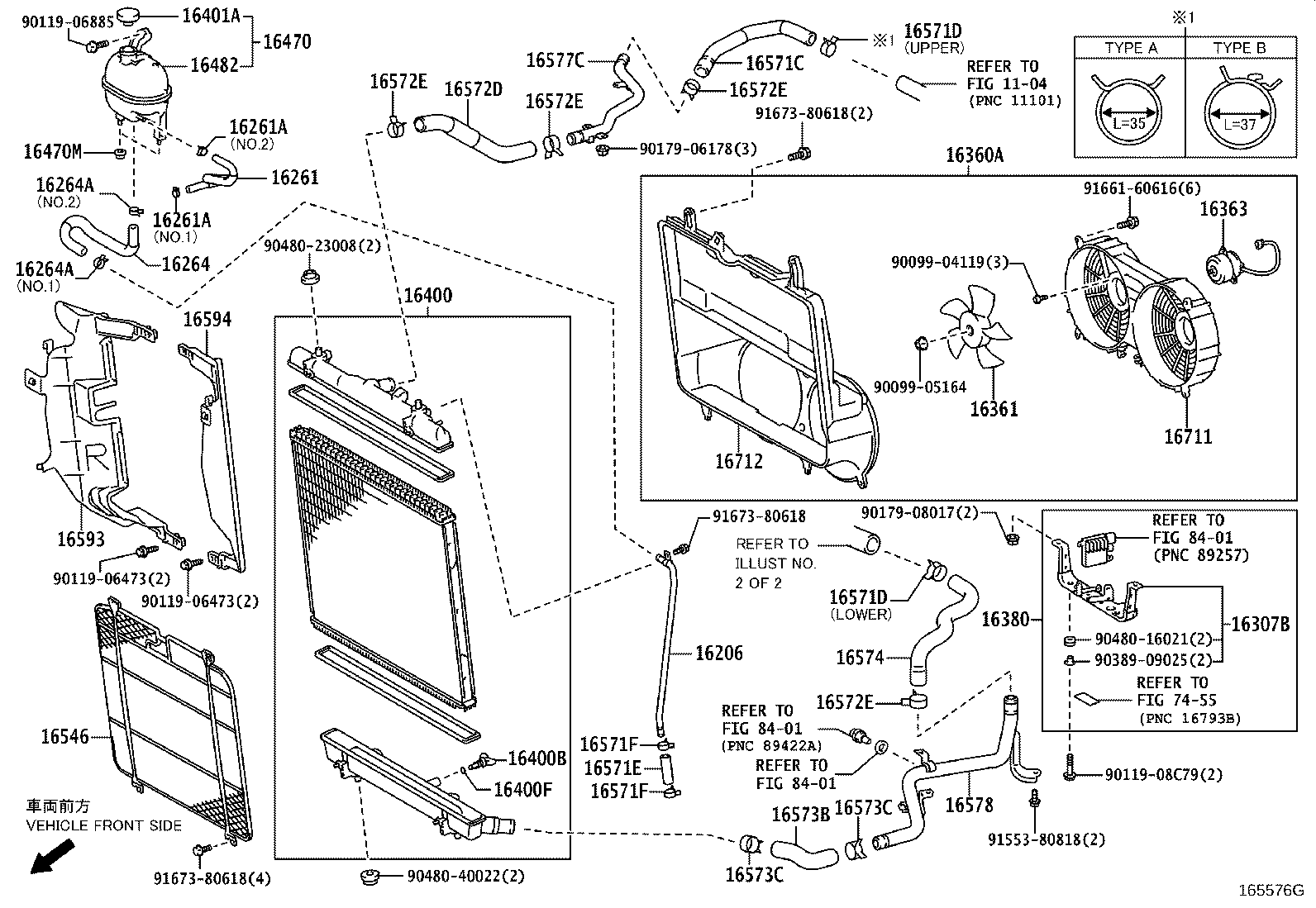

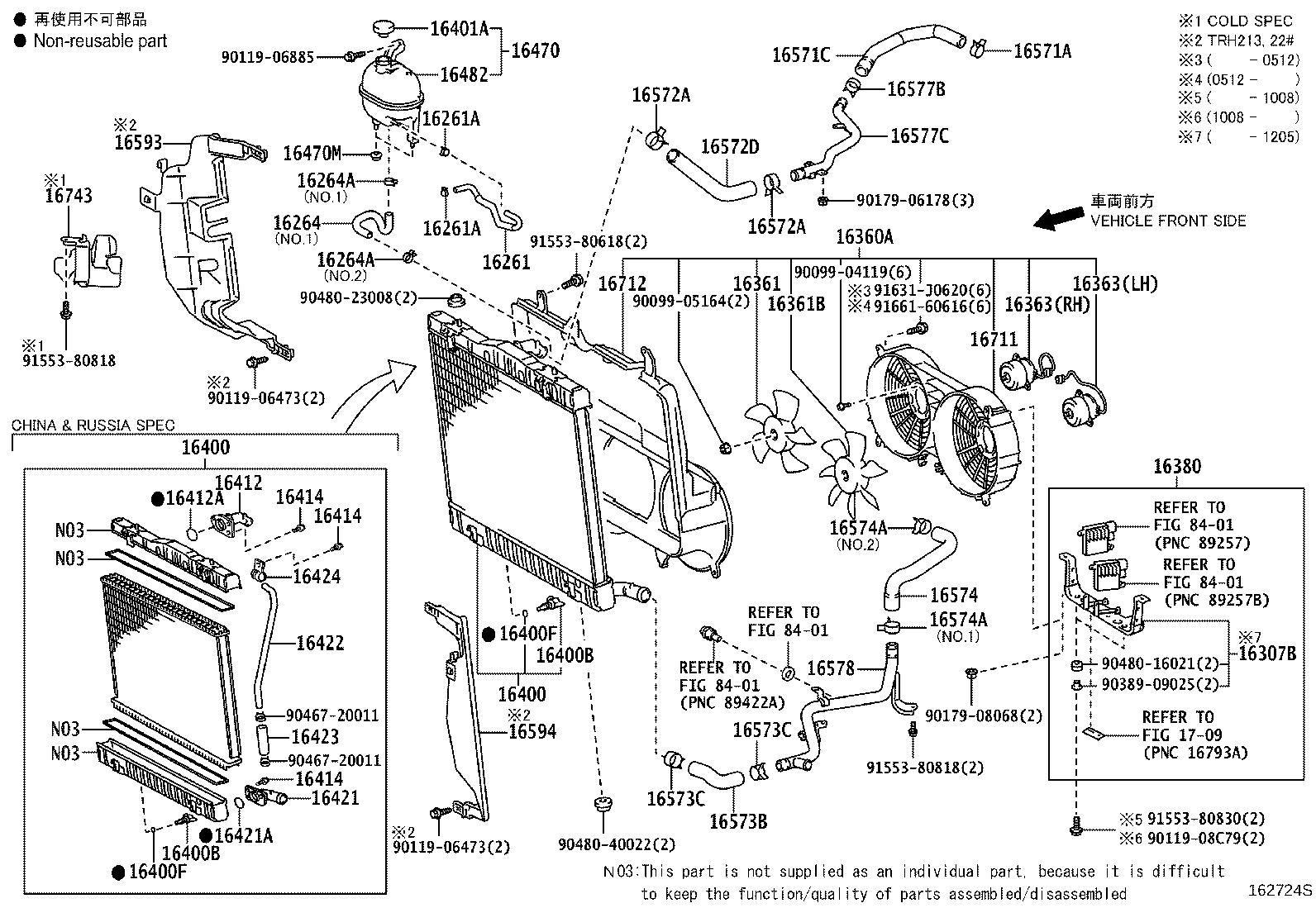

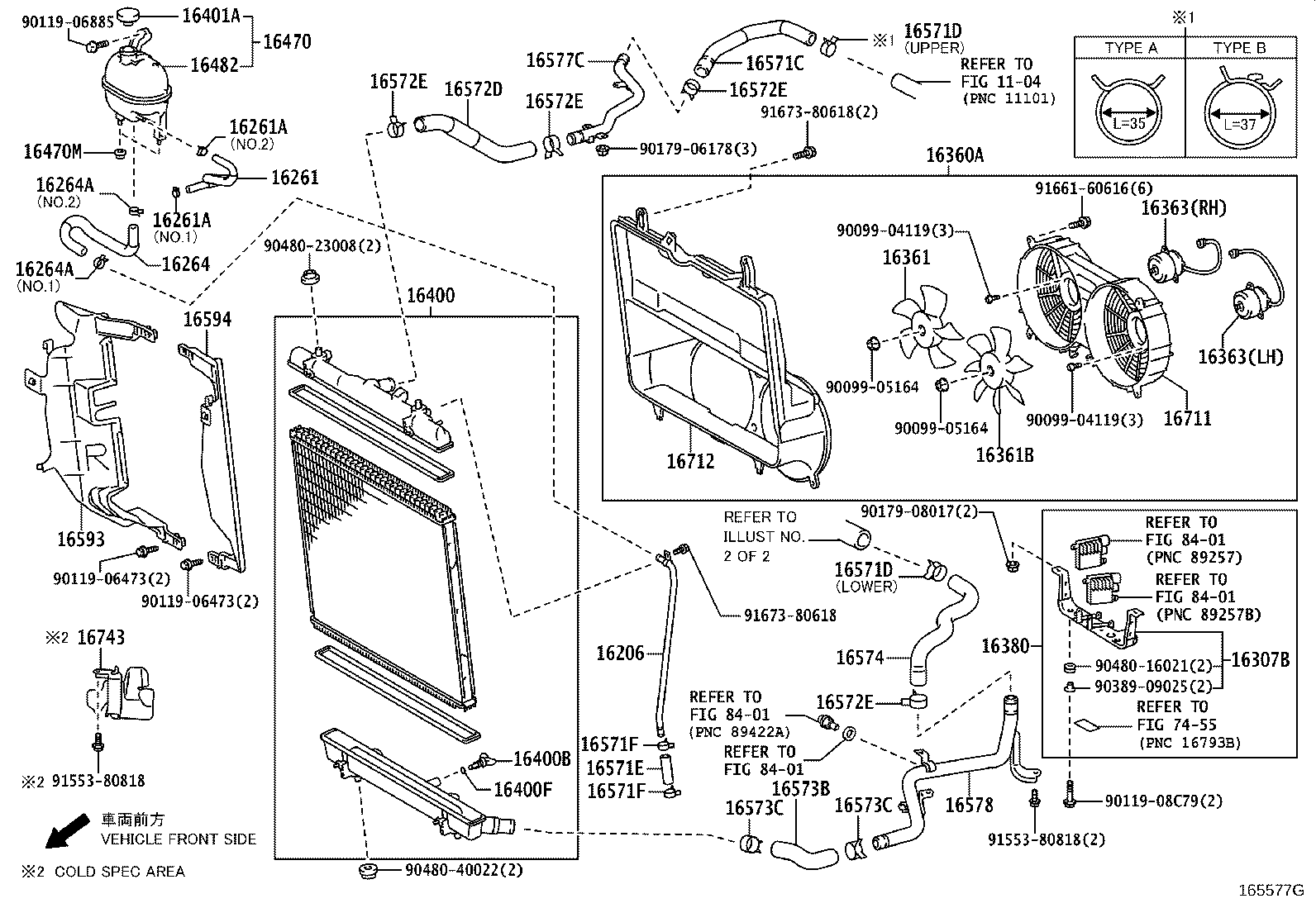

MAIN RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

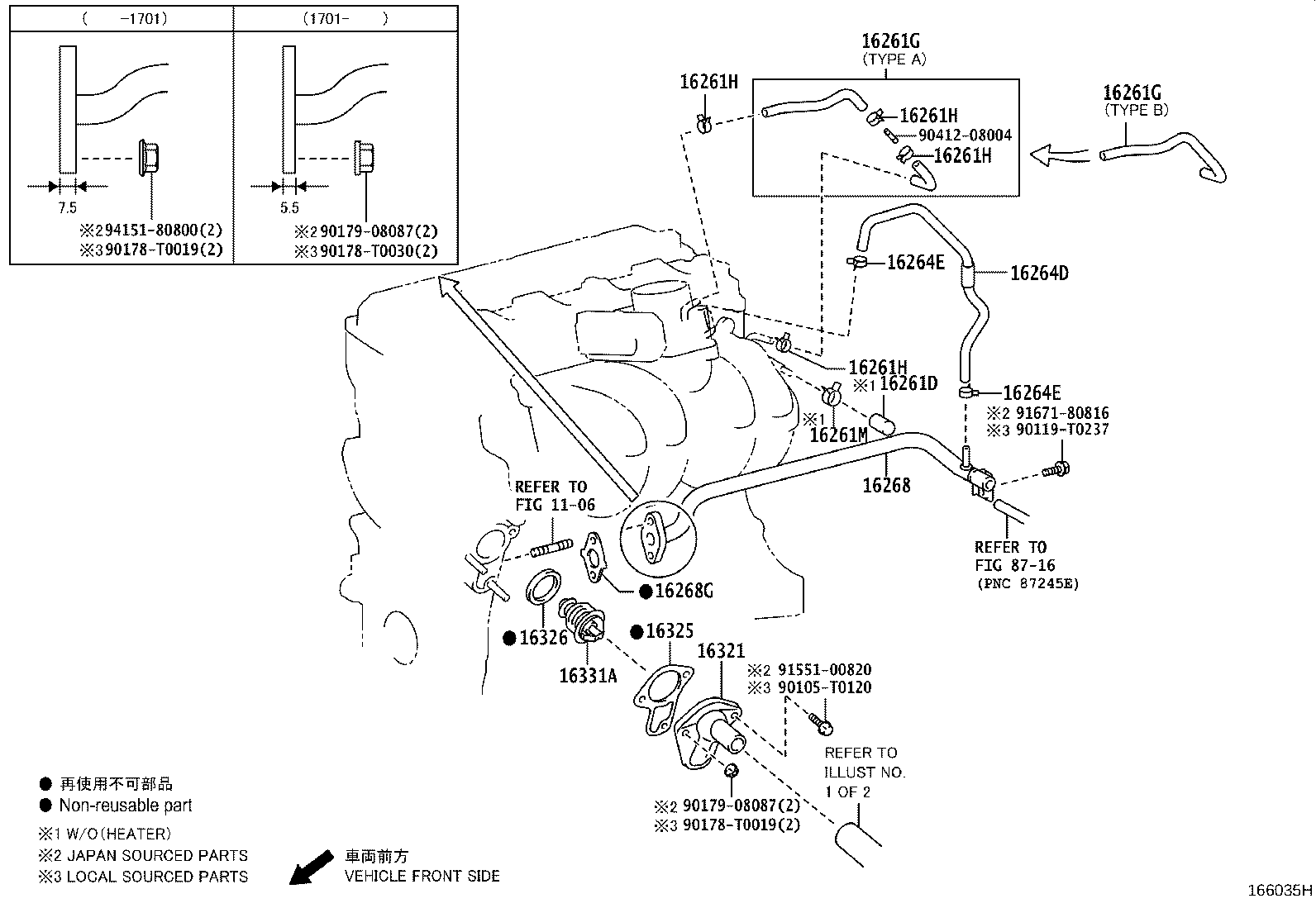

| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75020 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16307-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16307-75020 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75020 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16307-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,22#..(03S,12S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| 16360-75020 |
2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,22#..(03S,12S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| 16360-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16361-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16380-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16380-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380-75023 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-51010 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16475-51010 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16401-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16401-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75121 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16480-75070 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75270 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16572-75270 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75070 |
2TRFE..TRH213,22# |
1 | ||
| 16573-75070 |
2TRFE..TRH213,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75050 |
2TRFE..TRH213,22# |
1 | ||
| 16574-75050 |
2TRFE..TRH213,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16577-75040 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16578-75011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16593-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16594-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16711-75230 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16712-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90339-16001 | ||||
| 90381-08002 | ||||
| 90389-09025 | ||||
| 90464-00906 | ||||
| 90466-21001 | ||||
| 90480-16016 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(0501- )2KDFTV..KDH200,202,212 ; (0501- )2KDFTV..KDH220..SP..5F ; (0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90179-06080 | ||||
| 90339-16003 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0501- )2TRFE..TRH213..STD..VN ; (0501- )2TRFE..TRH223..5F..GCC ; (0501- )
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75020 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16307-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16307-75020 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75020 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16307-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,22#..(03S,12S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| 16360-75020 |
2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,22#..(03S,12S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| 16360-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16361-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16380-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16380-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380-75023 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-51010 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16475-51010 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16401-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16401-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-75540 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 16413-75540 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75540 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 16413-75540 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75121 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16480-75070 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-75010 |
2TRFE..TRH201..5D..03S..GEN;2TRFE..TRH201..03S..(ARL,GCC,SA);2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH203,213,221..(03S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16546-75010 |
2TRFE..TRH201..5D..03S..GEN;2TRFE..TRH201..03S..(ARL,GCC,SA);2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH203,213,221..(03S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16546-75010 |
2TRFE..TRH221..SP;2TRFE..TRH201..SG..06S;2TRFE..TRH201..5D..03S..GEN;2TRFE..TRH201..03S..(ARL,GCC,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH221..SP;2TRFE..TRH201..SG..06S;2TRFE..TRH201..5D..03S..GEN;2TRFE..TRH201..03S..(ARL,GCC,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..5D..03S..GEN;2TRFE..TRH201..03S..(ARL,GCC,SA) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..5D..03S..GEN;2TRFE..TRH201..03S..(ARL,GCC,SA) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75260 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16571-75260 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75270 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16572-75270 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75070 |
2TRFE..TRH213,22# |
1 | ||
| 16573-75070 |
2TRFE..TRH213,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75050 |
2TRFE..TRH213,22# |
1 | ||
| 16574-75050 |
2TRFE..TRH213,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16577-75040 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16578-75011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16593-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16594-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16711-75230 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16712-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0501- )2TRFE..TRH223..GL..SA ; (0501- )2TRFE..TRH201,203,213,221 ; (0501-
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
2TRFE..TRH213,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
2TRFE..TRH213,22#..RHD NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 90467-20011 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16307-75020 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH203,213,22#..(03S,12S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| 16360-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75031 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-75030 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-20390 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA);2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
2TRFE..TRH201..SG;2TRFE..TRH22#..03S,16S;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S) |
1 | ||
| 16380-75021 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75021 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75022 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75011 |
2TRFE..TRH221;2TRFE..TRH201,223..SG..STD..(GCC,GEN,SA,TH);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 16380-75023 |
2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201..SG..06S;2TRFE..TRH201,221..SP..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75480 |
2TRFE..TRH201,213,22#..RHD..4FC |
1 | ||
| 16400-75481 |
1TRFE,2TRFE..TRH20#,213,22#..(03S,06S,11S,14S,15S,16S)..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-51010 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16401-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-75540 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
2TRFE..TRH201,221;2TRFE..TRH203..5F;2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD;2TRFE..TRH223..(14S,15S,16S)..(ARL,GEN,SA,TH) |
7 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75540 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GL..VN;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75260 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75270 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75070 |
2TRFE..TRH213,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75050 |
2TRFE..TRH213,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# NO.1 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH20#,213,22# NO.2 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
2TRFE..TRH213,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH20#,213,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
2TRFE..TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0501- )2TRFE..TRH203..12S..GEN ; (0501- )2TRFE..TRH201..4D..SP..GEN ; (0501-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(0501-1107)2TRFE..TRH201..5D..5F ; (0501-1107)2TRFE..TRH201..SG..4FC ; (0501-1107)2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107- )2TRFE..ARL,CIS,GCC,GEN,SA,TH ; (1303-)2TRFE..TRH203..MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-75201 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 16261-75201 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
4 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75131 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75020 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-76010 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TRH20#,213,22# *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(1312-2005)2TRFE..TRH213,22#..RHD..02S,03S,06S,16S
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1312-2005)2TRFE..TRH223..GL..SA ; (1312-2005)2TRFE..TRH213,221..RHD ; (1312-2005)2
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1312-1411)2TRFE..TRH201,22#..02S,06S,12S,14S..5F..ARL,GEN,RUS ; (1312- )2TRFE..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
