Toyota Hiace TRH221 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
GR
HIACE
TRH221R-MBMDKQ (2013)
6452 - ROOF HEADLINING & SILENCER PAD

TRH221R-MBMDKQ (2013)

Toyota Hiace

Production Dec 2013 - Feb 2019

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )KDH22#,LH222,TRH22#..STD..ARL,GCC,GEN,KEN,SA,TH

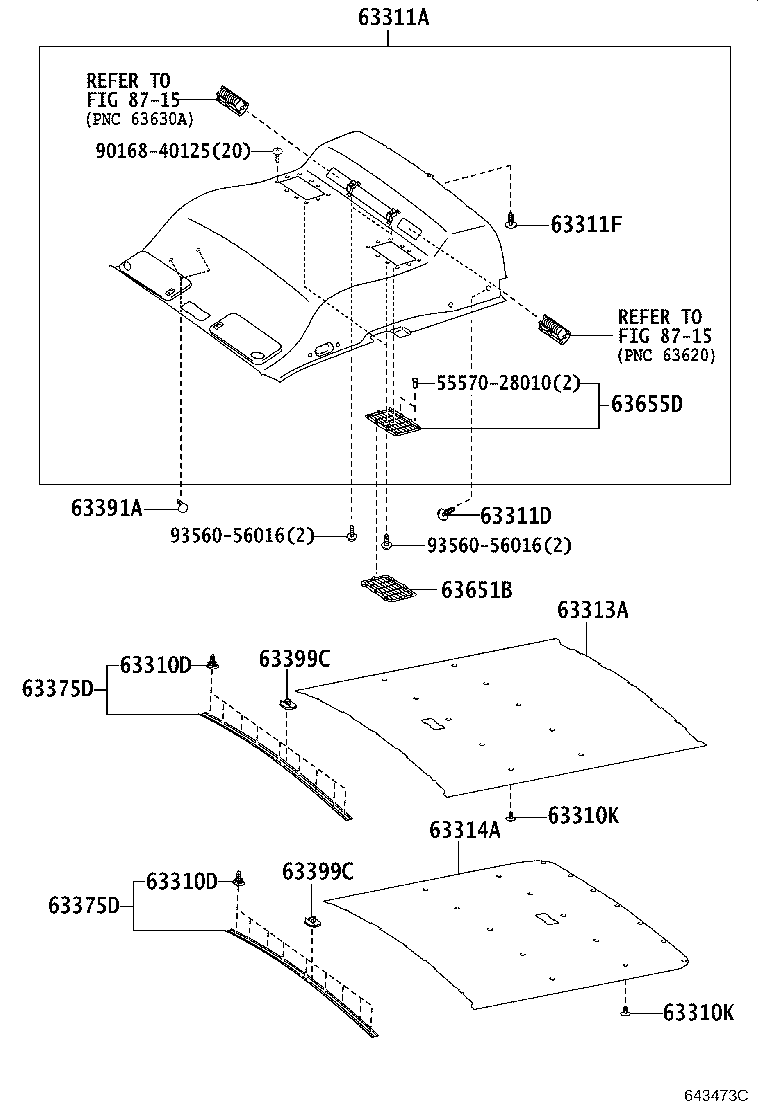

Click highlighted areas on diagram

Part #	Description	Period	Qty
63310D - CLIP, ROOF HEADLINING
63399-26030	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 12/2999	27
63399-26030	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	18
63399-26030	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 12/2999	18
63310D - CLIP, ROOF HEADLINING
63399-26030	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 12/2999	27
63399-26030	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	18
63399-26030	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 12/2999	18
63310D - CLIP, ROOF HEADLINING
63399-26030	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	18
63399-26030	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 12/2999	27
63399-26030	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 12/2999	18
63310K - CLIP
63399-26050B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63399-26050B0	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LT.GRAY,TRIM1#	12/2013 - 12/2999	32
63399-26050B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63310K - CLIP
63399-26050B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63399-26050B0	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LT.GRAY,TRIM1#	12/2013 - 12/2999	32
63399-26050B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63310K - CLIP
63399-26050B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63399-26050B0	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LT.GRAY,TRIM1#	12/2013 - 12/2999	32
63399-26050B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63311A - HEADLINING, ROOF NO.1
63301-26270B0	KDH221,TRH221..RHD..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LIGHT GRAY,TRIM1#	12/2013 - 02/2019	1
63301-26080B0	KDH223..4FC..TH;TRH223..LHD..STD..GEN;TRH22#..(02S,16S)..(ARL,TH);KDH220,221,222,LH222..STD..(ARL,GEN) BACK MONITOR-WITH,LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63310-26A30B1	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63310-26K30B0	KDH221;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0	KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH223,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,203,221,LH202,222,TRH201;KDH220,222,TRH200..(06S,16S)..(4FC,5F)..STD..(GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	4
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0	KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH223,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,203,221,LH202,222,TRH201;KDH220,222,TRH200..(06S,16S)..(4FC,5F)..STD..(GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63312A - HEADLINING, ROOF, NO.2
63312-26200B1	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63313A - HEADLINING, ROOF, NO.3
63313-26150B1	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63314A - HEADLINING, ROOF, NO.4
63314-26060B1	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,LH222..ARL,GEN;KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER
63375-26120B0	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER
63375-26120B0	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63375D - MOULDING, ROOF HEADLINING
63375-26120B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63375-26110B0	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63375-26120B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,220,TRH200..SP..06S..(4FC,5F);KDH223,TRH221..(02S,06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH202,220,221,LH222,TRH203..(02S,03S,06S,10S,16S)..(ARL,GEN,MA) LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63399C - CLIP, ROOF HEADLINING
63399-26040	KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 02/2019	2
63399-26040	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 08/2019	2
63399-26040	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 08/2019	3
63399C - CLIP, ROOF HEADLINING
63399-26040	KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 02/2019	2
63399-26040	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 08/2019	2
63399-26040	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 08/2019	3
63399C - CLIP, ROOF HEADLINING
63399-26040	KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 02/2019	2
63399-26040	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 08/2019	2
63399-26040	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 08/2019	3

(1312- )KDH220,221,TRH221..5D

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty
63310D - CLIP, ROOF HEADLINING
63399-26030	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 12/2999	27
63399-26030	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	18
63399-26030	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 12/2999	18
63310D - CLIP, ROOF HEADLINING
63399-26030	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 12/2999	27
63399-26030	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	18
63399-26030	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 12/2999	18
63310K - CLIP
63399-26050B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63399-26050B0	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LT.GRAY,TRIM1#	12/2013 - 12/2999	32
63399-26050B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63310K - CLIP
63399-26050B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63399-26050B0	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LT.GRAY,TRIM1#	12/2013 - 12/2999	32
63399-26050B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	27
63311A - HEADLINING, ROOF NO.1
63301-26270B0	KDH221,TRH221..RHD..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LIGHT GRAY,TRIM1#	12/2013 - 02/2019	1
63301-26080B0	KDH223..4FC..TH;TRH223..LHD..STD..GEN;TRH22#..(02S,16S)..(ARL,TH);KDH220,221,222,LH222..STD..(ARL,GEN) BACK MONITOR-WITH,LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63310-26A30B1	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63310-26K30B0	KDH221;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0	KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH223,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,203,221,LH202,222,TRH201;KDH220,222,TRH200..(06S,16S)..(4FC,5F)..STD..(GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63313A - HEADLINING, ROOF, NO.3
63313-26150B1	TRH223..TH;TRH221..GCC;KDH223..4FC..TH;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH220,221,222,LH222..STD..(ARL,GEN) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63314A - HEADLINING, ROOF, NO.4
63314-26060B1	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,LH222..ARL,GEN;KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LIGHT GRAY,TRIM1#	12/2013 - 12/2999	1
63375D - MOULDING, ROOF HEADLINING
63375-26120B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63375-26110B0	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63375-26120B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63375D - MOULDING, ROOF HEADLINING
63375-26120B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63375-26110B0	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63375-26120B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,220,TRH200..SP..06S..(4FC,5F);KDH223,TRH221..(02S,06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH202,220,221,LH222,TRH203..(02S,03S,06S,10S,16S)..(ARL,GEN,MA) LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63399C - CLIP, ROOF HEADLINING
63399-26040	KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 02/2019	2
63399-26040	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 08/2019	2
63399-26040	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 08/2019	3
63399C - CLIP, ROOF HEADLINING
63399-26040	KDH220,221,TRH221..5D..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH	12/2013 - 02/2019	2
63399-26040	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 08/2019	2
63399-26040	TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)	12/2013 - 08/2019	3
63651B - NET, AIR INTAKE
63650-26010B0	LH200..4D;KDH201..SG;TRH221..GCC;KDH221,TRH201;KDH201..02S,03S,05S;KDH200,220..LHD..5D;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	2
63655D - COVER, AIR INTAKE
63655-26030B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH	12/2013 - 12/2999	1
63655-26030B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,RH	12/2013 - 12/2999	1
63655-26040B0	TRH221..ARL;KDH220,221..ARL,GEN AIR CONDITIONER-DUAL AIR CONDITIONER&BACK MONITOR-WITH,LT.GRAY,TRIM1#,LH	12/2013 - 12/2999	1
63655-26040B0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH	12/2013 - 12/2999	1
Common parts
55570-28010
90168-40125
93560-56016
Linked diagrams
8715

TRH221R-MBMDKQ (2013)

(1312- )KDH22#,LH222,TRH22#..STD..ARL,GCC,GEN,KEN,SA,TH

(1312- )KDH220,221,TRH221..5D
