Toyota Hiace TRH221 INSIDE TRIM BOARD

Manufacturers Home
Toyota
GR
HIACE
TRH221L-MBMDK (2013)
6451 - INSIDE TRIM BOARD

TRH221L-MBMDK (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

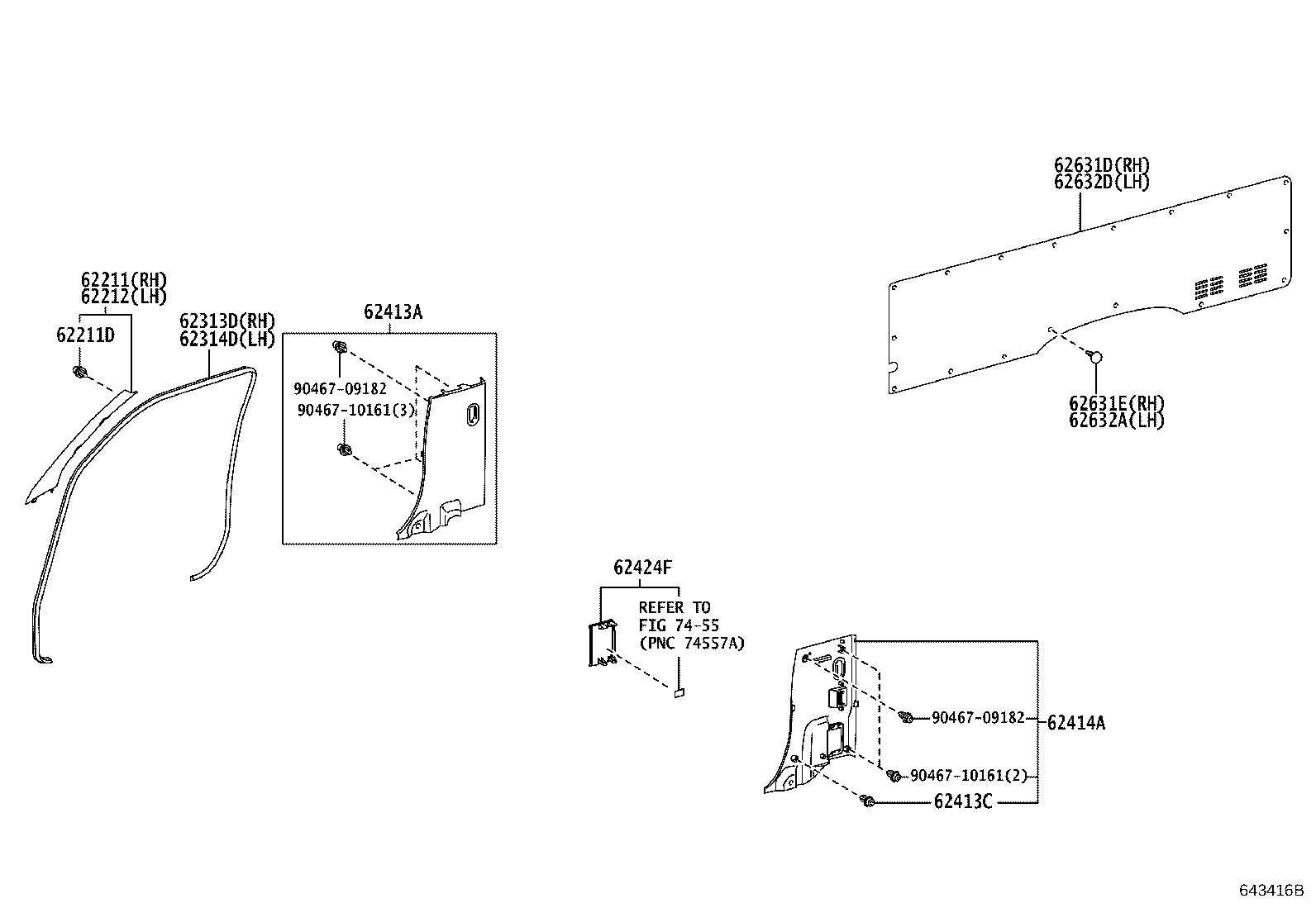

(1312- )KDH220,221,TRH221..5D

Click highlighted areas on diagram

Part #	Description	Period	Qty
62211 - GARNISH, FRONT PILLAR, RH
62210-26052B0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62210-26052B0	TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S);KDH21#,220,221,223,LH212,222,TRH200..(4FC,5F)..(ARL,GCC,GEN,RUS) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62210-26052B0	TRH221..SP..GEN;TRH223..GL..GEN;KDH223,TRH213,223..RHD..(GEN,TH) LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161	TRH213;KDH201..SP..06S;KDH212,22#,LH212,222,TRH22#..ARL,GCC,GEN,RUS,SA;KDH202,203,213,TRH200,203..RHD..(06S,10S,11S,12S)	12/2013 - 01/2015	2
67771-28150	TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS;GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S)	01/2015 - 12/2999	2
67771-28150	TRH221..SP..GEN;TRH223..GL..GEN;KDH223,TRH213,223..RHD..(GEN,TH)	08/2019 - 12/2999	2
67771-28150	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	2
62212 - GARNISH, FRONT PILLAR, LH
62220-26050B0	TRH221..SP..GEN;TRH223..5F..GL..GEN MEXICO SPEC,LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62220-26032B0	TRH221..SP..GEN;TRH223..RHD..GEN;TRH223..5F..GL..GEN LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62220-26050B0	TRH221..SP..GEN MEXICO SPEC,LT.GRAY,TRIM1#	11/2019 - 05/2020	1
62220-26032B0	TRH213,223..LHD..STD..GEN;KDH201,TRH221..5D..SP..(02S,06S)..(ARL,GEN);GDH201,KDH202,203,TRH203..RHD..(06S,10S,12S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);KDH21#,22#,LH212,222,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62220-26032B0	TRH221..SP..GEN;TRH223..GL..GEN;KDH223,TRH213,223..RHD..(GEN,TH) LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62313-26010C0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) BLACK,TRIM1#	12/2013 - 02/2019	1
62313-26010C0	TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH) BLACK,TRIM1#	08/2019 - 12/2999	1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) BLACK,TRIM1#	12/2013 - 02/2019	1
62314-26010C0	TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH) BLACK,TRIM1#	08/2019 - 12/2999	1
62314-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26210B0	KDH220..03S..SA;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26220B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26230B0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26200B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26210B0	KDH201..SG;KDH200..LHD..5D..GEN;KDH201..5D..(03S,05S);KDH220,TRH221..02S,06S;KDH222,TRH223..LHD..STD..GEN;KDH220,221,TRH201..5D..(ARL,GEN);KDH201,202,203,LH20#,222,TRH203..LHD..4D..5F DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26200B0	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26250B1	KDH201..SG;KDH201..02S..GEN;KDH201,221..5D..(02S,03S,05S) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26220B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413-26230B0	KDH200..LHD..4D;TRH221..SP..GEN;KDH200,LH200..RHD..5D AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413-26210B0	TRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200,LH200..RHD..5D DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413-26200B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
75867-33030	KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S	12/2013 - 10/2016	1
67771-28150	TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;KDH220,222,TRH223..(03S,14S)..SA	11/2016 - 02/2019	1
67771-28150	TRH203..4FC;KDH200..LHD..4D;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH)	08/2019 - 12/2999	1
67771-28150	KDH223..4FC..TH;LH200,TRH203..4D..5F;KDH222..RHD..(03S,16S);TRH223..STD..(ARL,SA,TH);KDH200,213,220..LHD..5D..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222,TRH213,223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S,14S,16S)..STD..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	11/2016 - 12/2999	1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26210B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26250B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26220B0	KDH220..03S..SA;TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA) DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26420B1	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26250B0	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62414-26210B0	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62414-26250B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62414-26210B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62414-26220B0	LH200,TRH221..5D..GEN;KDH200,223,TRH223..RHD..(GEN,TH) DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62414-26420B1	KDH200..RHD..GEN;LH200,TRH221..5D..GEN AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26031B0	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1#	12/2013 - 06/2016	1
62424-26032B0	TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH) DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62424-26032B0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) DK.GRAY,TRIM1#	07/2016 - 02/2019	1
62424-26032B0	KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH DK.GRAY,TRIM1#	07/2016 - 12/2999	1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26410	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA)	12/2013 - 02/2019	1
62631-26410	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S	12/2013 - 12/2999	1
62631-26410	TRH221..SP..GEN	08/2019 - 12/2999	1
62631E - RETAINER, QUATER TRIM
67771-26230E0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) CREAM YELLOW,TRIM1#	12/2013 - 02/2019	17
67771-26230E0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S CREAM YELLOW,TRIM1#	12/2013 - 03/2020	17
67771-26230E0	TRH221..SP..GEN CREAM YELLOW,TRIM1#	08/2019 - 03/2020	17
67771-26250E1	TRH221..SP OCHER,TRIM1#	03/2020 - 12/2999	17
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) CREAM YELLOW,TRIM1#	12/2013 - 02/2019	17
67771-26230E0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S CREAM YELLOW,TRIM1#	12/2013 - 03/2020	17
67771-26230E0	TRH221..SP..GEN CREAM YELLOW,TRIM1#	08/2019 - 03/2020	17
67771-26250E1	TRH221..SP OCHER,TRIM1#	03/2020 - 12/2999	17
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26430	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA)	12/2013 - 02/2019	1
62632-26430	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S	12/2013 - 12/2999	1
62632-26430	TRH221..SP..GEN	08/2019 - 12/2999	1
Common parts
90467-09182
90467-10161
Linked diagrams
7455

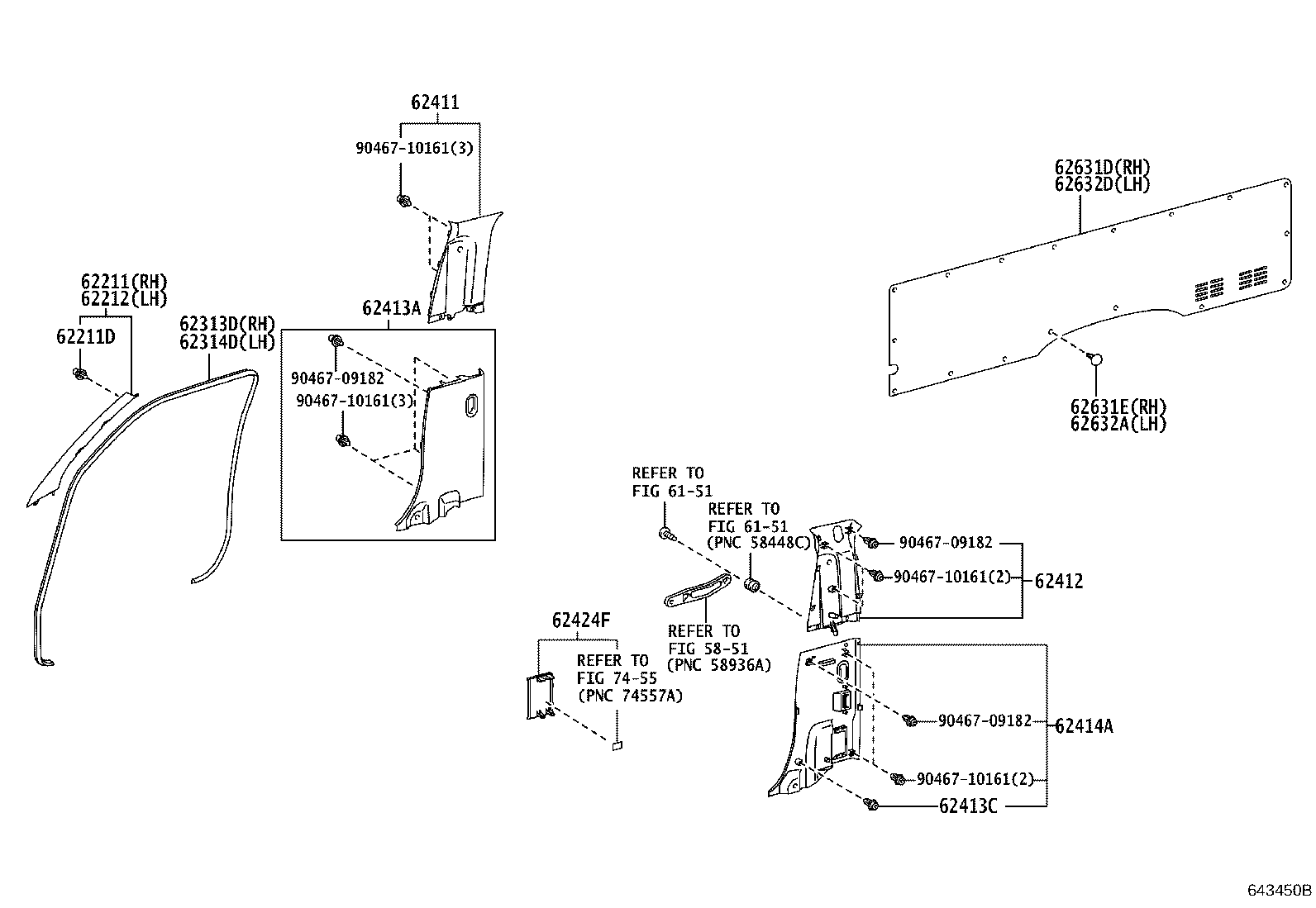

(1312- )KDH220,221,TRH221..5D

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty
62211 - GARNISH, FRONT PILLAR, RH
62210-26052B0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62210-26052B0	TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S);KDH21#,220,221,223,LH212,222,TRH200..(4FC,5F)..(ARL,GCC,GEN,RUS) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62210-26052B0	TRH221..SP..GEN;TRH223..GL..GEN;KDH223,TRH213,223..RHD..(GEN,TH) LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161	TRH213;KDH201..SP..06S;KDH212,22#,LH212,222,TRH22#..ARL,GCC,GEN,RUS,SA;KDH202,203,213,TRH200,203..RHD..(06S,10S,11S,12S)	12/2013 - 01/2015	2
67771-28150	TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS;GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S)	01/2015 - 12/2999	2
67771-28150	TRH221..SP..GEN;TRH223..GL..GEN;KDH223,TRH213,223..RHD..(GEN,TH)	08/2019 - 12/2999	2
67771-28150	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	2
62212 - GARNISH, FRONT PILLAR, LH
62220-26050B0	TRH221..SP..GEN;TRH223..5F..GL..GEN MEXICO SPEC,LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62220-26032B0	TRH221..SP..GEN;TRH223..RHD..GEN;TRH223..5F..GL..GEN LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62220-26050B0	TRH221..SP..GEN MEXICO SPEC,LT.GRAY,TRIM1#	11/2019 - 05/2020	1
62220-26032B0	TRH213,223..LHD..STD..GEN;KDH201,TRH221..5D..SP..(02S,06S)..(ARL,GEN);GDH201,KDH202,203,TRH203..RHD..(06S,10S,12S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);KDH21#,22#,LH212,222,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62220-26032B0	TRH221..SP..GEN;TRH223..GL..GEN;KDH223,TRH213,223..RHD..(GEN,TH) LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62313-26010C0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) BLACK,TRIM1#	12/2013 - 02/2019	1
62313-26010C0	TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH) BLACK,TRIM1#	08/2019 - 12/2999	1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) BLACK,TRIM1#	12/2013 - 02/2019	1
62314-26010C0	TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH) BLACK,TRIM1#	08/2019 - 12/2999	1
62314-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62411 - GARNISH, CENTER PILLAR, RH
62410-26090B1	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62410-26080B0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62410-26090B1	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62410-26080B0	KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62410-26090B1	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62410-26080B0	TRH221..SP..GEN AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62412 - GARNISH, CENTER PILLAR, LH
62420-26060B1	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62420-26070B0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 02/2019	1
62420-26070B0	KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62420-26060B1	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62420-26070B0	TRH221..SP..GEN AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62420-26060B1	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	08/2019 - 12/2999	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26210B0	KDH220..03S..SA;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26220B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26230B0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26200B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62413-26210B0	KDH201..SG;KDH200..LHD..5D..GEN;KDH201..5D..(03S,05S);KDH220,TRH221..02S,06S;KDH222,TRH223..LHD..STD..GEN;KDH220,221,TRH201..5D..(ARL,GEN);KDH201,202,203,LH20#,222,TRH203..LHD..4D..5F DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26200B0	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26250B1	KDH201..SG;KDH201..02S..GEN;KDH201,221..5D..(02S,03S,05S) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26220B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413-26230B0	KDH200..LHD..4D;TRH221..SP..GEN;KDH200,LH200..RHD..5D AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413-26210B0	TRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200,LH200..RHD..5D DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413-26200B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
75867-33030	KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S	12/2013 - 10/2016	1
67771-28150	TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;KDH220,222,TRH223..(03S,14S)..SA	11/2016 - 02/2019	1
67771-28150	TRH203..4FC;KDH200..LHD..4D;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH)	08/2019 - 12/2999	1
67771-28150	KDH223..4FC..TH;LH200,TRH203..4D..5F;KDH222..RHD..(03S,16S);TRH223..STD..(ARL,SA,TH);KDH200,213,220..LHD..5D..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222,TRH213,223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S,14S,16S)..STD..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	11/2016 - 12/2999	1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26210B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26250B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26220B0	KDH220..03S..SA;TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA) DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26420B1	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 02/2019	1
62414-26250B0	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62414-26210B0	KDH220,221..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62414-26250B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62414-26210B0	TRH221..SP..GEN ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62414-26220B0	LH200,TRH221..5D..GEN;KDH200,223,TRH223..RHD..(GEN,TH) DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62414-26420B1	KDH200..RHD..GEN;LH200,TRH221..5D..GEN AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26031B0	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1#	12/2013 - 06/2016	1
62424-26032B0	TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;LH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH) DK.GRAY,TRIM1#	08/2019 - 12/2999	1
62424-26032B0	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) DK.GRAY,TRIM1#	07/2016 - 02/2019	1
62424-26032B0	KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH DK.GRAY,TRIM1#	07/2016 - 12/2999	1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26410	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA)	12/2013 - 02/2019	1
62631-26410	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S	12/2013 - 12/2999	1
62631-26410	TRH221..SP..GEN	08/2019 - 12/2999	1
62631E - RETAINER, QUATER TRIM
67771-26230E0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) CREAM YELLOW,TRIM1#	12/2013 - 02/2019	17
67771-26230E0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S CREAM YELLOW,TRIM1#	12/2013 - 03/2020	17
67771-26230E0	TRH221..SP..GEN CREAM YELLOW,TRIM1#	08/2019 - 03/2020	17
67771-26250E1	TRH221..SP OCHER,TRIM1#	03/2020 - 12/2999	17
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA) CREAM YELLOW,TRIM1#	12/2013 - 02/2019	17
67771-26230E0	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S CREAM YELLOW,TRIM1#	12/2013 - 03/2020	17
67771-26230E0	TRH221..SP..GEN CREAM YELLOW,TRIM1#	08/2019 - 03/2020	17
67771-26250E1	TRH221..SP OCHER,TRIM1#	03/2020 - 12/2999	17
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26430	KDH220..03S..SA;TRH221..SP..03S..(GEN,SA)	12/2013 - 02/2019	1
62632-26430	TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S	12/2013 - 12/2999	1
62632-26430	TRH221..SP..GEN	08/2019 - 12/2999	1
Common parts
90467-09182
90467-10161
Linked diagrams
5851
6151
7455

TRH221L-MBMDK (2013)

(1312- )KDH220,221,TRH221..5D

(1312- )KDH220,221,TRH221..5D
