Toyota Hiace TRH221 FUEL TANK & TUBE

TRH221L-LFMDK (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
39967-95660
90119-06128
90119-08190
90460-62033
90461-06156
90461-08774
90461-10199
90462-16028
90462-16035
90464-00015
90464-00020
90464-00032
90464-00082
90464-00089
90464-00275
90467-12058
90541-05080
91611-40814
91651-40816
91666-40616
93316-15014
93381-15012
96112-10250
96132-30600
96132-30800

ILLUST NO. 2 OF 2(0501- )KDH20#,212,22#

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty	Price
Common parts
90466-16004
91673-80820
96132-41500
96132-51300
96137-41901
Linked diagrams
2202
2302

ILLUST NO. 2 OF 2(0501- )TRH20#,213,22#

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty	Price
Common parts
91673-80820
95337-06017
96132-51100
Linked diagrams
2211

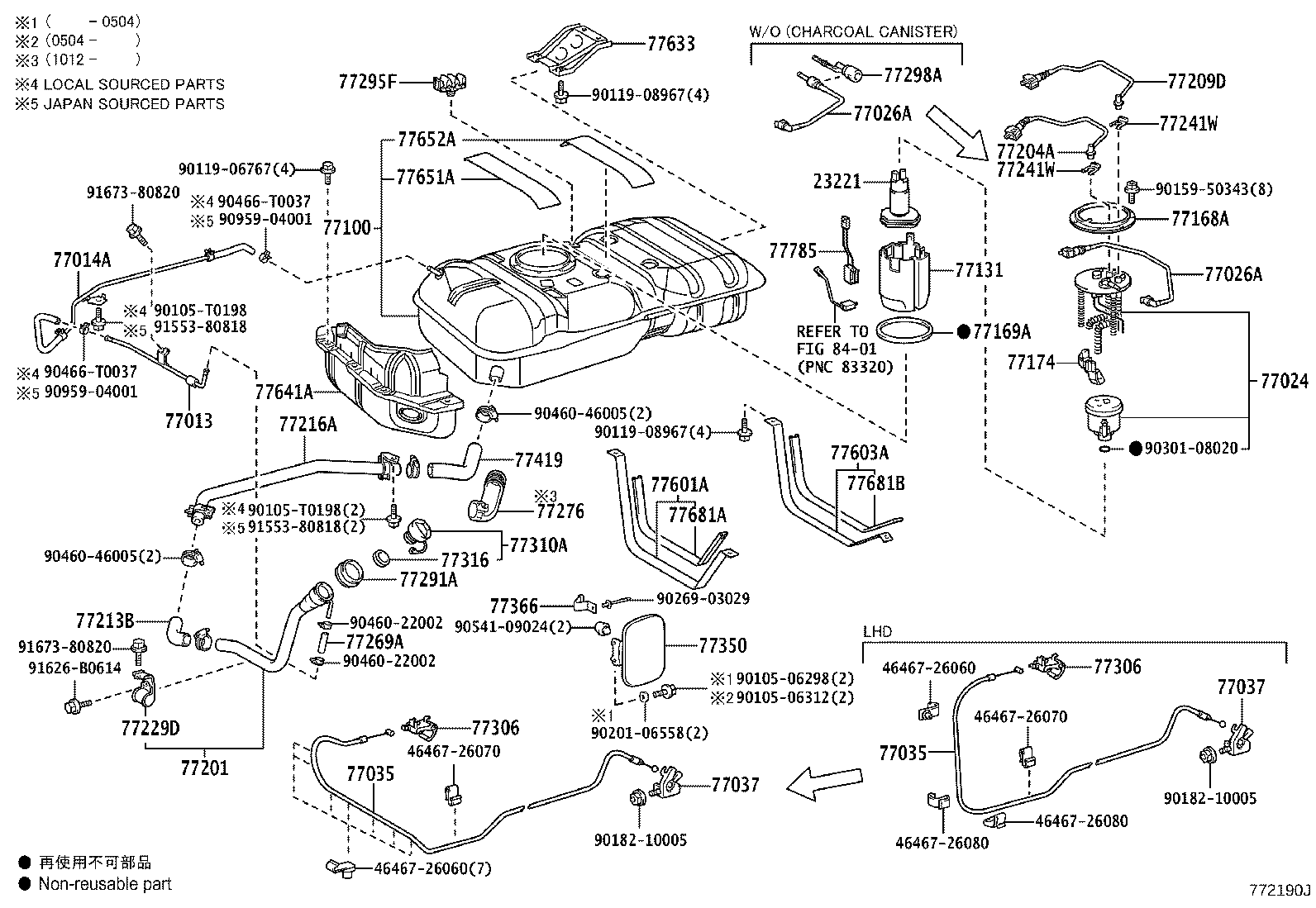

ILLUST NO. 1 OF 2(0501- )TRH22#

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty	Price
Common parts
46467-26060
46467-26070
46467-26080
90105-06298
90105-06312
90105-T0198
90119-06767
90119-08967
90159-50343
90182-10005
90201-06558
90269-03029
90301-08020
90460-22002
90460-46005
90466-T0037
90541-09024
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

ILLUST NO. 1 OF 2(1312- )GDH201,KDH20#,21#,LH20#,212

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-26120	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77013-26120	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77013-26120	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-26060	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
77014-26050	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 12/2014	1
77014-26060	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	01/2015 - 12/2999	1
77014-26060	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-60040	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-26011	TRH201..03S;TRH201..06S..GCC;TRH201,22#..RHD..4FC;TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH)	12/2013 - 02/2015	1
77024-26020	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77024-26030	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	02/2015 - 02/2019	1
77024-26030	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26070	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77026-26080	KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77026-26070	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77100 - TANK ASSY, FUEL
77001-26692	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77001-26701	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,SA);KDH220,223..(06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	12/2013 - 05/2019	1
77001-26693	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77168-52020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77168-52020	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-53010	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77169-53010	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77169-52010	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26350	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2017 - 02/2019	1
77201-26360	KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH213,220,223..(06S,10S,11S,12S,13S)..(GEN,RUS,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..GCC,GEN,TH	12/2017 - 12/2999	1
77201-26350	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77201-26250	KDH223..RUS;KDH223..(14S,16S)..(GEN,TH);GDH201,KDH20#,21#,220,221,222,LH20#,212,222..GCC,GEN,MA,SA,TH	12/2013 - 12/2017	1
77201-26240	TRH200,201..RHD;TRH201,203..GCC,MA;TRH213,22#..ARL,GCC,RUS,SA,TH;TRH213,22#..SG..(03S,10S,13S)..GEN	12/2013 - 12/2017	1
77204A - TUBE, FUEL TANK RETURN
77204-26050	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77204-26040	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77204-26040	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-26140	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77209-26150	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77209-26140	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26140	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
77213-26120	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
77213-26140	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	01/2015 - 12/2999	1
77213-26140	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77104-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77104-26010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77104-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4
77229-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77229-26020	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77229-26020	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77241L - TUBE, FUEL TANK SUCTION
77241-35450	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-33011	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
77241-33011	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77241-33011	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	2
77269A - HOSE, FUEL TANK BREATHER
95313-13010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
77269-26010	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
95313-13010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
95313-13010	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	01/2015 - 12/2999	1
77276 - PROTECTOR, FUEL HOSE
77276-26090	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77276-26090	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77276-26090	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-26021	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77291-26021	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77291-26021	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77295F - GROMMET, FUEL HOSE
77295-26050	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77295-26050	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77295-26050	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52030	KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77300-20020	KDH223..RUS;KDH223..14S,16S;GDH201,KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 12/2017	1
77300-12020	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2017 - 02/2019	1
77300-52030	TRH20#,213,22#	12/2013 - 12/2017	1
77300-12030	KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH213,220,223..(06S,10S,11S,12S,13S,14S)..(ARL,GEN,RUS,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,TH	12/2017 - 12/2999	1
77300-12020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77316 - GASKET, FUEL TANK CAP
77316-52040	TRH201;TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,13S,14S)..(4FC,5F)..(ARL,GEN,SA)	12/2013 - 12/2999	1
77316-52040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77316-52040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77419 - HOSE, FUEL, NO.3
77419-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77419-26010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77419-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26100	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 09/2014	1
77601-26101	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77601-26101	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	10/2014 - 02/2019	1
77601-26101	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	10/2014 - 12/2999	1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77602-26020	KDH20#,21#,LH20#,212,TRH20#,213	12/2013 - 09/2014	1
77602-26030	KDH22#,LH222,TRH22#	12/2013 - 09/2014	1
77602-26031	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	10/2014 - 12/2999	1
77602-26031	KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)	11/2019 - 12/2999	1
77602-26031	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	10/2014 - 02/2019	1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-26040	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77641-26040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77641-26040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77651A - CUSHION, FUEL TANK, NO.1
77651-26080	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77651-26080	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77651-26080	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77652A - CUSHION, FUEL TANK, NO.2
77652-26070	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77652-26070	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77652-26070	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77681A - SEAT, FUEL TANK BAND
77681-32060	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77681-32060	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77681-32060	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77681B - SEAT, FUEL TANK BAND
77616-36010	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	12/2013 - 12/2999	1
77616-36010	KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)	11/2019 - 12/2999	1
77616-36010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
Common parts
90105-08158
90105-T0195
90105-T0198
90119-06767
90119-08967
90119-08C49
90159-50343
90460-22002
90460-46005
90466-23006
90466-T0037
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

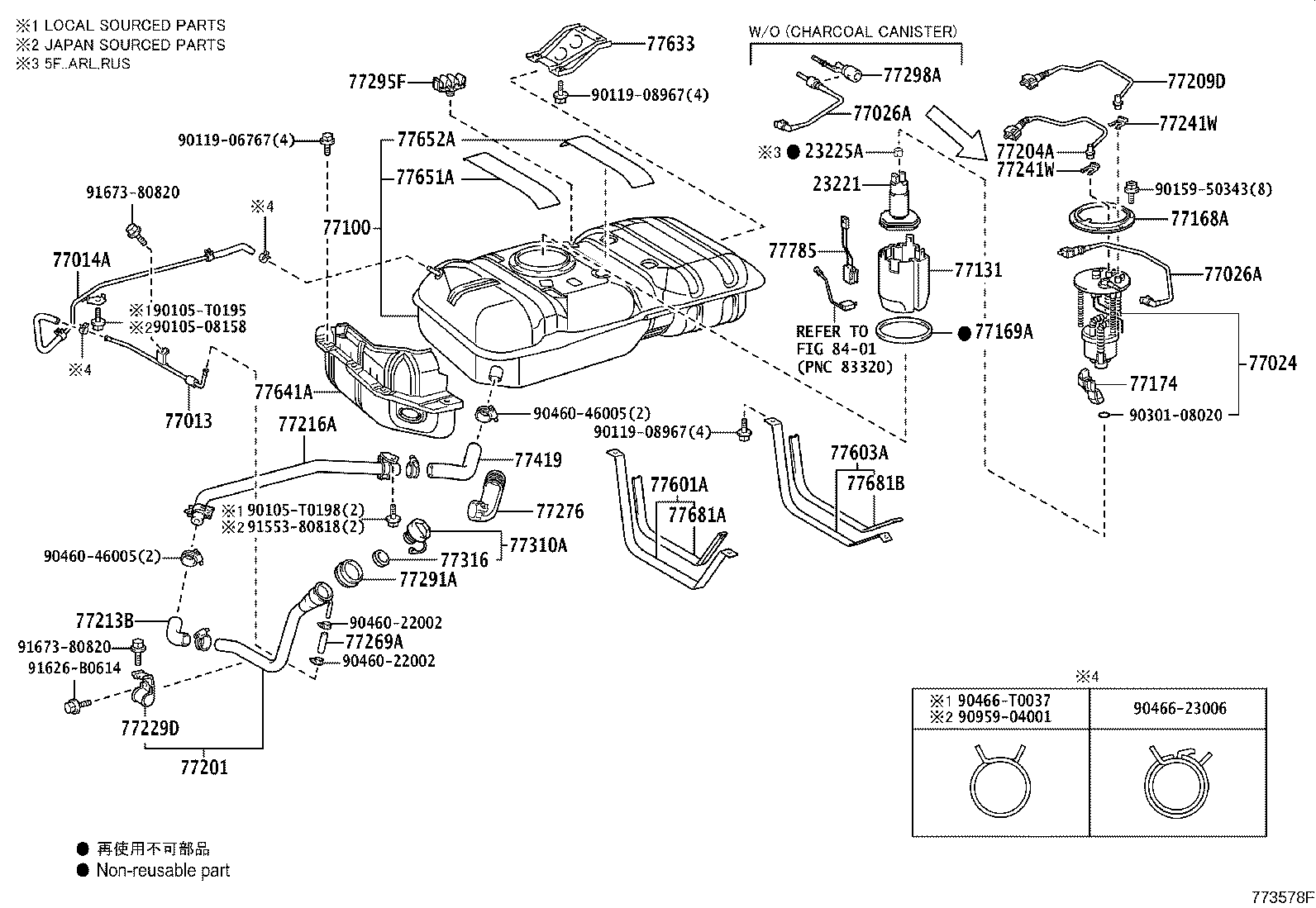

ILLUST NO. 1 OF 2(1312- )TRH22#

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23220-75041	2TRFE..TRH201..03S;2TRFE..TRH201..06S..GCC;2TRFE..TRH201,22#..RHD..4FC;1TRFE,2TRFE..TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH)	12/2013 - 02/2015	1
23220-75241	2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)	10/2016 - 02/2019	1
23220-75240	2TRFE..TRH201..03S;2TRFE..TRH201..06S..GCC;2TRFE..TRH203,213,22#..GCC,GEN,MA,SA,TH	02/2015 - 09/2016	1
23220-75241	2TRFE..TRH221..SG;2TRFE..TRH223..GCC	11/2019 - 12/2999	1
23225A - SPACER, FUEL PUMP
23225-21020	2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)	02/2015 - 02/2019	1
23225-21020	2TRFE..TRH221..SG;2TRFE..TRH223..GCC	11/2019 - 12/2999	1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-26120	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77013-26120	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77013-26120	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-26060	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
77014-26050	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 12/2014	1
77014-26060	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	01/2015 - 12/2999	1
77014-26060	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-26011	TRH201..03S;TRH201..06S..GCC;TRH201,22#..RHD..4FC;TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH)	12/2013 - 02/2015	1
77024-26020	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77024-26030	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	02/2015 - 02/2019	1
77024-26030	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26070	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77026-26080	KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77026-26070	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26070	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77026-26080	KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77026-26070	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77100 - TANK ASSY, FUEL
77001-26692	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77001-26701	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,SA);KDH220,223..(06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	12/2013 - 05/2019	1
77001-26693	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT
77131-60140	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77131-60140	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77168-52020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77168-52020	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-53010	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77169-53010	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77169-52010	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-26010	TRH201..03S;TRH201..06S..GCC;TRH201,22#..RHD..4FC;TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH)	12/2013 - 02/2015	1
77174-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77174-26020	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	02/2015 - 02/2019	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26240	TRH200,201..RHD;TRH201,203..GCC,MA;TRH213,22#..ARL,GCC,RUS,SA,TH;TRH213,22#..SG..(03S,10S,13S)..GEN	12/2013 - 12/2017	1
77201-26350	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2017 - 02/2019	1
77201-26360	KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH213,220,223..(06S,10S,11S,12S,13S)..(GEN,RUS,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..GCC,GEN,TH	12/2017 - 12/2999	1
77201-26350	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77201-26250	KDH223..RUS;KDH223..(14S,16S)..(GEN,TH);GDH201,KDH20#,21#,220,221,222,LH20#,212,222..GCC,GEN,MA,SA,TH	12/2013 - 12/2017	1
77204A - TUBE, FUEL TANK RETURN
77204-26050	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77204-26040	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77204-26040	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-26140	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77209-26150	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77209-26140	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26140	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
77213-26120	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
77213-26140	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	01/2015 - 12/2999	1
77213-26140	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77104-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77104-26010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77104-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4
77229-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77229-26020	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77229-26020	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-33011	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
77241-33011	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77241-33011	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	2
77241W - CLIP, TUBE JOINT
77241-33011	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
77241-33011	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77241-33011	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	2
77269A - HOSE, FUEL TANK BREATHER
95313-13010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
77269-26010	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
95313-13010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
95313-13010	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH	01/2015 - 12/2999	1
77276 - PROTECTOR, FUEL HOSE
77276-26090	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77276-26090	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77276-26090	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-26021	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77291-26021	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77291-26021	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77295F - GROMMET, FUEL HOSE
77295-26050	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77295-26050	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77295-26050	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52030	KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77300-20020	KDH223..RUS;KDH223..14S,16S;GDH201,KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 12/2017	1
77300-12020	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2017 - 02/2019	1
77300-52030	TRH20#,213,22#	12/2013 - 12/2017	1
77300-12030	KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH213,220,223..(06S,10S,11S,12S,13S,14S)..(ARL,GEN,RUS,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,TH	12/2017 - 12/2999	1
77300-12020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77316 - GASKET, FUEL TANK CAP
77316-52040	TRH201;TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,13S,14S)..(4FC,5F)..(ARL,GEN,SA)	12/2013 - 12/2999	1
77316-52040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77316-52040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77419 - HOSE, FUEL, NO.3
77419-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77419-26010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77419-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26100	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 09/2014	1
77601-26101	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77601-26101	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	10/2014 - 02/2019	1
77601-26101	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	10/2014 - 12/2999	1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77602-26020	KDH20#,21#,LH20#,212,TRH20#,213	12/2013 - 09/2014	1
77602-26030	KDH22#,LH222,TRH22#	12/2013 - 09/2014	1
77602-26031	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	10/2014 - 12/2999	1
77602-26031	KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)	11/2019 - 12/2999	1
77602-26031	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	10/2014 - 02/2019	1
77633 - STAY, FUEL TANK
77633-26010	KDH22#,LH222,TRH22#	12/2013 - 06/2014	1
77633-26020	KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)	11/2019 - 12/2999	1
77633-26020	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	07/2014 - 12/2999	1
77633-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	07/2014 - 02/2019	1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-26040	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77641-26040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77641-26040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77651A - CUSHION, FUEL TANK, NO.1
77651-26080	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77651-26080	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77651-26080	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77652A - CUSHION, FUEL TANK, NO.2
77652-26070	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77652-26070	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77652-26070	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77681A - SEAT, FUEL TANK BAND
77681-32060	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77681-32060	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77681-32060	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77681B - SEAT, FUEL TANK BAND
77616-36010	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	12/2013 - 12/2999	1
77616-36010	KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)	11/2019 - 12/2999	1
77616-36010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77785 - HARNESS, FUEL PUMP
77785-26011	TRH201..03S;TRH201..06S..GCC;TRH201,22#..RHD..4FC;TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH)	12/2013 - 02/2015	1
77785-30010	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	02/2015 - 02/2019	1
77785-30010	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
Common parts
90105-08158
90105-T0195
90105-T0198
90119-06767
90119-08967
90159-50343
90301-08020
90460-22002
90460-46005
90466-23006
90466-T0037
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

ILLUST NO. 2 OF 2(1312- )GDH201,KDH20#,21#,22#

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-26050	KDH220..06S;KDH220,221,223..ARL,GEN,RUS;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	1
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-26050	KDH220..06S;KDH220,221,223..ARL,GEN,RUS;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	1
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-26050	KDH220..06S;KDH220,221,223..ARL,GEN,RUS;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	1
77251B - TUBE, FUEL MAIN
77251-26B20	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77251-26B31	KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH213,222,223..ARL,GEN,KEN,RUS;GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH	12/2013 - 12/2999	1
77251-26B20	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77255D - TUBE, FUEL RETURN
77255-26670	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77255-26700	KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH213,222,223..ARL,GEN,KEN,RUS;GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH	12/2013 - 12/2999	1
77255-26670	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77257C - TUBE, FUEL RETURN, NO.3
77257-26050	KDH220..06S;KDH220,221,223..ARL,GEN,RUS;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	1
77257C - TUBE, FUEL RETURN, NO.3
77257-26050	KDH220..06S;KDH220,221,223..ARL,GEN,RUS;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	1
77257C - TUBE, FUEL RETURN, NO.3
77257-26050	KDH220..06S;KDH220,221,223..ARL,GEN,RUS;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	1
77285D - CLAMP, FUEL TUBE, NO.1
77289-26010	KDH220..06S;KDH223..4FC..TH;KDH220,221,223..ARL,GEN,RUS,VN;KDH222..(03S,16S)..(GEN,KEN,SA)	12/2013 - 12/2999	5
77286H - CLAMP, FUEL TUBE, NO.3
77289-26030	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	5
77289-26010	TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	5
77289-26010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	5
77433 - HOSE, FUEL MAIN, NO.1
77433-26011	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77433 - HOSE, FUEL MAIN, NO.1
77433-26011	KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
Common parts
90466-16004
91673-80820
96132-41500
96132-51300
96137-41901
Linked diagrams
2202
2302

ILLUST NO. 2 OF 2(1312- )TRH20#,213,22#

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-26B20	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77251-26B31	KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH213,222,223..ARL,GEN,KEN,RUS;GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH	12/2013 - 12/2999	1
77251-26B20	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77254 - TUBE, FUEL EMISSION, NO.1
77263-26230	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77263-26230	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77255D - TUBE, FUEL RETURN
77255-26670	TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77255-26700	KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH213,222,223..ARL,GEN,KEN,RUS;GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH	12/2013 - 12/2999	1
77255-26670	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77285F - CLAMP, FUEL TUBE, NO.1
77289-26020	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77289-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	5
77289-26010	TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	5
77289-26010	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	5
77740 - CANISTER ASSY, CHARCOAL
77740-26091	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77740-26091	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-26120	TRH221..03S..SA;TRH223..STD..GCC;TRH22#..SG..(03S,14S)..(GEN,SA)	12/2013 - 02/2019	1
77751-26120	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
Common parts
91673-80820
95337-06017
96132-51100
Linked diagrams
2211

ILLUST NO. 3 OF 3(1312- )

Click highlighted areas on diagram

FUEL LID OPENER

Part #	Description	Period	Qty
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26141	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
77035-26141	TRH221..SG;KDH222,TRH223..STD..GCC	11/2019 - 12/2999	1
77035-26141	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD..(GCC,GEN,RUS)	12/2013 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26141	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
77035-26141	TRH221..SG;KDH222,TRH223..STD..GCC	11/2019 - 12/2999	1
77035-26141	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD..(GCC,GEN,RUS)	12/2013 - 12/2999	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77037-95D01	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77037-95D01	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77037-95D01	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77037-95D01	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) MD.GRAY,TRIM1#	12/2013 - 02/2019	1
77306-28050B1	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) MD.GRAY,TRIM1#	11/2019 - 12/2999	1
77306-28050B1	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) MD.GRAY,TRIM1#	12/2013 - 12/2999	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) MD.GRAY,TRIM1#	12/2013 - 02/2019	1
77306-28050B1	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) MD.GRAY,TRIM1#	11/2019 - 12/2999	1
77306-28050B1	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) MD.GRAY,TRIM1#	12/2013 - 12/2999	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77350-26030	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77350-26030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77350-26030	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77350-26030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77366-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77366-26011	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
77366-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
77366-26011	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
46467-26060
46467-26070
46467-26080
90105-06312
90182-10005
90269-03029
90541-09024

TRH221L-LFMDK (2013)

(7702- )LH20,30,RH20,22,3#,42

ILLUST NO. 2 OF 2(0501- )KDH20#,212,22#

ILLUST NO. 2 OF 2(0501- )TRH20#,213,22#

ILLUST NO. 1 OF 2(0501- )TRH22#

ILLUST NO. 1 OF 2(1312- )GDH201,KDH20#,21#,LH20#,212

ILLUST NO. 1 OF 2(1312- )TRH22#

ILLUST NO. 2 OF 2(1312- )GDH201,KDH20#,21#,22#

ILLUST NO. 2 OF 2(1312- )TRH20#,213,22#

ILLUST NO. 3 OF 3(1312- )

Part Price Details
