TRH221L-LFMDK (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )LH20,30,RH20,22,3#,42

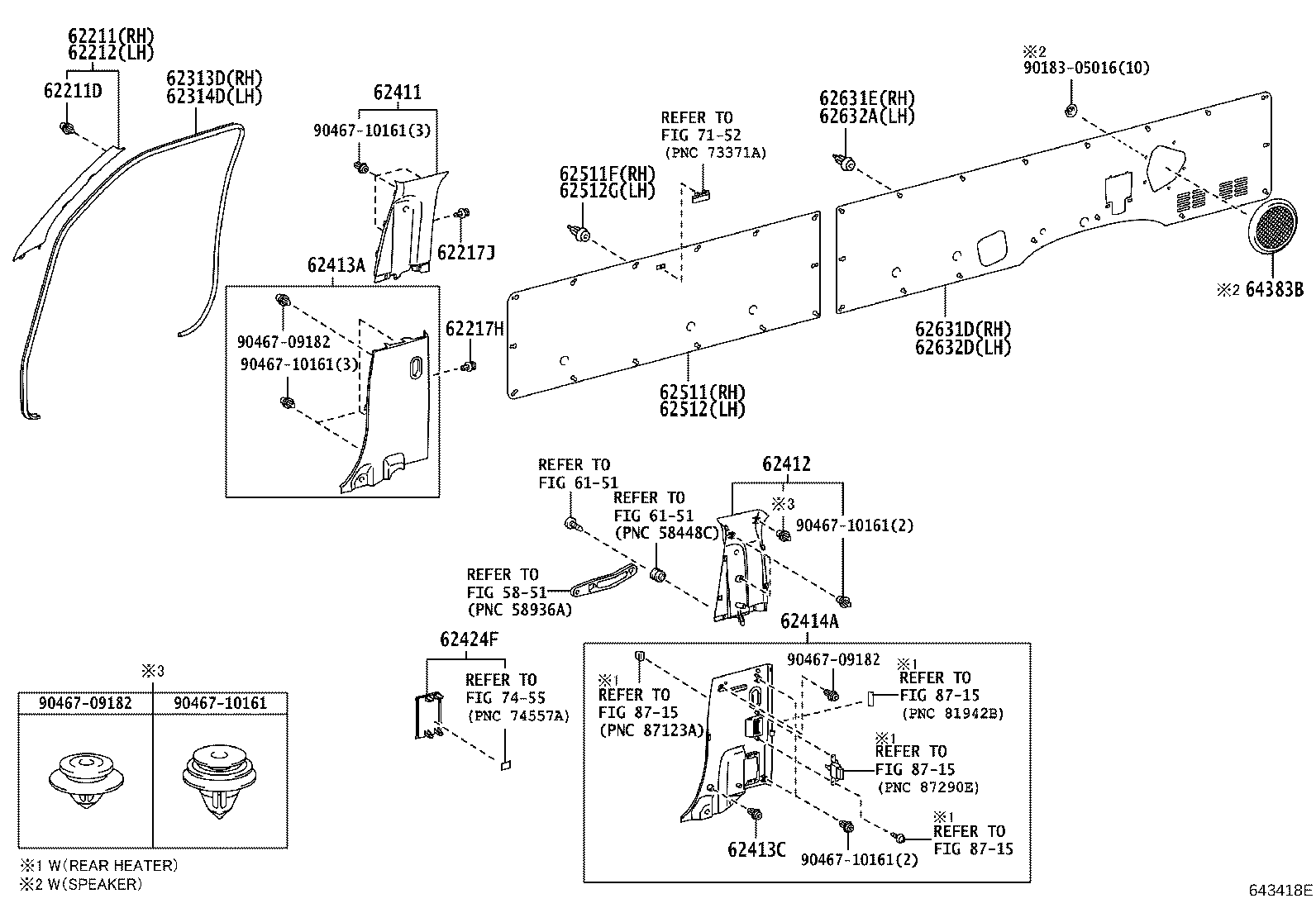

Click highlighted areas on diagram

diagram 5864495A00 62031A 62031A 62032A 62032A 62214 62214A 62221B 62221C 62221C 62221C 62223B 62243 62313 62314 62511 62511 62512 62512 62512 62512 6777120022 6777120022 6777120022 6777120022 6777120022 6777120022 6777222010 6777222010 6777222010 6777222010 6777222010 6777222010 7456 9015960020 9018906018
Part # Description Qty Price
Common parts
58644-95A00
67771-20022
67772-22010
90159-60020
90189-06018
Linked diagrams
7456

(0501- )KDH222,223,LH222,TRH22#..SG..STD..ARL,GCC,GEN

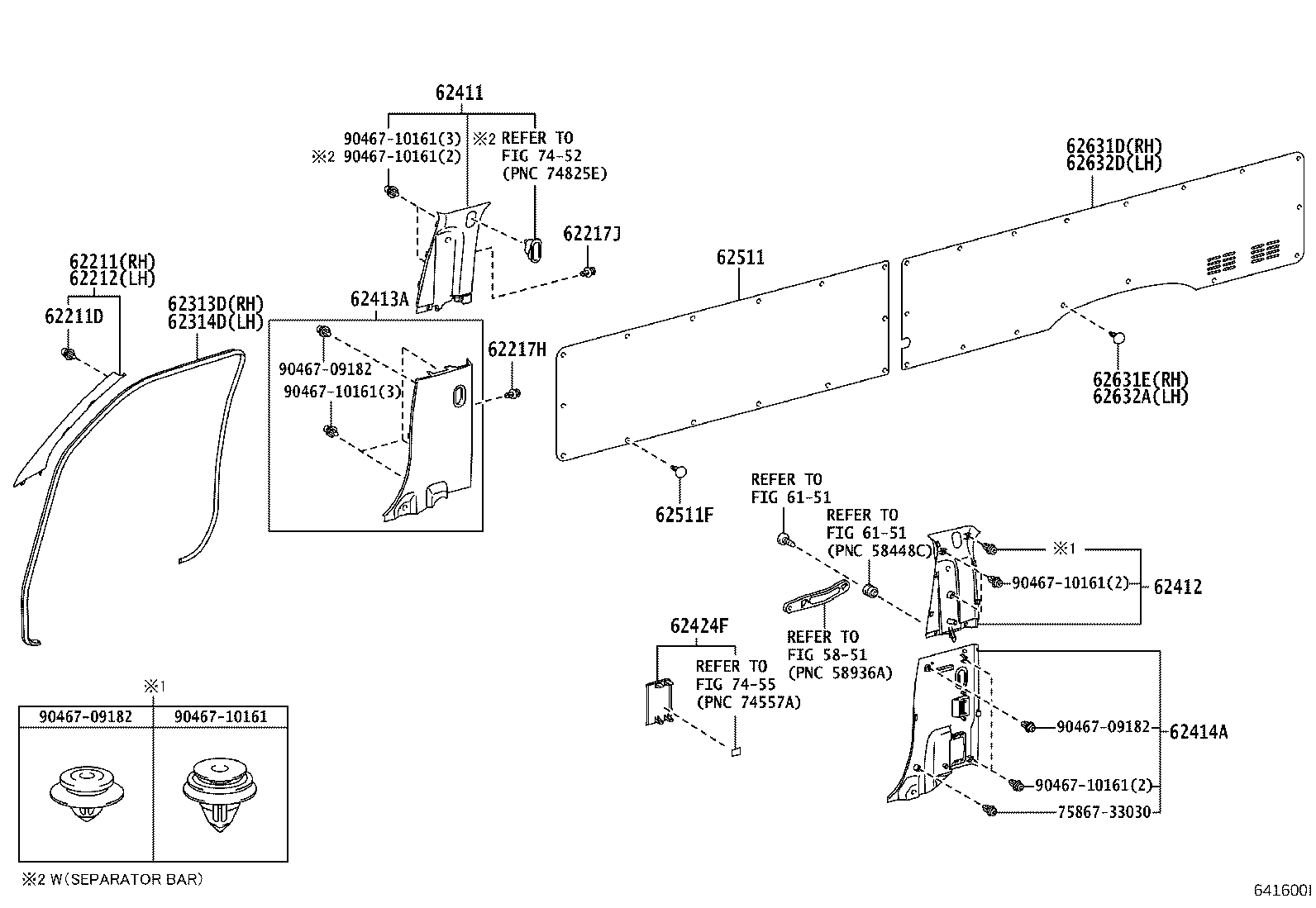

Click highlighted areas on diagram

diagram 5851 6151 6151 62211 62211D 62212 62217H 62217J 62313D 62314D 62411 62412 62413A 62414A 62424F 62511 62511F 62512 62512G 62631D 62631E 62632A 62632D 64383B 7152 7455 7586733030 8715 8715 8715 8715 9018305016 9046709182 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
Common parts
75867-33030
90183-05016
90467-09182
90467-10161
Linked diagrams
5851
6151
7152
7455
8715

(0501- )KDH220,221..4D

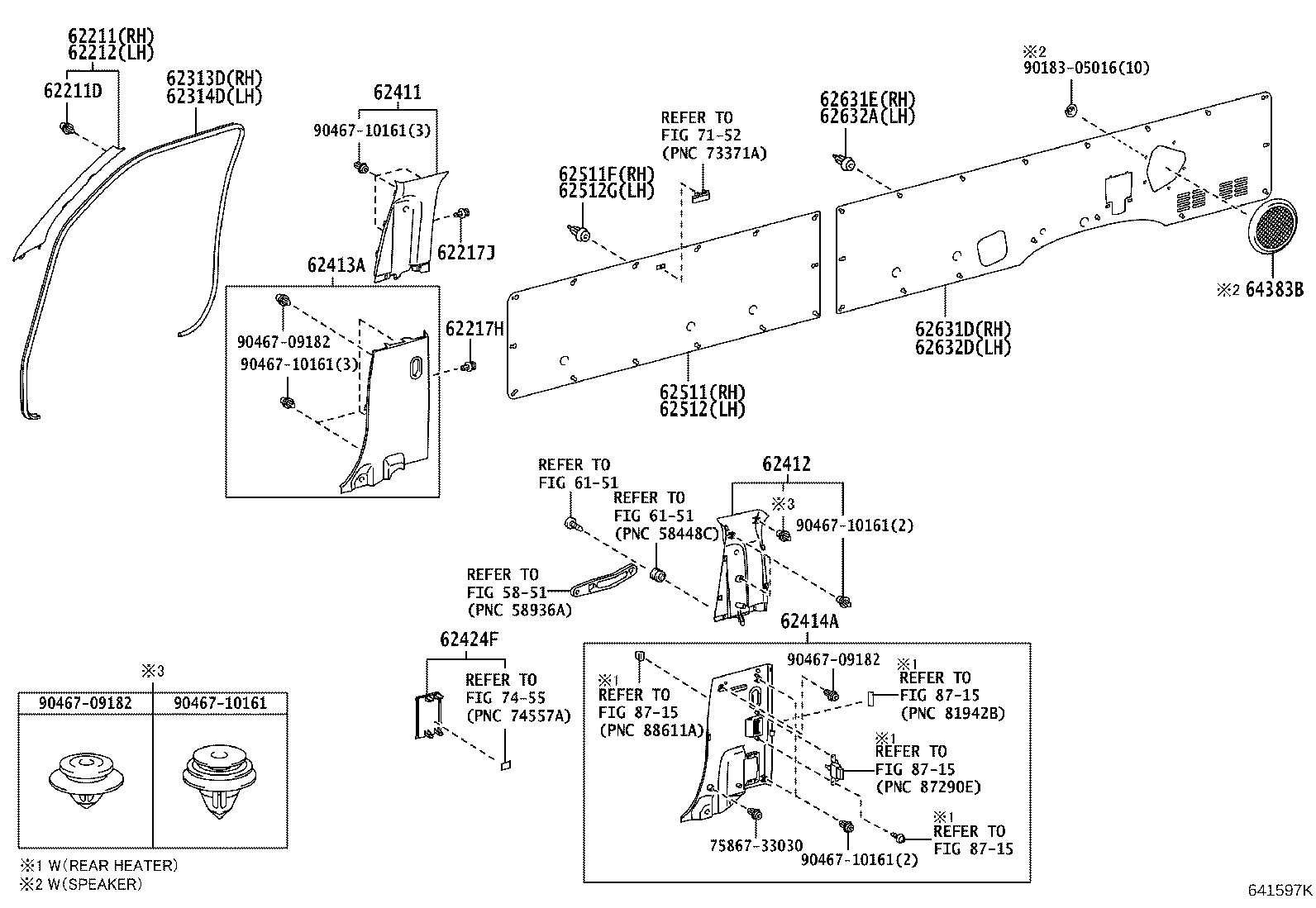

Click highlighted areas on diagram

diagram 5851 6151 6151 62211 62211D 62212 62217H 62217J 62313D 62314D 62411 62412 62413A 62414A 62424F 62511 62511F 62631D 62631E 62632A 62632D 7452 7455 7586733030 9046709182 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
Common parts
75867-33030
90467-09182
90467-10161
Linked diagrams
5851
6151
7452
7455

(1312- )KDH222,223,LH222,TRH22#..SG..STD..ARL,GCC,GEN,KEN

Click highlighted areas on diagram

diagram 5851 6151 6151 62211 62211D 62212 62217H 62217J 62313D 62314D 62411 62412 62413A 62413C 62414A 62424F 62511 62511F 62512 62512G 62631D 62631E 62632A 62632D 64383B 7152 7455 8715 8715 8715 8715 9018305016 9046709182 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-26052B0

KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)

LT.GRAY,TRIM1#

 1
62210-26052B0

TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S);KDH21#,220,221,223,LH212,222,TRH200..(4FC,5F)..(ARL,GCC,GEN,RUS)

LT.GRAY,TRIM1#

 1
62210-26052B0

KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

TRH213;KDH201..SP..06S;KDH212,22#,LH212,222,TRH22#..ARL,GCC,GEN,RUS,SA;KDH202,203,213,TRH200,203..RHD..(06S,10S,11S,12S)

 2
67771-28150

TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS;GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S)

 2
67771-28150

KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)

 2
67771-28150

KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26050B0

TRH221..SG;KDH222..5F..GL;KDH222,TRH223..STD..GCC;KDH220,TRH22#..(03S,14S)..SA

LT.GRAY,TRIM1#

 1
62220-26032B0

TRH213,223..LHD..STD..GEN;KDH201,TRH221..5D..SP..(02S,06S)..(ARL,GEN);GDH201,KDH202,203,TRH203..RHD..(06S,10S,12S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);KDH21#,22#,LH212,222,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS)

LT.GRAY,TRIM1#

 1
62220-26050B0

KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)

LT.GRAY,TRIM1#

 1
62217H - CLIP, CENTER PILLER GARNISH
62489-26010B0

TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM13

 1
62489-26010B2

TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC

DK.GRAY,TRIM1#

 1
62489-26010B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM13

 1
62489-26010B2

TRH221..SG;KDH222,TRH223..STD..GCC

DK.GRAY,TRIM1#

 1
62217J - CLIP, CENTER PILLER GARNISH
62489-26010B2

TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM13

 1
62489-26010B0

TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM13

 1
62489-26010B2

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM13

 1
62489-26010B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM13

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0

TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH)

BLACK,TRIM1#

 1
62313-26010C0

KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)

BLACK,TRIM1#

 1
62313-26010C0

KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)

BLACK,TRIM1#

 1
62314-26010C0

TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH)

BLACK,TRIM1#

 1
62314-26010C0

KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)

BLACK,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26080B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62410-26090B1

KDH220,221..GEN

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62410-26080B0

KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62410-26080B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26080B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62420-26070B0

KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62420-26060B1

KDH220,221..GEN

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62420-26080B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26210B0

KDH220..03S..SA;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC

DK.GRAY,TRIM1#

 1
62413-26230B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62413-26200B0

KDH220,221..GEN

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#

 1
62413-26230B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62413-26210B0

TRH221..SG;KDH222,TRH223..STD..GCC

DK.GRAY,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
75867-33030

KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S

 1
67771-28150

TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;KDH220,222,TRH223..(03S,14S)..SA

 1
67771-28150

KDH223..4FC..TH;LH200,TRH203..4D..5F;KDH222..RHD..(03S,16S);TRH223..STD..(ARL,SA,TH);KDH200,213,220..LHD..5D..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222,TRH213,223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S,14S,16S)..STD..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 1
67771-28150

KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26280B0

TRH221..SG;KDH222,TRH223..STD..GCC

DK.GRAY,TRIM1#

 1
62414-26300B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414-26250B0

KDH220,221..GEN

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414-26210B0

KDH220,221..GEN

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#

 1
62414-26280B0

TRH221..SG;KDH222,TRH223..STD..GCC

DK.GRAY,TRIM1#

 1
62414-26300B0

TRH221..SG;KDH222,TRH223..STD..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26031B0

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
62424-26032B0

KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)

DK.GRAY,TRIM1#

 1
62424-26032B0

KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)

DK.GRAY,TRIM1#

 1
62424-26032B0

KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

DK.GRAY,TRIM1#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-26110B1

TRH221..SG

DK.GRAY,TRIM1#

 1
62512-26110B1

TRH221..SG

DK.GRAY,TRIM1#

 1
62512G - RETAINER, QUATER TRIM
75867-33030

TRH221..SG;KDH222,TRH223..STD..GCC

 14
75867-33030

TRH221..SG;KDH222,TRH223..STD..GCC

 14
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26420B1

TRH221..SG

DK.GRAY,TRIM1#

 1
62631-26410

TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S

 1
62631E - RETAINER, QUATER TRIM
75867-33030

TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC

 17
67771-26230E0

TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S

CREAM YELLOW,TRIM1#

 17
75867-33030

TRH221..SG;KDH222,TRH223..STD..GCC

 17
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
75867-33030

TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC

 17
67771-26230E0

TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S

CREAM YELLOW,TRIM1#

 17
75867-33030

TRH221..SG;KDH222,TRH223..STD..GCC

 17
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26440B1

TRH221..SG

DK.GRAY,TRIM1#

 1
62632-26430

TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S

 1
Common parts
90183-05016
90467-09182
90467-10161
Linked diagrams
5851
6151
7152
7455
8715
