TRH221L-LFMDK (2013)
Toyota Hiace
(0501- )TRH22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90269-05049 | ||||
| 91673-A0816 | ||||

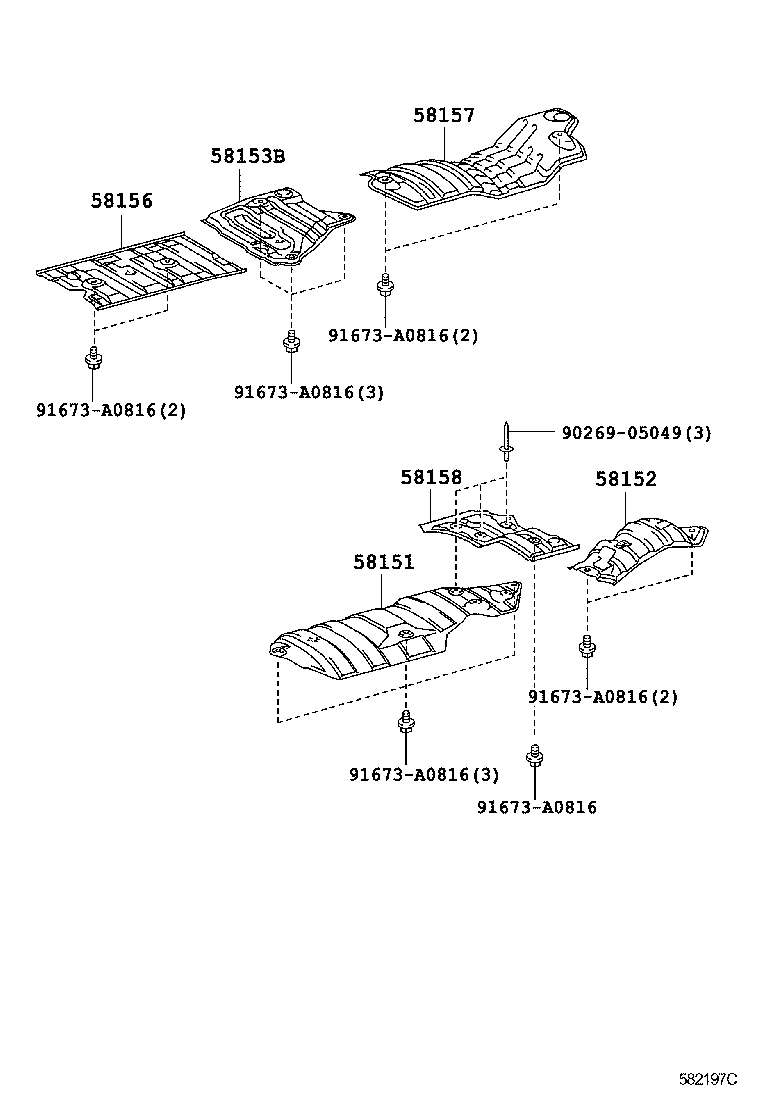

(1312- )KDH200,202,212,22#,LH20#,212,222..ARL,GCC,GEN,KEN,MA,SA,TH,VN ; (1503-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-26101 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58151-26101 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58151-26101 |
TRH203..5F;TRH213..TH;KDH201,223..RHD..(ARL,GEN);KDH201,TRH213..LHD..(03S,16S);GDH201,KDH203,213,221,TRH201..02S,03S,05S,06S,10S |
1 | ||
| 58151-26101 |
TRH203..5F;TRH213..TH;KDH201,223..RHD..(ARL,GEN);KDH201,TRH213..LHD..(03S,16S);GDH201,KDH203,213,221,TRH201..02S,03S,05S,06S,10S |
1 | ||
| 58151-26101 |
TRH213..RHD;TRH200,201..5F,6FC;KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201..RHD..(02S,03S,05S)..(ARL,GEN);GDH201,KDH203,213,221..02S,03S,06S,10S;KDH201,223,TRH203..SG..(06S,14S,15S)..STD |
1 | ||
| 58151-26101 |
TRH213..RHD;TRH200,201..5F,6FC;KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201..RHD..(02S,03S,05S)..(ARL,GEN);GDH201,KDH203,213,221..02S,03S,06S,10S;KDH201,223,TRH203..SG..(06S,14S,15S)..STD |
1 | ||
| 58151-26101 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58151-26101 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2 | ||||
| 58152-26040 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58152-26040 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58152-26040 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58152-26040 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58152-26040 |
TRH201;KDH223..4FC..TH;TRH221..02S,06S;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58152-26040 |
TRH201;KDH223..4FC..TH;TRH221..02S,06S;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| Common parts | ||||
| 90119-08D65 | ||||

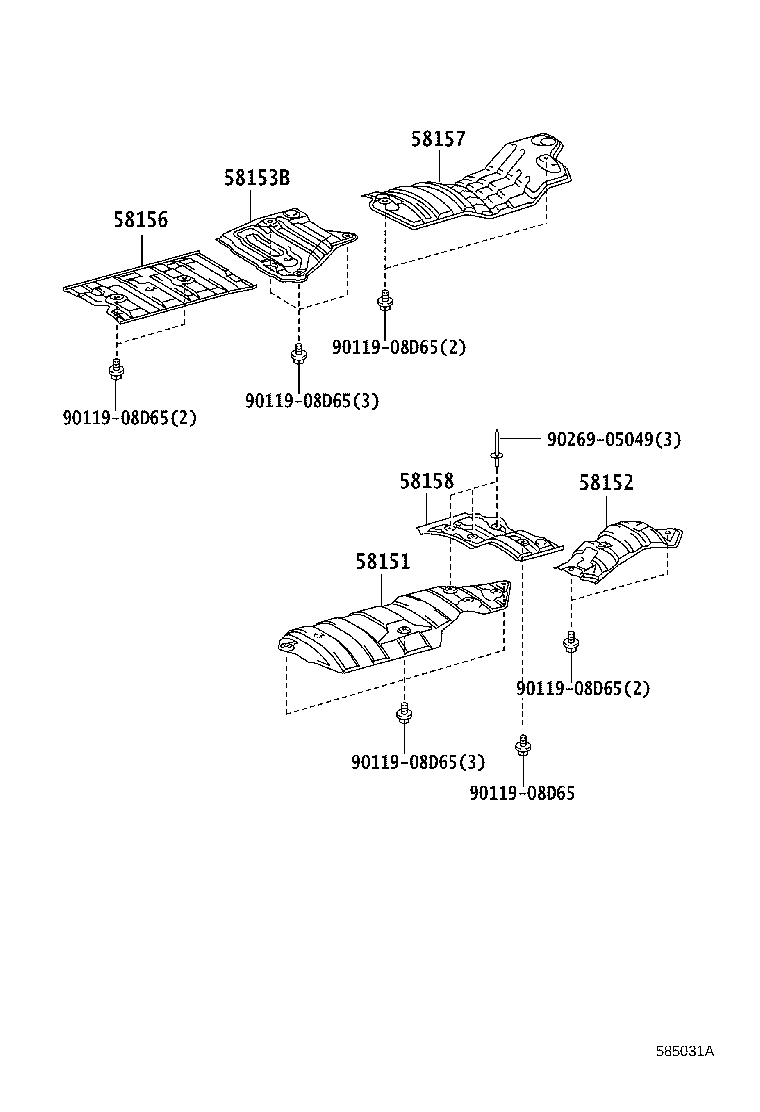

(1312- )TRH22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-26101 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58151-26101 |
TRH203..5F;TRH213..TH;KDH201,223..RHD..(ARL,GEN);KDH201,TRH213..LHD..(03S,16S);GDH201,KDH203,213,221,TRH201..02S,03S,05S,06S,10S |
1 | ||
| 58151-26101 |
TRH213..RHD;TRH200,201..5F,6FC;KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201..RHD..(02S,03S,05S)..(ARL,GEN);GDH201,KDH203,213,221..02S,03S,06S,10S;KDH201,223,TRH203..SG..(06S,14S,15S)..STD |
1 | ||
| 58151-26101 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2 | ||||
| 58152-26040 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58152-26040 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58152-26040 |
TRH201;KDH223..4FC..TH;TRH221..02S,06S;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58153B - INSULATOR, FLOOR HEAT, NO.3 | ||||
| 58153-26040 |
TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58153-26040 |
TRH221..SG;TRH223..GCC |
1 | ||
| 58156 - INSULATOR, FRONT FLOOR HEAT, NO.4 | ||||
| 58156-26031 |
TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58156-26031 |
TRH221..SG;TRH223..GCC |
1 | ||
| 58157 - INSULATOR, FRONT FLOOR HEAT, NO.5 | ||||
| 58157-26010 |
TRH221..SG;TRH223..GCC |
1 | ||
| 58157-26010 |
TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58158 - INSULATOR, FRONT FLOOR HEAT, NO.6 | ||||
| 58158-26010 |
TRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA) |
1 | ||
| 58158-26010 |
TRH221..SG;TRH223..GCC |
1 | ||
| Common parts | ||||
| 90119-08D65 | ||||
| 90269-05049 | ||||
