Toyota Hiace TRH221 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
GR
HIACE
TRH221L-LFMDK (2013)
4601 - PARKING BRAKE & CABLE

TRH221L-LFMDK (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )EUR,GEN,IDN,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90206-08016
90461-08028
90461-10335
90461-10516
90461-12037
90461-12072
90468-06078
90468-08001
91611-40814
91616-40612
91656-40620
91656-40820
94120-40800
94611-10800
94612-10701
95381-02015
95381-02515
95381-02520

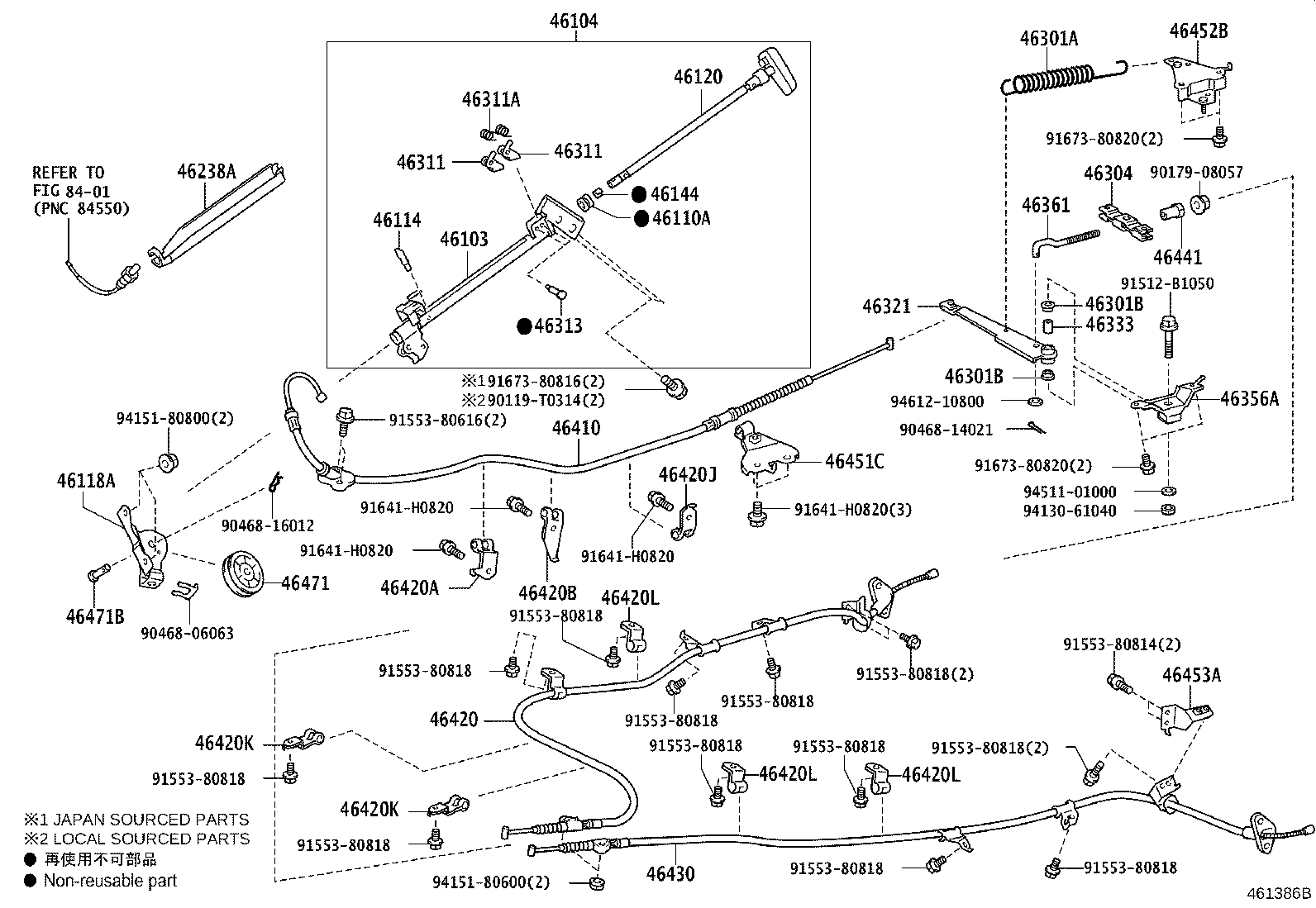

(1312- )KDH220,222,223,LH222,TRH22#..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26210	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46103-26210	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46103-26210	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-26220	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46104-26220	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46104-26220	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
90386-11195	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
90386-11195	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46114-20010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46114-20010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46118A - BRACKET, PLUNGER GUIDE SUPPORT
46118-26120	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46118-26120	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46118-26120	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46120 - PLUNGER ASSY, PARKING BRAKE
46120-26210	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46120-26210	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46120-26210	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46144-30020	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46144-30020	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46238A - PROTECTOR, PARKING BRAKE PLUNGER
46238-26020	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46238-26020	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46238-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
46295-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46295-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46295-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46301B - BUSH(FOR INTERMEDIATE LEVER)
90386-16009	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
90386-16009	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
90386-16009	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46301B - BUSH(FOR INTERMEDIATE LEVER)
90386-16009	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
90386-16009	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
90386-16009	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-28010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46304-28010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46304-28010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46311 - PAWL, PARKING BRAKE
46311-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46311-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46311-26010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46311 - PAWL, PARKING BRAKE
46311-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46311-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46311-26010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
90508-08106	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
90508-08106	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46313 - PIN, PARKING BRAKE PAWL
46313-40010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46313-40010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46313-40010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46321-26200	TRH201;TRH223..GL..GCC;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH200,223,TRH221..(03S,12S,14S)..(ARL,GCC,MA,RUS);KDH213,220,TRH200..(06S,10S,11S,13S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH	12/2013 - 12/2999	1
46321-26200	KDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH221..03S..(GEN,SA)	12/2013 - 02/2019	1
46321-26200	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46333 - PIPE, INTERMEDIATE LEVER
46333-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46333-26010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46333-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46356-26170	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46356-26170	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46356-26170	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46361 - ROD, PARKING BRAKE PULL
46361-26070	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46361-26070	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46361-26070	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26500	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46410-26500	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46410-26500	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-26631	KDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH221..03S..(GEN,SA)	12/2013 - 02/2019	1
46420-26631	TRH221..GCC;TRH223..GL..GCC;KDH220,223,TRH221..(02S,06S,12S,14S)..(ARL,RUS,SA);KDH220,221,TRH223..(02S,03S,10S,12S,13S,14S)..(ARL,GEN,RUS)	12/2013 - 12/2999	1
46420-26631	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46411-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46411-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-26021	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46411-26021	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46411-26021	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-26031	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46411-26031	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46411-26031	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46421-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46421-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46421-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46421-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46421-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	3
46421-26020	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	12/2013 - 12/2999	3
46421-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	3
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46421-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	3
46421-26020	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	12/2013 - 12/2999	3
46421-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	3
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46421-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	3
46421-26020	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	12/2013 - 12/2999	3
46421-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	3
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-26450	KDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH221..03S..(GEN,SA)	12/2013 - 02/2019	1
46430-26450	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46430-26450	TRH221..GCC;TRH223..GL..GCC;KDH220,223,TRH221..(02S,06S,12S,14S)..(ARL,RUS,SA);KDH220,221,TRH223..(02S,03S,10S,12S,13S,14S)..(ARL,GEN,RUS)	12/2013 - 12/2999	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46441-35010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46441-35010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-26230	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46451-26230	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46451-26230	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46452B - BRACKET, CABLE SUPPORT, NO.2
46452-26210	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46452-26210	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46452-26210	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-26080	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46453-26080	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46453-26080	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46471 - PULLEY, WIRE
46471-30010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46471-30010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46471-30010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08156	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
90240-08156	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
90240-08156	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
Common parts
90119-T0314
90179-08057
90468-06063
90468-14021
90468-16012
91512-B1050
91553-80616
91553-80814
91553-80818
91641-H0820
91673-80816
91673-80820
94130-61040
94151-80600
94151-80800
94511-01000
94612-10800
Linked diagrams
8401

(1312- )KDH20#,21#,LH20#,212,TRH201,203,213..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26210	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46103-26210	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46103-26210	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-26220	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46104-26220	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46104-26220	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
90386-11195	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
90386-11195	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46114-20010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46114-20010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46118A - BRACKET, PLUNGER GUIDE SUPPORT
46118-26120	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46118-26120	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46118-26120	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46120 - PLUNGER ASSY, PARKING BRAKE
46120-26210	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46120-26210	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46120-26210	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46144-30020	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46144-30020	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46238A - PROTECTOR, PARKING BRAKE PLUNGER
46238-26020	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46238-26020	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46238-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
46295-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46295-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46295-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46301B - BUSH(FOR INTERMEDIATE LEVER)
90386-16009	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
90386-16009	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
90386-16009	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46301B - BUSH(FOR INTERMEDIATE LEVER)
90386-16009	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
90386-16009	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
90386-16009	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-28010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46304-28010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46304-28010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46311 - PAWL, PARKING BRAKE
46311-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46311-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46311-26010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46311 - PAWL, PARKING BRAKE
46311-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46311-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46311-26010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
90508-08106	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
90508-08106	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46313 - PIN, PARKING BRAKE PAWL
46313-40010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46313-40010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46313-40010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46321-26200	TRH201;TRH223..GL..GCC;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH200,223,TRH221..(03S,12S,14S)..(ARL,GCC,MA,RUS);KDH213,220,TRH200..(06S,10S,11S,13S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH	12/2013 - 12/2999	1
46321-26200	KDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH221..03S..(GEN,SA)	12/2013 - 02/2019	1
46321-26200	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46333 - PIPE, INTERMEDIATE LEVER
46333-26010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46333-26010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46333-26010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46356-26170	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46356-26170	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46356-26170	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46361 - ROD, PARKING BRAKE PULL
46361-26070	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46361-26070	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46361-26070	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26500	KDH222..GCC;TRH221..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN	12/2013 - 02/2019	1
46410-26500	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46410-26500	TRH221..GCC;KDH200..LHD..5D;TRH203..LHD..5F;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,202,203,21#,220,223,LH20#,212,222,TRH201,213..LHD	12/2013 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-26631	KDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH221..03S..(GEN,SA)	12/2013 - 02/2019	1
46420-26631	TRH221..GCC;TRH223..GL..GCC;KDH220,223,TRH221..(02S,06S,12S,14S)..(ARL,RUS,SA);KDH220,221,TRH223..(02S,03S,10S,12S,13S,14S)..(ARL,GEN,RUS)	12/2013 - 12/2999	1
46420-26631	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46411-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46411-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-26021	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46411-26021	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46411-26021	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-26031	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46411-26031	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46411-26031	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46421-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46421-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-26011	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	2
46421-26011	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	2
46421-26011	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46421-26020	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	3
46421-26020	TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH)	12/2013 - 12/2999	3
46421-26020	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	3
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-26450	KDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH221..03S..(GEN,SA)	12/2013 - 02/2019	1
46430-26450	TRH221..SG;TRH223..GCC	11/2019 - 12/2999	1
46430-26450	TRH221..GCC;TRH223..GL..GCC;KDH220,223,TRH221..(02S,06S,12S,14S)..(ARL,RUS,SA);KDH220,221,TRH223..(02S,03S,10S,12S,13S,14S)..(ARL,GEN,RUS)	12/2013 - 12/2999	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46441-35010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46441-35010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-26230	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46451-26230	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46451-26230	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46452B - BRACKET, CABLE SUPPORT, NO.2
46452-26210	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46452-26210	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46452-26210	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-26080	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46453-26080	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46453-26080	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46471 - PULLEY, WIRE
46471-30010	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
46471-30010	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
46471-30010	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08156	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
90240-08156	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
90240-08156	TRH223..GCC;KDH213,TRH221..SG	11/2019 - 12/2999	1
Common parts
90119-T0314
90179-08057
90468-06063
90468-14021
90468-16012
91512-B1050
91553-80616
91553-80814
91553-80818
91641-H0820
91673-80816
91673-80820
94130-61040
94151-80600
94151-80800
94511-01000
94612-10800
Linked diagrams
8401

TRH221L-LFMDK (2013)

(7702- )EUR,GEN,IDN,SA

(1312- )KDH220,222,223,LH222,TRH22#..LHD

(1312- )KDH20#,21#,LH20#,212,TRH201,203,213..LHD

Part Price Details
