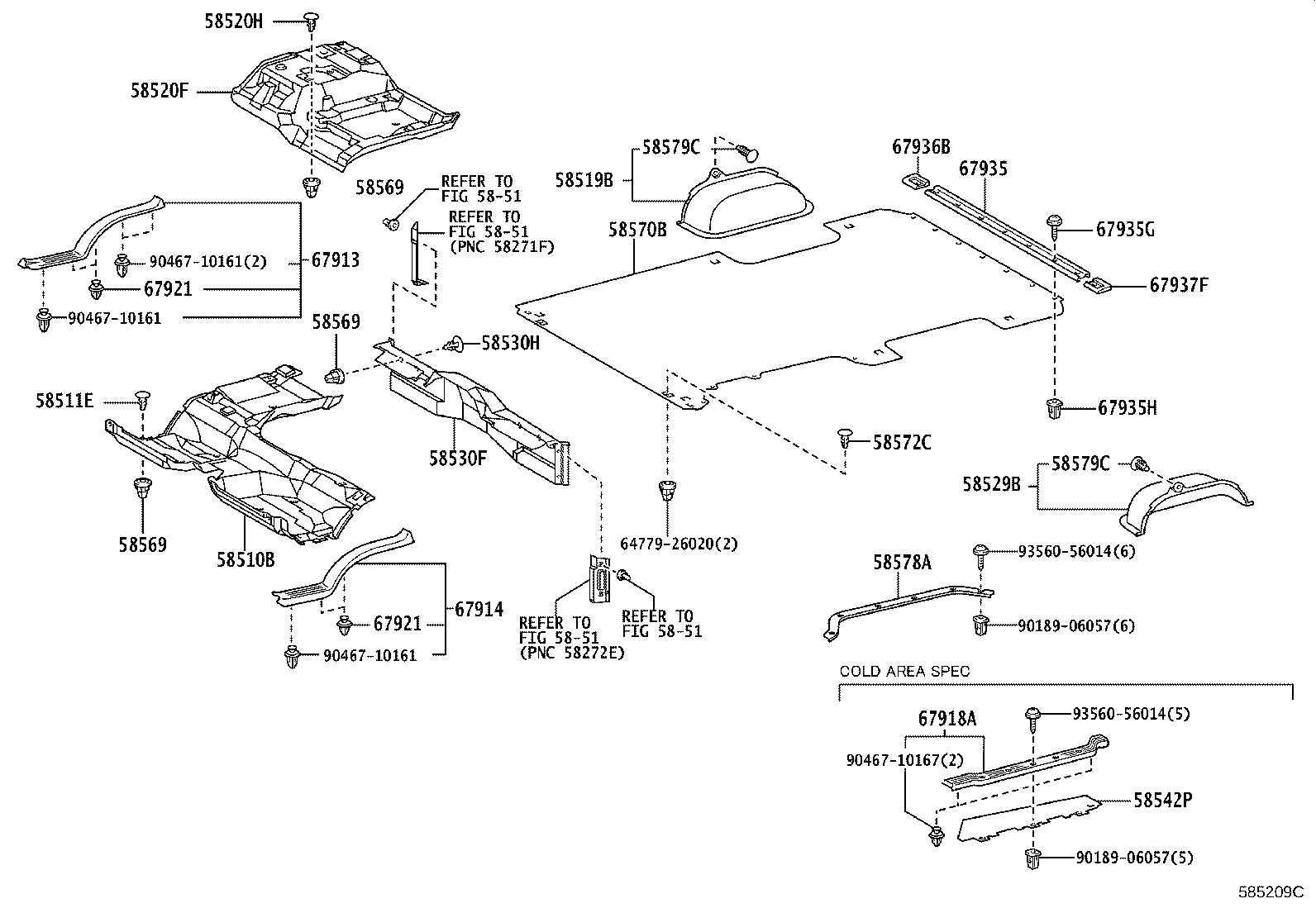

TRH213R-JEMDKN (2006)
Toyota Hiace
(0610- )TRH213..RHD..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26B11B0 |
TRH22#..RHD;KDH212,22#,LH212,222,TRH213..RHD..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
10 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26430B0 |
TRH213..STD REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
2 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26300B0 |
TRH213..STD REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26B60B0 |
TRH213,223..STD..SA MEDIUM GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
9 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
KDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S MD.GRAY,TRIM1# |
2 | ||
| 58578A - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26040B0 |
KDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;TRH223..STD..SA;KDH20#,212,221,LH20#,212,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S) MD.GRAY,TRIM1# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
TRH213..STD REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
TRH213..STD REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67913-26080B0 |
KDH200..ARL,SA;KDH200..06S..GEN;TRH201,213,22#..SA,TH;KDH201,203,212,22#..03S,06S,10S,14S,15S MD.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26060B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
KDH200..ARL,SA;KDH200..06S..GEN;TRH201,213,22#..SA,TH;KDH201,203,212,22#..03S,06S,10S,14S,15S MD.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26130 |
KDH212,22#,LH212,222,TRH213,22#..STD |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD |
7 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD |
7 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93560-56014 | ||||
| Linked diagrams | ||||
| 5851 | ||||
