TRH213R-JDMNKN (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )ARL,EUR,GEN,SA

Click highlighted areas on diagram

diagram 5546595A00 55905 55906 55907 55910 55918 5593314010 5593314010 5593314010 55937 55937 55937 55939 55939 87125 87174 9351014014 9351054012 9351055012
Part # Description Qty Price
Common parts
55465-95A00
55933-14010
93510-14014
93510-54012
93510-55012

ILLUST NO. 4 OF 5(0501-0704)TRH213..10S ; (0501-0704)KDH212,LH212..10S,11S ; (0501-0709)TRH213..09S,

Click highlighted areas on diagram

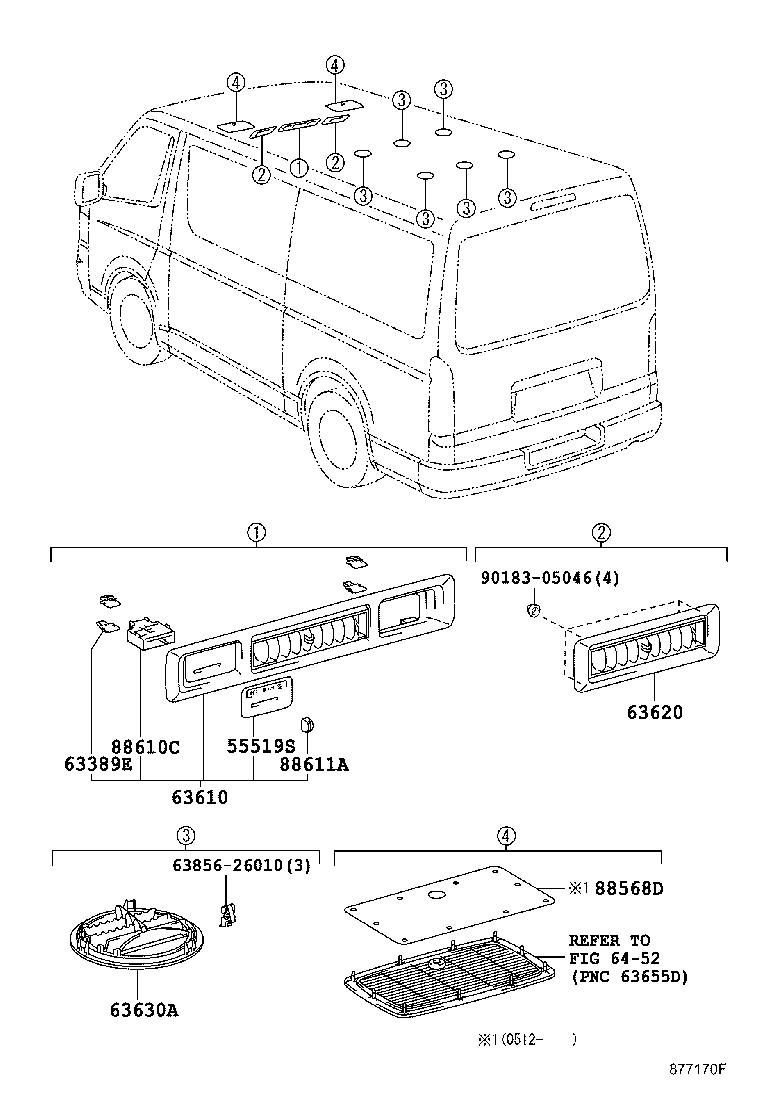

RR COOLER SW & AIR OUTLET REGISTER

diagram 55519S 63389E 63610 63620 63630A 6385626010 6452 88568D 88610C 88611A 9018305046
Part # Description Qty Price
55519S - LABEL, REAR COOLER CONTROL INFORMATION
63697-26100

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
63389E - RETAINER, AIR OUTLET REGISTER
63389-26010

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 4
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26070B0

KDH201..SP..06S;KDH222,TRH223..GL..SA;KDH202,212,TRH213..(12S,16S)..(MA,TH,VN);KDH202,222,TRH223..HRF..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,223,TRH203,213..(HRF,SMRF)..(09S,10S,11S,12S,14S)

LT.GRAY,TRIM1#

 1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63620-26070B0

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

LT.GRAY,TRIM1#

 2
63630A - REGISTER ASSY, AIR DUCT, NO.3
63610-26080B0

KDH212,TRH213..GL

LT.GRAY,TRIM1#

 6
88610C - SWITCH ASSY, COOLER CONTROL
88610-95J03

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH202,222..HRF..(12S,14S)..(ARL,GEN);KDH202,212,TRH213,223..(12S,14S,16S)..(ARL,CIS,MA,TH,VN);KDH212,223,TRH203,213..(HRF,SMRF)..(09S,10S,11S,12S,14S)

 1
88611A - KNOB, COOLER CONTROL SWITCH
88611-28020B4

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

LT.GRAY,TRIM1#

 1
Common parts
63856-26010
90183-05046
Linked diagrams
6452

ILLUST NO. 1 OF 5(0501- )RHD

Click highlighted areas on diagram

FRONT HEATER CONTROL

diagram 5551 55523B 55538A 55901A 55905A 55905B 55905C 55905J 55906 55908A 55909A 55910B 55910B 55911A 81942A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90981-11014

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55905A - KNOB, HEATER CONTROL
55901-26200

TRH213..10S

FRONT HEATER-BOOST VENTIRATOR

 1
55901-26170

KDH202..HRF..MA;TRH223..4FC..GL;TRH213..10S..GEN;KDH222,TRH223..GL..SA;KDH200,201,TRH200,201..SP..06S;KDH202,212,TRH213..(10S,11S,12S,16S)..(SA,TH,VN);KDH203,222,223,TRH203,223..(12S,14S)..(ARL,CIS,MA,RUS,TH)

 1
55905B - KNOB, HEATER CONTROL, NO.2
55903-26030

TRH213..10S

FRONT HEATER-BOOST VENTIRATOR

 1
55903-26010

KDH222,TRH223..GL..SA;KDH200,201,TRH201..ARL,SA;KDH212,220,221,223,TRH213,221..RHD..(03S,10S,14S,15S);KDH200,201,222,TRH201,223..SG..(06S,12S,14S)..(ARL,CIS,GEN)

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
55903-26020

TRH223..GL..SA;KDH200,201,TRH201..ARL,SA;KDH212,22#,TRH213,221..RHD..(03S,10S,14S,15S);KDH200,201,TRH201,223..SG..(06S,12S,14S)..(ARL,CIS,GEN)

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-26040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-26030

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-26060

KDH202,203,TRH203..SRF..(GCC,GEN);KDH200,201,212,22#,LH20#,212,222,TRH200,201,213,22#..ARL,CIS,GCC,GEN,RUS,SA,TH,VN

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-26120

KDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-26080

TRH223..GL..SA;KDH200,201,TRH201..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH200,221..RHD..(03S,06S,10S,14S,15S);KDH200,201,223,TRH201,213..(06S,10S,12S,14S,15S)..(ARL,GEN,RUS,SA,VN)

 1
55910B - BULB, HEATER CONTROL
84999-10530

TRH223..4FC..GL;KDH200..ARL,MA,SA;KDH202..STD..(MA,TH);KDH201..RHD..(ARL,GEN);KDH202,TRH223..RHD..GL;KDH202,TRH223..HRF..(12S,14S,15S)..(ARL,CIS,GEN,TH);KDH203,220,221,TRH200,203,221..RHD..(03S,06S,12S,14S);KDH200,212,TRH201,213..(06S,09S,10S,11S,15S)..(GEN,SA,TH,VN);KDH212,222,223,TRH201,213..(03S,12S,14S,16S)..(ARL,RUS,SA,TH,VN)

 2
55910B - BULB, HEATER CONTROL
84999-10530

TRH223..4FC..GL;KDH200..ARL,MA,SA;KDH202..STD..(MA,TH);KDH201..RHD..(ARL,GEN);KDH202,TRH223..RHD..GL;KDH202,TRH223..HRF..(12S,14S,15S)..(ARL,CIS,GEN,TH);KDH203,220,221,TRH200,203,221..RHD..(03S,06S,12S,14S);KDH200,212,TRH201,213..(06S,09S,10S,11S,15S)..(GEN,SA,TH,VN);KDH212,222,223,TRH201,213..(03S,12S,14S,16S)..(ARL,RUS,SA,TH,VN)

 2
55911A - BASE, HEATER CONTROL
55911-26040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-26160

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
Linked diagrams
5551

ILLUST NO. 2 OF 5(0501- )RHD

Click highlighted areas on diagram

FRONT AIR DUCT

diagram 55850A 8714 87201A 87201A 87211 87211A 87211B 9015960383 9015960383 9015960383 90159T0005 90159T0005 9046707215
Part # Description Qty Price
55850A - CONNECTOR ASSY, INSTRUMENT PANEL REGISTER, CENTER
55850-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
87201A - DUCT SUB-ASSY, AIR
87201-26040

KDH212,22#,LH212,222,TRH213,22#..RHD

 1
87201A - DUCT SUB-ASSY, AIR
87201-26040

KDH212,22#,LH212,222,TRH213,22#..RHD

 1
87211 - DUCT, AIR, NO.1
87211-26090

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD

 1
87211A - DUCT, AIR, NO.2
87211-26100

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD

 1
87211B - DUCT, AIR, NO.3
87211-26130

KDH202,203,TRH203..SRF..(GCC,GEN);KDH200,201,212,22#,LH20#,212,222,TRH200,201,213,22#..ARL,CIS,GCC,GEN,RUS,SA,TH,VN

 1
Common parts
90159-60383
90159-T0005
90467-07215
Linked diagrams
8714

ILLUST NO. 4 OF 5(0704- )TRH213..10S..GEN,SA ; (0704- )KDH212,LH212..10S,11S ; (0709- )TRH2

Click highlighted areas on diagram

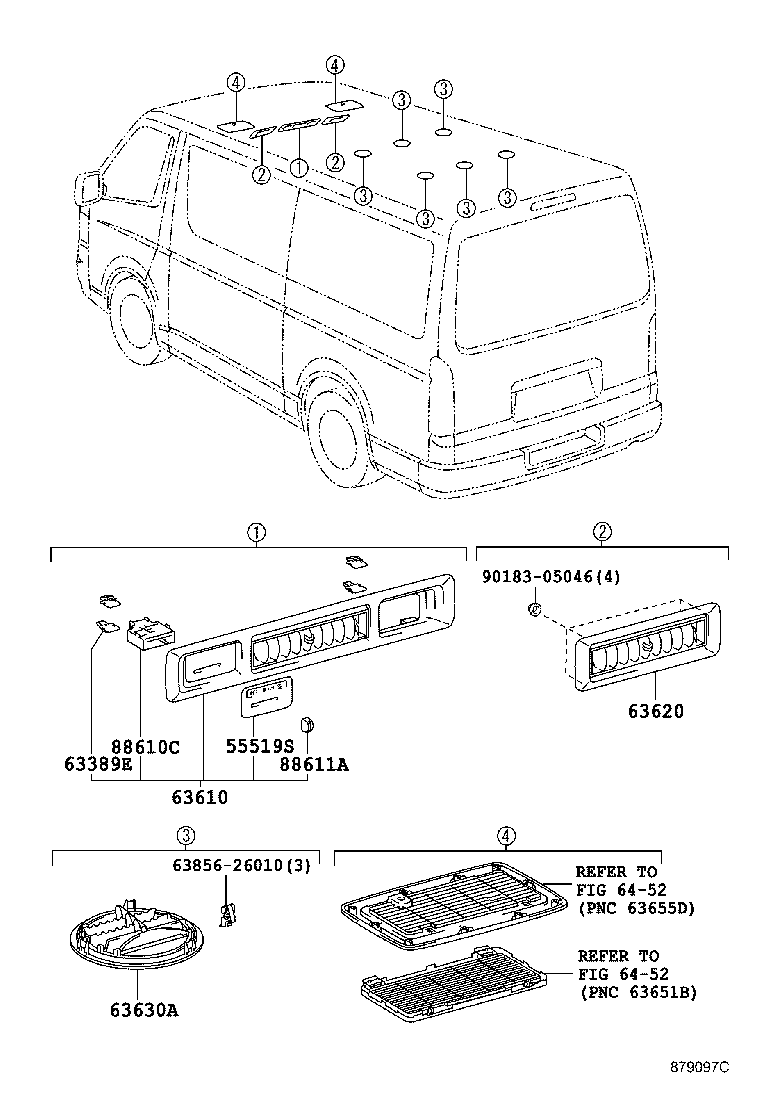

RR COOLER SW & AIR OUTLET REGISTER

diagram 55519S 63389E 63610 63620 63630A 6385626010 6452 6452 88610C 88611A 9018305046
Part # Description Qty Price
55519S - LABEL, REAR COOLER CONTROL INFORMATION
63697-26100

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
63389E - RETAINER, AIR OUTLET REGISTER
63389-26010

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 4
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26070B0

KDH201..SP..06S;KDH222,TRH223..GL..SA;KDH202,212,TRH213..(12S,16S)..(MA,TH,VN);KDH202,222,TRH223..HRF..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,223,TRH203,213..(HRF,SMRF)..(09S,10S,11S,12S,14S)

LT.GRAY,TRIM1#

 1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63620-26070B0

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

LT.GRAY,TRIM1#

 2
63630A - REGISTER ASSY, AIR DUCT, NO.3
63610-26080B0

KDH212,TRH213..GL

LT.GRAY,TRIM1#

 6
88610C - SWITCH ASSY, COOLER CONTROL
88610-95J03

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH202,222..HRF..(12S,14S)..(ARL,GEN);KDH202,212,TRH213,223..(12S,14S,16S)..(ARL,CIS,MA,TH,VN);KDH212,223,TRH203,213..(HRF,SMRF)..(09S,10S,11S,12S,14S)

 1
88611A - KNOB, COOLER CONTROL SWITCH
88611-28020B4

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

LT.GRAY,TRIM1#

 1
Common parts
63856-26010
90183-05046
Linked diagrams
6452

(1312- )RHD

Click highlighted areas on diagram

FRONT HEATER CONTROL

diagram 5551 55523B 55905A 55905B 55905C 55906 55908A 55909A 55910B 55910B 55910B
Part # Description Qty Price
Linked diagrams
5551

(1312- )RHD

Click highlighted areas on diagram

FRONT AIR DUCT

diagram 55850A 8714 87201A 87201A 87211 87211A 87211B 9015960383 9015960383 9015960383 90159T0005 90159T0005 9046707215
Part # Description Qty Price
Common parts
90159-60383
90159-T0005
90467-07215
Linked diagrams
8714

(1312- )GDH201,KDH200,201,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..ARL,

Click highlighted areas on diagram

SENSOR(COOLER THERMISTOR)

diagram 8401 88625C 88625C
Part # Description Qty Price
Linked diagrams
8401
