TRH213R-JDMNKN (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )ARL,EUR,GEN,SA

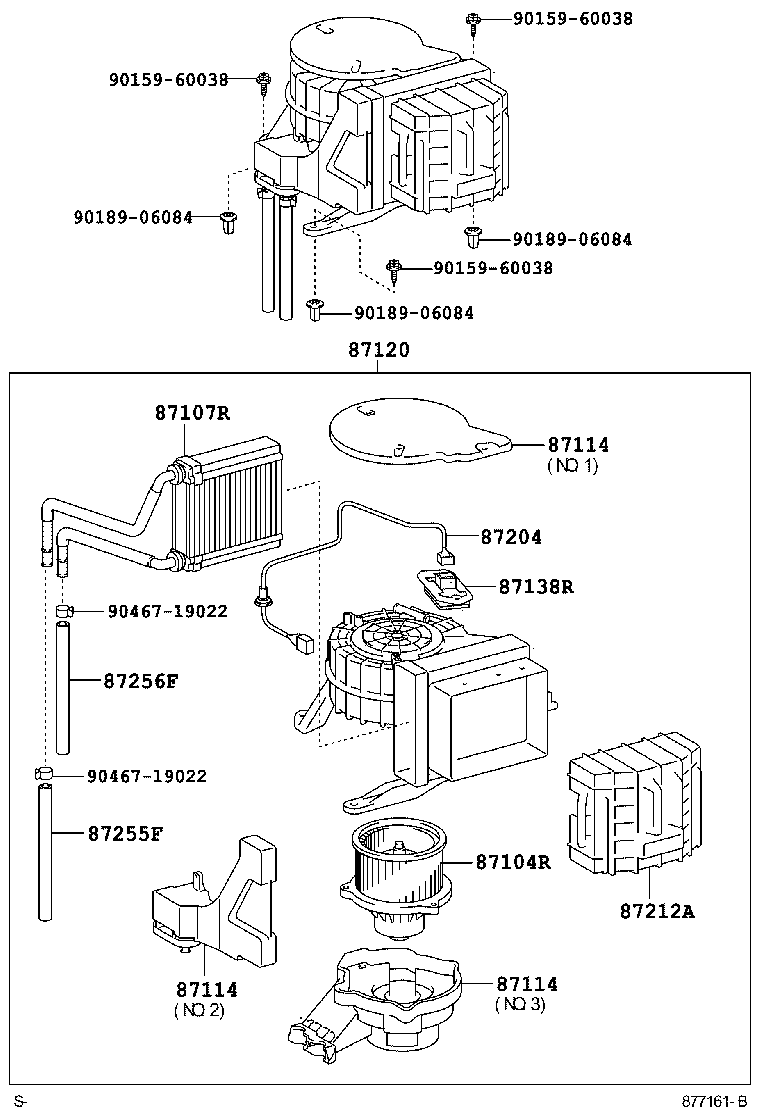

Click highlighted areas on diagram

diagram 5546595A00 87104 87105 87107 87110 87111 87111A 8711614010 87138 8715 87188 87240H 87245F 87246F 87249E 9009902134 9009902135 9009902210 9009905164 9095001318 9095003061 9165140616 9165140620 9331910306 9351015016 9351015016 9351015016 9351055012 9354014016 9354055012 9611110250 9611110250
Part # Description Qty Price
Common parts
55465-95A00
87116-14010
90099-02134
90099-02135
90099-02210
90099-05164
90950-01318
90950-03061
91651-40616
91651-40620
93319-10306
93510-15016
93510-55012
93540-14016
93540-55012
96111-10250
Linked diagrams
8715

(0501- )KDH212,223,TRH213..RHD..10S,14S ; (0501- )KDH202,222,LH202,222,TRH203

Click highlighted areas on diagram

diagram 87104R 87107R 87114 87114 87114 87120 87138R 87204 87212A 87255F 87256F 9015960038 9015960038 9015960038 9018906084 9018906084 9018906084 9046719022 9046719022
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-26090

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET)

 1
87104-26090

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET)

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-26150

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87107-26150

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87114 - COVER, HEATER
87114-26070

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26070

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26050

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET),NO.1

 1
87114-26050

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET),NO.1

 1
87114-26071

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26071

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26090

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.3

 1
87114-26090

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.3

 1
87114 - COVER, HEATER
87114-26070

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26070

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26050

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET),NO.1

 1
87114-26050

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET),NO.1

 1
87114-26071

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26071

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26090

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.3

 1
87114-26090

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.3

 1
87114 - COVER, HEATER
87114-26070

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26070

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26050

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET),NO.1

 1
87114-26050

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET),NO.1

 1
87114-26071

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26071

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET),NO.2

 1
87114-26090

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.3

 1
87114-26090

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET),NO.3

 1
87120 - HEATER ASSY, REAR
87110-26421

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET)

 1
87110-26421

KDH222,TRH223..GL..SA;KDH222,LH222,TRH223..RHD..GEN;KDH202,212,LH202,TRH213..RHD..(10S,15S)

REAR HEATER-WITH(FLOOR SET)

 1
87110-26420

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87110-26420

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-52010

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET)

 1
87138-52010

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET)

 1
87204 - WIRE & PIPING SUB-ASSY, HEATER PARTS
87204-26040

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87204-26040

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87212A - DUCT, AIR, REAR NO.1
87211-26170

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET)

 1
87211-26170

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

REAR HEATER-WITH(FLOOR SET)

 1
87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)
87245-26A70

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

L=260,REAR HEATER-WITH(FLOOR SET)

 1
87245-26A70

KDH222..ARL;KDH212,222,TRH213,223..GL..SA;KDH202,LH202,222,TRH223..RHD..(15S,16S)..GEN

L=260,REAR HEATER-WITH(FLOOR SET)

 1
87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)
87245-26A80

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

L=310,REAR HEATER-WITH(FLOOR SET)

 1
87245-26A80

TRH203..LHD..GEN;LH202,222,TRH223..5F..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH222,TRH213,223..GL..(GCC,SA);KDH203,212..(10S,12S)..(GEN,SA);KDH202,222..(14S,15S)..(ARL,GEN)

L=310,REAR HEATER-WITH(FLOOR SET)

 1
Common parts
90159-60038
90189-06084
90467-19022

(1312- )RHD..02S,03S,06S,10S,11S,12S,14S,15S,16S..4FC,5F..ARL,GEN,MA,SA,TH

Click highlighted areas on diagram

diagram 87104R 87107R 87114 87114 87114 87120 87138R 87204 87212A 87255F 87256F 9015960038 9015960038 9015960038 9018906084 9018906084 9018906084 9046719022 9046719022
Part # Description Qty Price
Common parts
90159-60038
90189-06084
90467-19022
