TRH213R-JDMNKN (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

diagram 5864495A00 62031A 62031A 62032A 62032A 62214 62214A 62221B 62221C 62221C 62221C 62223B 62243 62313 62314 62511 62511 62512 62512 62512 62512 6777120022 6777120022 6777120022 6777120022 6777120022 6777120022 6777222010 6777222010 6777222010 6777222010 6777222010 6777222010 7456 9015960020 9018906018
Part # Description Qty Price
Common parts
58644-95A00
67771-20022
67772-22010
90159-60020
90189-06018
Linked diagrams
7456

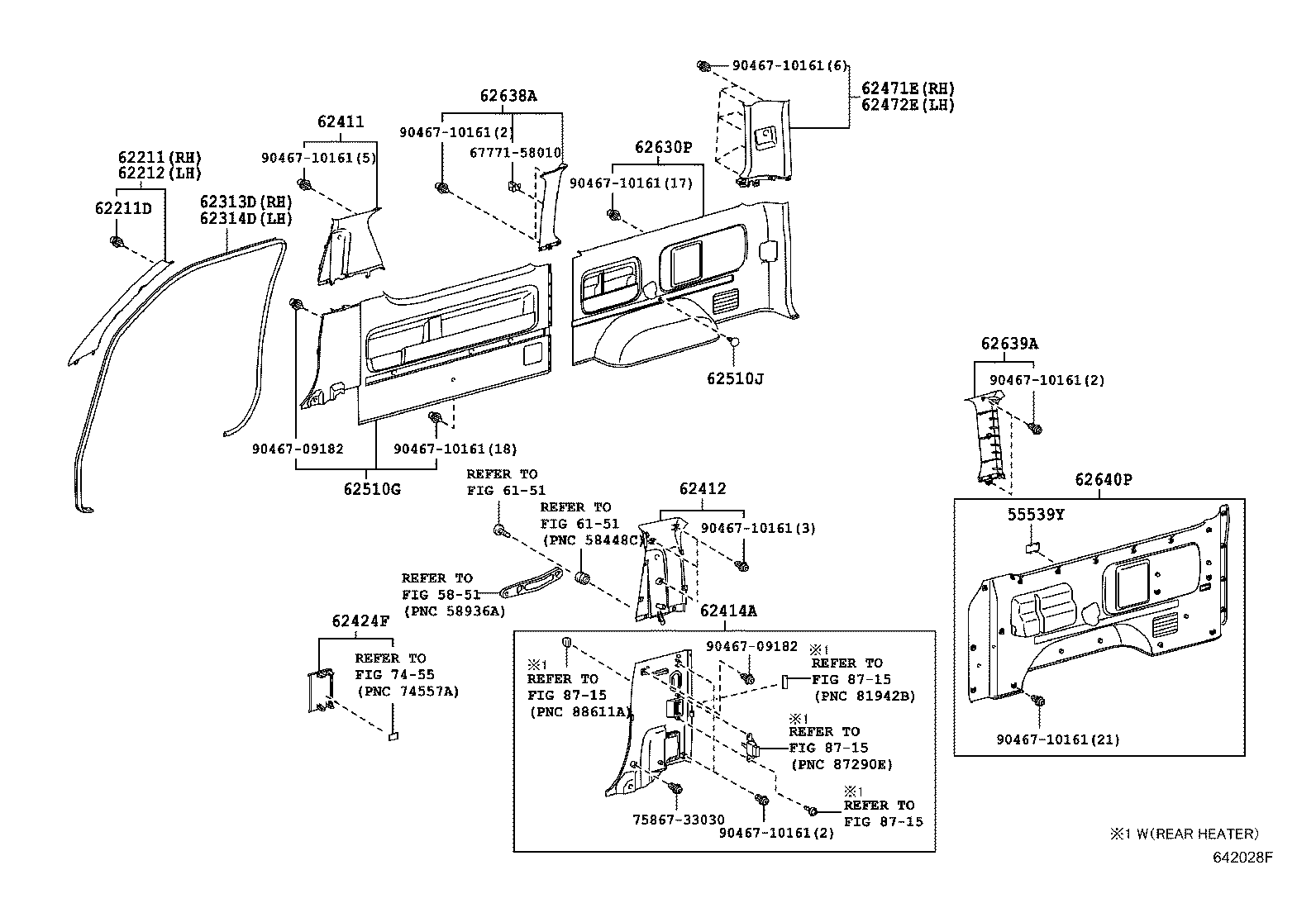

(0610- )KDH212,TRH213..GL..SA

Click highlighted areas on diagram

diagram 55539Y 5851 6151 6151 62211 62211D 62212 62313D 62314D 62411 62412 62414A 62424F 62471E 62472E 62510G 62510J 62630P 62638A 62639A 62640P 6777158010 7455 7586733030 8715 8715 8715 8715 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
55539Y - COVER, SPARE SWITCH HOLE
55539-28120B2

KDH212,222,223,TRH213,223..GL..(GCC,GEN,RUS,SA,TH,VN)

DK.GRAY,TRIM1#

 1
55539-28120B4

TRH213..09S;TRH213..GL..VN;TRH213..RHD..GL;KDH212,222,TRH223..GL

GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0

KDH201..SP..06S;TRH213,22#..SA,TH;KDH212,22#..03S,10S,14S,15S

LT.GRAY,TRIM1#

 1
62210-26051B0

KDH202..MA,TH;KDH201,TRH201..SP..06S;KDH202,223,TRH213,223..(HRF,SMRF)..(ARL,CIS,GCC,GEN,RUS,SA,TH,VN);KDH212,220,221,222,LH212,222,TRH20#,221..(HRF,SMRF)..(ARL,GCC,GEN,MA,SA,VN)

LT.GRAY,TRIM1#

 1
62210-26050B0

TRH223;KDH202..MA;KDH202,212,222,LH212,222,TRH20#,213,221..(HRF,SMRF)..(03S,09S,10S,11S,12S,16S)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

KDH202..MA,TH;KDH201..SP..06S;KDH223,TRH213,223;KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,212,220,222,LH212,222,TRH201,221..(HRF,SMRF)..(ARL,GCC,GEN,SA,VN)

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26030B0

KDH201..SP..06S;TRH213,22#..SA,TH;KDH212,22#..03S,10S,14S,15S

LT.GRAY,TRIM1#

 1
62220-26031B0

KDH212,220,222,TRH213,22#..(03S,10S,14S)..SA

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26130B0

TRH213..10S

LT.GRAY,TRIM1#

 1
62410-26110B0

KDH212,222,TRH213,223..GL..SA

LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26090B0

KDH212,222,TRH213,223..4D..GL

LT.GRAY,TRIM1#

 1
62420-26130B0

KDH212,TRH213..GL..SA

LT.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26380B1

TRH223..ARL;TRH223..GL..SA;KDH212,222,223,TRH213..RHD..(10S,14S)

GRAY,TRIM1#

 1
62414-26400B0

TRH223..GL..SA;TRH223..5F..ARL;KDH212,222,223,TRH213..RHD..(10S,14S)

REAR HEATER-WITH(FLOOR SET),GRAY,TRIM1#

 1
62414-26400B1

KDH212,222,TRH213,223..GL..SA

REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#

 1
62414-26380B0

TRH223..ARL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..ARL,SA

DK.GRAY,TRIM1#

 1
62414-26400B2

KDH212,222,TRH213,223..GL..SA

REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B1

KDH212..4FC;TRH223..RHD;TRH223..12S,13S;TRH223..LHD..STD;KDH222..STD..GCC;KDH212..10S,15S,16S;KDH222..ARL,GEN,SA,TH;KDH20#,220,221,223,LH20#,212,222,TRH20#,213,221..03S,06S,10S,11S,12S,14S,15S,16S

GRAY,TRIM1#

 1
62424-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-26270B0

KDH212..4FC;TRH213,223..10S,12S,13S

LT.GRAY,TRIM1#

 1
62471-26270B0

KDH212,222,TRH213,223..GL..SA

LT.GRAY,TRIM1#

 1
62471-26271B0

KDH212..4FC;KDH212..GL..SA;KDH222,223,TRH213,223..(10S,11S,12S,13S,14S)..GL

LT.GRAY,TRIM1#

 1
62471-26272B0

KDH212..SA;KDH212..4FC;KDH222,223,TRH213,223..(10S,11S,12S,13S,14S)..GL

LT.GRAY,TRIM1#

 1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-26240B0

KDH212..4FC;TRH213,223..10S,12S,13S

LT.GRAY,TRIM1#

 1
62472-26240B0

KDH212,222,TRH213,223..GL..SA

LT.GRAY,TRIM1#

 1
62472-26241B0

KDH212..4FC;KDH212..GL..SA;KDH222,223,TRH213,223..(10S,11S,12S,13S,14S)..GL

LT.GRAY,TRIM1#

 1
62472-26242B0

KDH212..SA;KDH212..4FC;KDH222,223,TRH213,223..(10S,11S,12S,13S,14S)..GL

LT.GRAY,TRIM1#

 1
62510G - TRIM ASSY, SIDE NO.1, RH
62510-26670B4

KDH212,222,TRH213,223..GL..SA

DK.GRAY,TRIM1#

 1
62510-26670B2

KDH212,222,TRH213,223..GL..SA

GRAY,TRIM1#

 1
62510J - RETAINER, QUARTER TRIM
67771-26230B0

KDH212..4FC;KDH212,TRH213..RHD..GL

GRAY,TRIM1#

 1
67771-26230B2

KDH212..4FC;KDH212,TRH213..RHD..GL

DK.GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-26D80B0

KDH212,TRH213..GL..SA

GRAY,TRIM1#

 1
62630-26D80B1

KDH212,TRH213..SA

DK.GRAY,TRIM1#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-26120B0

TRH213..10S

LT.GRAY,TRIM1#

 1
62638-26060B0

KDH212,TRH213..GL..SA

LT.GRAY,TRIM1#

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-26050B0

KDH212,TRH213..5F..GL

LT.GRAY,TRIM1#

 1
62639-26120B0

KDH212,TRH213..GL..SA

LT.GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-26D60B0

KDH212,TRH213..GL..SA

GRAY,TRIM1#

 1
62640-26D60B1

KDH212,TRH213..SA

DK.GRAY,TRIM1#

 1
Common parts
67771-58010
75867-33030
90467-09182
90467-10161
Linked diagrams
5851
6151
7455
8715

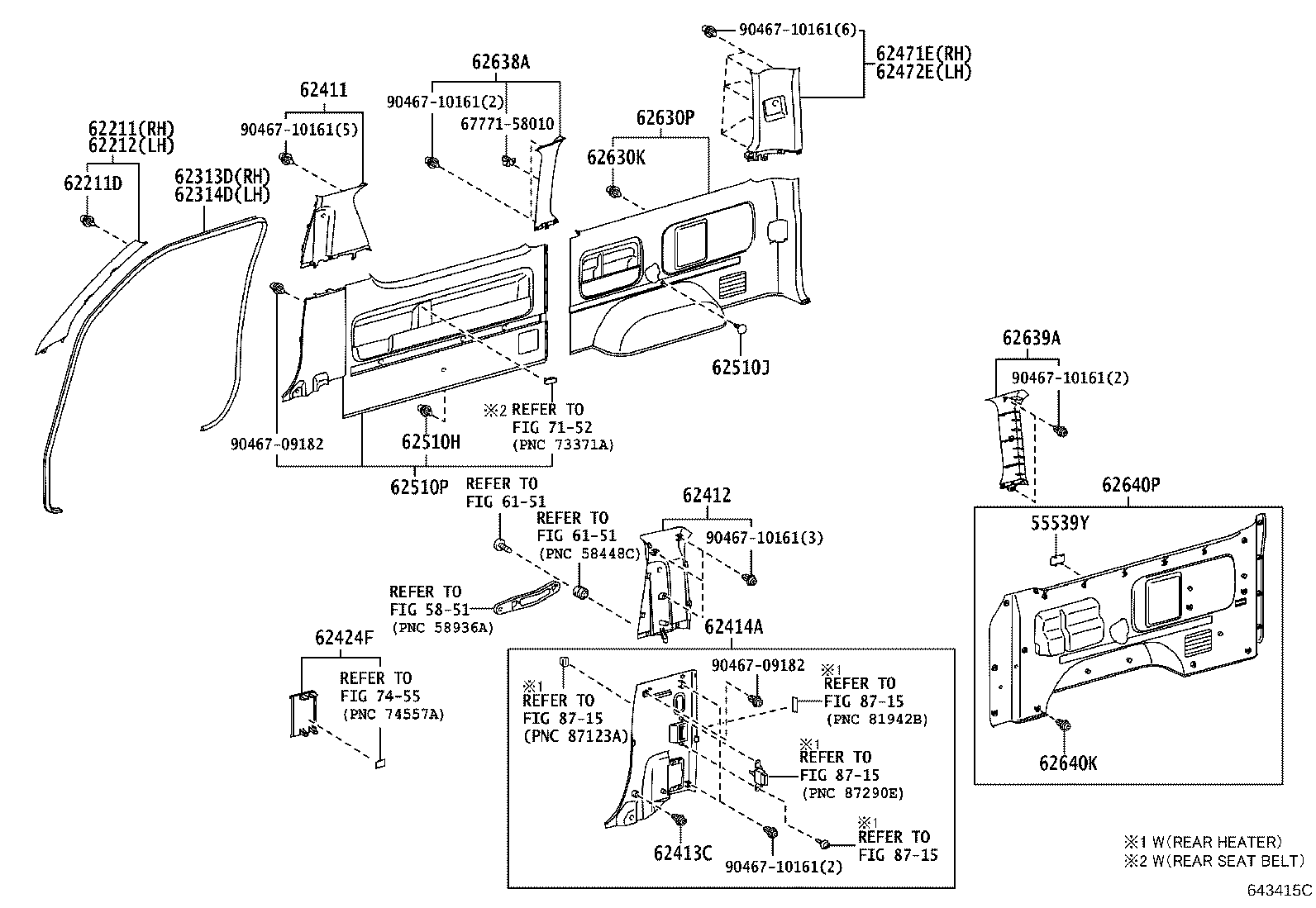

(1312- )KDH212,TRH213..SA

Click highlighted areas on diagram

diagram 55539Y 5851 6151 6151 62211 62211D 62212 62313D 62314D 62411 62412 62413C 62414A 62424F 62471E 62472E 62510H 62510J 62510P 62630K 62630P 62638A 62639A 62640K 62640P 6777158010 7152 7455 8715 8715 8715 8715 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
Common parts
67771-58010
90467-09182
90467-10161
Linked diagrams
5851
6151
7152
7455
8715
