TRH213R-JDMNKN (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH11,2#,3#,42

Click highlighted areas on diagram

diagram 44729 44730 44730A 44730A 44730F 44758 44761 44761A 44764 44764 44764A 44773 5830995A00 5830995A00 5830995A01 9046110221 9046110221 9046110221 9046110221 9046400241 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9165640822 9165640822
Part # Description Qty Price
Common parts
58309-95A00
58309-95A01
90461-10221
90464-00241
90467-16141
91611-40814
91656-40822

(7702- )BUS,TR,V

Click highlighted areas on diagram

diagram 44608 44610 44610K 4461714190 44626 44629 44642 44643 44645 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 44696 44730 9017908146 9331914008
Part # Description Qty Price
Common parts
44617-14190
90179-08146
93319-14008

(7702- )EUR,SA ; (8112- )ARL

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 9017908146
Part # Description Qty Price
Common parts
90179-08146

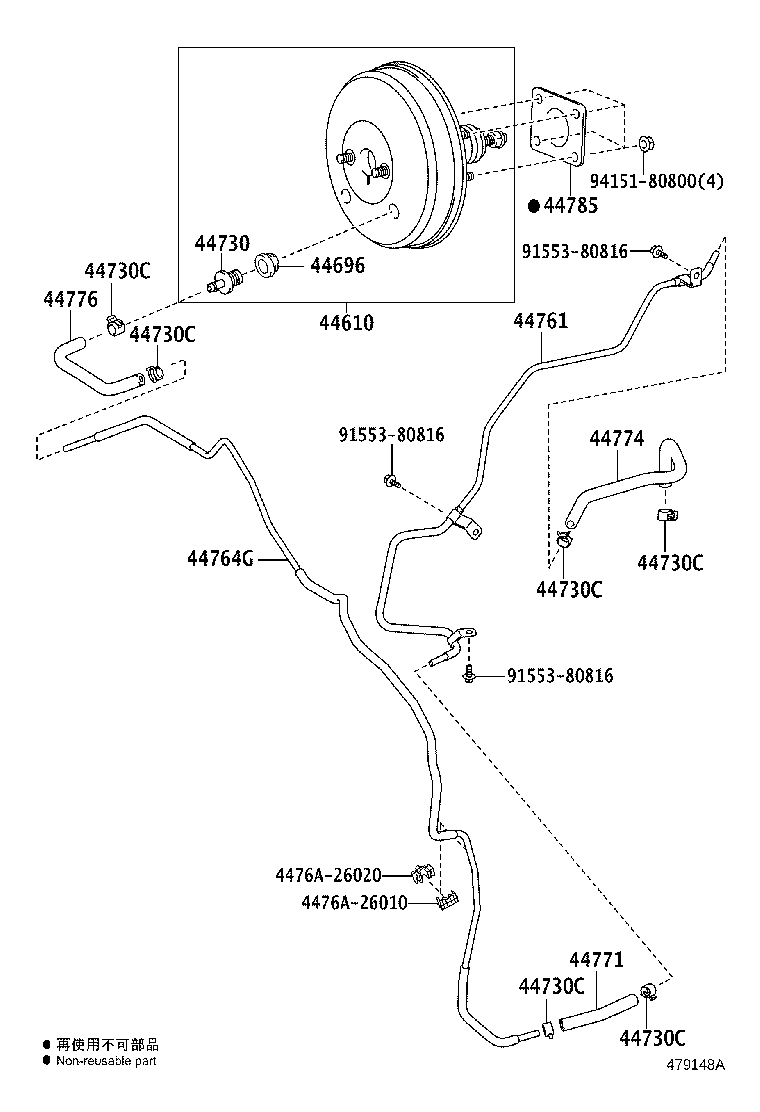

(0501- )TRH20#,213,22#..RHD

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44761 44764G 4476A26010 4476A26020 44771 44774 44776 44785 9094901C57 9155380816 9155380816 9155380816 9155380818 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-26660

TRH20#,213,22#..RHD..(03S,06S,10S,14S,15S,16S)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

 1
44610-26670

TRH20#,213,22#..RHD..(03S,06S,10S,12S,14S,15S,16S)

 1
44610-26671

TRH201,213,22#..(03S,10S,14S)..SA

 1
44610-26661

TRH201,213,22#..(03S,10S,14S)..SA

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030

KDH202..5F;KDH222,TRH223..GL..SA;KDH222,TRH223..ARL,CIS,GCC,GEN,TH;KDH200,201,203,212,220,221,223,LH20#,212,222,TRH20#,213,221

 1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

KDH20#,212,22#,TRH20#,213,22#

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

KDH20#,212,22#,TRH20#,213,22#

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

KDH20#,212,22#,TRH20#,213,22#

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

KDH20#,212,22#,TRH20#,213,22#

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

KDH20#,212,22#,TRH20#,213,22#

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

KDH20#,212,22#,TRH20#,213,22#

 4
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26360

TRH20#,213,22#..RHD

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26110

KDH212,22#,TRH213,22#..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26150

KDH20#,212,22#,TRH20#,213,22#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26410

TRH213,22#

 1
44776 - HOSE, BRAKE BOOSTER
44776-26040

KDH20#,212,22#,TRH20#,213,22#..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

TRH203..5F;KDH222..GL..SA;TRH213..GEN,SA,TH,VN;KDH222..ARL,GCC,GEN,TH;TRH223..ARL,CIS,GEN,TH;TRH213,223..5F..STD..GCC;TRH223..5F..GL..(GCC,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH200,201,221

 1
Common parts
4476A-26010
4476A-26020
90949-01C57
91553-80816
91553-80818
94151-80800

(1312-1501)KDH20#,21#,22#..RHD

Click highlighted areas on diagram

diagram 1905 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44761 44764G 4476A26010 4476A26020 44771 44774 44776 44785 8401 9155380816 9155380816 9415180800
Part # Description Qty Price
Common parts
4476A-26010
4476A-26020
91553-80816
94151-80800
Linked diagrams
1905
8401

(1312-1501)TRH20#,213,22#..RHD

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44761 44764G 4476A26010 4476A26020 44771 44774 44776 44785 9155380816 9155380816 9155380816 9415180800
Part # Description Qty Price
Common parts
4476A-26010
4476A-26020
91553-80816
94151-80800
