TRH213L-JEMDKV (2013)
Toyota Hiace
(1312- )TRH213..GCC

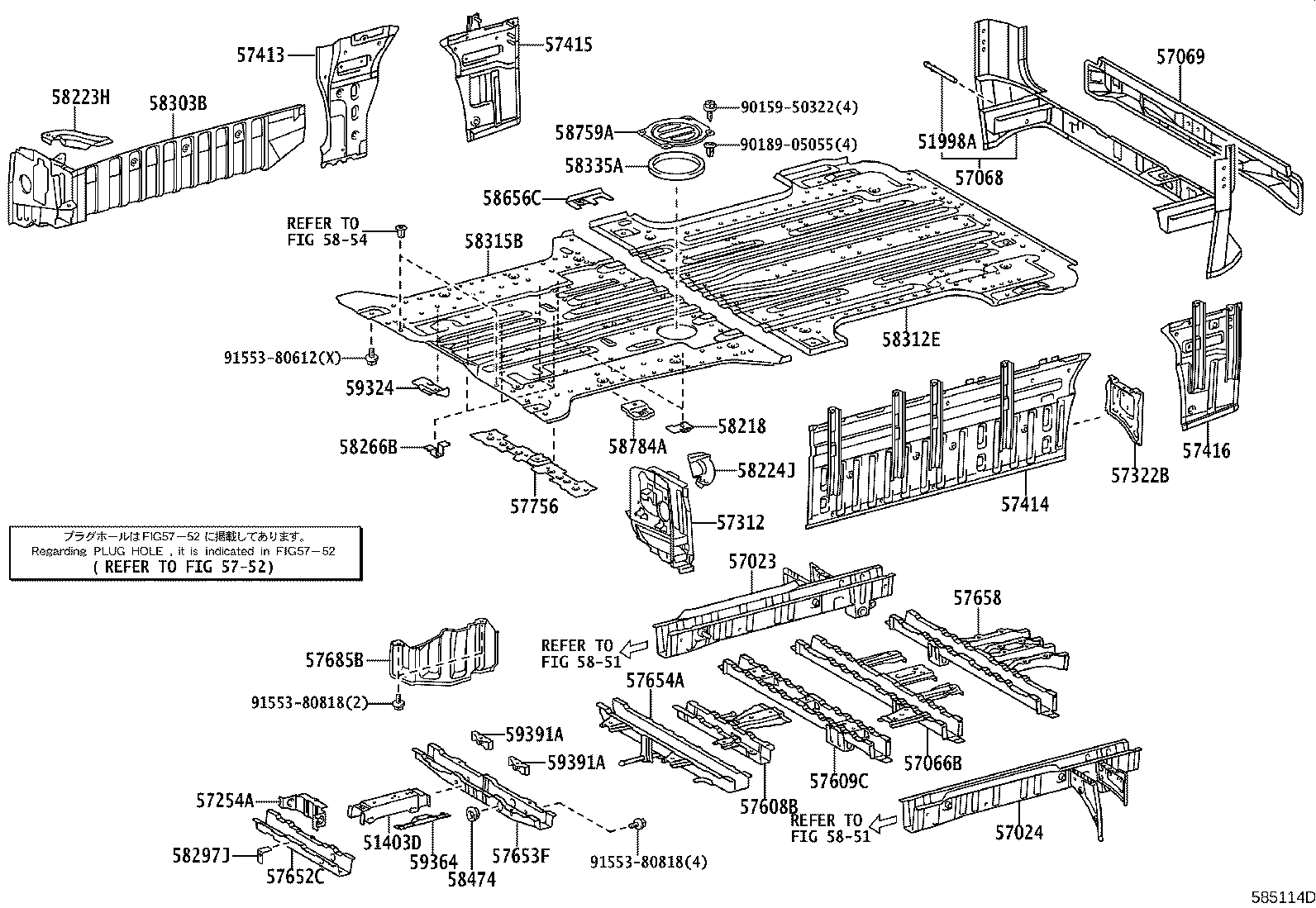

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-26232 |
TRH203,213;TRH223..LHD..4FC;TRH201,22#..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 51403-26290 |
KDH201..RHD;KDH223..ARL,RUS;KDH201..LHD..03S;KDH200,202,203,21#,220,221,222 |
1 | ||
| 51403-26320 |
TRH221..GCC;TRH201,203..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..STD..(ARL,SA);TRH223..5F..GL..(GCC,RUS);TRH213,221..(02S,06S,11S,16S)..(4FC,5F)..(ARL,GCC,SA,TH) |
1 | ||
| 51998A - HANGER, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 51998-26080 |
TRH223..4FC..GL;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;LH222,TRH213,223..LHD..STD..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26640 |
KDH213..5F;KDH203..RHD;TRH213..GCC;KDH202,212,LH202,212,TRH203..5F..STD..(GCC,GEN) |
1 | ||
| 57023-26660 |
TRH213..5F..GCC ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26640 |
KDH213..5F;KDH203..RHD;TRH213..GCC;KDH202,212,LH202,212,TRH203..5F..STD..(GCC,GEN) |
1 | ||
| 57024-26670 |
TRH213..5F..GCC ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26282 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26380 |
TRH213..LHD..STD;KDH212,LH212..STD |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26150 |
KDH213..5F;TRH213..GCC,TH;KDH212,LH212..STD |
1 | ||
| 57069-26210 |
TRH213,221..5F..GCC ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26041 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 57312 - OUTRIGGER, NO.1 LH | ||||
| 57302-26030 |
TRH213..GCC |
1 | ||
| 57302-26080 |
TRH213..5F..GCC ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION |
1 | ||
| 57322B - OUTRIGGER, NO.5, LH | ||||
| 57322-26030 |
TRH213..GCC;TRH223..10S,12S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-26A70 |
KDH200..LHD..5D;TRH213..LHD..STD;KDH201..(02S,03S)..5F..GEN;KDH202,203,212,LH20#,212,TRH201,203..LHD..(03S,12S,13S,15S,16S)..5F..STD |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26580 |
TRH213..LHD..STD;KDH202,203,212,LH202,212,TRH203..LHD..(13S,15S,16S)..5F..STD |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-26210 |
TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26160 |
TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26422 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26232 |
KDH213..5F;TRH213..GCC;KDH212,LH212..STD |
1 | ||
| 57609-26312 |
TRH213..5F..GCC ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26130 |
TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26141 |
TRH221..GCC;TRH223..GL..GCC;TRH213..LHD..GEN;KDH220,222..GEN,KEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH21#,220,223,LH212,222..(06S,11S,12S,13S,14S,16S)..(GCC,GEN,SA,VN) |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26811 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26301 |
TRH213..LHD..STD;KDH212,LH212..STD |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26040 |
TRH201;TRH203..5F;TRH221..GCC;TRH223..GL..GCC;TRH213,223..LHD..STD..GEN;TRH223..(12S,16S)..(RUS,SA,TH);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) FRONT |
1 | ||
| 57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER | ||||
| 57756-26020 |
KDH223..ARL,RUS;KDH212,LH212..STD;TRH223..10S,12S,13S;KDH222,TRH223..STD..(ARL,SA);KDH213,TRH213..LHD..(10S,16S) |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH203..5F;TRH221..GCC;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH213,TRH213..LHD..(10S,11S,16S)..GEN;KDH201,TRH200..SP..(03S,06S)..(4FC,5F)..GEN;GDH201,KDH203,212,TRH201..02S,03S,05S,06S,11S;TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-26280 |
KDH201,TRH213..(05S,16S)..(ARL,GCC);KDH202,212,LH202,212,TRH203..LHD..5F..STD |
1 | ||
| 58303-26410 |
TRH213..5F..GCC ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26371 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 58312-26372 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26C90 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 58315-26C91 |
KDH212,LH212,TRH213..LHD..STD |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-26020 |
TRH213..GCC,TH;KDH200..LHD..5D;TRH213..LHD..GEN;KDH202,212,LH20#,212..LHD;KDH201,TRH203..LHD..4D..5F;KDH201,TRH200..5D..(4FC,5F);GDH201,KDH203,213,TRH201..(03S,05S,06S,10S,11S,12S,13S,15S)..(GCC,GEN) |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH |
1 | ||
| 58784A - SUPPORT, TOOL BAG | ||||
| 58784-26020 |
TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH222..16S..(GEN,SA);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);KDH223..STD..(ARL,GEN,VN);KDH21#,LH212,222..4D..(GCC,GEN);KDH223,TRH223..5F..GL..(GCC,RUS) |
1 | ||
| 59324 - BASE, SUB FLOOR LEG, NO.2 | ||||
| 59324-26030 |
TRH213..LHD;TRH223..ARL,TH;KDH223..4FC..TH;KDH21#,LH212..4D..(GCC,GEN);KDH222,223,LH222..RHD..(ARL,GEN) |
1 | ||
| 59364 - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-26090 |
KDH212..LHD..STD;TRH223..4FC..GEN;KDH222,223..RHD..16S..4FC;TRH223..(12S,16S)..(RUS,SA,TH);KDH222,223..(12S,16S)..(RUS,SA);KDH213,LH212,TRH213..LHD..(10S,16S) |
1 | ||
| 59391A - RETAINER, REAR FLOOR, NO.1 | ||||
| 59391-26010 |
TRH223..STD..(ARL,SA);KDH212,LH212,TRH213..LHD..STD;KDH222,223,LH222..RHD..STD..(ARL,GEN,SA) RH |
1 | ||
| 58317-26100 |
KDH223..ARL,RUS;KDH212,LH212..STD;TRH223..10S,12S,13S;KDH222,TRH223..STD..(ARL,SA);KDH213,TRH213..LHD..(10S,16S) CENTER |
1 | ||
| 59391A - RETAINER, REAR FLOOR, NO.1 | ||||
| 59391-26010 |
TRH223..STD..(ARL,SA);KDH212,LH212,TRH213..LHD..STD;KDH222,223,LH222..RHD..STD..(ARL,GEN,SA) RH |
1 | ||
| 58317-26100 |
KDH223..ARL,RUS;KDH212,LH212..STD;TRH223..10S,12S,13S;KDH222,TRH223..STD..(ARL,SA);KDH213,TRH213..LHD..(10S,16S) CENTER |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
