TRH213L-JEMDKV (2006)

Toyota Hiace

Production Jan 2006 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )TRH213..GCC

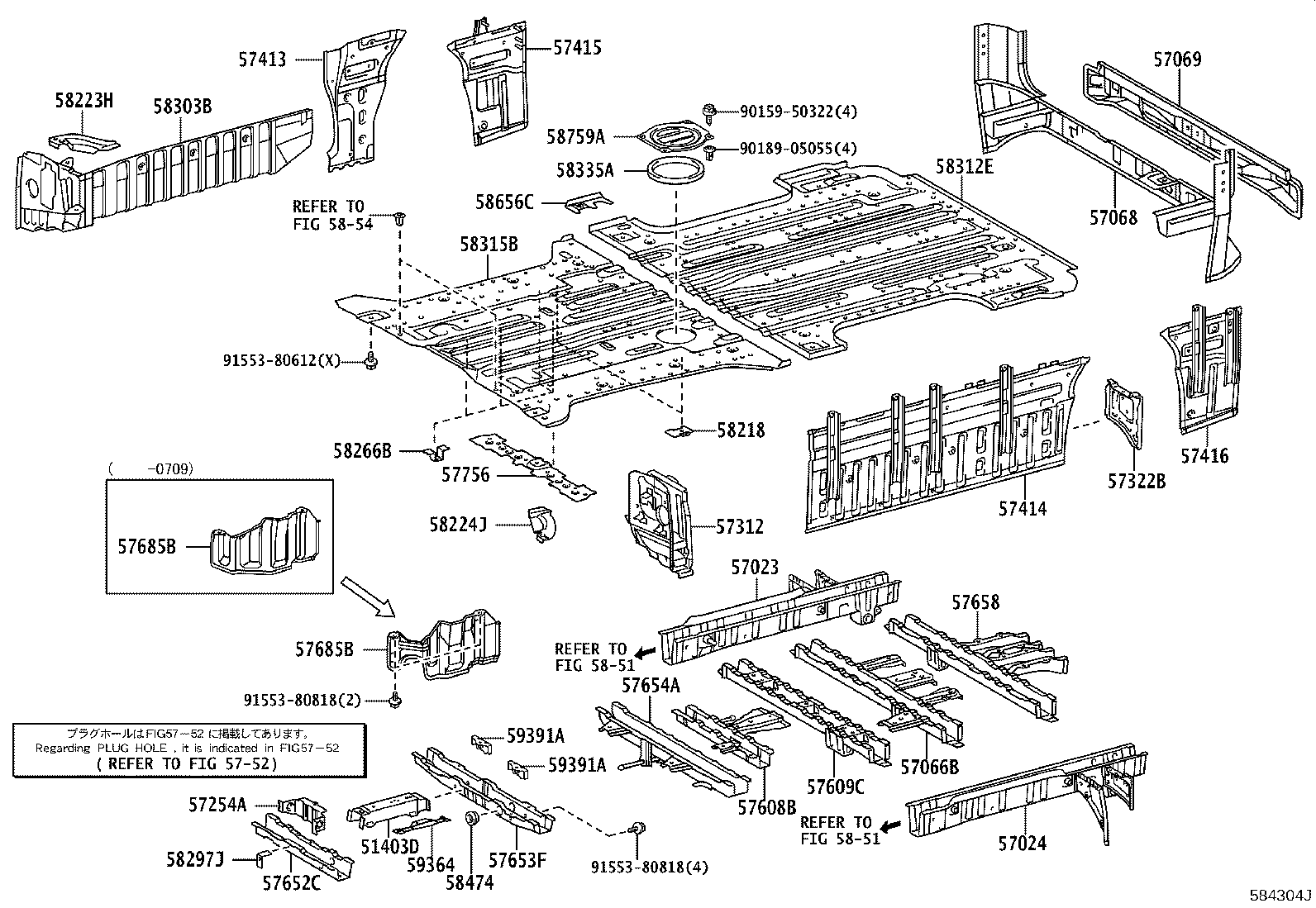

Click highlighted areas on diagram

diagram 51403D 57023 57024 57066B 57068 57069 57254A 57312 57322B 57413 57414 57415 57416 5752 57608B 57609C 57652C 57653F 57654A 57658 57685B 57685B 57756 58218 58223H 58224J 58266B 58297J 58303B 58312E 58315B 58335A 58474 5851 5851 5854 58656C 58759A 59364 59391A 59391A 9015950322 9018905055 9155380612 9155380818 9155380818
Part # Description Qty Price
51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-26230

TRH20#,213,22#

 1
51403-26231

TRH20#,213,22#

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-26660

KDH212,TRH213..STD

 1
57023-26640

KDH212,TRH213..GCC;TRH201,213..SG..(03S,09S);KDH212,TRH213..RHD..STD..GEN;KDH202,203,LH202,212,TRH203..SMRF,SRF

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-26670

KDH212,TRH213..STD

 1
57024-26640

KDH212,TRH213..GCC;TRH201,213..SG..(03S,09S);KDH212,TRH213..RHD..STD..GEN;KDH202,203,LH202,212,TRH203..SMRF,SRF

 1
57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
57066-26281

KDH212,LH212,TRH213..LHD..STD

 1
57066-26282

KDH212,LH212,TRH213..LHD..STD

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-26160

KDH212,TRH213..STD

 1
57069-26150

LH212;KDH212,TRH213..GCC;KDH212,TRH213..RHD..(GEN,TH)

 1
57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER
57254-26040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
57312 - OUTRIGGER, NO.1 LH
57302-26080

TRH213..STD

 1
57302-26030

TRH203,213..GCC

 1
57322B - OUTRIGGER, NO.5, LH
57322-26030

KDH202..LHD..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH200,203,212,222,223,LH20#,212,222,TRH201,22#..LHD..4D..(03S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS)

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-26A70

KDH200..LHD..4D;KDH200..06S..GCC;KDH200,LH200..5D..SP;KDH201..03S..5F..GEN;KDH202,203,212,LH20#,212,TRH201,203,213..LHD..STD

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-26580

KDH202,212,LH202,212,TRH203,213..LHD..(15S,16S)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57415-26210

KDH20#,212,220,221,LH20#,212,TRH20#,213,221..03S,06S,14S,15S,16S

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57416-26160

KDH20#,212,220,221,LH20#,212,TRH20#,213,221..03S,06S,14S,15S,16S

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-26421

KDH212,LH212,TRH213..LHD..STD

 1
57608-26422

KDH212,LH212,TRH213..LHD..STD

 1
57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-26231

KDH212,LH212,TRH213..STD..(GCC,GEN)

 1
57609-26360

KDH212,TRH213..STD

 1
57609-26230

LH212;TRH213..09S;KDH212,TRH213..GCC;KDH212,TRH213..RHD..STD..GEN

 1
57609-26232

KDH212,LH212,TRH213..STD

 1
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-26080

KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN

 1
57653F - MEMBER, REAR FLOOR CROSS, NO.2
57653-26140

KDH221..5D;TRH223..GL..SA;KDH220..SP..(GEN,SA);KDH222..STD..(GCC,GEN);TRH223..ARL,CIS,GCC,GEN,TH;TRH213..(10S,16S)..(GCC,GEN,SA);KDH212..(10S,11S,16S)..(GCC,GEN,SA);KDH223,LH212,222,TRH221..03S,12S,14S,16S;KDH222,TRH213..(11S,14S,16S)..GL..(GCC,SA,TH)

 1
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57607-26811

KDH212,LH212,TRH213..LHD..STD

 1
57658 - MEMBER, REAR FLOOR CROSS, NO.7
57067-26301

KDH212,LH212,TRH213..STD

 1
57685B - GUARD, FUEL TANK
57685-26010

TRH20#,213

 1
57685B - GUARD, FUEL TANK
57685-26010

TRH20#,213

 1
57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER
57756-26020

KDH222,TRH223..12S,13S,14S;KDH212,223,LH212,TRH213..(10S,12S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA,VN)

 1
58218 - PLATE, SEAT FLOOR PANEL
58218-26010

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 2
58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-26070

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH
58224-26090

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
58266B - BRACKET, FUEL TUBE CLAMP
58266-95J00

KDH212,TRH200..4FC;TRH201,203,213,22#

 4
58297J - RETAINER, FLOOR CLAMP
58297-26020

TRH223;TRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);TRH201,213..(03S,06S,10S,16S)..5F;KDH202,TRH213..(11S,12S,15S)..(GCC,TH);KDH200,222,LH202,212..(03S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223,LH200,222,TRH221..03S,06S,10S,11S,14S,16S

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58303-26160

KDH200,202,212,TRH201,203,213..SG..GCC

 1
58312E - PANEL, REAR FLOOR, REAR
58312-26371

KDH212,LH212,TRH213..LHD..16S

 1
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-26030

TRH213..GCC,GEN,SA,TH;KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,22#

 1
58474 - COVER, INSPECTION HOLE
58474-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 2
58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH
58656-26020

TRH213..GL..(GEN,TH);KDH200,201,LH200,TRH200,201..5D;KDH202,203,212,LH20#,212,TRH203..LHD;KDH200,TRH201,213..LHD..4D..STD..(GCC,GEN)

 1
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-26010

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
59364 - RETAINER, REAR SEAT, NO.1 D
59364-26090

KDH223..RUS,TH;KDH222..STD..SA;TRH223..12S,13S,15S;KDH212,LH212,TRH213..LHD..(10S,16S)

 1
59391A - RETAINER, REAR FLOOR, NO.1
59391-26010

KDH222..ARL;KDH222,TRH223..GL..SA;TRH213..LHD..STD..(GEN,VN);TRH213..(10S,16S)..(GCC,SA);KDH212,LH212..LHD..16S..GEN;KDH212..(10S,16S)..(GCC,SA,VN);KDH223,LH222,TRH223..RHD..(ARL,GEN)

RH

 1
58317-26100

KDH222,TRH223..12S,13S,14S;KDH212,223,LH212,TRH213..(10S,12S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA,VN)

CENTER

 1
59391A - RETAINER, REAR FLOOR, NO.1
59391-26010

KDH222..ARL;KDH222,TRH223..GL..SA;TRH213..LHD..STD..(GEN,VN);TRH213..(10S,16S)..(GCC,SA);KDH212,LH212..LHD..16S..GEN;KDH212..(10S,16S)..(GCC,SA,VN);KDH223,LH222,TRH223..RHD..(ARL,GEN)

RH

 1
58317-26100

KDH222,TRH223..12S,13S,14S;KDH212,223,LH212,TRH213..(10S,12S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA,VN)

CENTER

 1
Common parts
90159-50322
90189-05055
91553-80612
91553-80818
Linked diagrams
5752
5851
5854
