TRH213L-JEMDKU (2007)

Toyota Hiace

Production Sep 2007 - May 2012
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 88470 88470B
Part # Description Qty Price

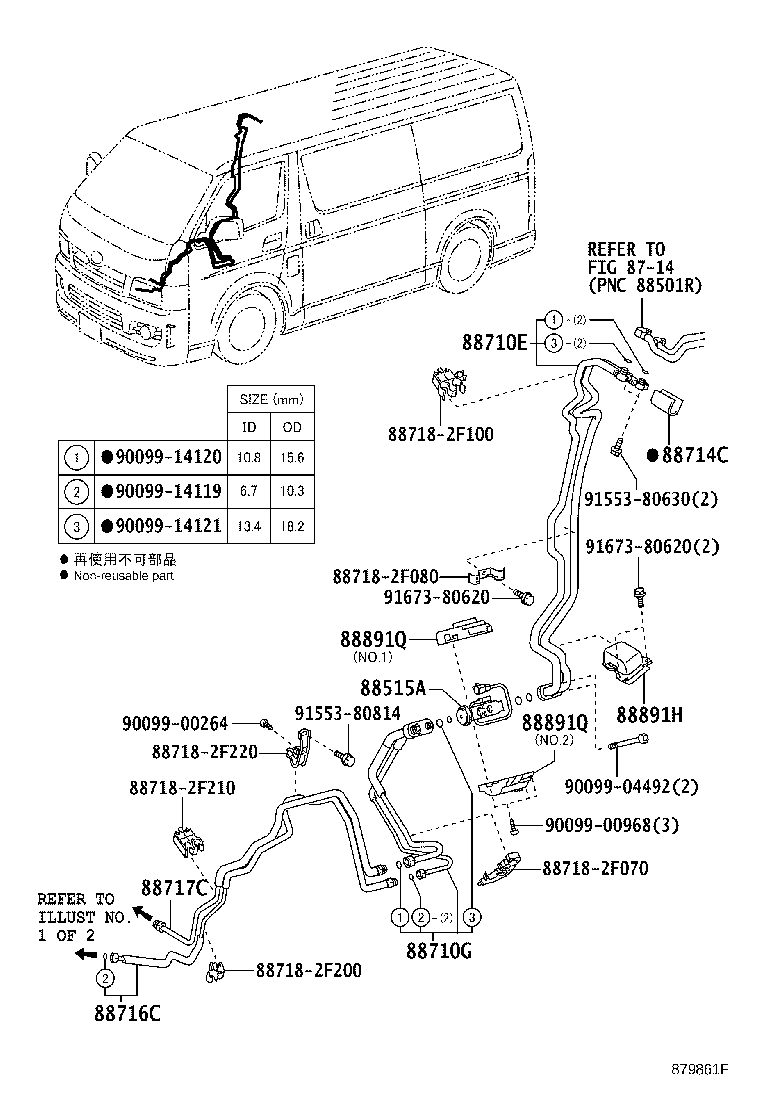

ILLUST NO. 2 OF 2(0709- )TRH213..11S,16S..GCC,TH,VN ; (0709-)LH212,TRH213..LHD..STD..GEN

Click highlighted areas on diagram

REAR

diagram 8714 88515A 88710E 88710G 88714C 88716C 88717C 887182F070 887182F080 887182F100 887182F200 887182F210 887182F220 88891H 88891Q 88891Q 9009900264 9009900968 9009904492 9009914119 9009914120 9009914121 9155380630 9155380814 9167380620 9167380620
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-26090

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2F820

KDH212,LH212,TRH213..LHD..STD

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-2F850

TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..09S,10S,11S,12S,14S;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,VN)

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-26050

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2N170

TRH213..STD..VN;TRH223..4FC..GL;TRH213,223..(09S,10S,11S,14S)..GL;KDH222,TRH200,223..(06S,12S,14S)..(ARL,CIS,GEN)

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88715-26451

TRH213..STD..VN;TRH223..4FC..GL;TRH213,223..(09S,10S,11S,14S)..GL;KDH222,TRH200,223..(06S,12S,14S)..(ARL,CIS,GEN)

 1
88891H - COVER, COOLER, NO.1
88891-26250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88891Q - COVER, COOLER, NO.2
88891-26270

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.1

 1
88891-26280

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.2

 1
88891Q - COVER, COOLER, NO.2
88891-26270

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.1

 1
88891-26280

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.2

 1
Common parts
88718-2F070
88718-2F080
88718-2F100
88718-2F200
88718-2F210
88718-2F220
90099-00264
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
91553-80630
91553-80814
91673-80620
Linked diagrams
8714
