TRH213L-JEMDKU (2007)
Toyota Hiace
(7702- )BUS,TR,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6762 | ||||

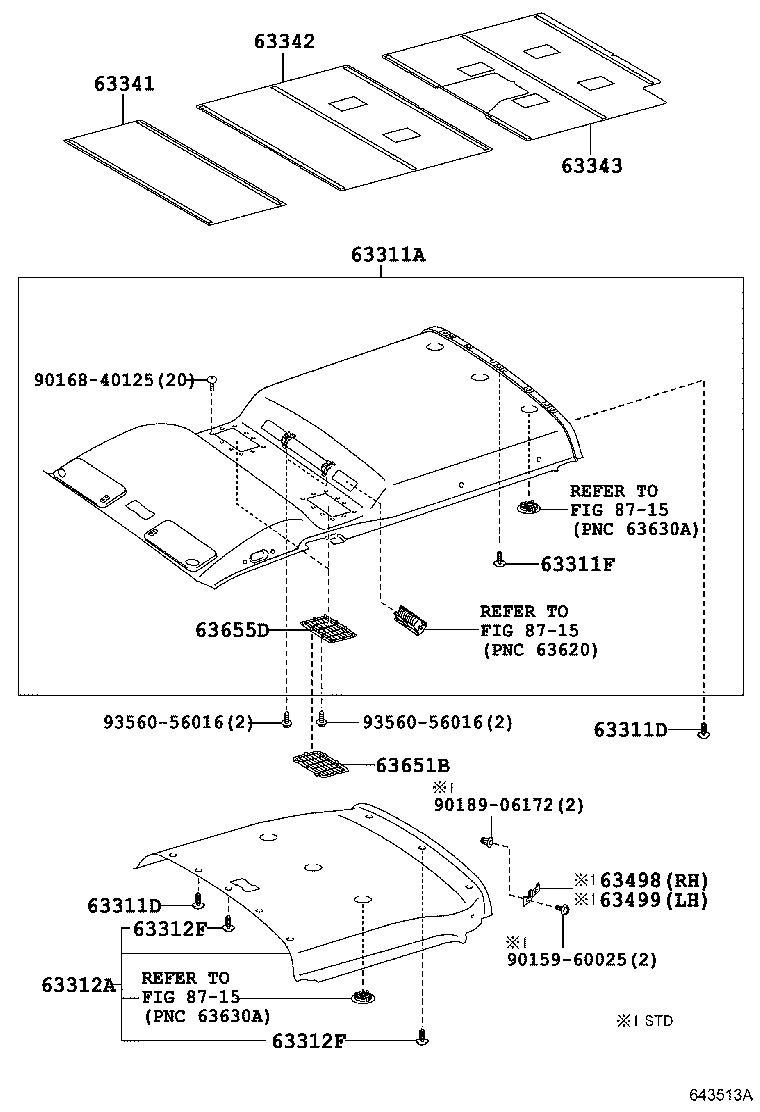

(0501- )KDH212,LH212,TRH213
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26B10B1 |
KDH212,LH212,TRH213..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26B11B1 |
KDH212,TRH213..STD..VN LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH212,LH212,TRH213..STD LT.GRAY,TRIM1# |
26 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH212,LH212,TRH213..STD LT.GRAY,TRIM1# |
26 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26410B0 |
KDH212,TRH213..STD..VN LIGHT GRAY,TRIM1# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26190 |
KDH212,LH212,TRH213 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26130 |
KDH212,LH212,TRH213 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26100 |
KDH212,LH212,TRH213 |
1 | ||
| 63498 - BRACKET, ROOF HEADLINING, REAR RH | ||||
| 63743-26030 |
TRH213..STD..VN |
1 | ||
| 63499 - BRACKET, ROOF HEADLINING, REAR LH | ||||
| 63744-26030 |
TRH213..STD..VN |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90189-06018 | ||||
| 90189-06172 | ||||
| 91673-80612 | ||||
| 93560-56016 | ||||
(0709- )KDH212,LH212,TRH213
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26B10B1 |
KDH212,LH212,TRH213..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26B11B1 |
KDH212,TRH213..STD..VN LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH212,LH212,TRH213..STD LT.GRAY,TRIM1# |
26 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH212,LH212,TRH213..STD LT.GRAY,TRIM1# |
26 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26410B0 |
KDH212,TRH213..STD..VN LIGHT GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
TRH213;TRH223..4FC..GL;KDH222,TRH223..GL..(CIS,SA);KDH212,223,LH212..ARL,GCC,GEN,RUS,SA,VN LT.GRAY,TRIM1# |
2 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
TRH213;TRH223..4FC..GL;KDH222,TRH223..GL..(CIS,SA);KDH212,223,LH212..ARL,GCC,GEN,RUS,SA,VN LT.GRAY,TRIM1# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26190 |
KDH212,LH212,TRH213 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26130 |
KDH212,LH212,TRH213 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26100 |
KDH212,LH212,TRH213 |
1 | ||
| 63498 - BRACKET, ROOF HEADLINING, REAR RH | ||||
| 63743-26030 |
TRH213..STD..VN |
1 | ||
| 63499 - BRACKET, ROOF HEADLINING, REAR LH | ||||
| 63744-26030 |
TRH213..STD..VN |
1 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH212,LH212,TRH213..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90168-40125 | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

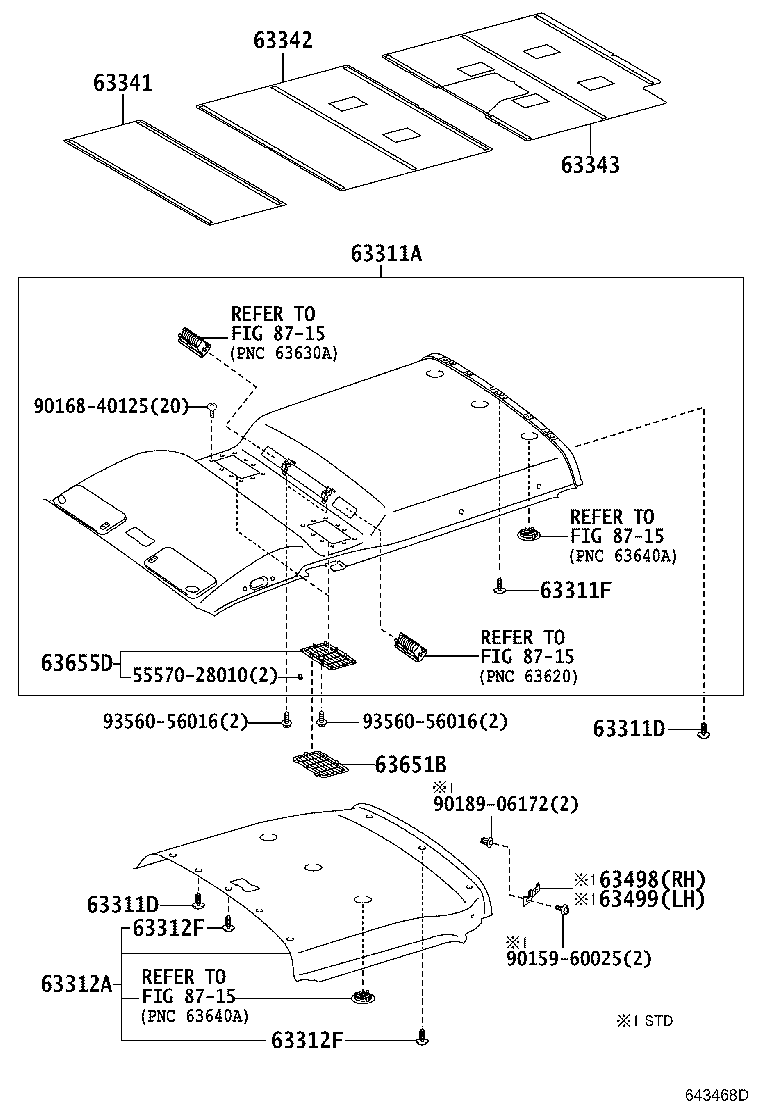

(1312- )KDH21#,LH212,TRH213
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55570-28010 | ||||
| 90159-60025 | ||||
| 90168-40125 | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
