TRH213L-JEMDKU (2007)
Toyota Hiace
Production
Sep 2007
-
May 2012
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

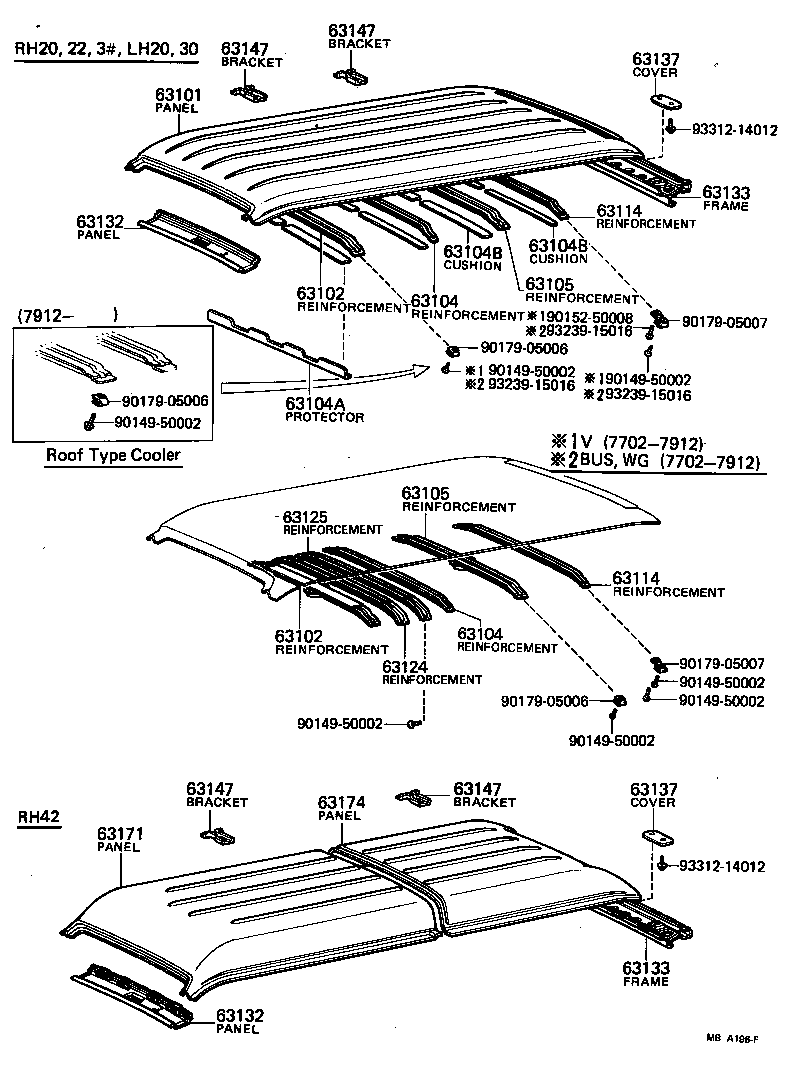

(7702- )LH20,30,RH20,22,3#,42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-50002 | ||||
| 90152-50008 | ||||
| 90179-05006 | ||||
| 90179-05007 | ||||
| 93239-15016 | ||||
| 93312-14012 | ||||

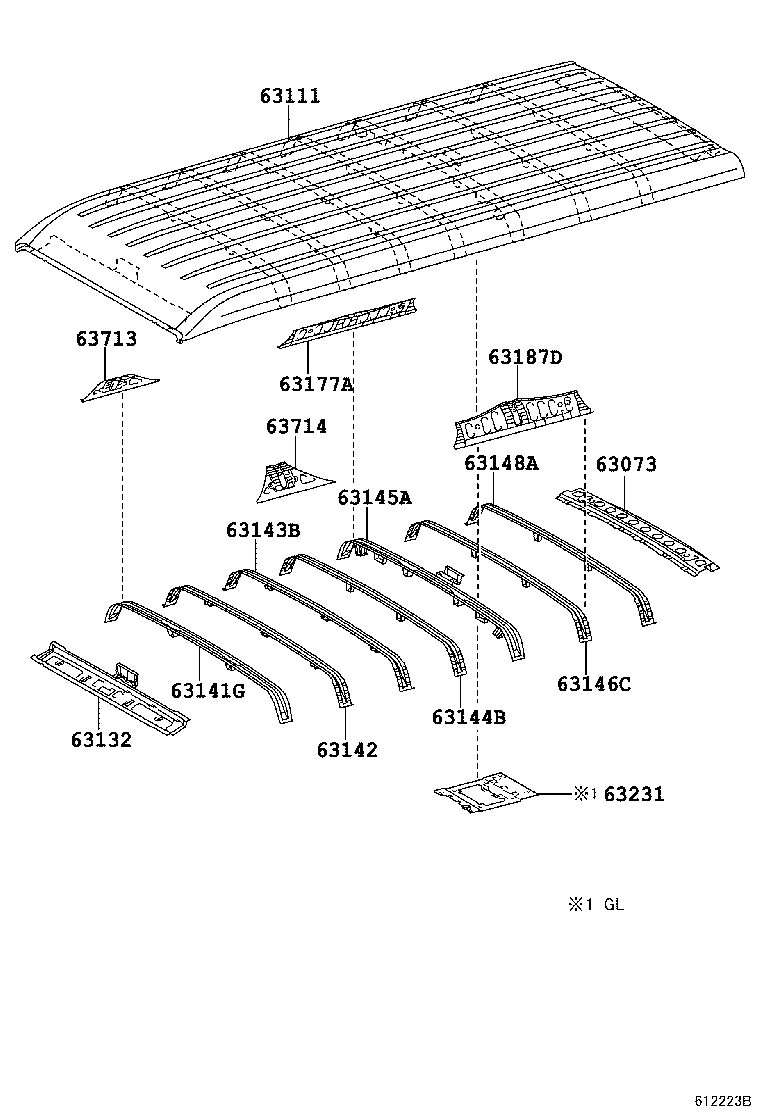

(0501- )KDH212,LH212,TRH213
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER | ||||
| 63073-26110 |
KDH212,LH212,TRH213 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-26490 |
KDH212,LH212,TRH213 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-26150 |
KDH212,LH212,TRH213 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26300 |
KDH212,TRH213..GL;KDH212,TRH213..STD..VN |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-26200 |
KDH212,TRH213..GL;KDH212,TRH213..STD..VN |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-26160 |
KDH212,LH212,TRH213 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-26070 |
KDH212,LH212,TRH213 |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63107-26090 |
KDH212,LH212,TRH213..STD |
1 | ||
| 63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63106-26070 |
KDH212,LH212,TRH213 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-26070 |
KDH212,LH212,TRH213 |
1 | ||
| 63177A - REINFORCEMENT, ROOF PANEL, RH NO.7 | ||||
| 63177-26040 |
TRH213..VN |
1 | ||
| 63187D - REINFORCEMENT, ROOF PANEL, LH NO.7 | ||||
| 63187-26090 |
TRH213..VN |
1 | ||
| 63713 - BRACKET, ROOF PANEL REINFORCEMENT, NO.3 | ||||
| 63713-26030 |
TRH213..VN |
1 | ||
| 63714 - BRACKET, ROOF PANEL REINFORCEMENT, NO.4 | ||||
| 63714-26020 |
TRH213..VN |
1 | ||
(1312- )KDH21#,LH212,TRH213
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6762 | ||||
