TRH213L-JEMDKU (2007)
Toyota Hiace
ILLUST NO. 2 OF 2(0501- )KDH212,22#,LH212,222,TRH213,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53752B - BRACKET, WASHER TANK MOUNTING | ||||
| 53752-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55015-26430 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..5F |
1 | ||
| 55112 - PANEL, DASH, NO.2 | ||||
| 55112-26120 |
KDH20#,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD |
1 | ||
| 55127 - REINFORCEMENT, PARKING BRAKE | ||||
| 55127-26020 |
KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 55135C - BRACKET, BRAKE PEDAL, NO.2 | ||||
| 55135-26030 |
KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-26010 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 55149C - BRACKET, DASH WIRING HARNESS | ||||
| 55149-26020 |
KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 55159C - STAY, PEDAL BRACKET | ||||
| 55159-26020 |
KDH222..5F..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 55161C - BRACKET, HEATER MOUNTING | ||||
| 55161-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55162A - BRACKET, HEATER MOUNTING, LWR | ||||
| 55162-26070 |
KDH212,220,222,LH212,222,TRH213,22#..LHD |
1 | ||
| 58197D - RETAINER, INSTR PANEL BRACE MT BRACKET | ||||
| 58197-26020 |
TRH213..GL..VN;KDH212,TRH213..LHD..4D..(09S,11S,16S);KDH200,202,203,220,222,LH20#,212,222,TRH201,203,22#..LHD..(03S,06S,10S,12S,15S,16S)..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 58197-26020 |
TRH213..GL..VN;KDH212,TRH213..LHD..4D..(09S,11S,16S);KDH200,202,203,220,222,LH20#,212,222,TRH201,203,22#..LHD..(03S,06S,10S,12S,15S,16S)..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||

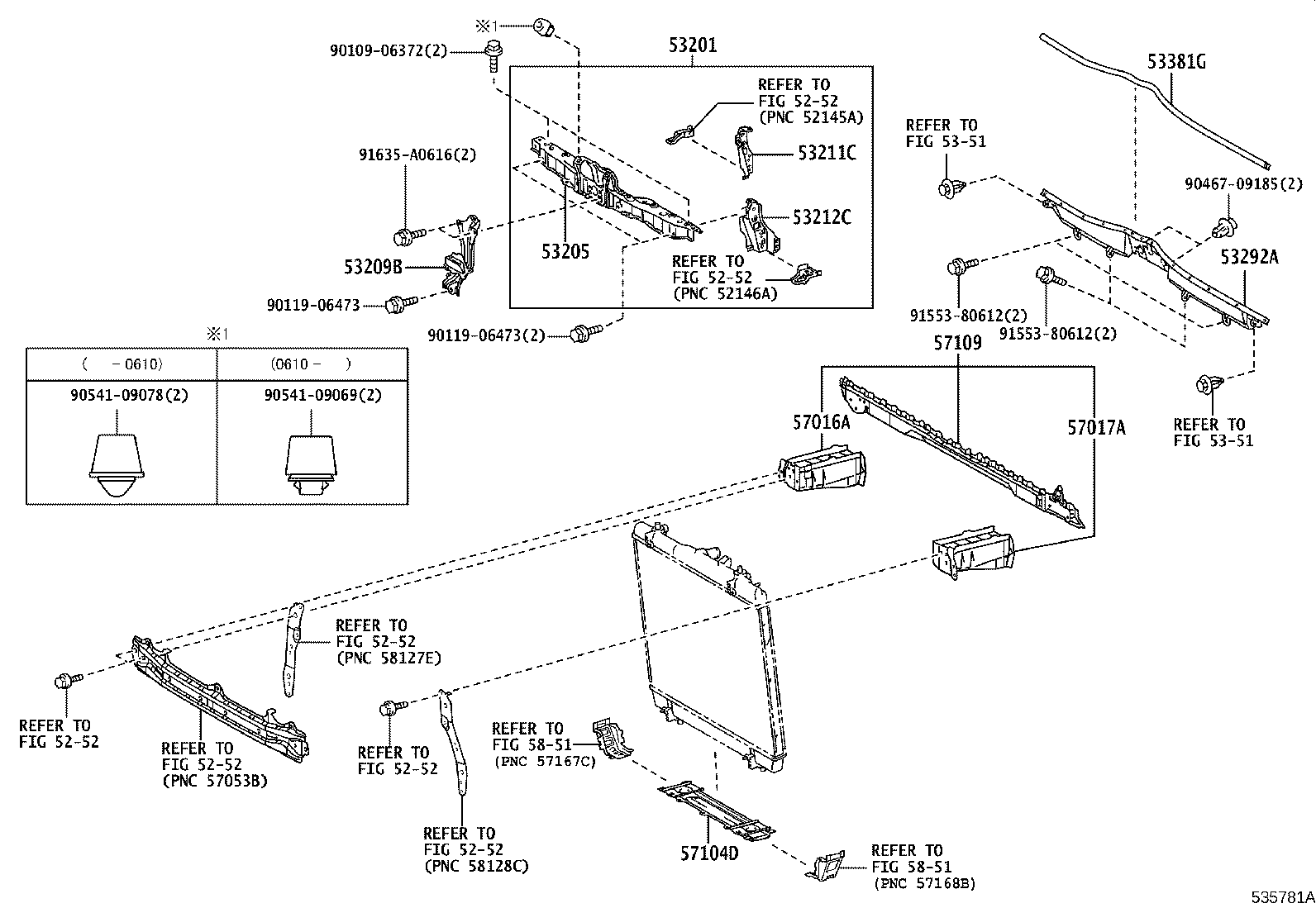

ILLUST NO. 1 OF 2(0501- )KDH212,22#,LH212,222,TRH213,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-26090 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-26020 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-26110 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-26080 |
KDH222..GCC,SA;KDH222..LHD..GEN;KDH220..SP..(GEN,SA);KDH212,LH212,222,TRH213,22# |
1 | ||
| 53381G - SEAL, HOOD TO RADIATOR SUPPORT, NO.1 | ||||
| 53381-26120 |
KDH222..GCC,SA;KDH222..LHD..GEN;KDH220..SP..(GEN,SA);KDH212,LH212,222,TRH213,22# |
1 | ||
| 57016A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-26020 |
KDH220..SP;KDH220..SG..5F;KDH223,TRH213,223;KDH212,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57017A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-26020 |
KDH220..SP;KDH220..SG..5F;KDH223,TRH213,223;KDH212,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-26200 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57109 - REINFORCEMENT SUB-ASSY, DASH PANEL CROSS MEMBER | ||||
| 57109-26040 |
TRH213,22#;KDH221..5D..GEN;KDH222..STD..SA |
1 | ||
| Common parts | ||||
| 90109-06372 | ||||
| 90119-06473 | ||||
| 90467-09185 | ||||
| 90541-09069 | ||||
| 90541-09078 | ||||
| 91553-80612 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5351 | ||||
| 5851 | ||||
ILLUST NO. 2 OF 2(1312- )KDH21#,220,222,223,LH212,222,TRH213,22#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90115-06166 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||

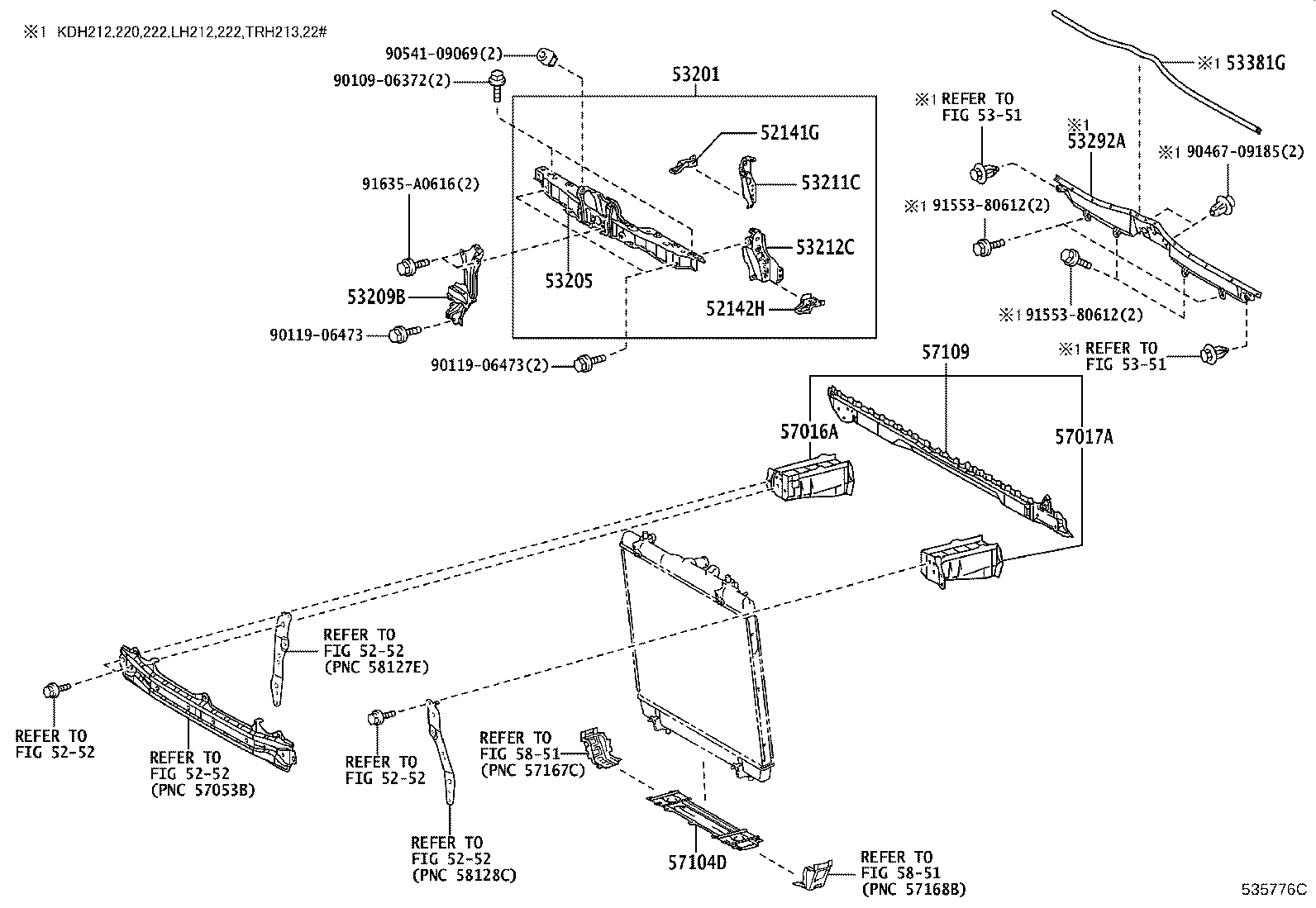

ILLUST NO. 1 OF 2(1312- )KDH21#,22#,LH212,222,TRH213,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06372 | ||||
| 90119-06473 | ||||
| 90467-09185 | ||||
| 90541-09069 | ||||
| 91553-80612 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5351 | ||||
| 5851 | ||||
