TRH213L-JEMDKU (2007)
Toyota Hiace
(7702- )

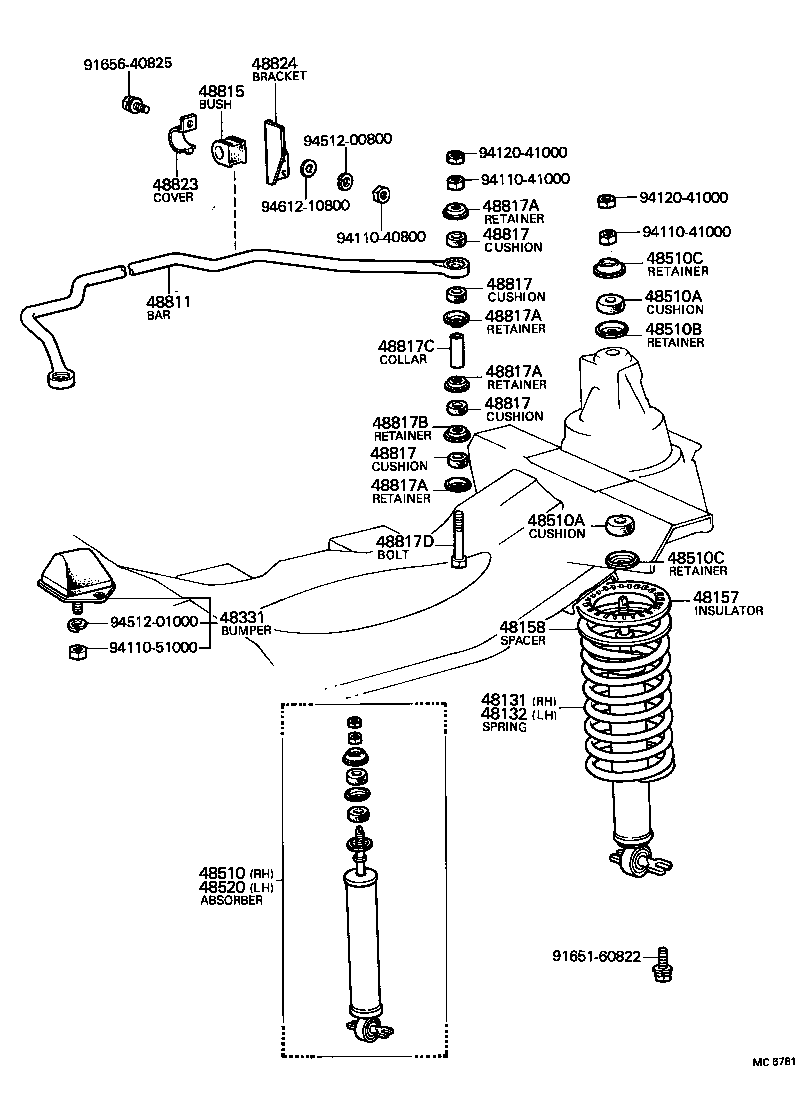

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-60822 | ||||
| 91656-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
(0501- )

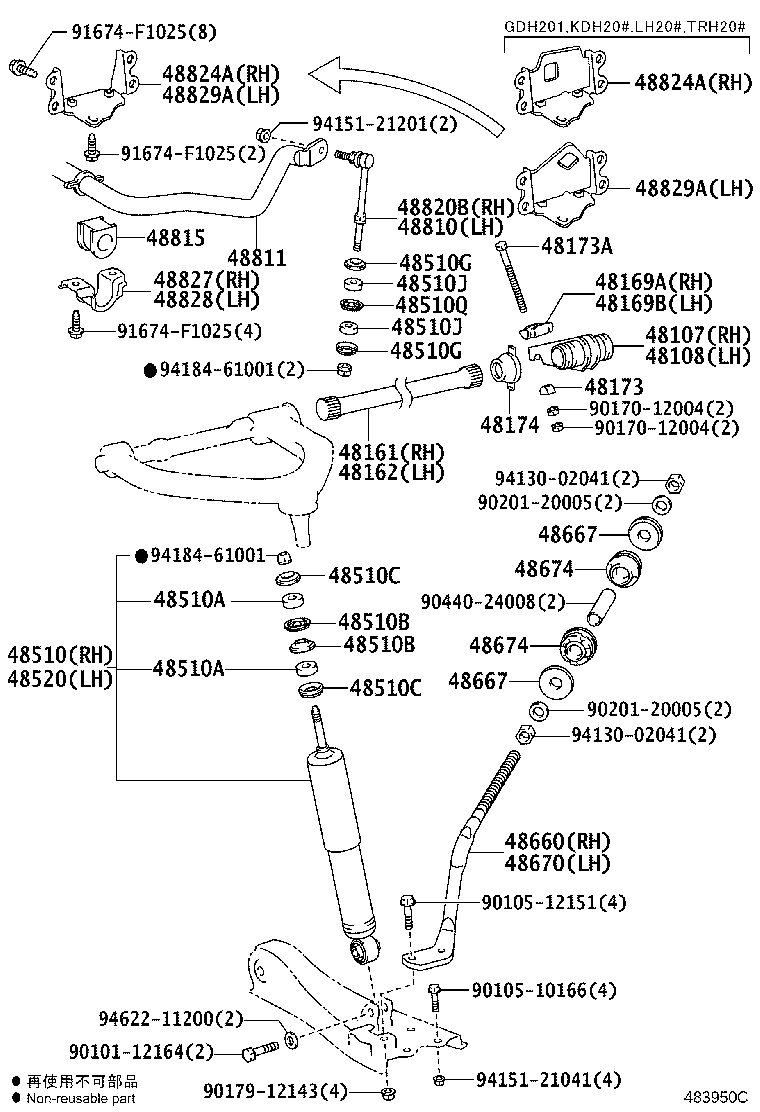

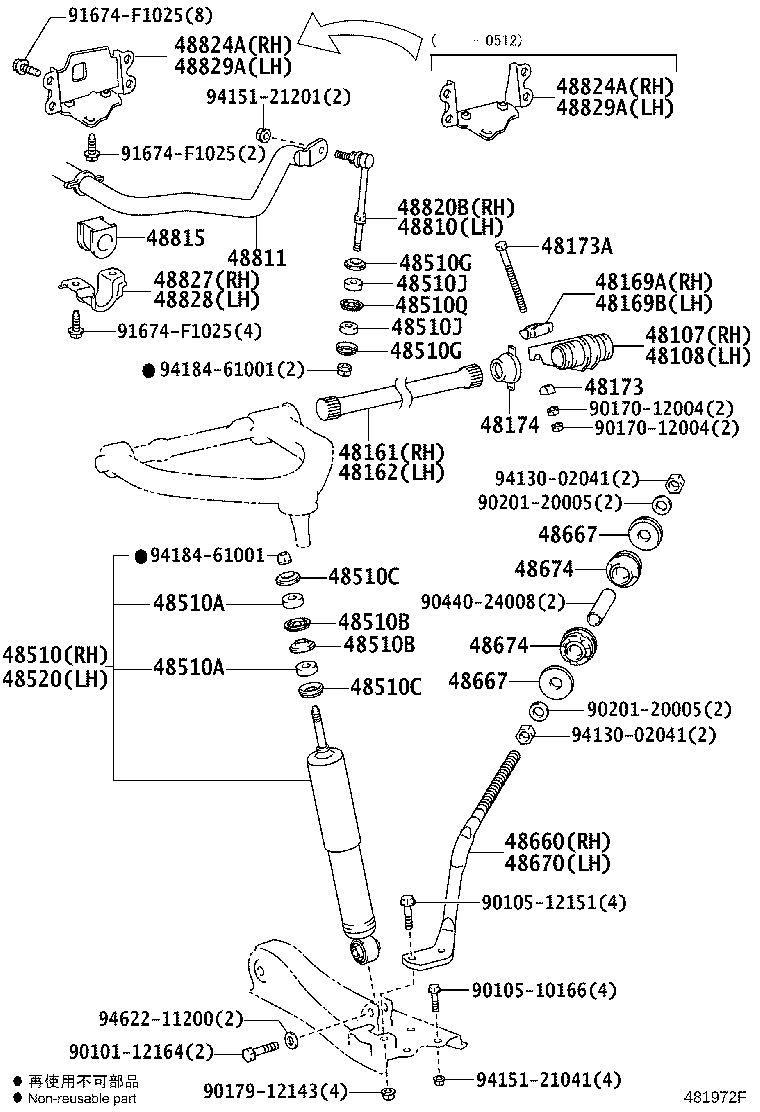

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-26080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-26080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-26500 |
KDH212,LH212,TRH213..4D |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-26500 |
KDH212,LH212,TRH213..4D |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-26060 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-26060 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48173 - SEAT, ANCHOR ARM ADJUSTER | ||||
| 48173-27010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12165 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-34010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80101 |
KDH202,203,212,LH202,212,TRH203,213 MARK 48511-26630 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
TRH201..SG..03S;KDH200,TRH201..5D;KDH200..4D..5F..GEN;KDH200,TRH201..ARL,MA,SA,TH;KDH201,202,203,212,22#,LH20#,212,222,TRH200,203,213,22# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
TRH201..SG..03S;KDH200,TRH201..5D;KDH200..4D..5F..GEN;KDH200,TRH201..ARL,MA,SA,TH;KDH201,202,203,212,22#,LH20#,212,222,TRH200,203,213,22# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
TRH201..SG..03S;KDH200,TRH201..5D;KDH200..4D..5F..GEN;KDH200,TRH201..ARL,MA,SA,TH;KDH201,202,203,212,22#,LH20#,212,222,TRH200,203,213,22# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
TRH201..SG..03S;KDH200,TRH201..5D;KDH200..4D..5F..GEN;KDH200,TRH201..ARL,MA,SA,TH;KDH201,202,203,212,22#,LH20#,212,222,TRH200,203,213,22# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
TRH201..SG..03S;KDH200,TRH201..5D;KDH200..4D..5F..GEN;KDH200,TRH201..ARL,MA,SA,TH;KDH201,202,203,212,22#,LH20#,212,222,TRH200,203,213,22# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
TRH201..SG..03S;KDH200,TRH201..5D;KDH200..4D..5F..GEN;KDH200,TRH201..ARL,MA,SA,TH;KDH201,202,203,212,22#,LH20#,212,222,TRH200,203,213,22# |
4 | ||
| 48510G - RETAINER, FRONT SHOCK ABSORBER | ||||
| 90948-02193 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48510G - RETAINER, FRONT SHOCK ABSORBER | ||||
| 90948-02193 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01080 |
KDH221..5D;TRH213..TH;TRH213..10S,16S;KDH220..SP..(GEN,SA);KDH223,LH212,TRH22#..03S,12S,13S,14S,15S,16S;KDH212,222,LH222..(10S,11S,14S,16S)..(GCC,GEN,SA,TH,VN) |
4 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01080 |
KDH221..5D;TRH213..TH;TRH213..10S,16S;KDH220..SP..(GEN,SA);KDH223,LH212,TRH22#..03S,12S,13S,14S,15S,16S;KDH212,222,LH222..(10S,11S,14S,16S)..(GCC,GEN,SA,TH,VN) |
4 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02005 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80101 |
KDH202,203,212,LH202,212,TRH203,213 MARK 48511-26630 |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48661-26050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48667 - RETAINER, STRUT BAR | ||||
| 48667-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48667 - RETAINER, STRUT BAR | ||||
| 48667-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48661-26050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-26040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-26040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-26050 |
KDH221..5D;KDH202..15S;TRH201..SG..4FC;TRH213..10S,16S;TRH203..15S..GEN;TRH201,223..4D..SG;KDH202..LHD..12S..5F;TRH20#..4D..(ARL,GCC,MA,SA);KDH202,TRH213..(HRF,SMRF)..(MA,TH);KDH220,TRH201..5D..5F..(GCC,GEN,SA);KDH201,203,212,223,LH200,222,TRH221..03S,06S,10S,11S,12S,14S,16S;KDH200,222,LH202,212..(03S,12S,14S,15S,16S)..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-26410 |
KDH212,220,221,LH212,TRH213,221 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-26380 |
KDH212,220,221,LH212,TRH213,221 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-26050 |
KDH221..5D;KDH202..15S;TRH201..SG..4FC;TRH213..10S,16S;TRH203..15S..GEN;TRH201,223..4D..SG;KDH202..LHD..12S..5F;TRH20#..4D..(ARL,GCC,MA,SA);KDH202,TRH213..(HRF,SMRF)..(MA,TH);KDH220,TRH201..5D..5F..(GCC,GEN,SA);KDH201,203,212,223,LH200,222,TRH221..03S,06S,10S,11S,12S,14S,16S;KDH200,222,LH202,212..(03S,12S,14S,15S,16S)..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26250 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26250 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-26230 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-26230 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-26170 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-26170 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| Common parts | ||||
| 90101-12164 | ||||
| 90105-10166 | ||||
| 90105-12151 | ||||
| 90170-12004 | ||||
| 90179-12143 | ||||
| 90201-20005 | ||||
| 90440-24008 | ||||
| 91674-F1025 | ||||
| 94130-02041 | ||||
| 94151-21041 | ||||
| 94151-21201 | ||||
| 94184-61001 | ||||
| 94622-11200 | ||||
(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-12164 | ||||
| 90105-10166 | ||||
| 90105-12151 | ||||
| 90170-12004 | ||||
| 90179-12143 | ||||
| 90201-20005 | ||||
| 90440-24008 | ||||
| 91674-F1025 | ||||
| 94130-02041 | ||||
| 94151-21041 | ||||
| 94151-21201 | ||||
| 94184-61001 | ||||
| 94622-11200 | ||||
