TRH213L-JEMDKU (2007)
Toyota Hiace
Production
Sep 2007
-
May 2012
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )LH20#,212,222,TRH201,203,213,22#..5F

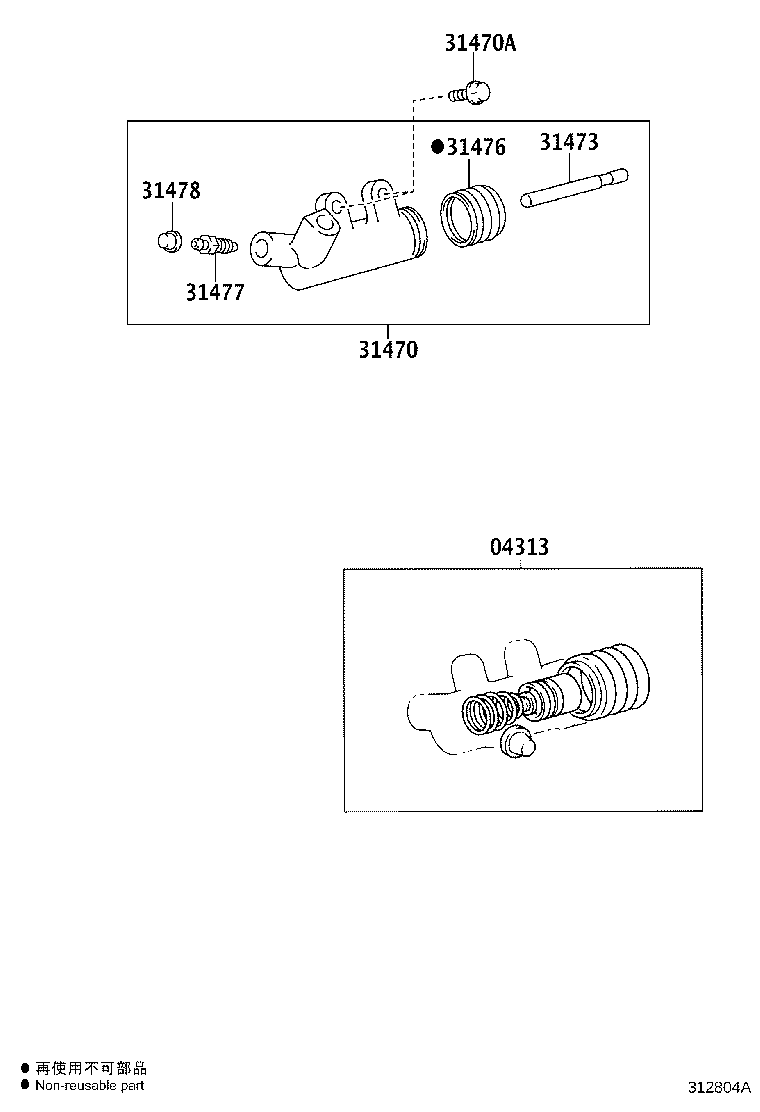

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-22030 |
LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-26120 |
TRH201,203,213,22#..5F |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-B0825 |
LH20#,212,222,TRH201,203,213,22#..5F *8-1.25PX25-25 |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-35050 |
TRH201,203,213,22#..5F |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-22010 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
(1312- )KDH20#,21#,22#..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(1312- )LH20#,212,222,TRH201,203,213,22#..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
