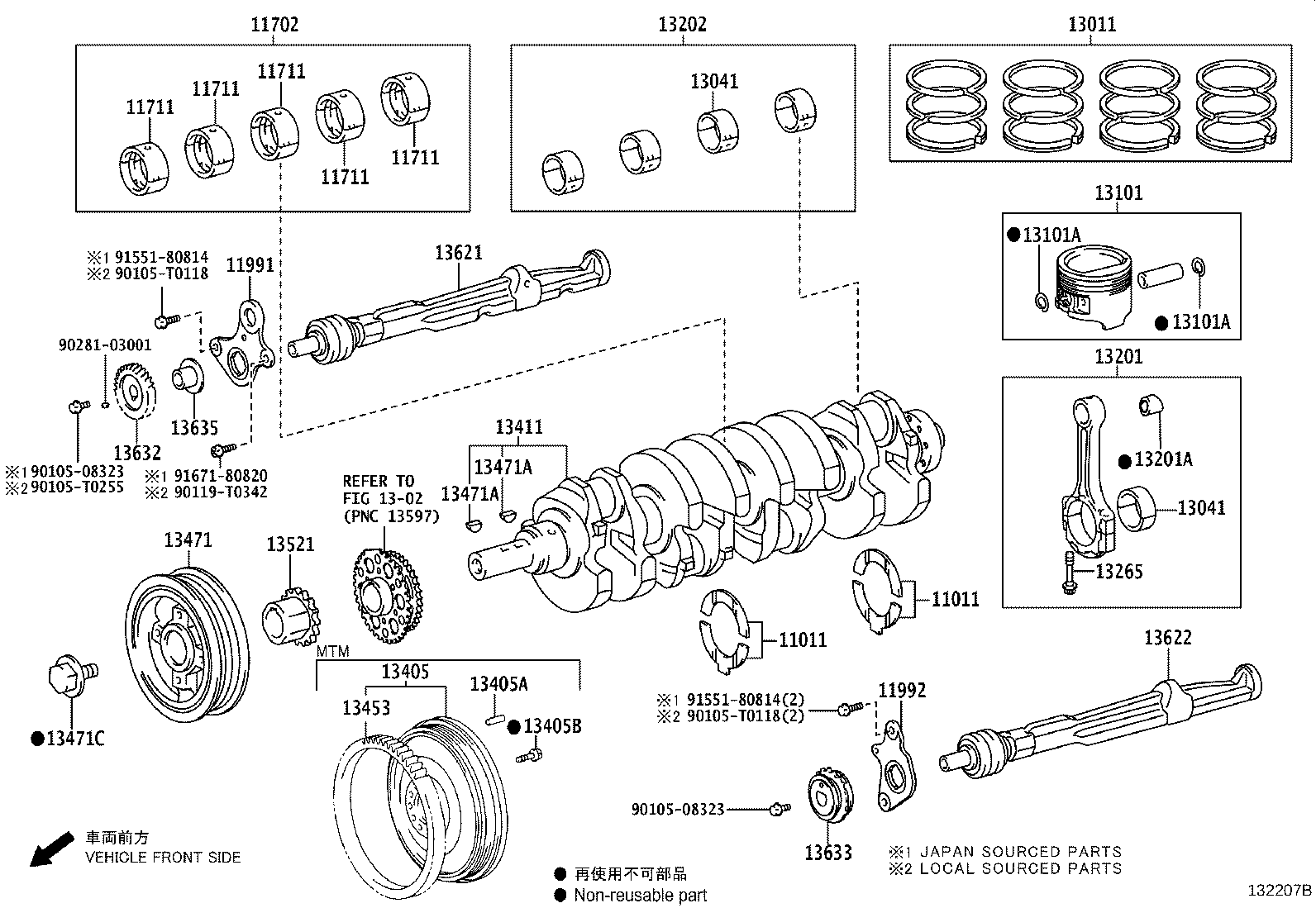

TRH203R-EDMDKE (2014)
Toyota Hiace
(1312- )2TRFE..ARL,GCC,GEN,RUS,SA,TH ; (1401-1412)2TRFE..TRH203..MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0C010 |
2TRFE..TRH203..MA STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0C010 |
2TRFE..TRH203..MA STD |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75031 |
2TRFE..TRH203..MA U/S 0.25 |
1 | ||
| 11704-75032 |
2TRFE..TRH203..MA U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 11991-75010 |
2TRFE..TRH203..MA (J) |
1 | ||
| 11991-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 11992 - WASHER, BALANCESHAFT THRUST, NO.2 | ||||
| 11992-75010 |
2TRFE..TRH203..MA (J) |
1 | ||
| 11992-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 11992-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0C030 |
2TRFE..TRH203..MA STD |
1 | ||
| 13013-75110 |
2TRFE..TRH221..GCC;2TRFE..TRH213..GL..GEN;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,22#..RHD..4FC;2TRFE..TRH223..STD..(SA,TH);2TRFE..TRH201,203..5F..(GCC,MA,SA);2TRFE..TRH213,221..(06S,11S,16S)..(GCC,SA,TH) O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0C05004 |
2TRFE..TRH203..MA MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05006 |
2TRFE..TRH203..MA MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05005 |
2TRFE..TRH203..MA MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06006 |
2TRFE..TRH203..MA MARK 6,(L),REFER R/M |
4 | ||
| 13041-0C05206 |
2TRFE..TRH203..MA MARK 6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06004 |
2TRFE..TRH203..MA MARK 4,(L),REFER R/M |
4 | ||
| 13041-7507005 |
2TRFE..TRH203..MA MARK 5,(J),REFER R/M |
4 | ||
| 13041-7507004 |
2TRFE..TRH203..MA MARK 4,(J),REFER R/M |
4 | ||
| 13041-0C05204 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05205 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06005 |
2TRFE..TRH203..MA MARK 5,(L),REFER R/M |
4 | ||
| 13041-7507006 |
2TRFE..TRH203..MA MARK 6,(J),REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0C05004 |
2TRFE..TRH203..MA MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05006 |
2TRFE..TRH203..MA MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05005 |
2TRFE..TRH203..MA MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06006 |
2TRFE..TRH203..MA MARK 6,(L),REFER R/M |
4 | ||
| 13041-0C05206 |
2TRFE..TRH203..MA MARK 6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06004 |
2TRFE..TRH203..MA MARK 4,(L),REFER R/M |
4 | ||
| 13041-7507005 |
2TRFE..TRH203..MA MARK 5,(J),REFER R/M |
4 | ||
| 13041-7507004 |
2TRFE..TRH203..MA MARK 4,(J),REFER R/M |
4 | ||
| 13041-0C05204 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05205 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06005 |
2TRFE..TRH203..MA MARK 5,(L),REFER R/M |
4 | ||
| 13041-7507006 |
2TRFE..TRH203..MA MARK 6,(J),REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0C020 |
2TRFE..TRH203..MA STD,(L) |
4 | ||
| 13103-75130 |
2TRFE..TRH203..MA O/S 0.50,(L) |
4 | ||
| 13101-75130 |
2TRFE..TRH203..MA STD,(J) |
4 | ||
| 13103-75130 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,22#..RHD..4FC;2TRFE..TRH223..STD..(SA,TH);2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH201,203..(03S,10S,15S)..5F;2TRFE..TRH201,213,221..(06S,11S,16S)..(GCC,SA,TH) O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09B80 |
2TRFE..TRH203..MA |
4 | ||
| 13201-09B81 |
2TRFE..TRH203..MA |
4 | ||
| 13201-09671 |
2TRFE..TRH203..MA |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75050 |
1TRFE,2TRFE..TRH20#,213,22# U/S 0.25 |
1 | ||
| 13204-75052 |
2TRFE..TRH203,213..10S..(GEN,MA) U/S 0.25 |
1 | ||
| 13204-75070 |
2TRFE..TRH203..MA U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2TRFE..TRH213..GL..GEN;2TRFE..TRH223..(4FC,5F)..(ARL,RUS,TH);2TRFE..TRH203,213..(10S,16S)..(GCC,MA);1TRFE,2TRFE..TRH200,201,22#..(02S,06S,10S)..4FC |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0C030 |
2TRFE..TRH203..MA |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2TRFE..TRH203..MA L=23,OD=8,(J) |
3 | ||
| 90250-T0010 |
2TRFE..TRH203..MA L=23,OD=8 |
3 | ||
| 90250-T0010 |
2TRFE..TRH203..MA L=23,OD=8,(L) |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-T2004 |
2TRFE..TRH203..MA |
10 | ||
| 90910-02116 |
2TRFE..TRH203..MA (J) |
10 | ||
| 90910-T2004 |
2TRFE..TRH203..MA (L) |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0C021 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13401-75020 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13401-0C022 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0C020 |
2TRFE..TRH203..MA |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0C030 |
2TRFE..TRH203..MA |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
2TRFE..TRH203..MA (J) |
2 | ||
| 90280-T0003 |
2TRFE..TRH203..MA (L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
2TRFE..TRH203..MA (J) |
2 | ||
| 90280-T0003 |
2TRFE..TRH203..MA (L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16041 |
2TRFE..TRH203..MA (J) |
1 | ||
| 90109-T0038 |
2TRFE..TRH203..MA (L) |
1 | ||
| 90109-T0038 |
2TRFE..TRH203..MA |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13521-0C011 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13521-75021 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| 13621-75020 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13621-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13621-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13622 - BALANCESHAFT, NO.2 | ||||
| 13622-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13622-75020 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13622-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-75010 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13635 - SPACER, BALANCESHAFT THRUST | ||||
| 13635-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13635-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13635-75010 |
2TRFE..TRH203..MA (J) |
1 | ||
| Common parts | ||||
| 90105-08323 | ||||
| 90105-T0118 | ||||
| 90105-T0238 | ||||
| 90281-03001 | ||||
| 91551-80814 | ||||
| 91641-80818 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(1412- )2TRFE..TRH203..MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0C010 |
2TRFE..TRH203..MA STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0C010 |
2TRFE..TRH203..MA STD |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75031 |
2TRFE..TRH203..MA U/S 0.25 |
1 | ||
| 11704-75032 |
2TRFE..TRH203..MA U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01002 |
2TRFE..TRH203..MA MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01003 |
2TRFE..TRH203..MA MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01001 |
2TRFE..TRH203..MA MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TRH203..MA MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TRH203..MA MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
2TRFE..TRH203..MA MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 11991-75010 |
2TRFE..TRH203..MA (J) |
1 | ||
| 11991-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 11992 - WASHER, BALANCESHAFT THRUST, NO.2 | ||||
| 11992-75010 |
2TRFE..TRH203..MA (J) |
1 | ||
| 11992-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 11992-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0C030 |
2TRFE..TRH203..MA STD |
1 | ||
| 13013-75110 |
2TRFE..TRH221..GCC;2TRFE..TRH213..GL..GEN;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,22#..RHD..4FC;2TRFE..TRH223..STD..(SA,TH);2TRFE..TRH201,203..5F..(GCC,MA,SA);2TRFE..TRH213,221..(06S,11S,16S)..(GCC,SA,TH) O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0C05004 |
2TRFE..TRH203..MA MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05006 |
2TRFE..TRH203..MA MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05005 |
2TRFE..TRH203..MA MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06006 |
2TRFE..TRH203..MA MARK 6,(L),REFER R/M |
4 | ||
| 13041-0C05206 |
2TRFE..TRH203..MA MARK 6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06004 |
2TRFE..TRH203..MA MARK 4,(L),REFER R/M |
4 | ||
| 13041-7507005 |
2TRFE..TRH203..MA MARK 5,(J),REFER R/M |
4 | ||
| 13041-7507004 |
2TRFE..TRH203..MA MARK 4,(J),REFER R/M |
4 | ||
| 13041-0C05204 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05205 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06005 |
2TRFE..TRH203..MA MARK 5,(L),REFER R/M |
4 | ||
| 13041-7507006 |
2TRFE..TRH203..MA MARK 6,(J),REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0C05004 |
2TRFE..TRH203..MA MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05006 |
2TRFE..TRH203..MA MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05005 |
2TRFE..TRH203..MA MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06006 |
2TRFE..TRH203..MA MARK 6,(L),REFER R/M |
4 | ||
| 13041-0C05206 |
2TRFE..TRH203..MA MARK 6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06004 |
2TRFE..TRH203..MA MARK 4,(L),REFER R/M |
4 | ||
| 13041-7507005 |
2TRFE..TRH203..MA MARK 5,(J),REFER R/M |
4 | ||
| 13041-7507004 |
2TRFE..TRH203..MA MARK 4,(J),REFER R/M |
4 | ||
| 13041-0C05204 |
2TRFE..TRH203..MA MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05205 |
2TRFE..TRH203..MA MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06005 |
2TRFE..TRH203..MA MARK 5,(L),REFER R/M |
4 | ||
| 13041-7507006 |
2TRFE..TRH203..MA MARK 6,(J),REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0C020 |
2TRFE..TRH203..MA STD,(L) |
4 | ||
| 13103-75130 |
2TRFE..TRH203..MA O/S 0.50,(L) |
4 | ||
| 13101-75130 |
2TRFE..TRH203..MA STD,(J) |
4 | ||
| 13103-75130 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,22#..RHD..4FC;2TRFE..TRH223..STD..(SA,TH);2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH201,203..(03S,10S,15S)..5F;2TRFE..TRH201,213,221..(06S,11S,16S)..(GCC,SA,TH) O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09B80 |
2TRFE..TRH203..MA |
4 | ||
| 13201-09B81 |
2TRFE..TRH203..MA |
4 | ||
| 13201-09671 |
2TRFE..TRH203..MA |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75050 |
1TRFE,2TRFE..TRH20#,213,22# U/S 0.25 |
1 | ||
| 13204-75052 |
2TRFE..TRH203,213..10S..(GEN,MA) U/S 0.25 |
1 | ||
| 13204-75070 |
2TRFE..TRH203..MA U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2TRFE..TRH213..GL..GEN;2TRFE..TRH223..(4FC,5F)..(ARL,RUS,TH);2TRFE..TRH203,213..(10S,16S)..(GCC,MA);1TRFE,2TRFE..TRH200,201,22#..(02S,06S,10S)..4FC |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0C030 |
2TRFE..TRH203..MA |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2TRFE..TRH203..MA L=23,OD=8,(J) |
3 | ||
| 90250-T0010 |
2TRFE..TRH203..MA L=23,OD=8 |
3 | ||
| 90250-T0010 |
2TRFE..TRH203..MA L=23,OD=8,(L) |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-T2004 |
2TRFE..TRH203..MA |
10 | ||
| 90910-02116 |
2TRFE..TRH203..MA (J) |
10 | ||
| 90910-T2004 |
2TRFE..TRH203..MA (L) |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0C021 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13401-75020 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13401-0C022 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0C020 |
2TRFE..TRH203..MA |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0C030 |
2TRFE..TRH203..MA |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
2TRFE..TRH203..MA (J) |
2 | ||
| 90280-T0003 |
2TRFE..TRH203..MA (L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
2TRFE..TRH203..MA (J) |
2 | ||
| 90280-T0003 |
2TRFE..TRH203..MA (L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16041 |
2TRFE..TRH203..MA (J) |
1 | ||
| 90109-T0038 |
2TRFE..TRH203..MA (L) |
1 | ||
| 90109-T0038 |
2TRFE..TRH203..MA |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13521-0C011 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13521-75021 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| 13621-75020 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13621-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13621-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13622 - BALANCESHAFT, NO.2 | ||||
| 13622-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13622-75020 |
2TRFE..TRH203..MA (J) |
1 | ||
| 13622-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-75010 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 13635 - SPACER, BALANCESHAFT THRUST | ||||
| 13635-0C010 |
2TRFE..TRH203..MA (L) |
1 | ||
| 13635-0C010 |
2TRFE..TRH203..MA |
1 | ||
| 13635-75010 |
2TRFE..TRH203..MA (J) |
1 | ||
| Common parts | ||||
| 90105-08323 | ||||
| 90105-T0118 | ||||
| 90105-T0255 | ||||
| 90119-T0342 | ||||
| 90281-03001 | ||||
| 91551-80814 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
