TRH203R-EDMDK (2006)

Toyota Hiace

Production Feb 2006 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0602-0709)KDH202,TRH203..HRF

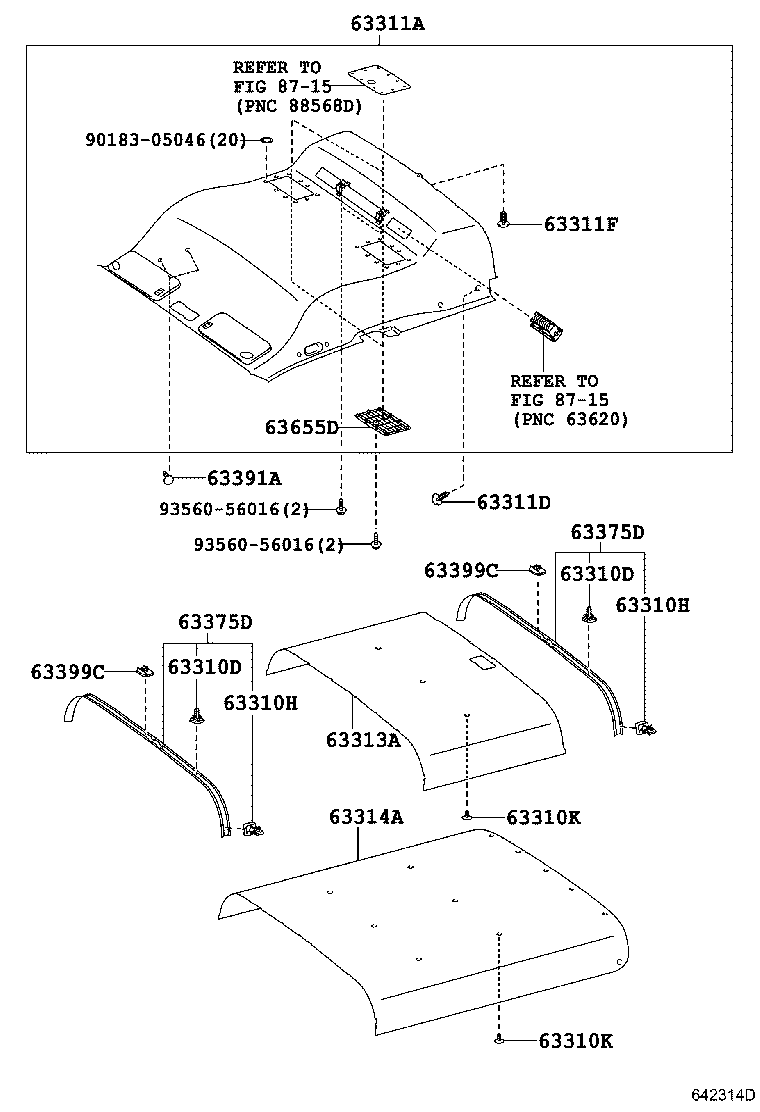

Click highlighted areas on diagram

diagram 63310D 63310D 63310H 63310H 63310K 63310K 63311A 63311D 63311F 63313A 63314A 63375D 63375D 63391A 63399C 63399C 63655D 8715 8715 9018305046 9356056016 9356056016
Part # Description Qty Price
63310H - CLIP(FOR ROOF HEADLINING)
63399-26060

KDH202,TRH203..HRF

 4
63310H - CLIP(FOR ROOF HEADLINING)
63399-26060

KDH202,TRH203..HRF

 4
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA)

LT.GRAY,TRIM1#

 4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221

LT.GRAY,TRIM1#

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5

KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA)

LT.GRAY,TRIM1#

 2
63655D - COVER, AIR INTAKE
63655-26020B0

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LT.GRAY,TRIM1#

 2
Common parts
90183-05046
93560-56016
Linked diagrams
8715
