TRH203L-REMDK (2005)
Toyota Hiace

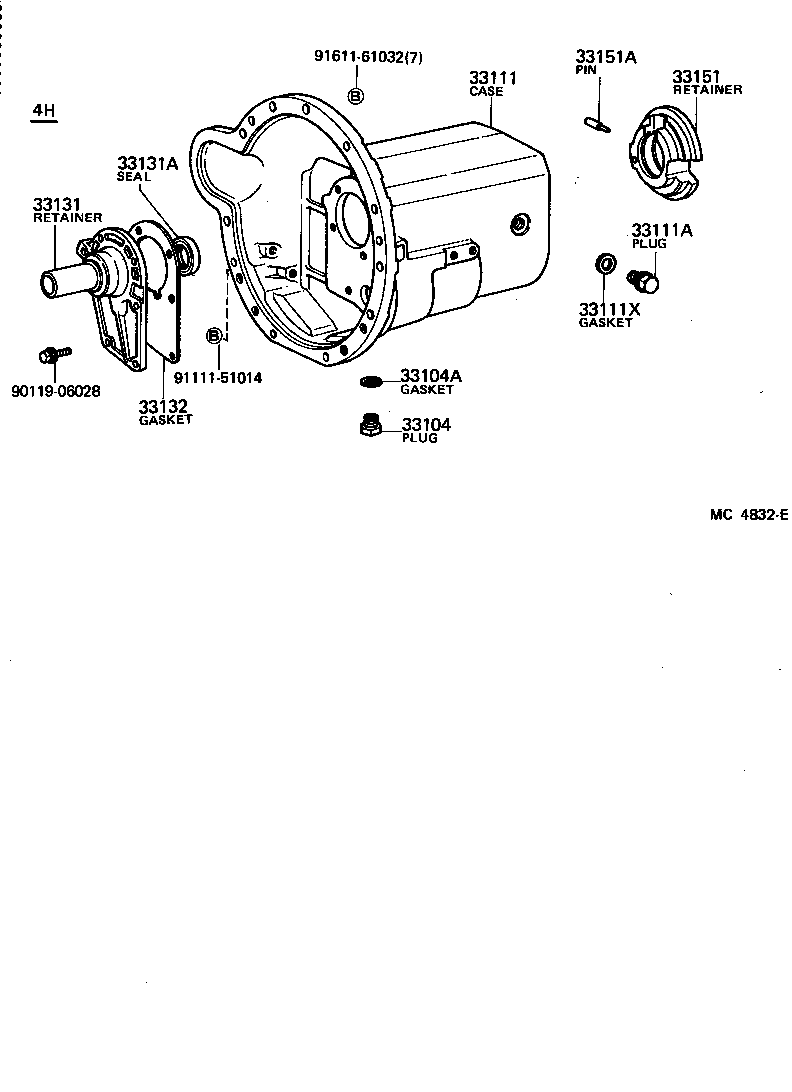

(7702- )RH11,20,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06028 | ||||
| 91111-51014 | ||||
| 91611-61032 | ||||

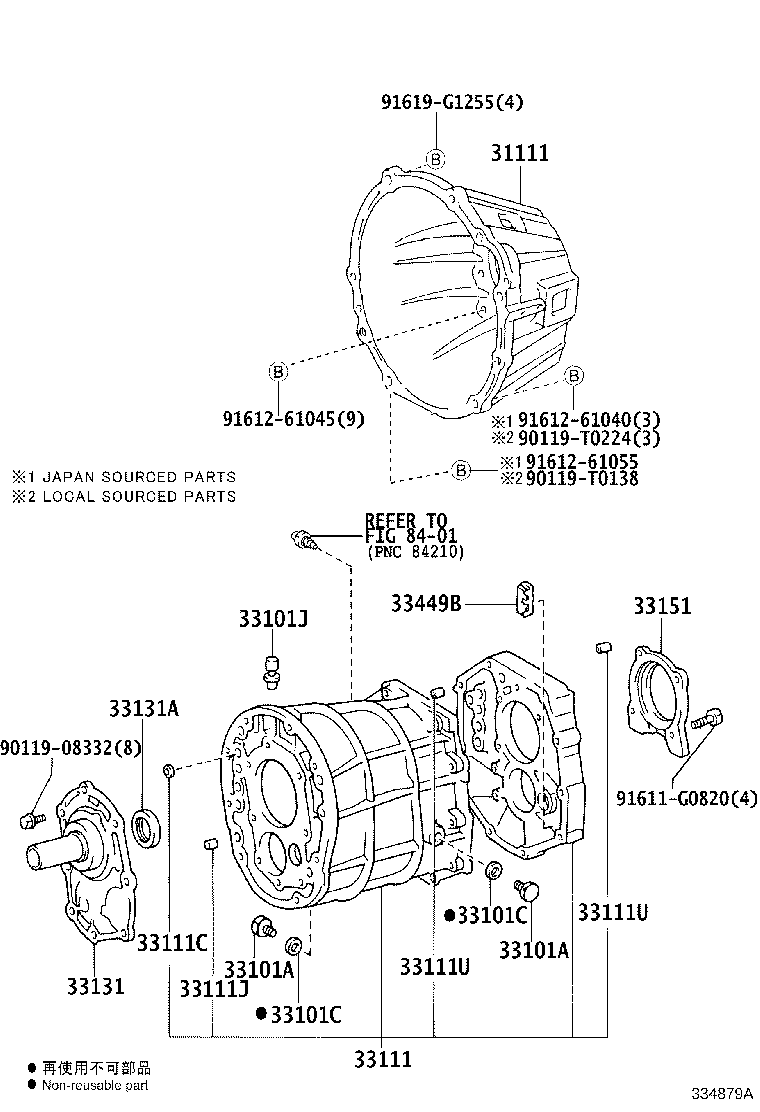

(0501- )TRH201,203,213,22#..5F
R351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-26100 |
TRH201,203,213,22#..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
2 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
2 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
2 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
2 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-26040 |
KDH20#,212,22#,TRH20#,213,22#..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41200 |
KDH20#,212,22#,TRH201,203,213,22#..5F OD=12 |
1 | ||
| 96411-41800 |
KDH20#,212,22#,TRH201,203,213,22#..5F OD=18 |
3 | ||
| 90331-14004 |
KDH202..GL..TH;KDH221..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;KDH202..LHD..12S..5F;TRH201,223..4D..SG..5F;TRH20#..4D..5F..(ARL,GCC,MA,SA);KDH220,TRH201..5D..5F..(GCC,GEN,SA);KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA,TH);KDH201,203,212,223,TRH213,221..(03S,06S,10S,11S,12S,14S,16S)..5F OD=14 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KDH20#,212,22#,TRH201,203,213,22#..5F L=16,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F L=11,OD=11 |
2 | ||
| 90253-15001 |
KDH20#,212,22#,TRH201,203,213,22#..5F L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F L=11,OD=11 |
2 | ||
| 90253-15001 |
KDH20#,212,22#,TRH201,203,213,22#..5F L=14,OD=15 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
KDH20#,212,22#,TRH20#,213,22#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35020 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KDH20#,212,22#,TRH201,203,213,22#..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0224 | ||||
| 91611-G0820 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61055 | ||||
| 91619-G1255 | ||||
| Linked diagrams | ||||
| 8401 | ||||

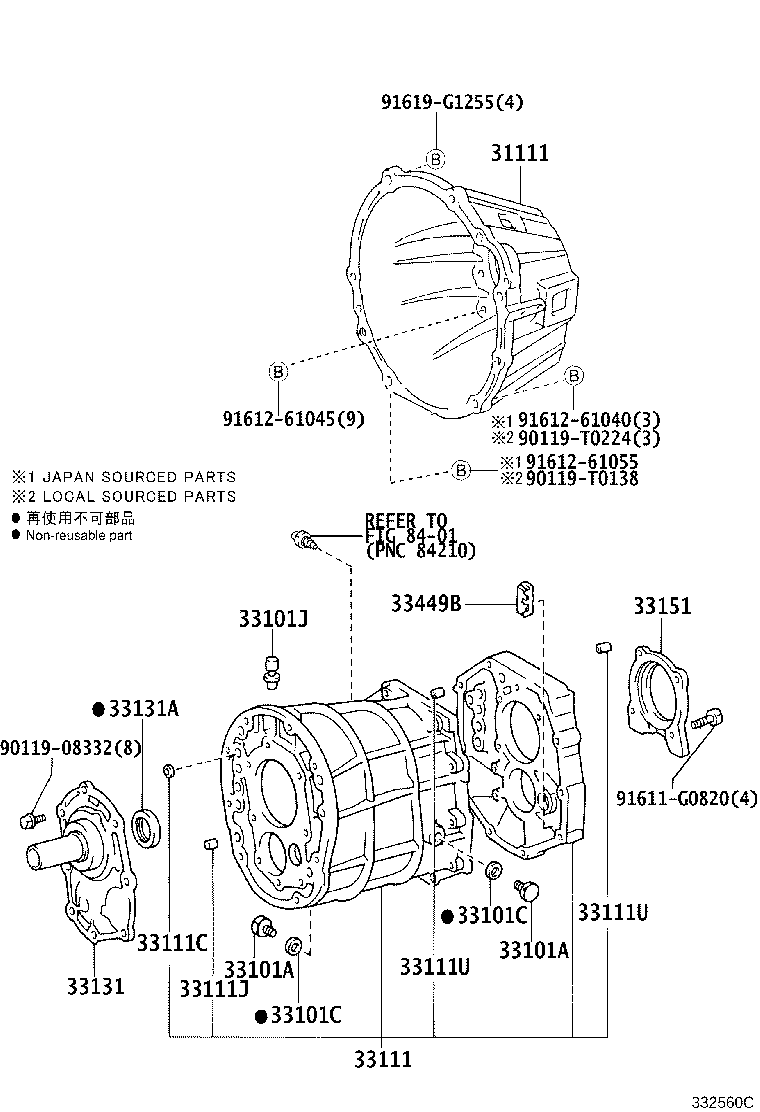

(1312- )TRH201,203,213,22#..5F
R351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0224 | ||||
| 91611-G0820 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61055 | ||||
| 91619-G1255 | ||||
| Linked diagrams | ||||
| 8401 | ||||
