TRH203L-REMDK (2005)
Toyota Hiace
(7702- )
| Part # | Description | Qty | Price |
|---|

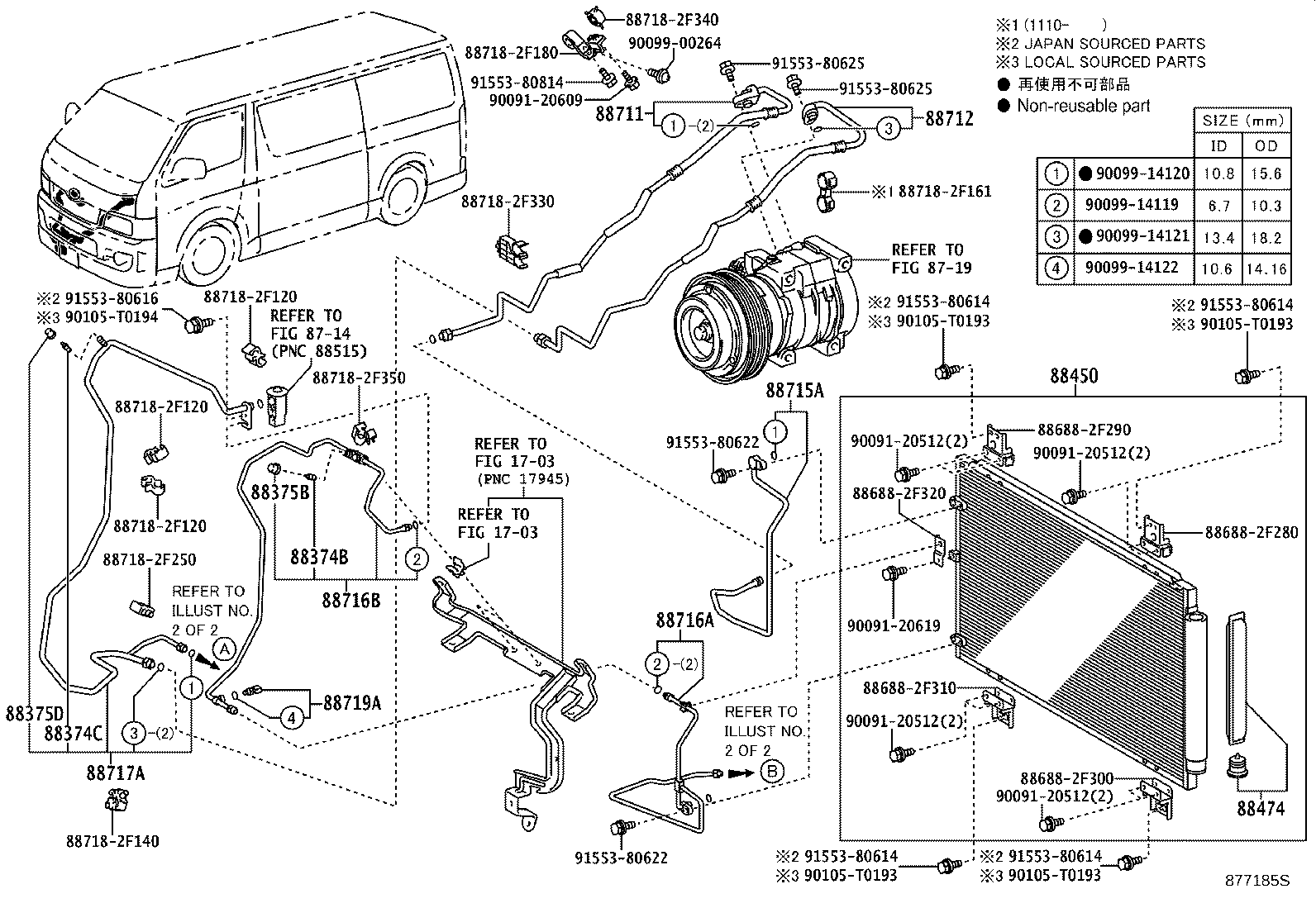

ILLUST NO. 1 OF 2(0610-1008)KDH201,203
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F130 |
TRH203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F151 |
KDH202,203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F131 |
TRH203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F310 |
KDH202,203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH202..LHD..12S..5F;KDH202,203..(14S,15S)..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712-2F150 |
TRH203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712-2F360 |
KDH202,203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N370 |
KDH202,203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716-2N130 |
KDH202..4FC;TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F730 |
TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717-2F840 |
KDH202,203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH202,203,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719-33020 |
KDH202,203,TRH203..GCC,GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||

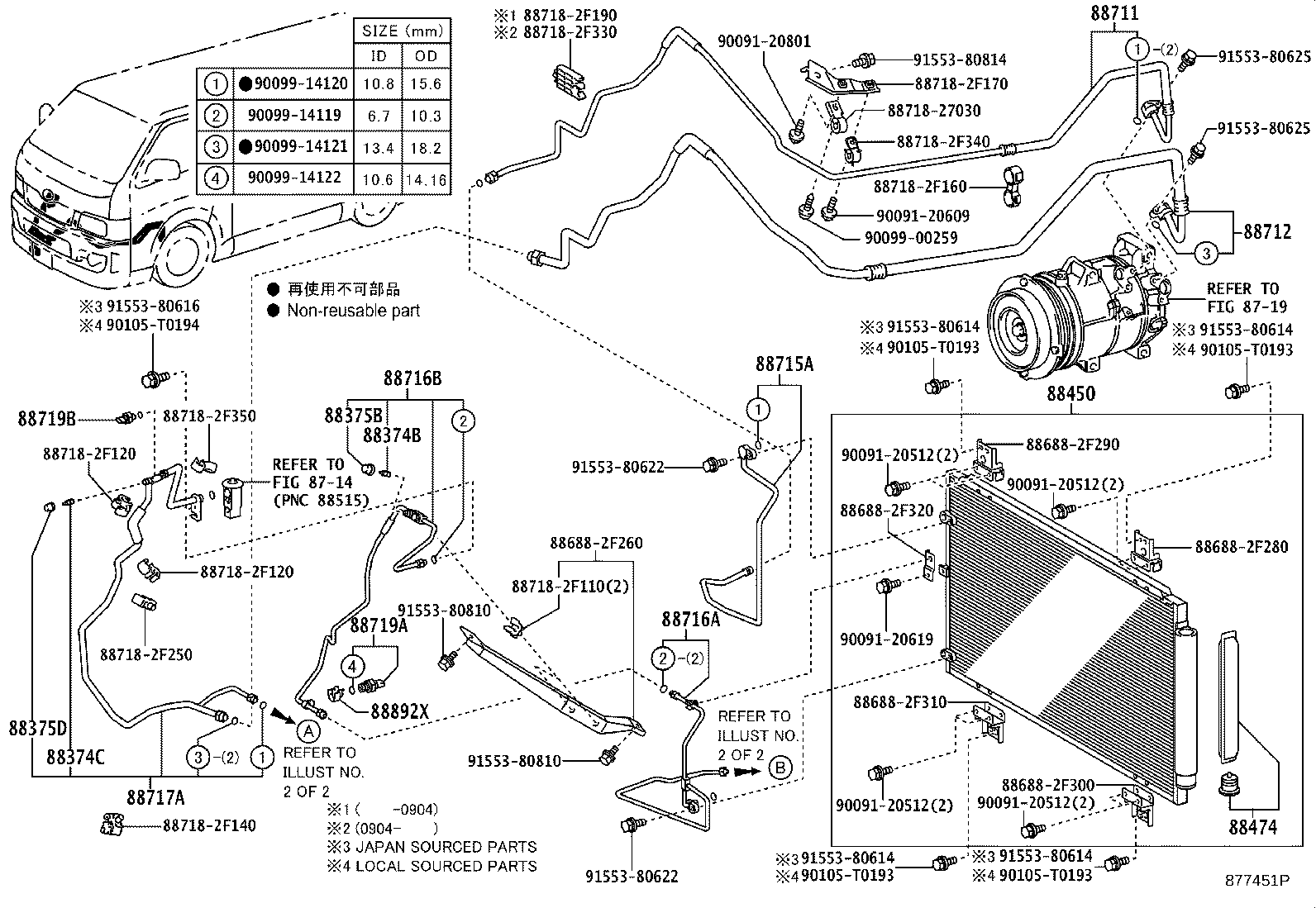

ILLUST NO. 1 OF 2(0501- )TRH201,203..LHD..SRF..GEN
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F130 |
TRH203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F151 |
KDH202,203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F131 |
TRH203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F310 |
KDH202,203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH202..LHD..12S..5F;KDH202,203..(14S,15S)..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712-2F150 |
TRH203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712-2F360 |
KDH202,203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N370 |
KDH202,203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716-2N130 |
KDH202..4FC;TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F730 |
TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717-2F840 |
KDH202,203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH202,203,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719-33020 |
KDH202,203,TRH203..GCC,GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719B - SENSOR, AIR CONDITIONER PRESSURE, NO.2 | ||||
| 88719-26020 |
TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH202,TRH203 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-27030 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F160 | ||||
| 88718-2F170 | ||||
| 88718-2F190 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(1008- )KDH201,203..LHD
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F130 |
TRH203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F151 |
KDH202,203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F131 |
TRH203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F310 |
KDH202,203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH202..LHD..12S..5F;KDH202,203..(14S,15S)..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712-2F150 |
TRH203..SRF..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712-2F360 |
KDH202,203..GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N370 |
KDH202,203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716-2N130 |
KDH202..4FC;TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F730 |
TRH203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717-2F840 |
KDH202,203..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH202,203,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88719-33020 |
KDH202,203,TRH203..GCC,GEN AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH202,TRH203 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 88718-2F490 | ||||
| 88718-2F500 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1312-2005)TRH201,203..LHD..GEN
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-27030 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
