TRH203L-REMDK (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

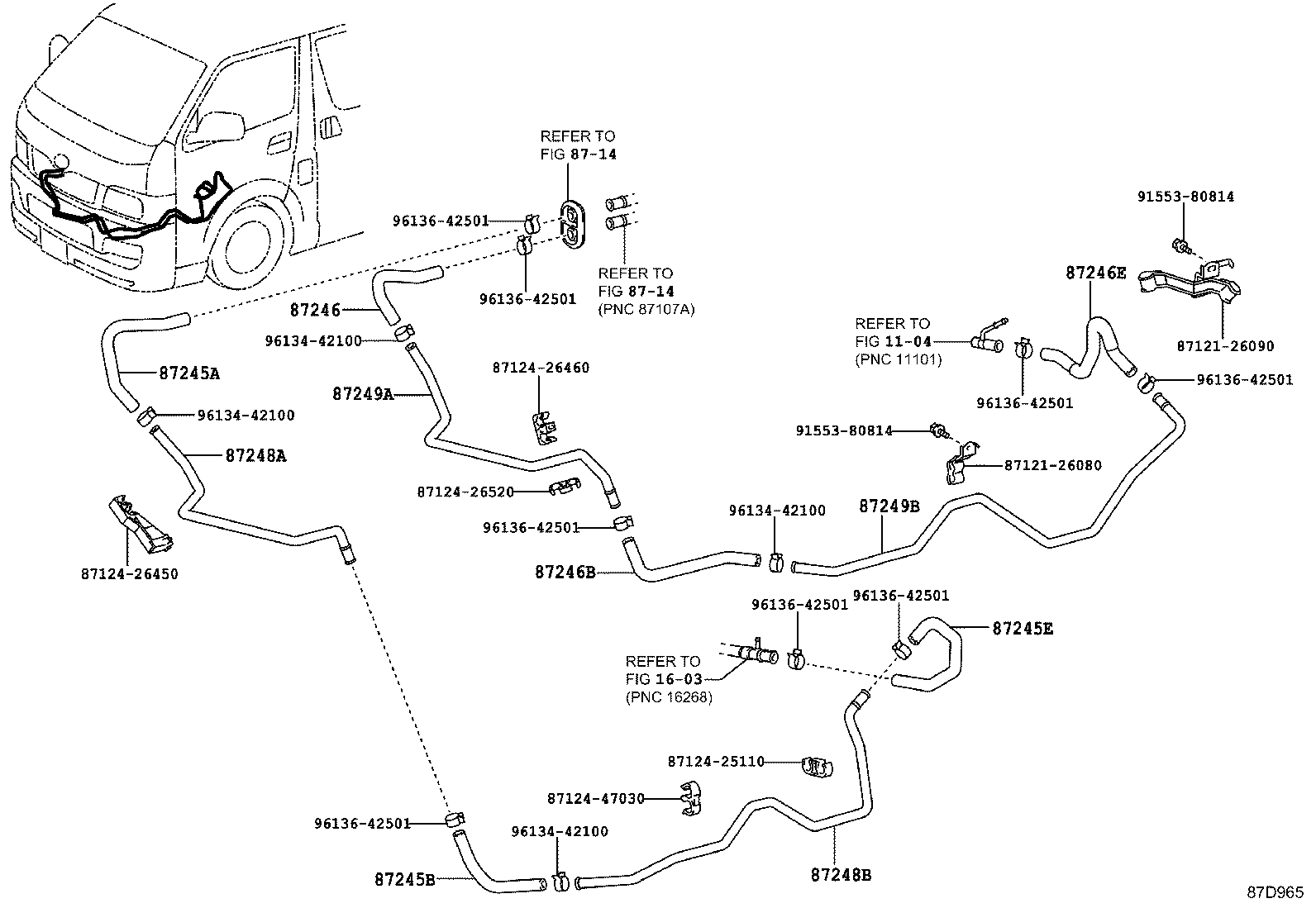

Click highlighted areas on diagram

diagram 87205 87205 87245A 87245A 87246A 87246A 87246E 87251 87251 87251 87265 8871414010 9017908123 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108458 9046108517 9046110240 9046110240 9046110240 9046110240 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9338518016 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
Common parts
88714-14010
90179-08123
90461-08157
90461-08458
90461-08517
90461-10240
91611-40814
91611-40816
93385-18016
96112-10250

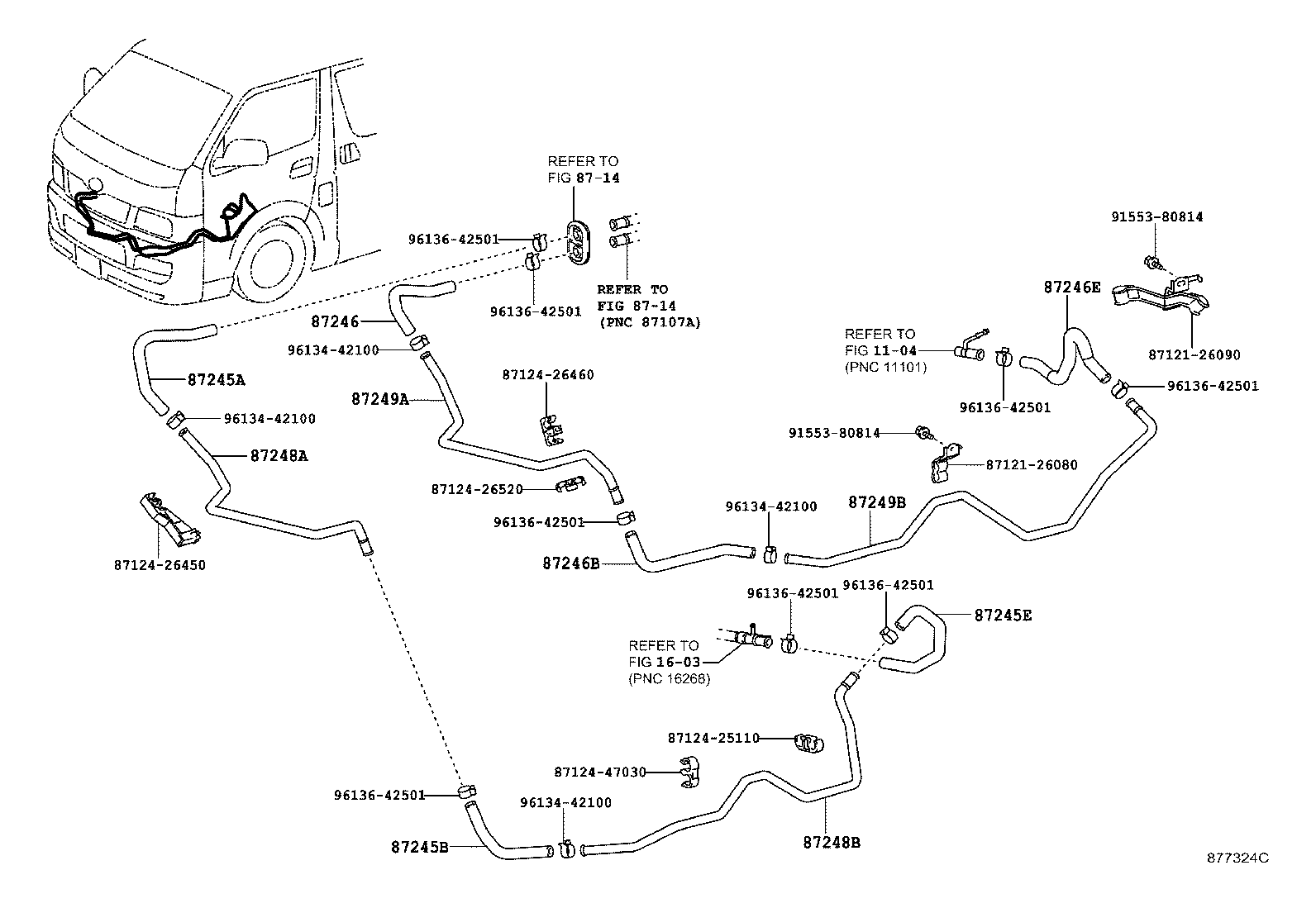

ILLUST NO. 1 OF 2(0501- )TRH201,203..LHD

Click highlighted areas on diagram

FRONT

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245E 87246 87246B 87246E 87248A 87248B 87249A 87249B 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B00

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26D70

KDH201,203..LHD

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B40

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B40

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C00

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B60

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C10

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C10

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26D80

KDH201,203..LHD

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C20

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26B70

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C30

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C30

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26420

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248-26850

KDH201,203..LHD

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX

 1
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX

 1
87248-26460

TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26480

TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87248-26553

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX

 1
87248-26553

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248-26860

KDH201,203..LHD

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26562

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26490

TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87248-26562

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26470

TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

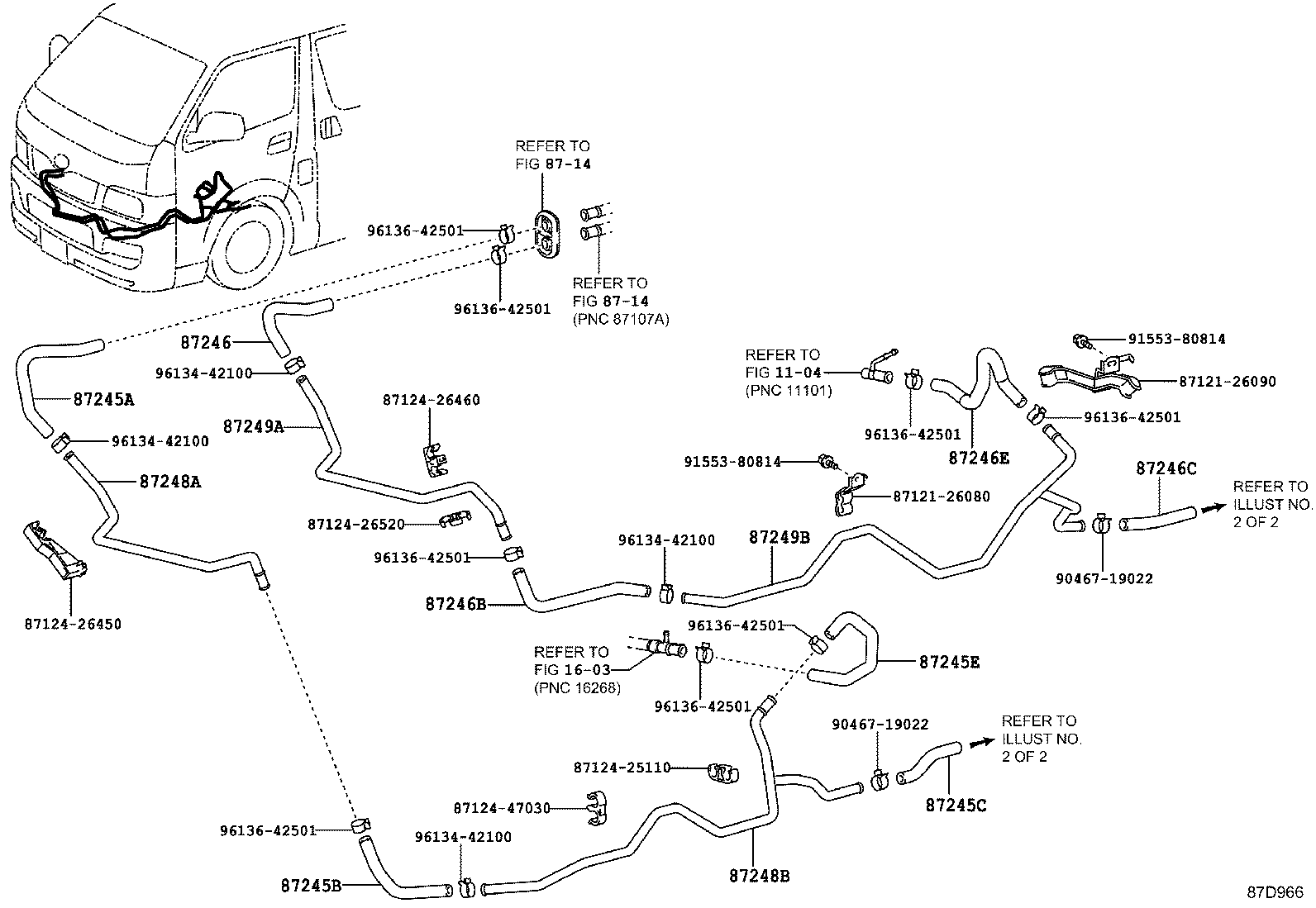

ILLUST NO. 1 OF 2(0501- )TRH203..LHD..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245C 87245E 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B00

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26D70

KDH201,203..LHD

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B40

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B40

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C00

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

*H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87209-26180

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

*H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
99556-20300

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

*H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B60

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C10

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C10

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26D80

KDH201,203..LHD

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C20

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

*H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
99556-20300

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

*H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
99556-20220

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

*H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26B70

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C30

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C30

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26420

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248-26850

KDH201,203..LHD

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX

 1
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX

 1
87248-26460

TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26480

TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87248-26553

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX

 1
87248-26553

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248-26860

KDH201,203..LHD

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26562

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26490

TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87248-26562

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26470

TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

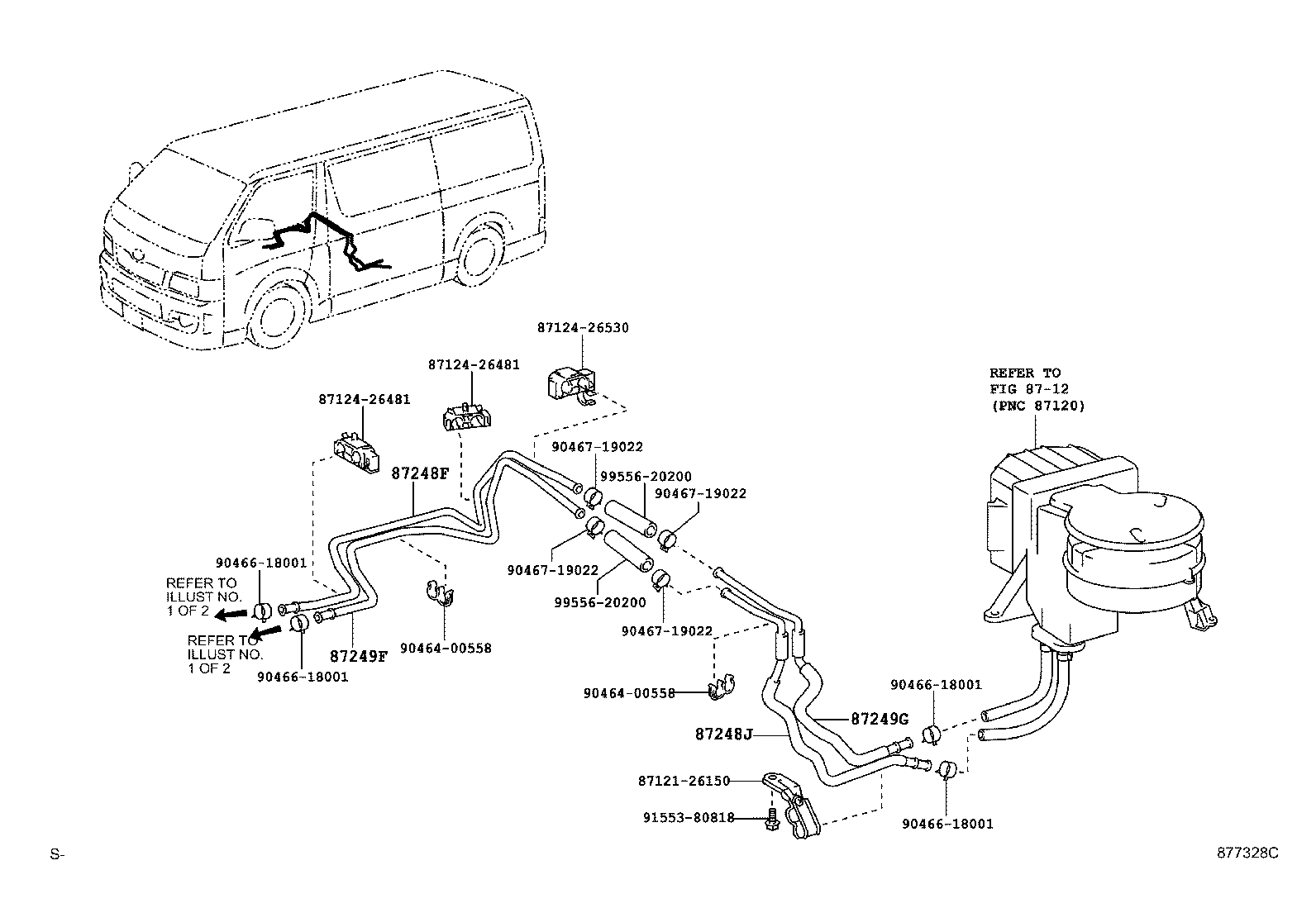

ILLUST NO. 2 OF 2(0501- )LHD..15S..GEN

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9046400558 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9955620200 9955620200
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26830

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248J - PIPE, HEATER WATER INLET, J
87248-26740

KDH202,LH202,TRH203..LHD..15S..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26750

KDH202,LH202,TRH203..LHD..15S..GEN

REAR HEATER-WITH(FLOOR SET)

 1
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

ILLUST NO. 1 OF 2(1008- )KDH201,203..LHD

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712126100 8712426460 8712426520 8714 8714 87245A 87245B 87245E 87246 87246B 87248A 87248B 87249A 8963926020 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B00

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26D70

KDH201,203..LHD

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B40

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B40

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C00

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B60

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C10

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C10

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26D80

KDH201,203..LHD

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C20

KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26420

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248-26850

KDH201,203..LHD

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX

 1
87248-26552

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX

 1
87248-26460

TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26480

TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87248-26553

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX

 1
87248-26553

KDH202,203..(12S,15S)..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248-26860

KDH201,203..LHD

FRONT HEATER-WITH

 1
Common parts
87121-26100
87124-26460
87124-26520
89639-26020
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1612)TRH201,203..LHD

Click highlighted areas on diagram

FRONT

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245E 87246 87246B 87246E 87248A 87248B 87249A 87249B 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

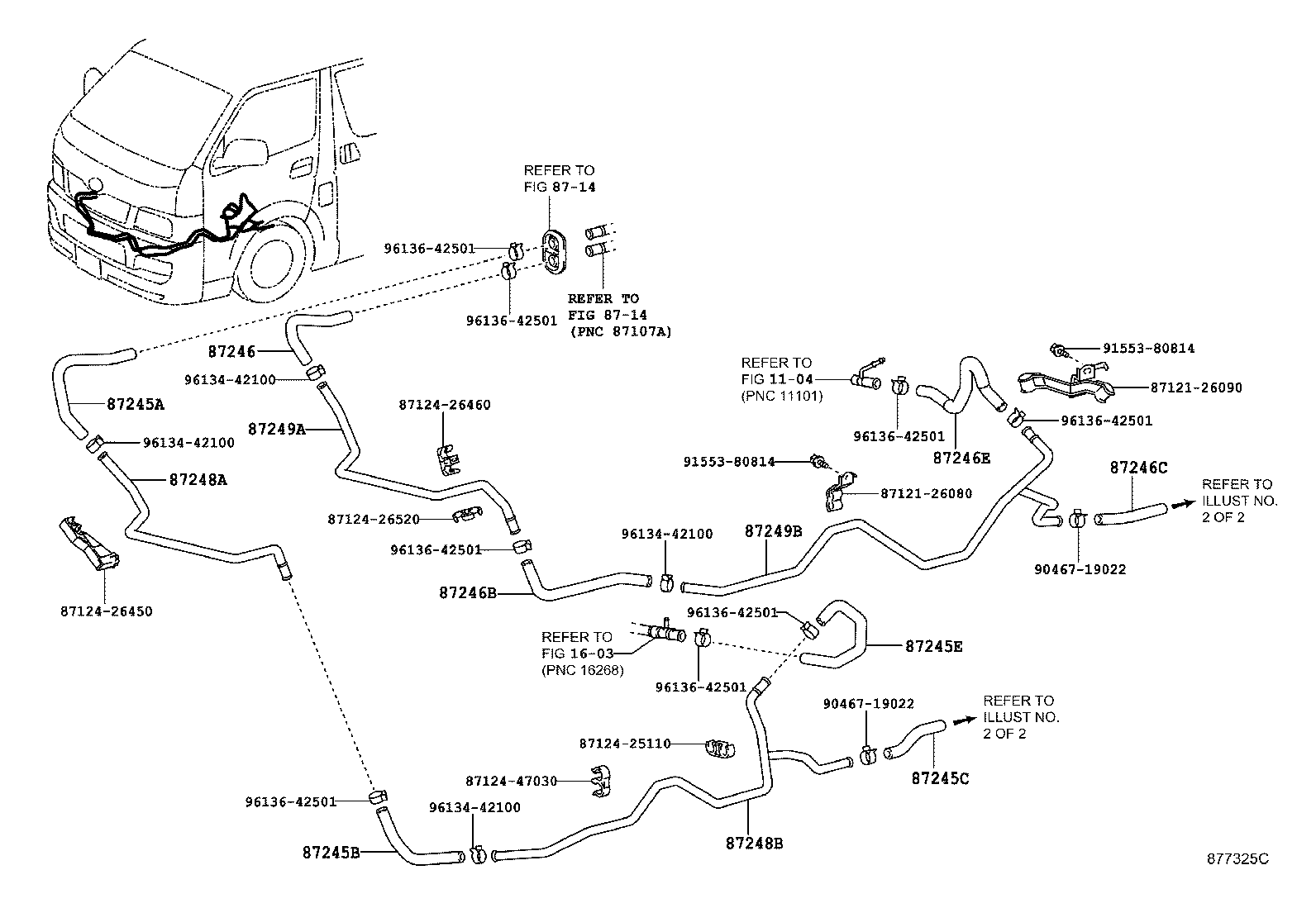

(1312-1612)TRH203..LHD..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245C 87245E 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714
