8405 - ELECTRONIC CONTROLED DIESEL (ECD)

TRH203L-REMDK (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

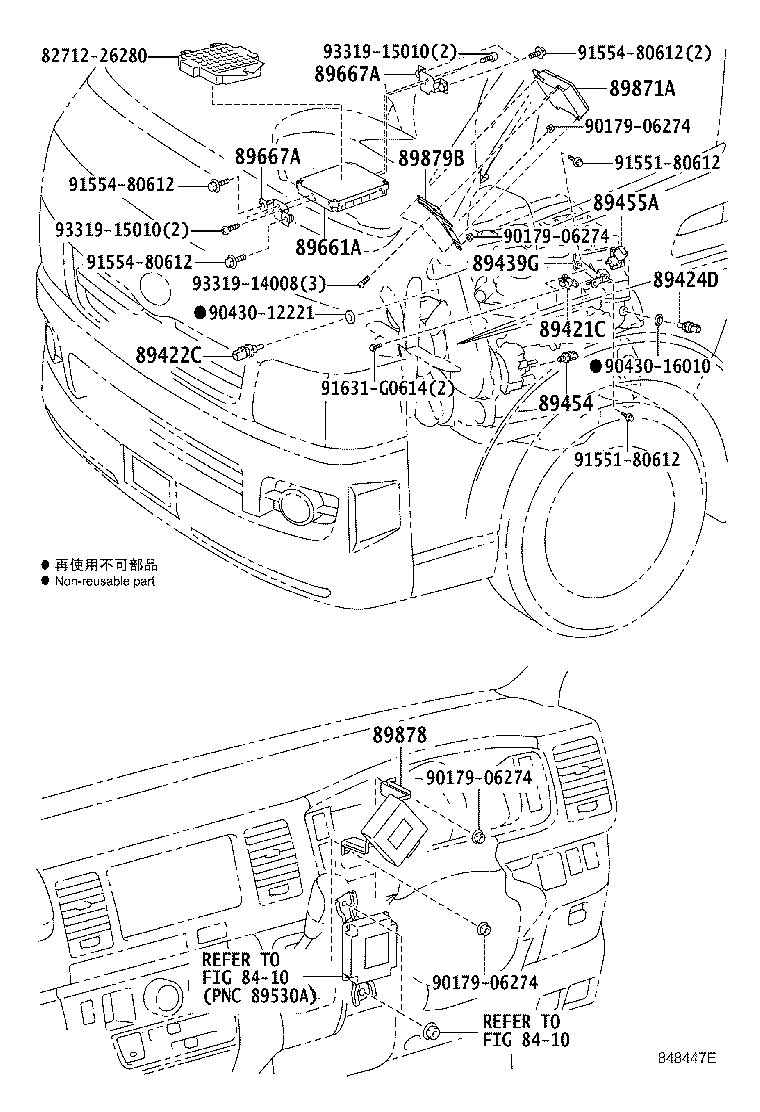

(0610-1008)KDH201,203,221,223

Click highlighted areas on diagram

Part #	Description	Period	Qty
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200	KDH201,203,221,223	10/2006 - 11/2006	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	KDH222..ARL,TH;KDH201,203,221,223;KDH220..RHD..(ARL,GEN)	01/2005 - 01/2014	1
89439G - BRACKET, SENSOR
89431-25010	KDH201,203,221,223	10/2006 - 08/2010	1
89455A - SENSOR, EGR VALVE POSITION
89455-35020	KDH201,203..LHD	01/2005 - 12/2012	1
89661A - COMPUTER, ENGINE CONTROL
89661-26C90	KDH201,203,221,223..5F	10/2006 - 06/2007	1
89661-26C91	KDH201,203,221,223..5F	06/2007 - 08/2010	1
89661-26F40	KDH201,203,221,223..5F	08/2010 - 09/2011	1
89661-26F41	KDH201,203..LHD	10/2011 - 12/2012	1
89661-26F20	KDH201,203..LHD	12/2012 - 12/2013	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26140	KDH221..ARL;KDH201,203,223	01/2005 - 08/2010	2
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26140	KDH221..ARL;KDH201,203,223	01/2005 - 08/2010	2
89871A - DRIVER, INJECTOR
89871-71020	KDH201,203,221,223	10/2006 - 08/2010	1
89871-25010	KDH201,203..LHD	01/2012 - 12/2012	1
89871-20080	KDH201,203..LHD	12/2012 - 01/2013	1
89871-25010	KDH201,203,221,223	08/2010 - 10/2011	1
89871-26030	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
89878 - DRIVER, TURBO MOTOR
89878-26030	KDH201,203..LHD	08/2010 - 12/2012	1
89878-26010	KDH201,203,221,223	10/2006 - 06/2009	1
89879B - BRACKET, INJECTOR DRIVER
89879-26050	KDH201,203..LHD	08/2010 - 12/2012	1
89879-26020	KDH221..ARL;KDH201,203,223	01/2005 - 08/2010	1
89879-26030	KDH201,203..LHD	12/2012 - 01/2013	1
89879-26060	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
Common parts
82712-26280
90179-06274
90430-12221
90430-16010
91551-80612
91554-80612
91631-G0614
93319-14008
93319-15010
Linked diagrams
8410

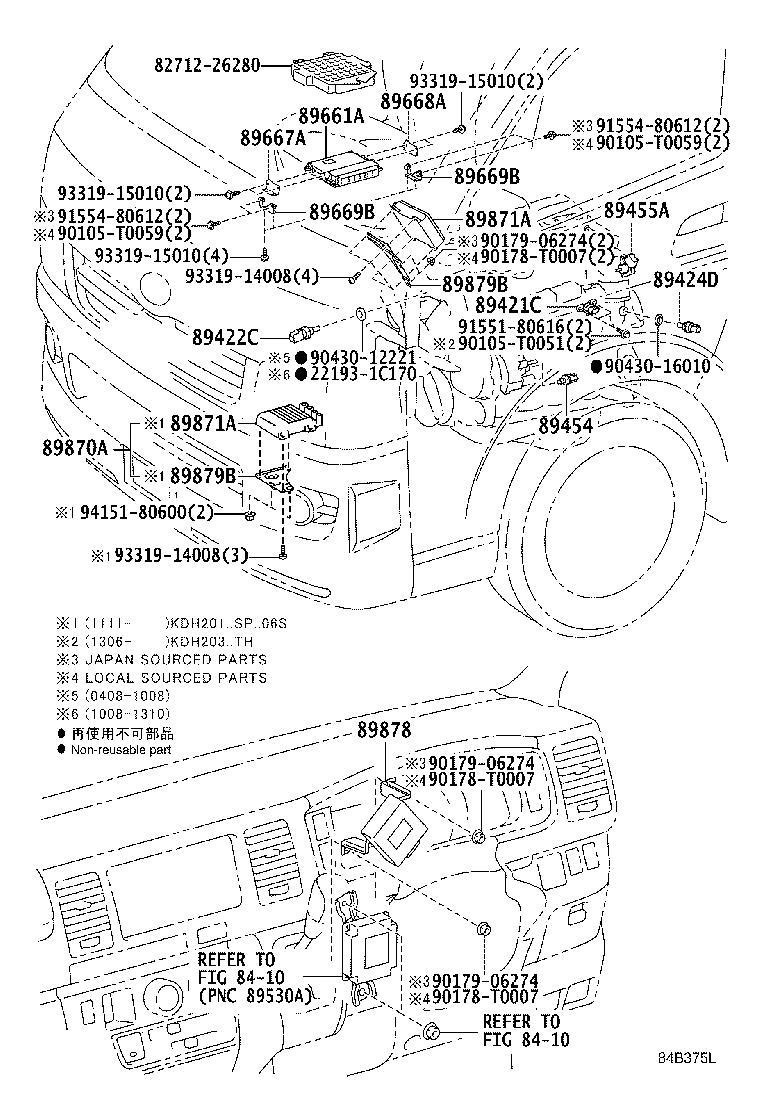

(1008- )KDH201,203,221,223

Click highlighted areas on diagram

Part #	Description	Period	Qty
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200	KDH201,203,221,223	10/2006 - 11/2006	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	KDH222..ARL,TH;KDH201,203,221,223;KDH220..RHD..(ARL,GEN)	01/2005 - 01/2014	1
89455A - SENSOR, EGR VALVE POSITION
89455-35020	KDH201,203..LHD	01/2005 - 12/2012	1
89661A - COMPUTER, ENGINE CONTROL
89661-26C90	KDH201,203,221,223..5F	10/2006 - 06/2007	1
89661-26C91	KDH201,203,221,223..5F	06/2007 - 08/2010	1
89661-26F40	KDH201,203,221,223..5F	08/2010 - 09/2011	1
89661-26F41	KDH201,203..LHD	10/2011 - 12/2012	1
89661-26F20	KDH201,203..LHD	12/2012 - 12/2013	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26140	KDH221..ARL;KDH201,203,223	01/2005 - 08/2010	2
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26140	KDH201,203,221,223	08/2010 - 12/2999	1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26100	KDH201,203,221,223	08/2010 - 08/2012	2
89669-26101	KDH201,203,221,223	09/2012 - 12/2999	2
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26100	KDH201,203,221,223	08/2010 - 08/2012	2
89669-26101	KDH201,203,221,223	09/2012 - 12/2999	2
89870A - DRIVER ASSY, INJECTOR
89870-26061	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
89871A - DRIVER, INJECTOR
89871-71020	KDH201,203,221,223	10/2006 - 08/2010	1
89871-25010	KDH201,203..LHD	01/2012 - 12/2012	1
89871-20080	KDH201,203..LHD	12/2012 - 01/2013	1
89871-25010	KDH201,203,221,223	08/2010 - 10/2011	1
89871-26030	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
89871A - DRIVER, INJECTOR
89871-71020	KDH201,203,221,223	10/2006 - 08/2010	1
89871-25010	KDH201,203..LHD	01/2012 - 12/2012	1
89871-20080	KDH201,203..LHD	12/2012 - 01/2013	1
89871-25010	KDH201,203,221,223	08/2010 - 10/2011	1
89871-26030	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
89878 - DRIVER, TURBO MOTOR
89878-26030	KDH201,203..LHD	08/2010 - 12/2012	1
89878-26010	KDH201,203,221,223	10/2006 - 06/2009	1
89879B - BRACKET, INJECTOR DRIVER
89879-26050	KDH201,203..LHD	08/2010 - 12/2012	1
89879-26020	KDH221..ARL;KDH201,203,223	01/2005 - 08/2010	1
89879-26030	KDH201,203..LHD	12/2012 - 01/2013	1
89879-26060	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
89879B - BRACKET, INJECTOR DRIVER
89879-26050	KDH201,203..LHD	08/2010 - 12/2012	1
89879-26020	KDH221..ARL;KDH201,203,223	01/2005 - 08/2010	1
89879-26030	KDH201,203..LHD	12/2012 - 01/2013	1
89879-26060	KDH201,203..LHD;KDH201..SP..06S	01/2013 - 12/2999	1
Common parts
22193-1C170
82712-26280
90105-T0051
90105-T0059
90178-T0007
90179-06274
90430-12221
90430-16010
91551-80616
91554-80612
93319-14008
93319-15010
94151-80600
Linked diagrams
8410

TRH203L-REMDK (2005)

(0610-1008)KDH201,203,221,223

(1008- )KDH201,203,221,223
